ADAMS RITE Armlock 261 Series Double Magnet

Adams Rite More Adams Rite Slim Line

From

£412.80

Select size, finish, and quantity from the variant table.

View options

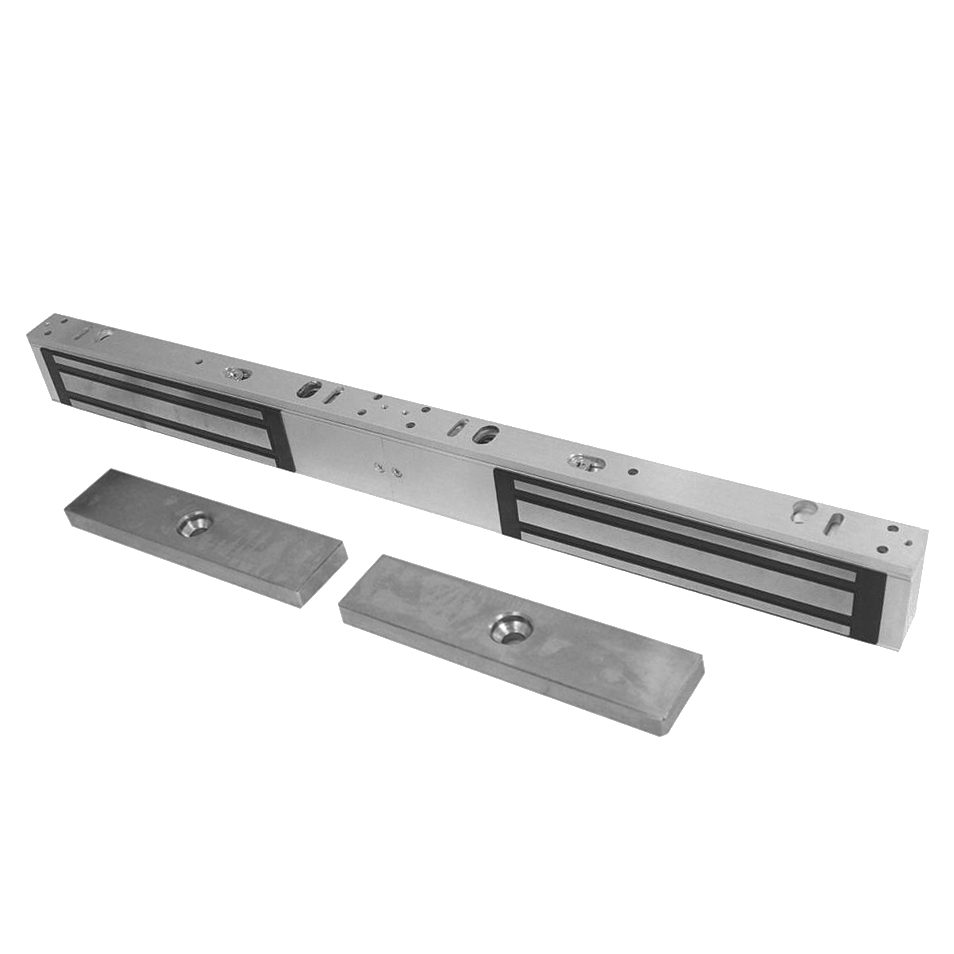

The Adams Rite Armlock 261 Series Double Magnet is a high-quality, surface-mounted electromagnetic locking solution designed specifically for double doors. Combining a compact case size with clean, modern aesthetics, this double magnet is ideal for facilitating remote access and exit control on outward opening timber, aluminium, or steel doors.

Operating on a fail-unlocked (fail-safe) mechanism, the Armlock 261 ensures that doors will automatically unlock in the event of a power failure, maintaining vital emergency escape routes. Each magnet provides a robust holding force of at least 250kg (550lbs) per door, offering reliable security for commercial and public buildings.

This versatile double magnet is available in multiple configurations to suit your specific security requirements. You can choose between monitored (featuring a Hall Effect monitoring sensor) and non-monitored versions, which also vary in weight (3.6kg or 3.8kg) and manufacturer reference (261-200 or 261-205). Please select your preferred monitoring option, weight, manufacturer reference, and barcode from the options below.

Technical Specifications

Brand: Adams Rite
Finish: Satin An Anodised Aluminium
Fitting: Surface mounted
Operation: Fail unlocked (fail-safe)
Holding Force: 250kg (550lbs) per door
Input Voltage: 12/24V DC
Current Consumption: 0.96A at 12V DC / 0.48A at 24V DC
Magnet Dimensions: 500mm (L) x 42mm (H) x 25mm (D)
Armature Dimensions: 160mm (L) x 36mm (H) x 11.3mm (D)
Material: Aluminium
Suitable Doors: Outward opening timber, aluminium, or steel double doors
Guarantee: 3 Years
Monitored Option: Yes or No (please choose from the options below)
Weight: 3.6kg or 3.8kg (please choose from the options below)
Manufacturer Reference: 261-200 or 261-205 (please choose from the options below)
Barcode: 5055120600819 or 5055120600833 (please choose from the options below)

Key Features

Fail Unlocked Operation: Automatically releases during a power cut to ensure safe emergency egress.
High Holding Force: Delivers a minimum of 250kg (550lbs) holding force per door for reliable security.
Aesthetic & Compact Design: Combines a slimline, compact case size with a clean satin anodised aluminium finish.
Versatile Application: Suitable for surface mounting on outward opening timber, aluminium, or steel double doors.
Flexible Monitoring: Available in both monitored and non-monitored options to suit your access control system.
CE Marked: Fully compliant with relevant European safety standards.
