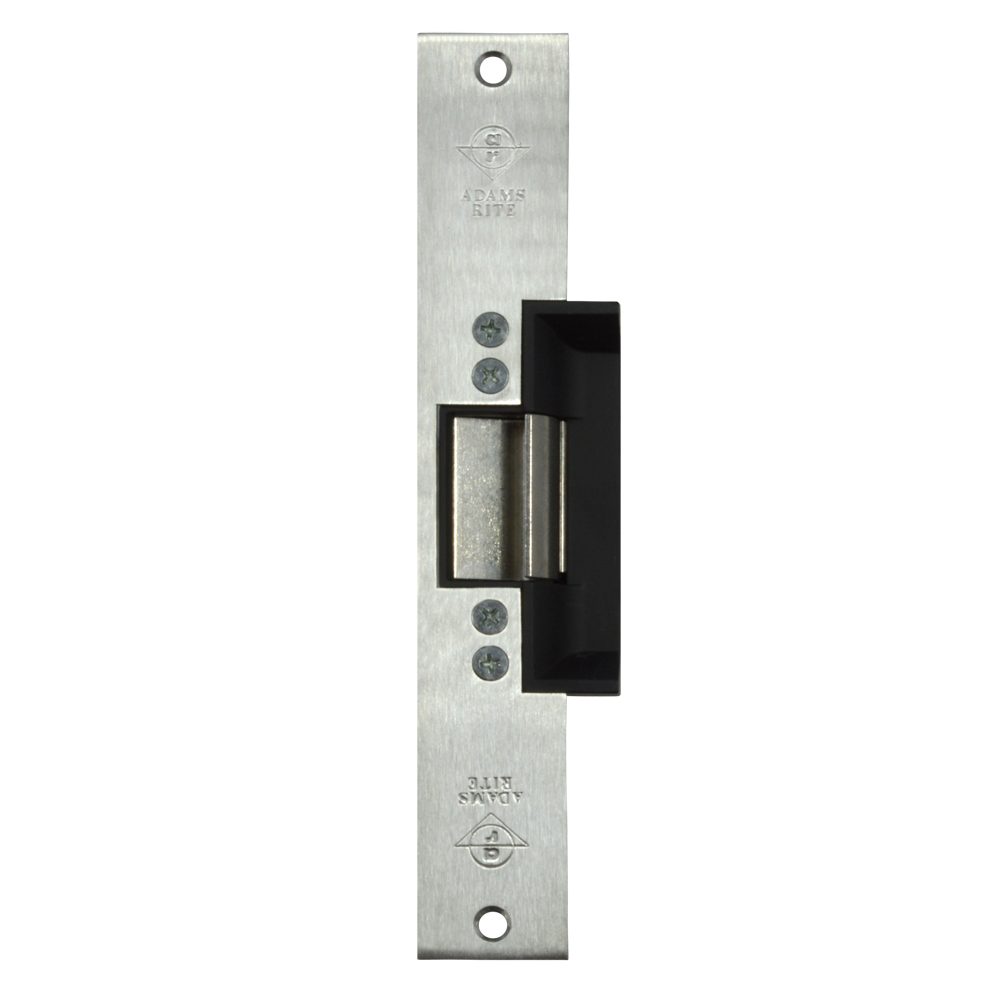

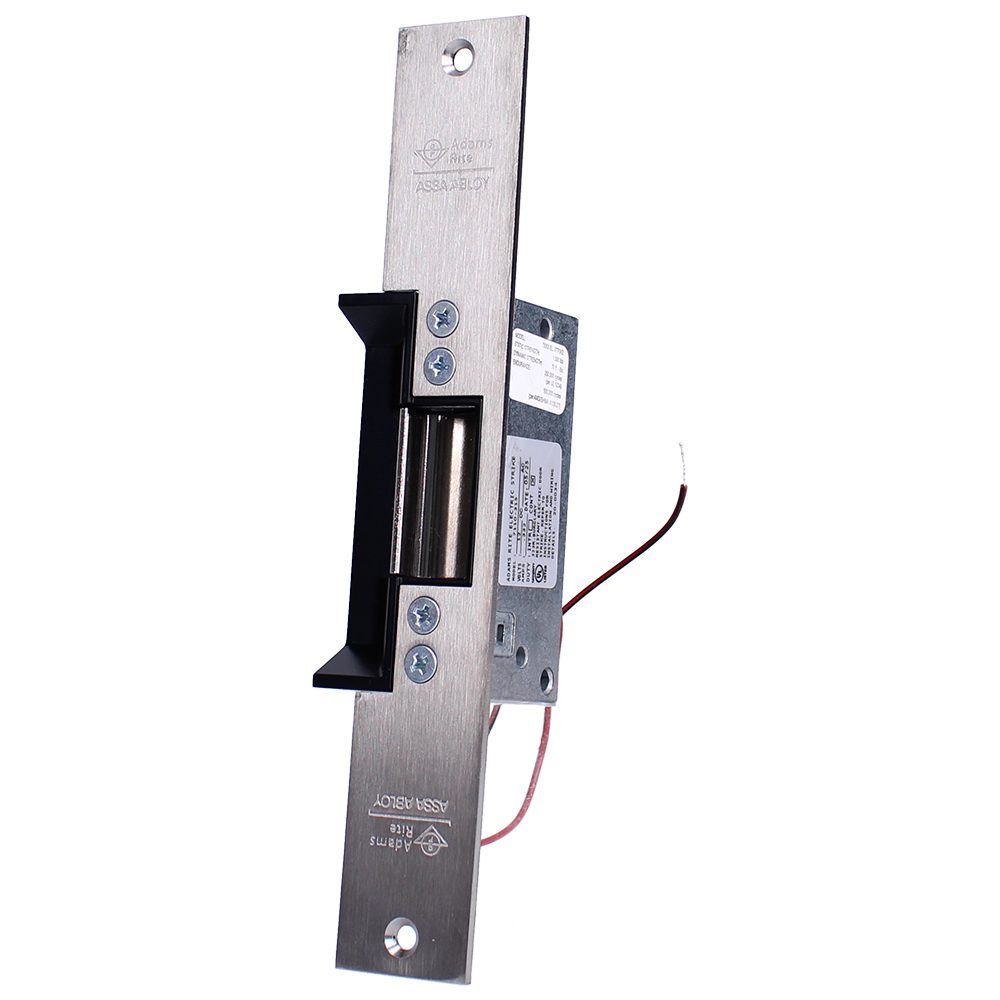

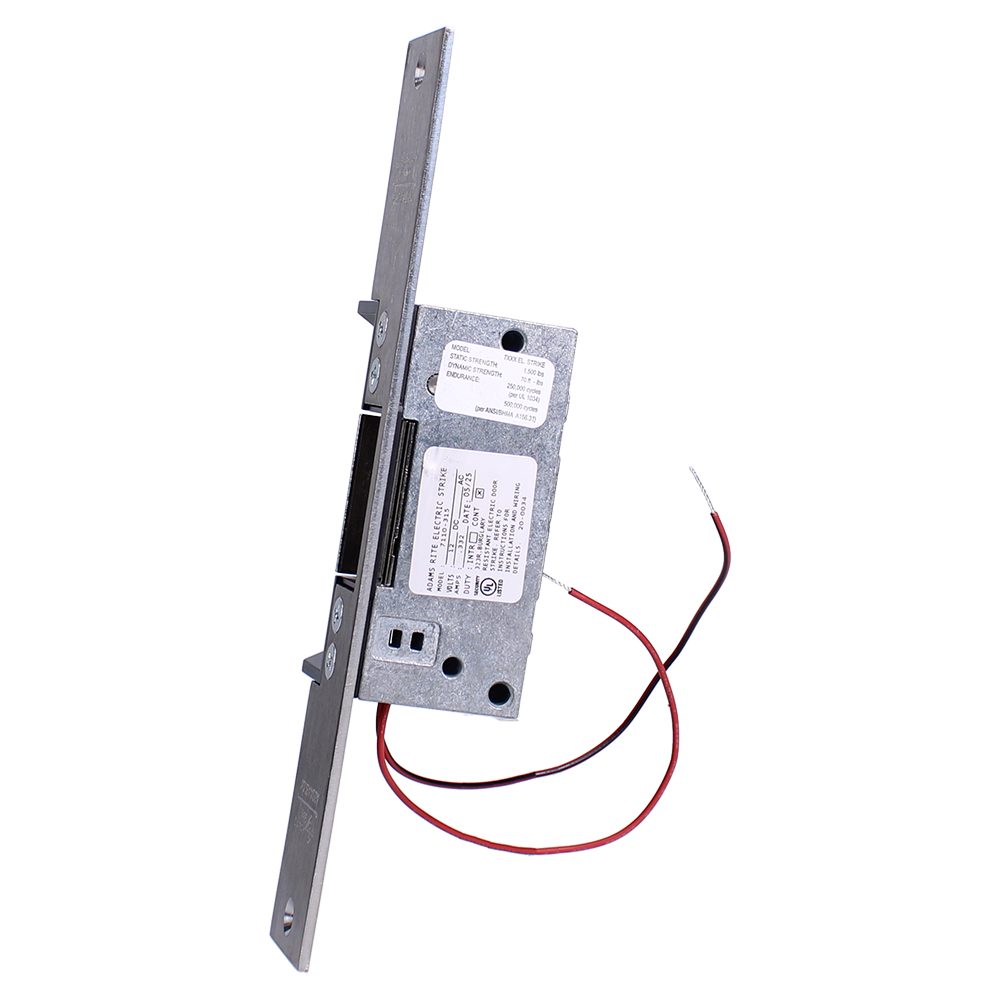

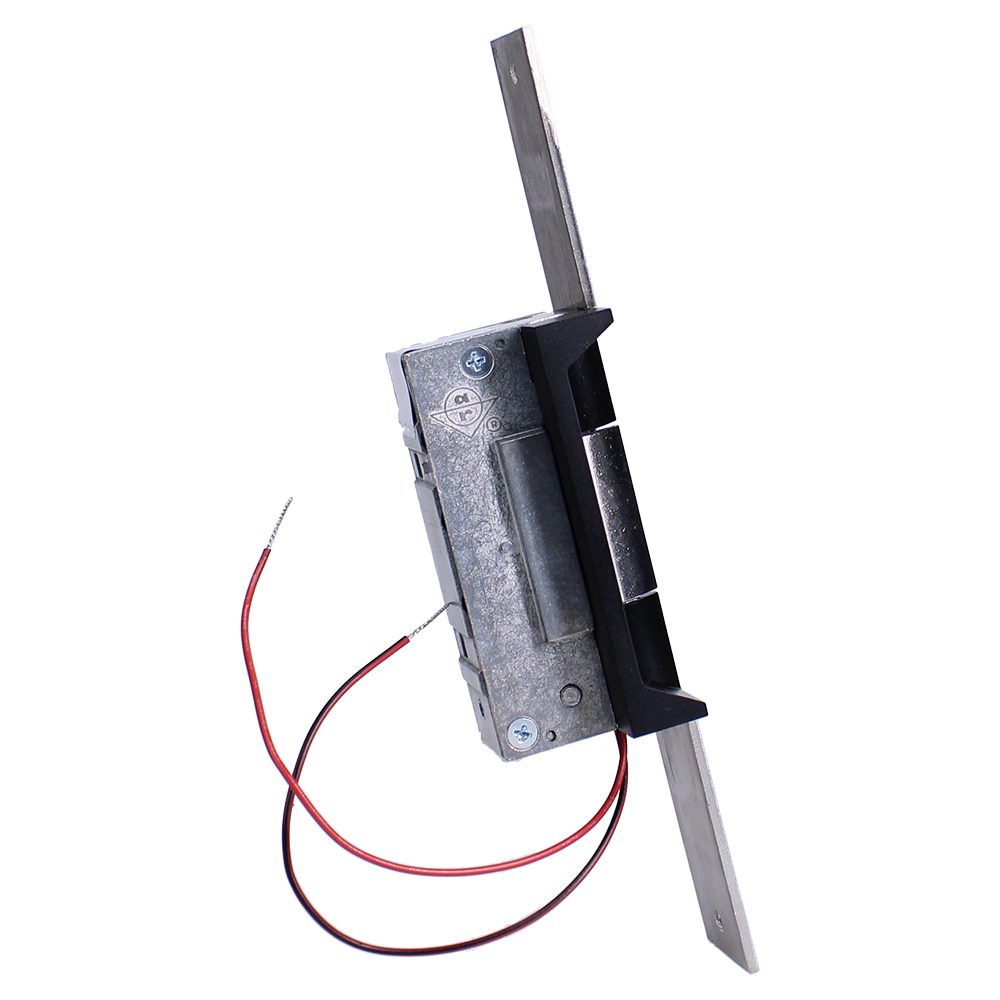

ADAMS RITE 7113 Series Mortice Release Timber

The Adams Rite 7113 Series Mortice Release is an un-monitored electric strike designed specifically for remote access control on timber doors. Featuring a narrow faceplate, it is ideal for installation on 44mm thick timber door frames and is compatible with Adams Rite 4700 series (or similar) deadlatches.

With a robust holding force of 907kg (2000lbs), this medium-duty release offers high-security performance. It is non-handed, allowing for easy installation on both left and right-handed doors.

This electric strike is available in several configurations to suit your specific security and power requirements. Please choose from the options below to select your required input voltage (12V AC, 12V DC, or 24V DC) and operation type (Fail Locked or Fail Unlocked). Depending on your selection, current consumption ranges from 0.19A to 1.48A, and weights range from 550g to 560g.

Technical Specifications

• Brand: Adams Rite
• Fitting: Mortice
• Faceplate Dimensions: 202mm (H) x 31mm (W)
• Body Dimensions: 85mm (H) x 25mm (D)
• Jaw Dimensions: 35mm (H) x 15mm (W) x 12mm (D)
• Holding Force: 907kg (2000lbs)
• Finish: Stainless Steel
• Adjustable Jaw: No
• Weather Resistant: No
• Input Voltage: 12V AC, 12V DC, or 24V DC (please choose from the options below)
• Operation: Fail Locked or Fail Unlocked (please choose from the options below)
• Current Consumption: 0.19A, 0.332A, or 1.48A (depending on selection)
• Weight: 550g - 560g (depending on selection)
• Manufacturer Reference: 7113-310-652, 7113-315-652, 7113-340-652, or 7113-515-652 (please choose from the options below)
• Guarantee: 3 Year

Key Features

• Timber Door Compatibility: Features a narrow, long faceplate specifically designed to suit 44mm thick timber door frames.
• High Security: Offers a strong holding force of 907kg (2000lbs) for reliable access control.
• Versatile Operation: Non-handed design allows for installation on both left and right-handed doors.
• Deadlatch Integration: Ideal for remote use access control of doors equipped with Adams Rite 4700 series or similar deadlatches.
• Continuously Rated: 12V DC and 24V DC options are continuously rated.
• Manufacturer Guarantee: Backed by a 3-year manufacturer guarantee.
