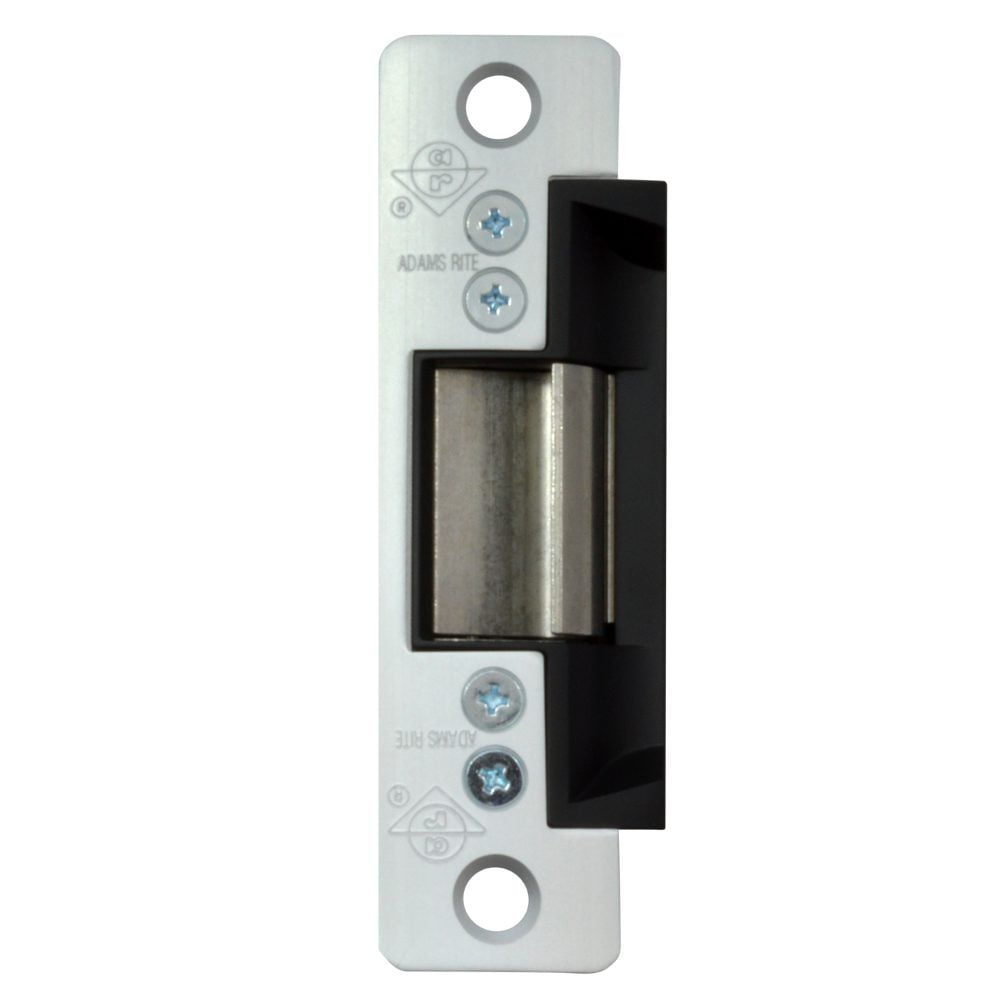

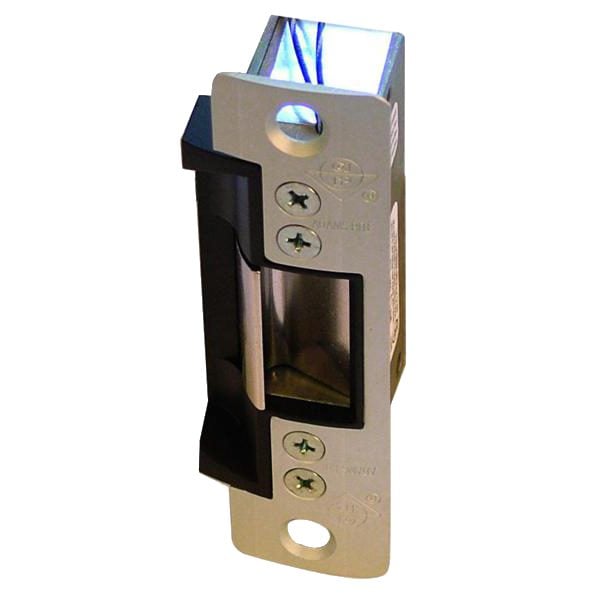

ADAMS RITE 7101 Series Mortice Release Radius

The Adams Rite 7101 Series Mortice Release is a medium-duty electric strike designed for aluminium, hollow metal, or timber doors. It is engineered for doors fitted with Adams Rite 4500, 4700, or 4900 deadlatches, or cylindrical locksets with a 12.7mm to 15.9mm latchbolt projection. Electrical actuation unlocks the keeper, allowing the door to be opened without operating the latch itself.

Featuring a short, radiused faceplate, this mortice release is ideal for double leaf aluminium doors, matching the nose on the inactive leaf of narrow stile doors. The compact mechanism fits easily into shallow frame sections.

This series is available in several configurations to suit your installation requirements. Please select from the options below to choose your preferred manufacturer reference, input voltage (12V AC or 12V DC), operation mode (Fail Locked or Fail Unlocked), current consumption (0.332A or 1.48A), and corresponding weight (ranging from 450g to 470g).

Technical Specifications

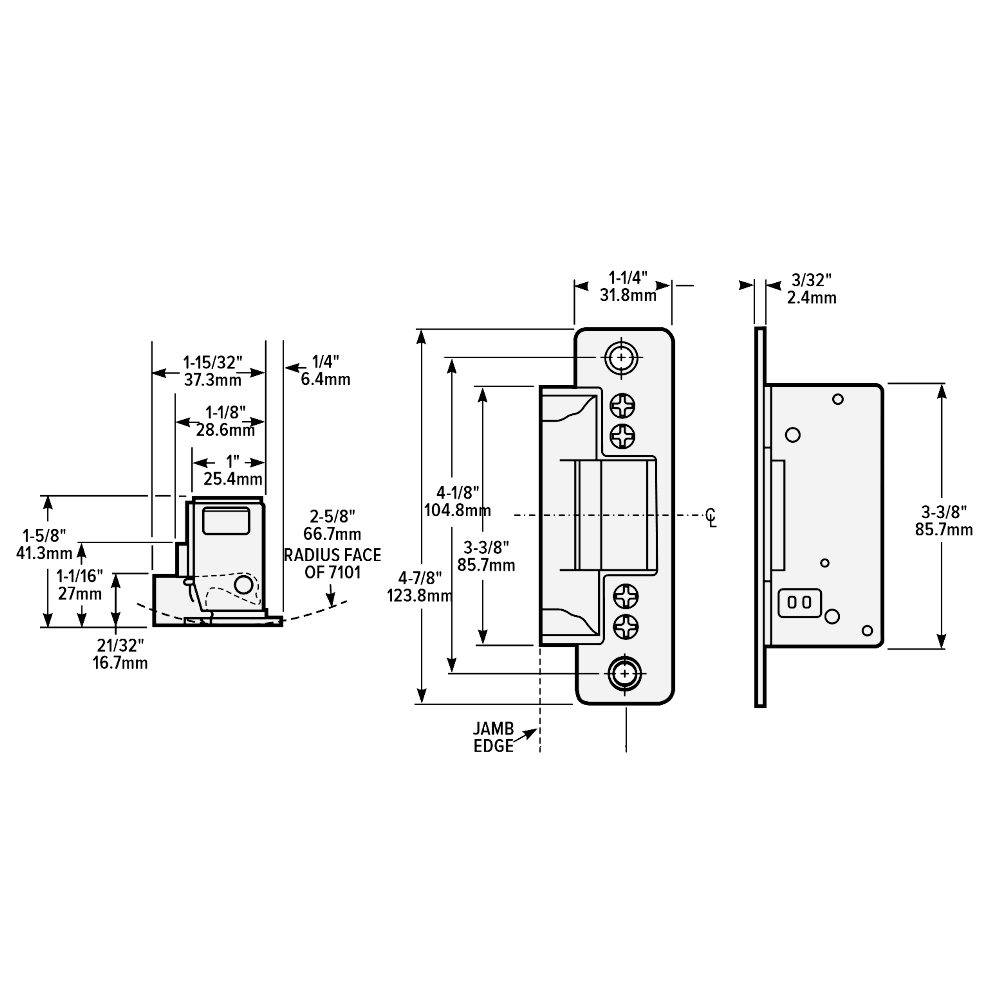

• Faceplate Dimensions: 123mm (H) x 32mm (W)
• Body Dimensions: 85mm (H) x 25mm (D)
• Jaw Dimensions: 35mm (H) x 15mm (W) x 12mm (D)
• Holding Force: 907kg (2000lbs)
• Finish: Satin Anodised Aluminium
• Fitting: Mortice
• Input Voltage: 12V AC or 12V DC (please choose from the options below)
• Operation: Fail Locked or Fail Unlocked (please choose from the options below)
• Current Consumption: 0.332A or 1.48A (please choose from the options below)
• Weight: 450g to 470g (please choose from the options below)
• Adjustable Jaw: No
• Monitored: No
• Weather Resistant: No
• Guarantee: 3 Year

Key Features

• Radius Faceplate: Specifically designed to suit double leaf aluminium doors and narrow stile frames.
• Medium Duty Performance: Provides a robust holding force of up to 907kg (2000lbs).
• Flexible Operation: DC releases are field-reversible between fail locked and fail unlocked.
• Continuously Rated: DC releases are continuously rated for silent, reliable operation.
• Seamless Compatibility: Works with Adams Rite 4500, 4700, and 4900 deadlatches or cylindrical locksets.
