ADAMS RITE 7100 Mortice Release Flat Aluminium

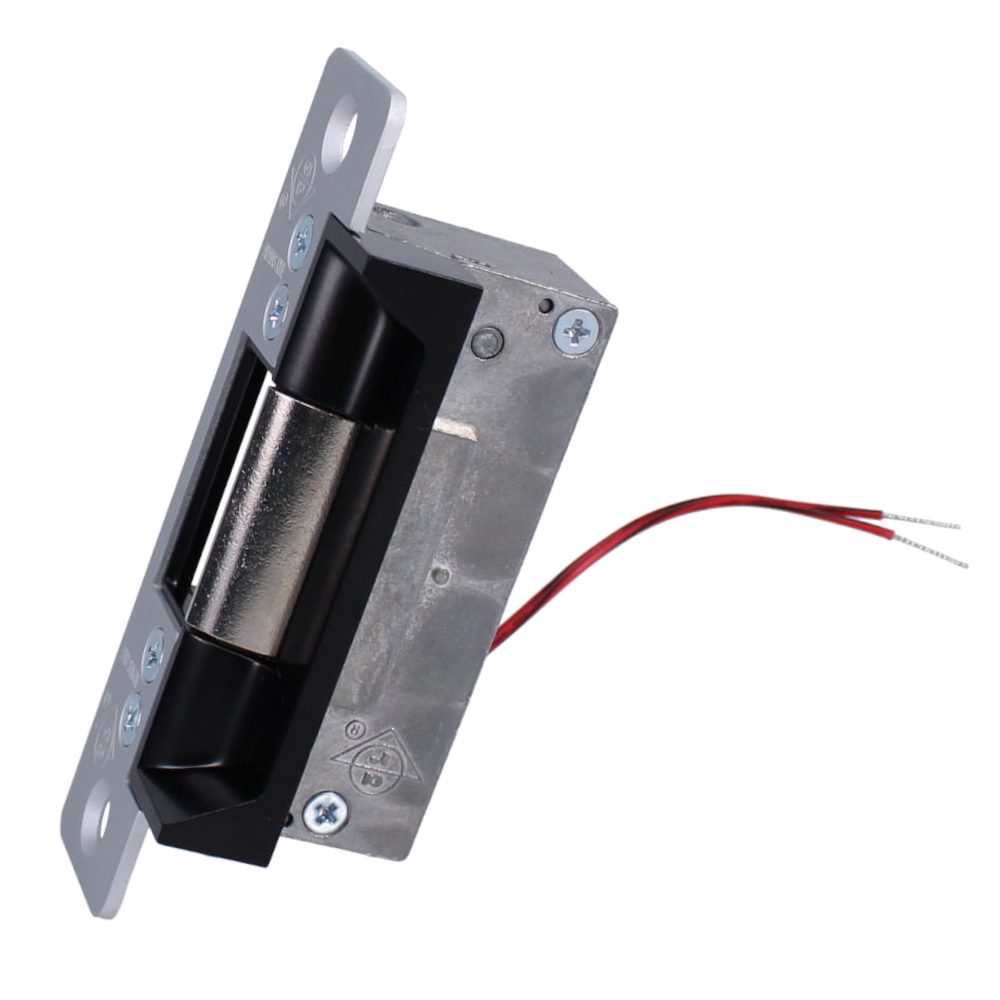

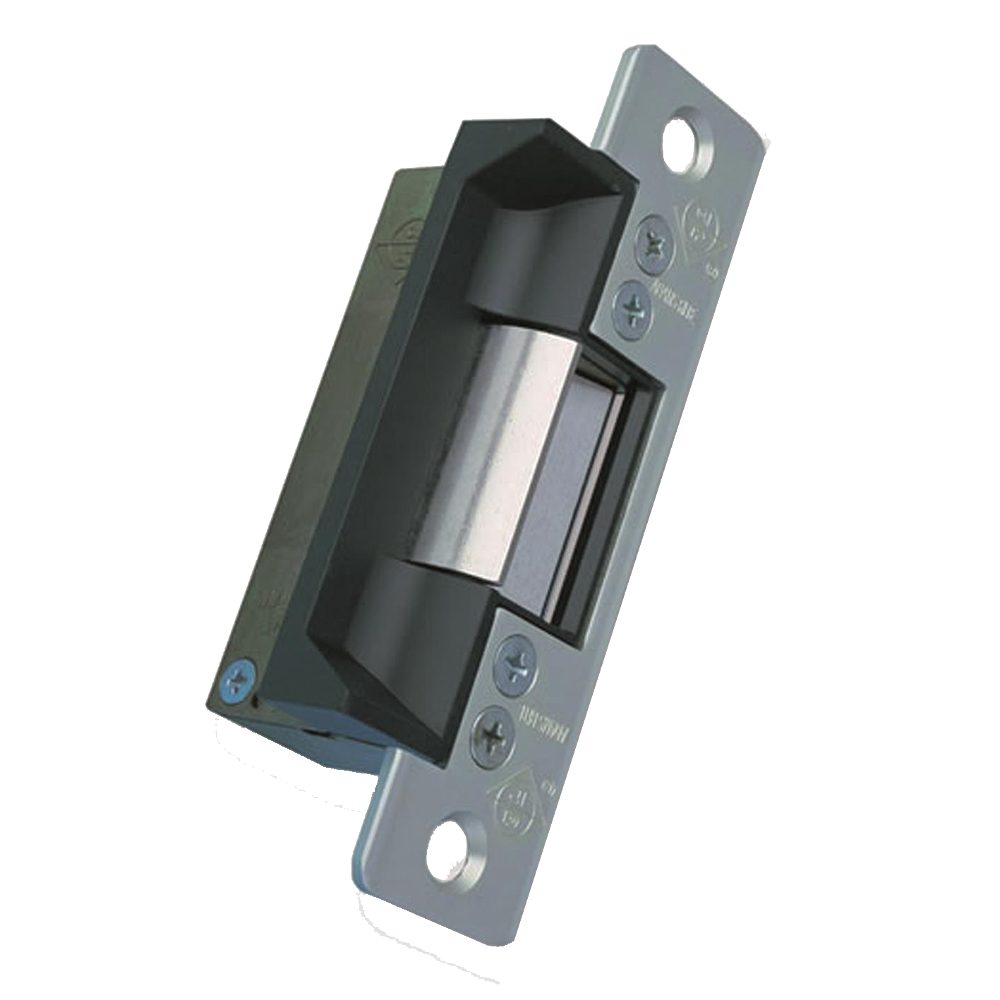

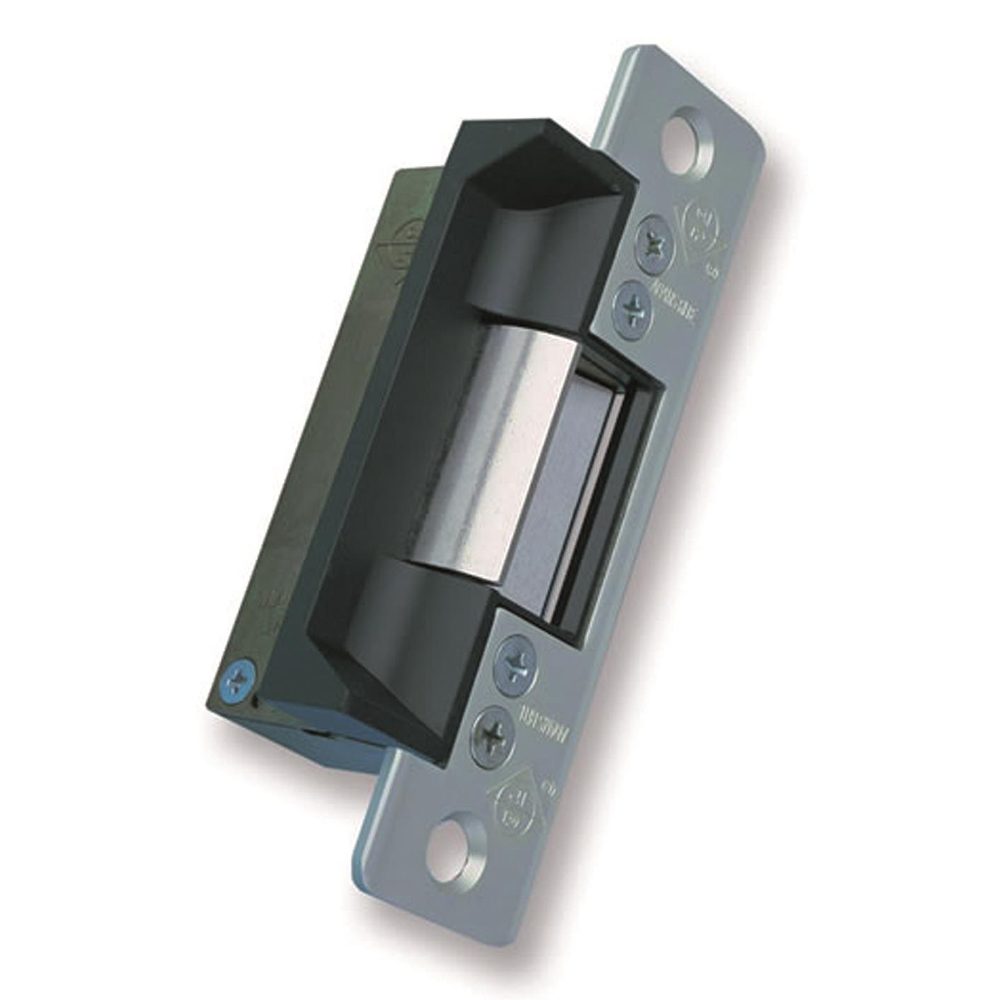

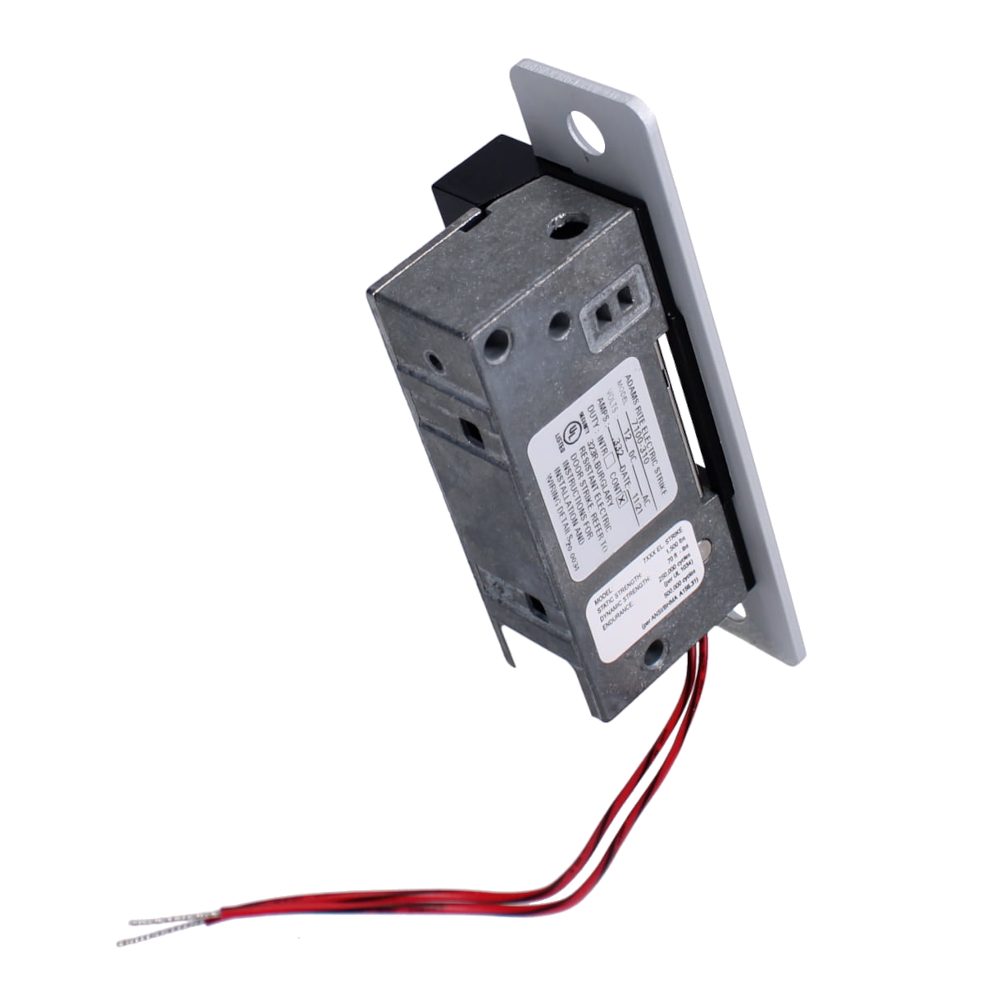

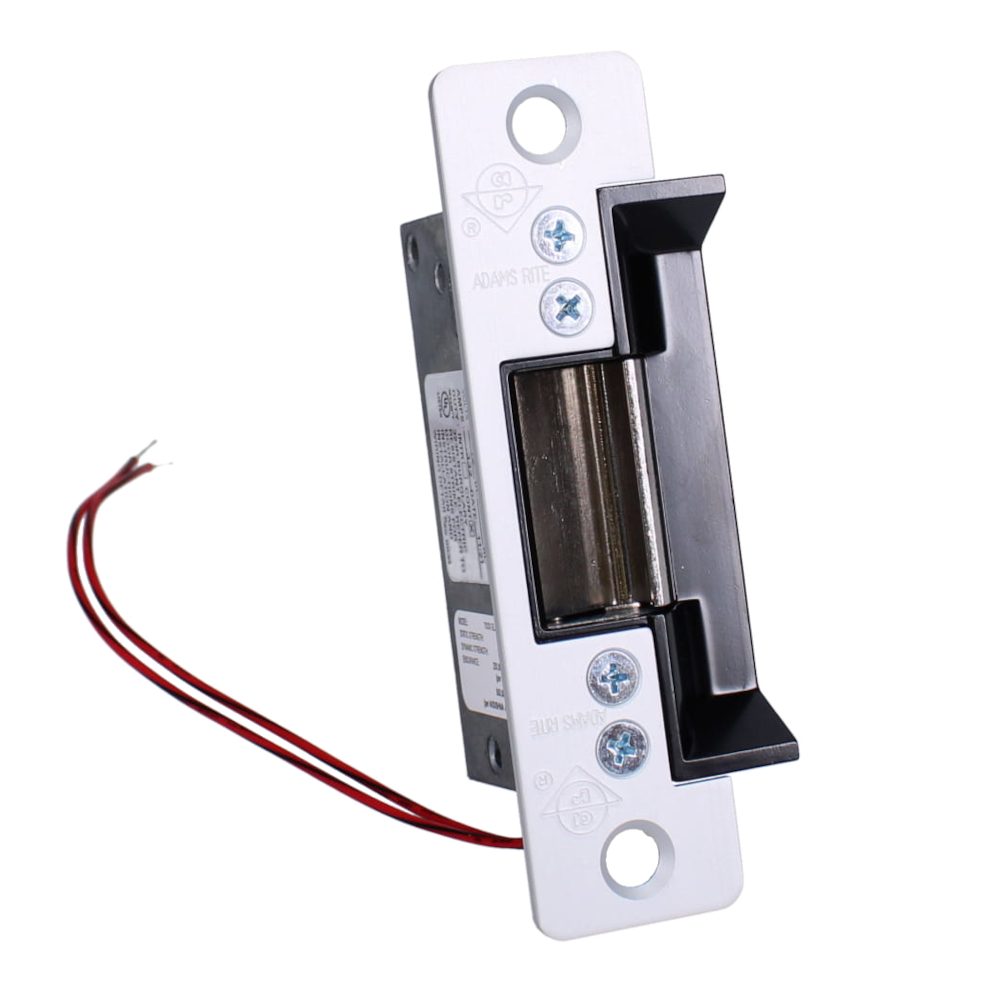

The Adams Rite 7100 Mortice Release is a medium-duty electric strike designed for use on single-leaf aluminium doors. It enables remote access control of doors fitted with Adams Rite 4700 series deadlatches (or similar). The strike jaw is unlocked by electrical actuation, releasing the latchbolt so the door can be opened without operating the latch itself.

This versatile mortice release features a flat faceplate with rounded corners for easy installation in aluminium frames. It is non-handed and fully reversible, making it suitable for both left-handed and right-handed applications.

We offer a range of configurations for this product. Please choose from the options below to select your preferred input voltage (12V AC, 12V DC, or 24V DC), operation mode (Fail Locked or Fail Unlocked), current consumption, and weight.

Technical Specifications

• Brand: Adams Rite
• Fitting: Mortice
• Faceplate Type: Flat with rounded corners
• Faceplate Dimensions: 123mm (H) x 32mm (W)
• Body Dimensions: 85mm (H) x 25mm (D)
• Jaw Dimensions: 35mm (H) x 15mm (W) x 12mm (D)
• Holding Force: 907kg (2000lbs)
• Finish: Satin Anodised Aluminium
• Guarantee: 3 Year
• Input Voltage: 12V AC, 12V DC, or 24V DC (please choose from the options below)
• Operation: Fail Locked or Fail Unlocked (please choose from the options below)
• Current Consumption: 0.19A, 0.332A, or 1.48A (please choose from the options below)
• Weight: 470g or 480g (please choose from the options below)
• Manufacturer Reference: 7100-310-628, 7100-315-628, 7100-340-628, 7100-510-628, or 7100-515-628 (please choose from the options below)

Key Features

• Remote Access Control: Enables electrical release of doors equipped with Adams Rite 4700 series deadlatches.
• Fully Reversible: Easily handed on-site to suit both left-handed and right-handed single-action doors.
• Robust Holding Force: Provides a strong 907kg (2000lbs) holding force for medium-duty security.
• Aluminium Frame Compatibility: Features a flat faceplate with rounded corners, specifically designed for single-leaf aluminium doors.
• Multiple Configurations: Choose from various voltages and fail-safe/fail-secure operations to suit your system requirements.
