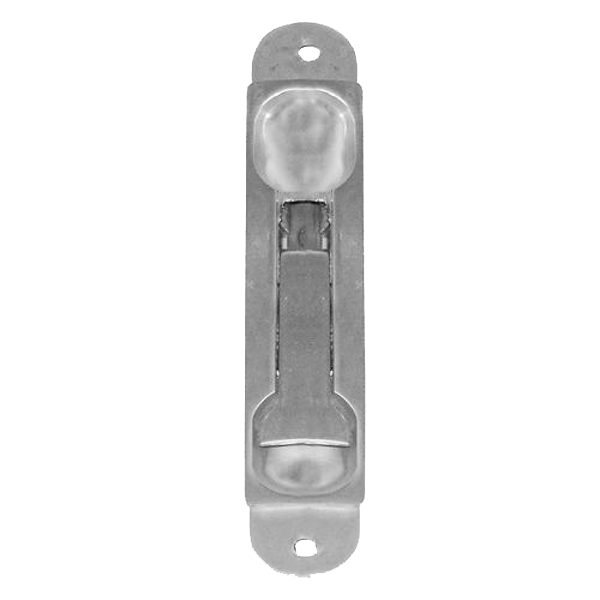

ADAMS RITE 6201-7-12 Radius Flush Bolt
Adams Rite
The Adams Rite 6201-7-12 Radius Flush Bolt is a high-quality security solution designed specifically for securing the slave (passive) leaf of a pair of doors, making it ideal for aluminium door applications. For a standard and secure installation, two flush bolts are typically required, morticed into both the top and bottom of the door leaf.
Engineered with durability in mind, this flush bolt features a robust die-cast zinc alloy body mechanism and a radius forend. The hardened steel bolt is zinc-plated and fitted with an anti-rattle sleeve to ensure smooth, quiet operation. When the doors are fully closed, the operating lever is neatly hidden from view, maintaining a clean and seamless aesthetic.
Technical Specifications
- Brand: Adams Rite
- Manufacturer Reference: 1571102 / 6201-7-12
- Finish: Satin Chrome
- Forend Type: Radius
- Body Length: 145mm
- Body Width: 23mm
- Body Depth: 27mm
- Screw Centres: 129mm
- Bolt Throw: 18mm
- Rod Dimensions: 7mm x 265mm zinc-plated steel rod
- Thread Length: 220mm
- Weight: 230g
- Pack Quantity: 1
Key Features
- Secure Slave Leaf Locking: Designed specifically to secure the passive leaf of a pair of double doors.
- Hidden Lever Action: The operating lever is completely concealed when the doors are closed, providing a neat, flush finish.
- Robust Construction: Features a durable die-cast zinc alloy body mechanism and a hardened steel bolt.
- Quiet Operation: Zinc-plated bolt is equipped with an anti-rattle sleeve to prevent noise and movement.
- Radius Forend: Specifically styled with a radius faceplate to suit compatible door profiles.
