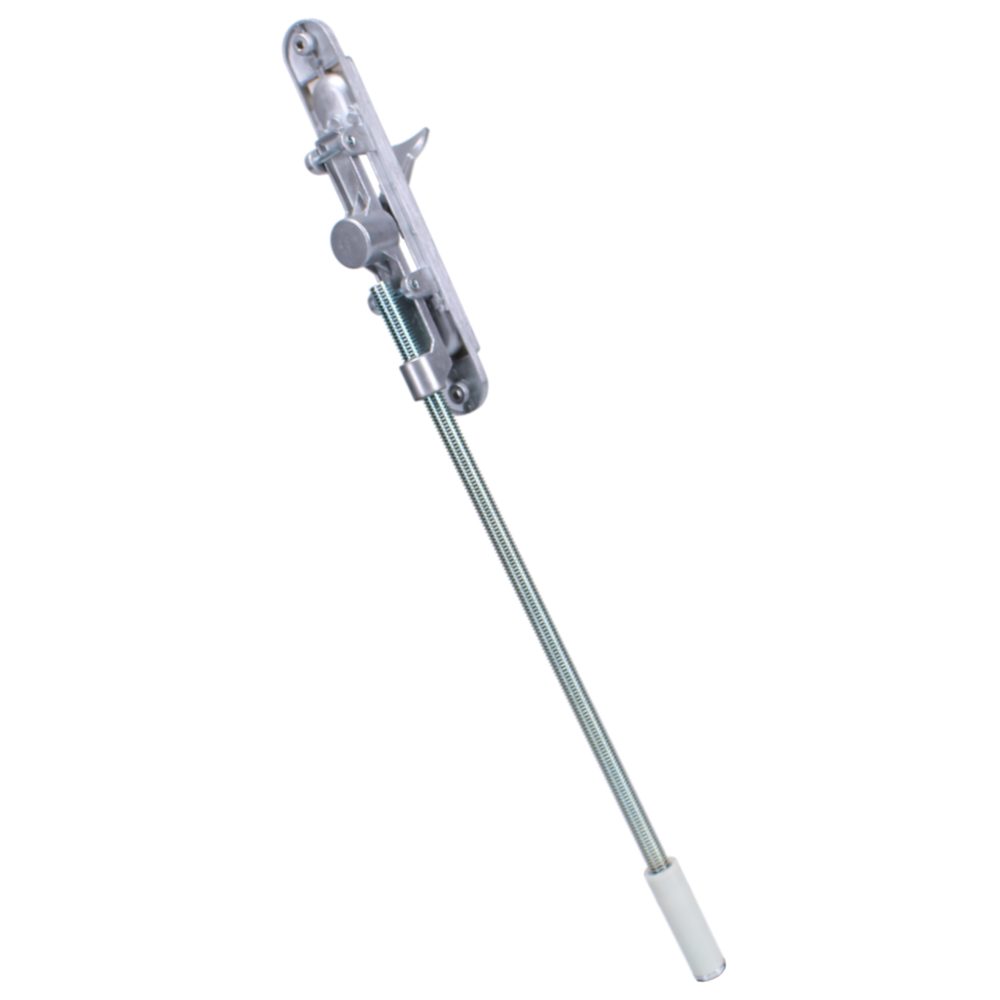

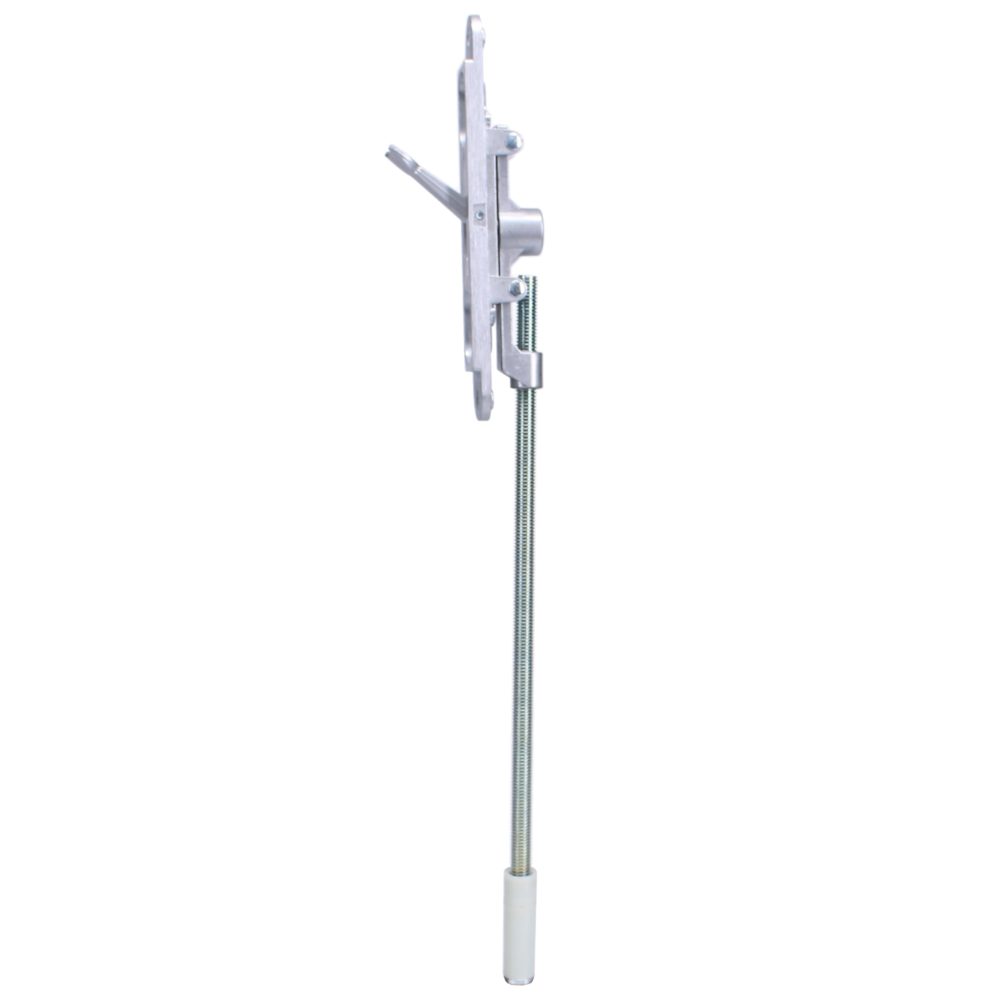

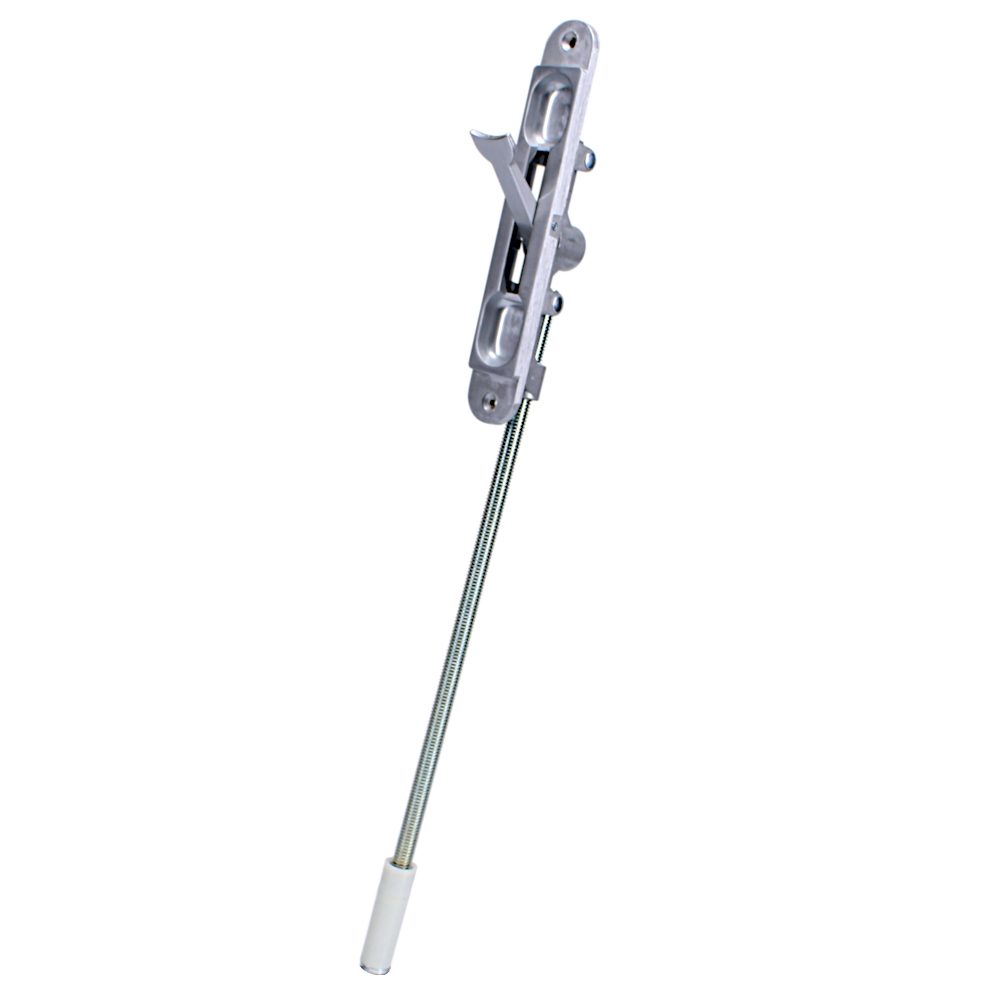

ADAMS RITE 6201-6-12 Flat Flush Bolt

The Adams Rite 6201-6-12 Flat Flush Bolt is designed to secure the inactive (slave) leaf of a pair of aluminium doors. Morticed into the top and bottom of the door, a standard installation typically requires two flush bolts to ensure complete security. This model features a flat face profile and a durable satin chrome finish, blending seamlessly with modern architectural hardware.

The flush bolt is constructed with a robust die-cast zinc alloy body mechanism and a hardened steel bolt. It includes a zinc-plated steel rod and an anti-rattle sleeve to ensure smooth, quiet operation. For added security and a clean aesthetic, the operating lever remains completely hidden from view when the doors are closed.

Technical Specifications

• Brand: Adams Rite
• Finish: Satin Chrome
• Body Length: 143mm
• Body Width: 23mm
• Depth: 27mm
• Screw Centres: 129mm
• Bolt Throw: 18mm
• Rod: 7mm zinc-plated steel rod (265mm length including handle, 220mm thread length)
• Thread Length: 40mm
• Body Material: Die-cast zinc alloy
• Bolt Material: Hardened steel with zinc plating and anti-rattle sleeve
• Pack Quantity: 1

Key Features

• Secure Door Pairing: Ideal for securing the slave leaf of a pair of aluminium doors
• Concealed Lever: Hidden operating lever when doors are closed for enhanced security and a clean aesthetic
• Quiet Operation: Integrated anti-rattle sleeve ensures smooth, quiet operation
• Durable Construction: Built with a hardened steel bolt and a die-cast zinc alloy body
• Mortice Fit: Flat face profile designed for flush mortice installation (typically requires two bolts per door set)
