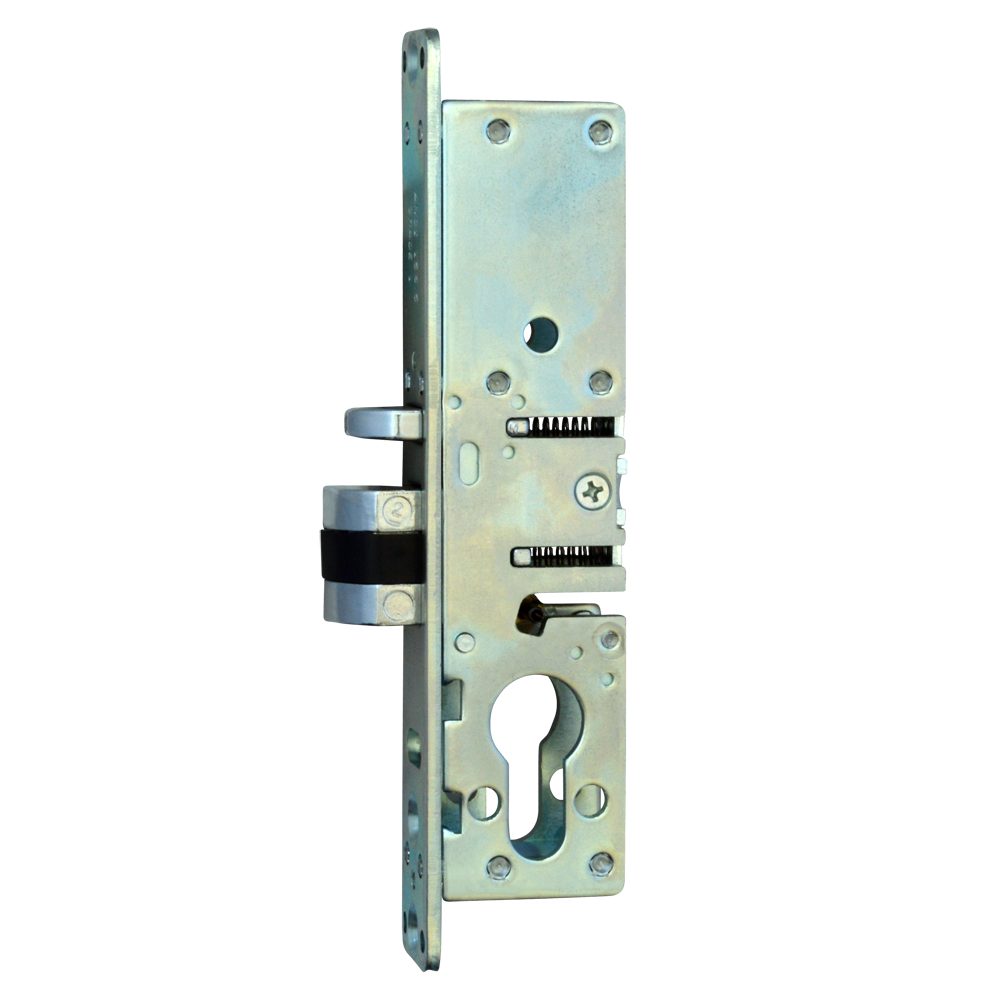

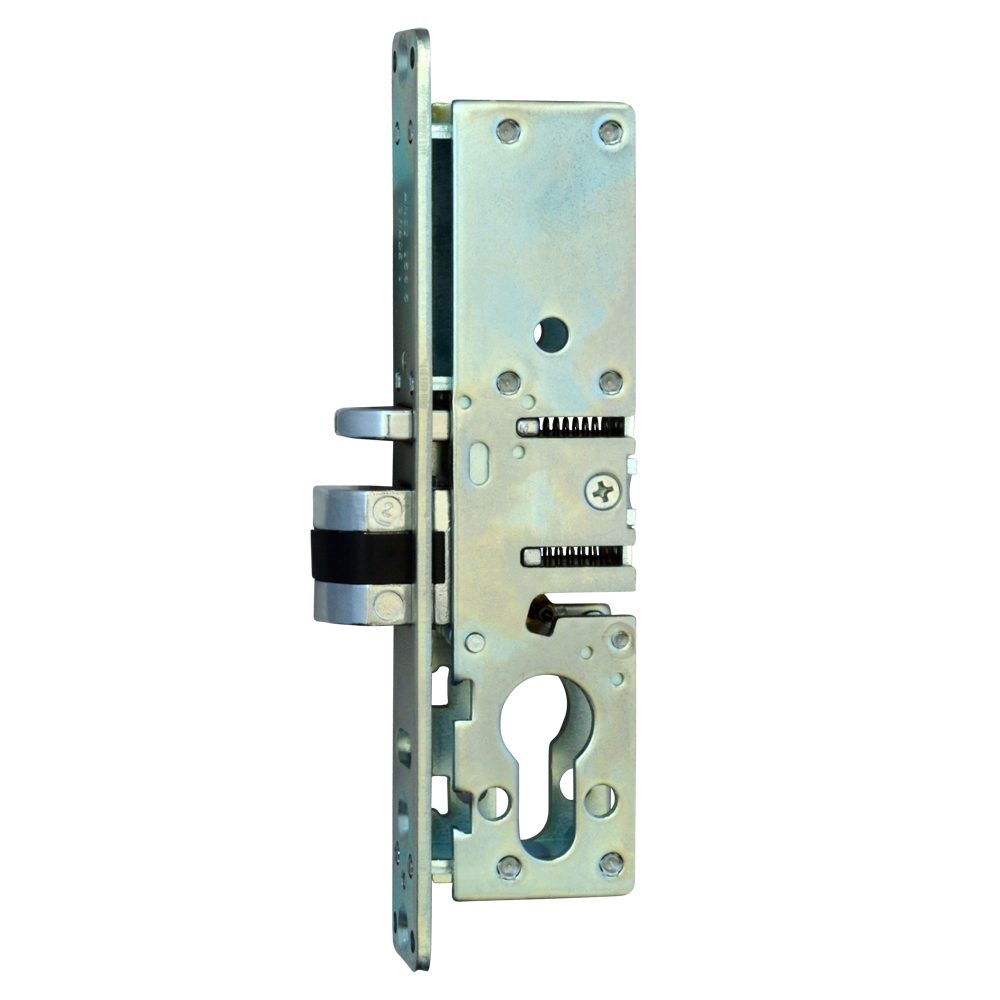

ADAMS RITE 4750 Mortice Euro Deadlatch Case

The Adams Rite 4750 Mortice Euro Deadlatch Case provides flexible traffic control and reliable security for aluminium doors. Designed for commercial environments, this deadlatch features an auxiliary bolt that automatically deadlocks the latch when the door is closed. It can also be integrated with the Adams Rite 7100 series Electric Strike to enable remote access control.

This versatile deadlatch is operated using a standard 17mm Euro cylinder and features a reversible latch for convenient installation on both left and right-handed doors. Please note that faceplates and strike plates are not included and must be ordered separately. The backset measurements include the 4mm faceplate.

This product is available in multiple backsets, weights, and manufacturer references. Please select your required specifications from the options below.

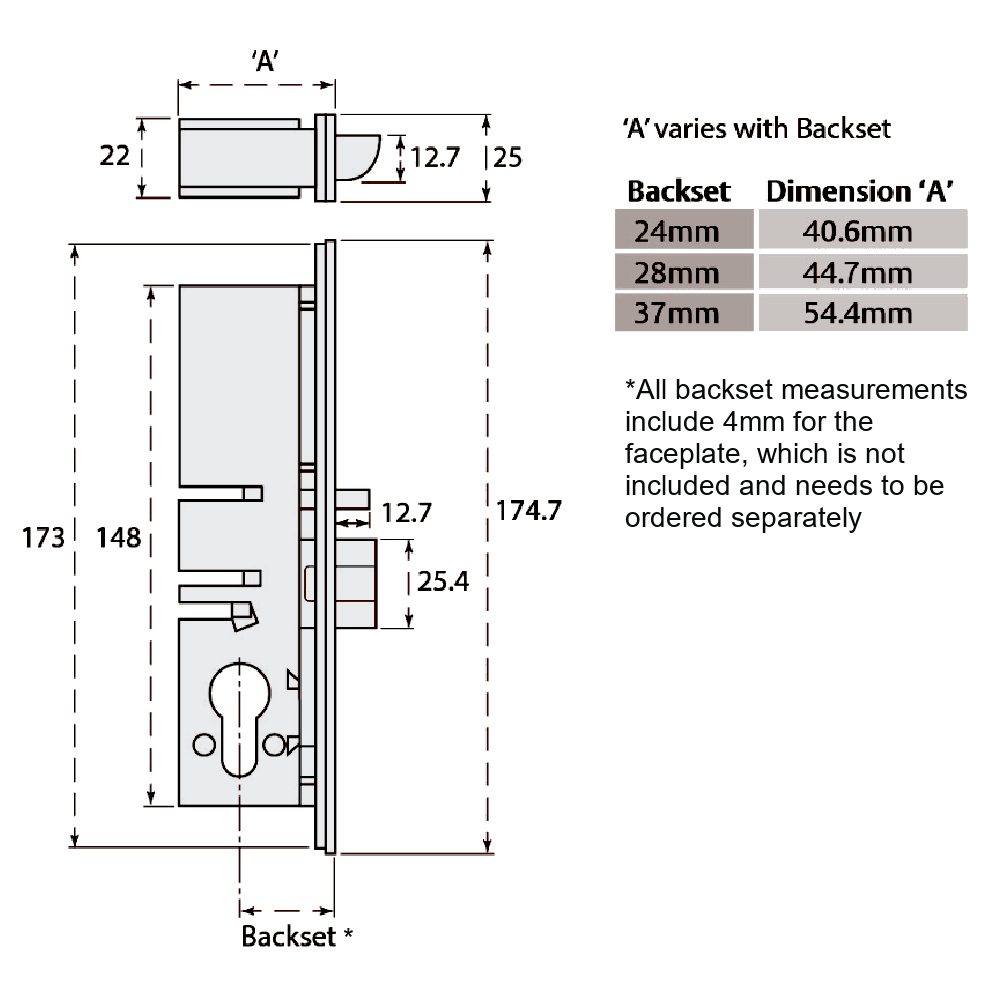

Technical Specifications

• Mechanism: Euro Cylinder (operates with 17mm Euro cylinder)
• Backset: 24mm, 28mm, or 37mm (please choose from the options below)
• Case Height: 148mm
• Forend Length: 175mm
• Forend Width: 26mm
• Case Finish: Plated Steel
• Forend Finish: Anodised Aluminium
• Handing: Reversible
• Weight: 410g or 430g (please choose from the options below)
• Manufacturer Reference: 4751-200, 4751-300, or 4751-400 (please choose from the options below)
• Barcode: 5055120601236, 5055120601595, or 5055120735085 (please choose from the options below)

Key Features

• Flexible Traffic Control: Ideal for commercial aluminium doors requiring controlled access.
• Automatic Deadlocking: Auxiliary bolt automatically deadlocks the latch when the door is in the closed position.
• Electric Strike Compatibility: Can be used in conjunction with the 7100 series Electric Strike to provide remote access control.
• Reversible Latch: Easily handed on-site for convenient installation.
• Emergency Exit Compliance: Complies with BS EN 179+A1:1998 when used with a 4596 paddle handle and 8461 strike range.
