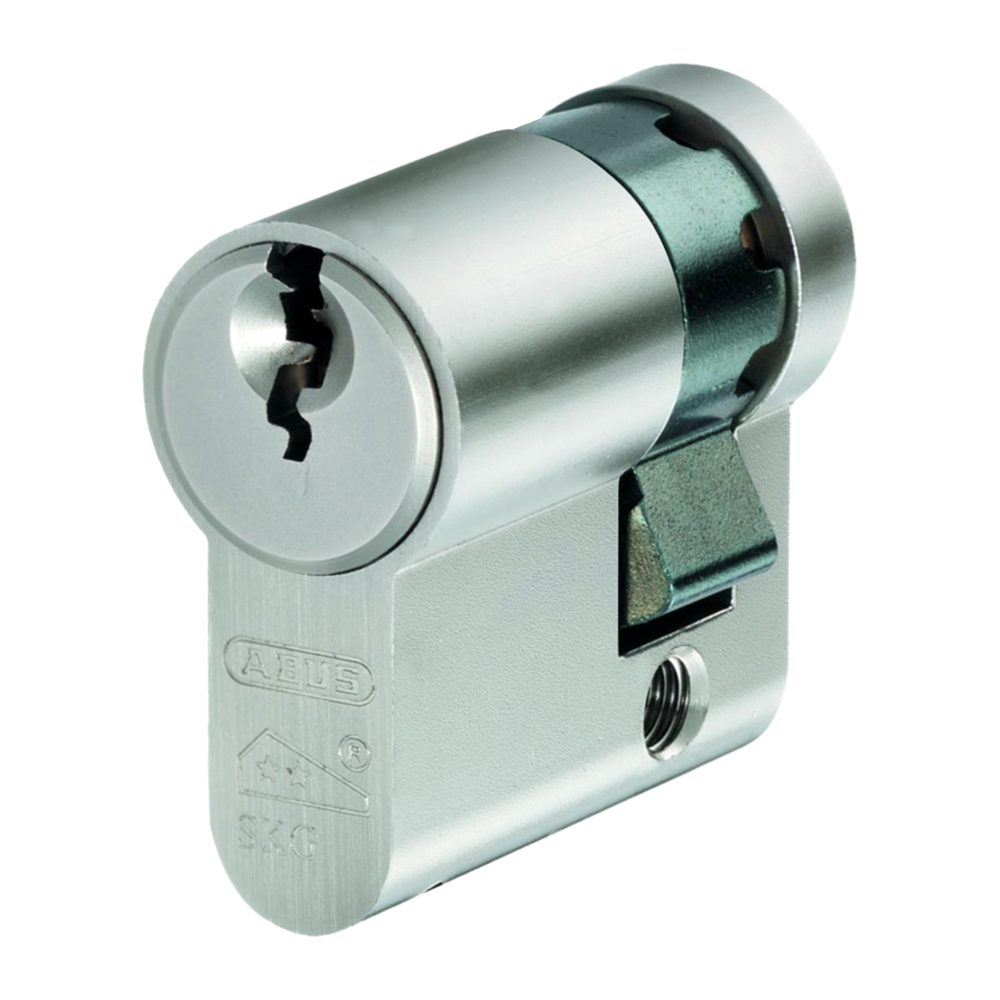

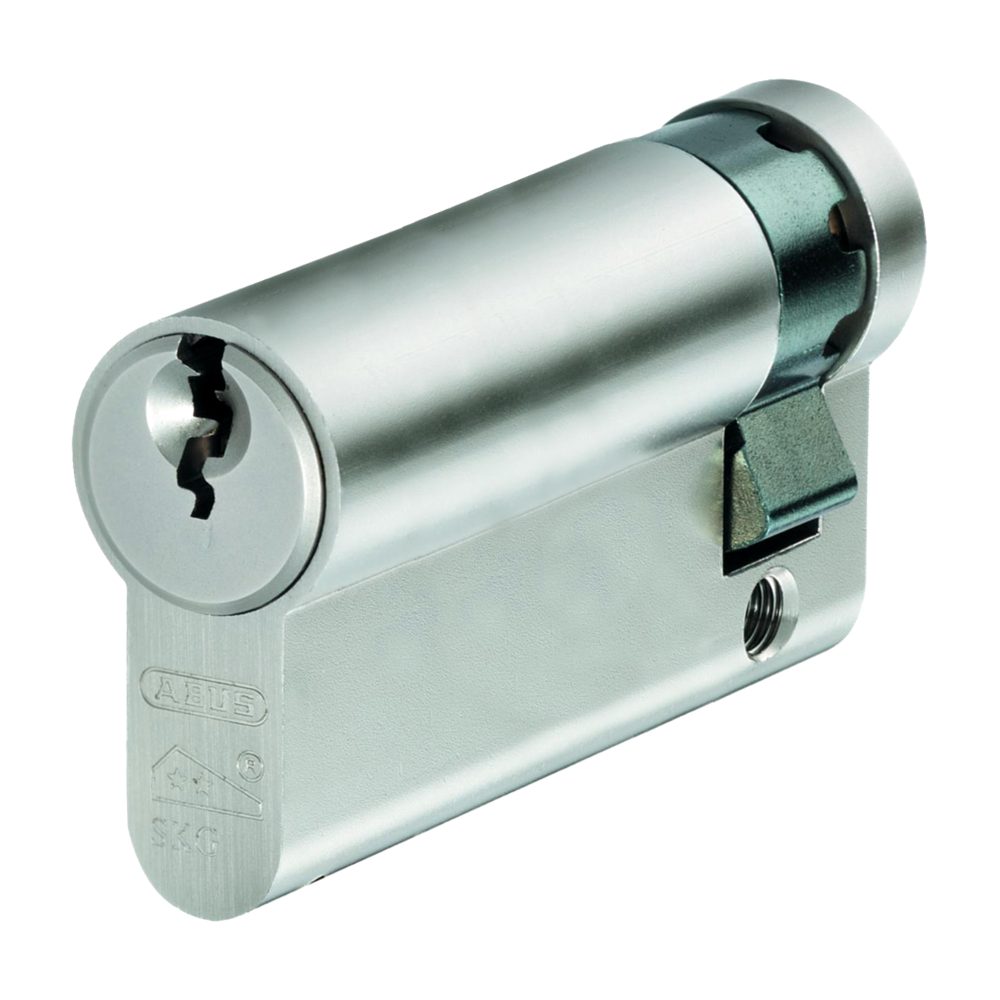

ABUS E60 Series Euro Half NP KD Cylinder

The ABUS E60 Series Euro Half Cylinder is a high-security half-profile cylinder designed for applications where locking is only required from one side, such as garage doors, switchgear, and key switches. Finished in a stylish Nickel Pearl (NP), this cylinder features a robust 6-pin mechanism that provides reliable security.

Equipped with advanced security features, the E60 series offers comprehensive anti-pick protection thanks to its precision mushroom pins and paracentric keyway. Additionally, it features hardened steel anti-drill spring and pin protection, with 8 anti-drill pins in every keyway to resist physical attacks.

This cylinder is available in a variety of overall lengths ranging from 40mm to 60mm (with sizes to the centre of the cam from 30mm to 50mm), and can be supplied in either boxed or visi packaging. Please select your required size and packaging options from the choices below. Each cylinder is keyed to differ (KD) and is supplied with 3 keys.

Technical Specifications

• Cylinder Type: Half Euro Profile
• Mechanism: 6-pin
• Finish: Nickel Plated (Nickel Pearl)
• Keying: Keyed to Differ (KD)
• Keys Supplied: 3
• Standards: BS EN 1303:2005
• Fire Tested: Grade 0
• Overall Length: 40mm to 60mm (choose from options below)
• Size to Centre of Cam (A Side): 30mm to 50mm (choose from options below)
• Packaging: Boxed or Visi (choose from options below)

Key Features

• High-Security Mechanism: Robust 6-pin cylinder provides reliable security and smooth operation.
• Anti-Pick Protection: Precision mushroom pins and a paracentric keyway offer comprehensive protection against picking.
• Anti-Drill Protection: Hardened steel anti-drill spring and pin protection with 8 anti-drill pins in every keyway.
• Versatile Application: Ideal for securing garage doors, switchgear, and doors requiring single-sided locking.
• Long Key Neck: Designed to be compatible with security handle furniture and cylinder guards.
