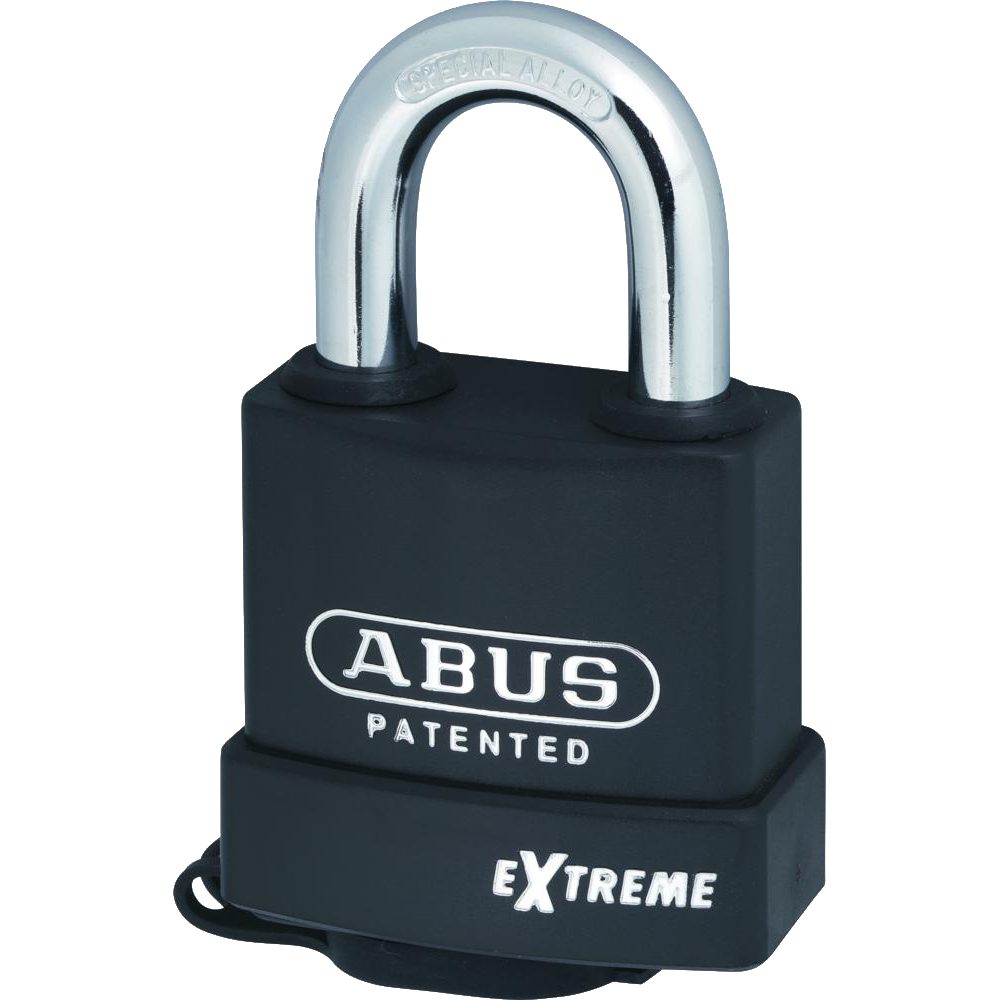

ABUS 83WP Series Weatherproof Steel Open Shackle Padlock Without Cylinder

The ABUS 83WP/63 (Extreme Series) Weatherproof Steel Open Shackle Padlock is supplied as a body-only unit, without a cylinder. This allows locksmiths and security professionals to easily integrate the padlock into existing master key suites or custom-keyed systems by installing a compatible cylinder of their choice.

Engineered for extreme outdoor environments, this padlock features a solid hardened steel alloy body and shackle fully encased in a high-impact plastic jacket. It is designed with integrated drainage channels to channel moisture away, alongside a protective rubber keyway cover that shields the cylinder from dirt, dust, and water. The shackle is finished with ABUS's proprietary NANO PROTECT™ coating, providing exceptional corrosion resistance.

For robust physical security, the padlock utilizes a double ball-bearing locking mechanism, offering high resistance against pulling, twisting, and lever attacks. The rekeyable design is highly adaptable and can be configured for either key-retaining or non-key-retaining operation to suit your specific security requirements.

Technical Specifications

• Brand: Abus
• Manufacturer Reference: 83WP/63 No Cyl
• Body Width: 65mm
• Body Height: 109.5mm
• Body Depth: 34.5mm
• Shackle Diameter: 11mm
• Horizontal Clearance: 25mm
• Vertical Clearance: 33mm
• Shackle Finish: Nano Plated Steel
• Locking Mechanism: Double ball bearing (rekeyable)
• Key Retaining: Yes (configurable)
• Weight: 456g

Key Features

• Body Only Design: Supplied without a cylinder, allowing for custom integration into existing master key suites or bittings.
• Extreme Weather Protection: Features a full plastic jacket, integrated drainage channels, and a protective keyway cover to shield against harsh outdoor elements.
• High Corrosion Resistance: Hardened steel alloy shackle with NANO PROTECT™ coating for long-lasting durability in wet or coastal environments.
• Robust Security: Double ball-bearing locking mechanism resists pulling, torsion, and lever attacks.
• Adaptable Functionality: Rekeyable mechanism can be configured for key-retaining or non-key-retaining operation.
