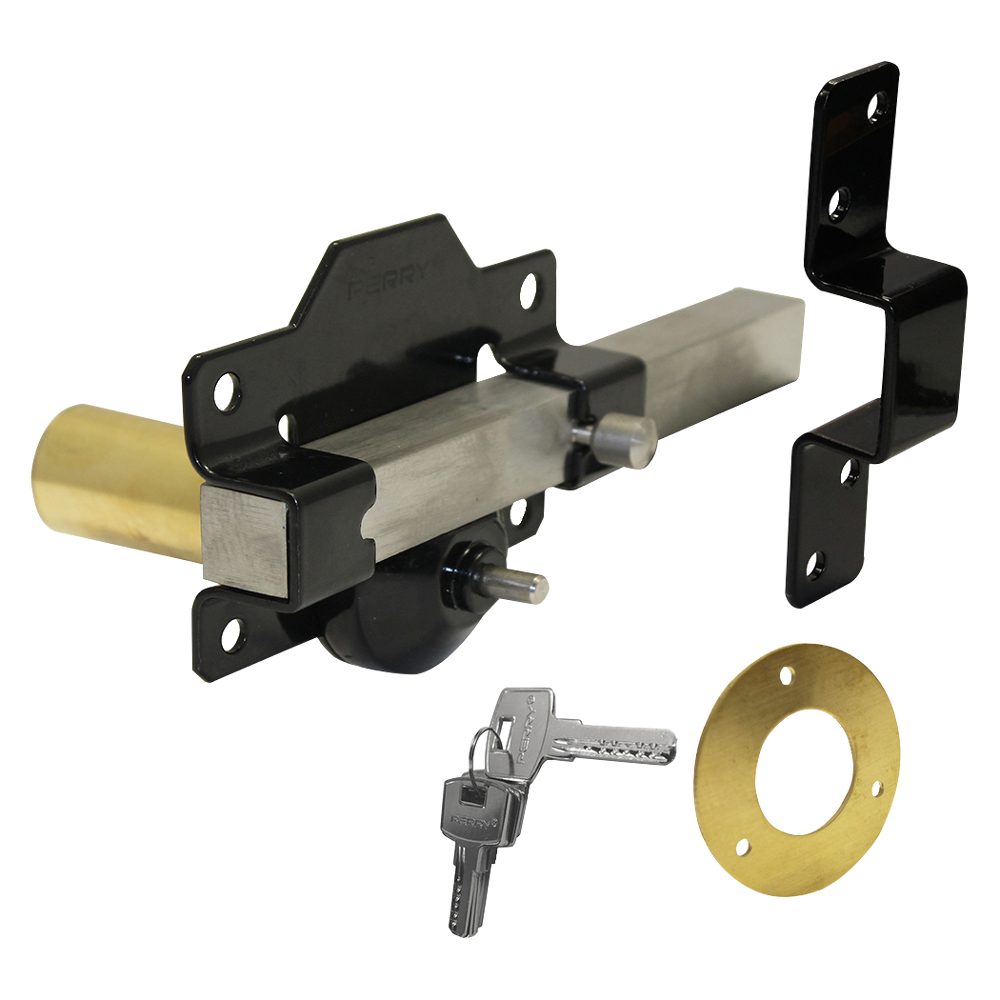

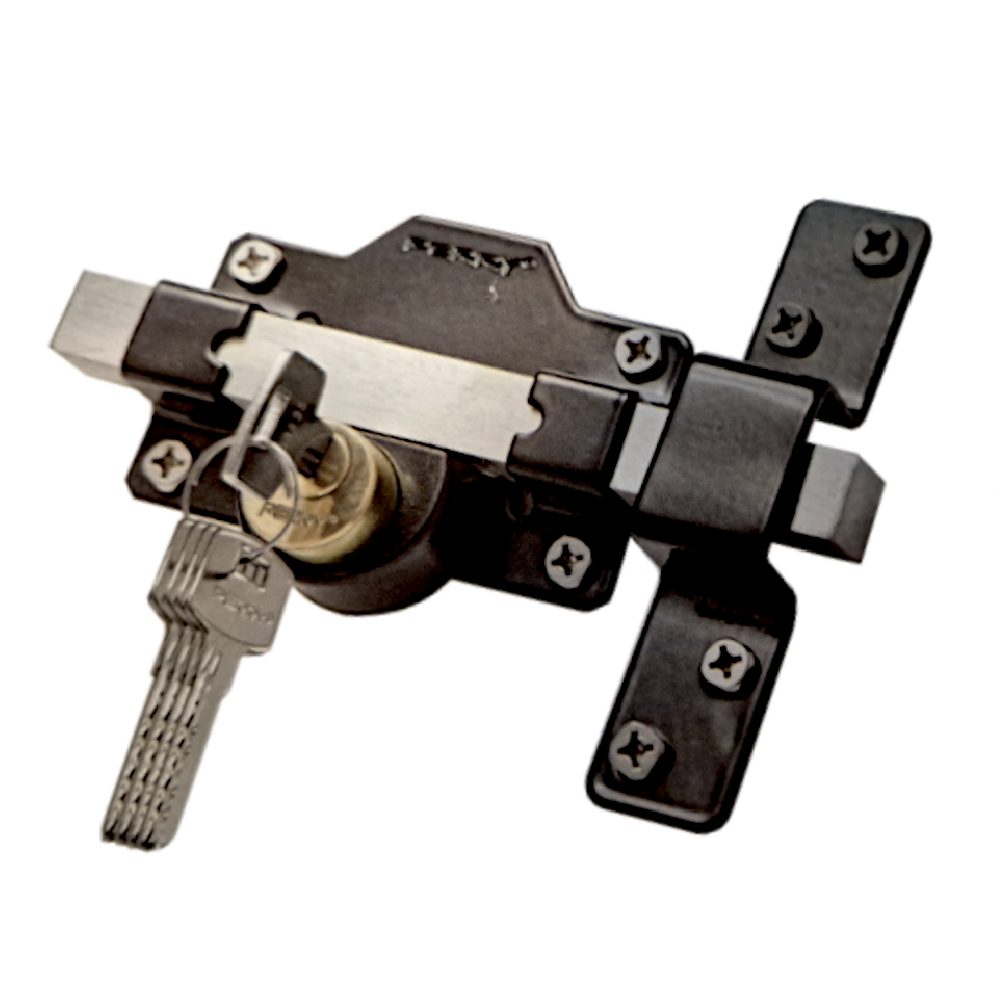

A PERRY Single Locking Long Throw Gate Lock

The A. Perry 1126 Single Locking Long Throw Gate Lock is a premium security solution designed to protect gates, shed doors, and side entrances. Featuring a high-grade A4/316 marine-grade stainless steel bolt and a solid brass escutcheon plate, this lock offers exceptional corrosion resistance, making it ideal for outdoor use in harsh weather conditions.

This single-locking model is operated with a key from the outside, while the inside features a manual plunger mechanism. To open from the inside, simply depress the plunger and slide the bolt manually, allowing for quick and easy egress without needing a key. The lock is equipped with a high-security 6-pin cylinder and is supplied complete with five keys and all necessary stainless steel fixings for a straightforward installation.

This gate lock is available in a choice of barrel lengths to suit different gate thicknesses, either 50mm or 70mm. Please select your required door thickness and barrel length from the options below to ensure the perfect fit for your gate.

Technical Specifications

• Brand: A. Perry
• Manufacturer Reference: 1126/50 or 1126/70 (please choose from the options below)
• Door Thickness: 50mm or 70mm (please choose from the options below)
• Barrel Length: 85mm or 105mm (including pin - please choose from the options below)
• Bolt Throw: 67mm
• Plate Width: 90mm
• Plate Height: 80mm
• Mechanism: 6-pin cylinder
• Handing: Reversible
• Finish: Black
• Keying: Keyed to differ
• Keys Supplied: 5
• Weight: 1.04kg to 1.09kg (please choose from the options below)

Key Features

• Marine-Grade Durability: Features a premium Grade A4/316 stainless steel bolt and solid brass escutcheon plate for superior corrosion resistance.
• Single Locking Operation: Key lockable from the outside with a convenient manual plunger and slide operation from the inside.
• High Security: Equipped with a robust 6-pin cylinder mechanism to resist picking and tampering.
• Complete Kit: Supplied with 5 keys and all required stainless steel fixings for a quick and easy installation.
• Reversible Design: Reversible handing makes it suitable for both left and right-handed gates.
• Flexible Options: Available in multiple sizes to suit different gate thicknesses - please select your preferred option below.
