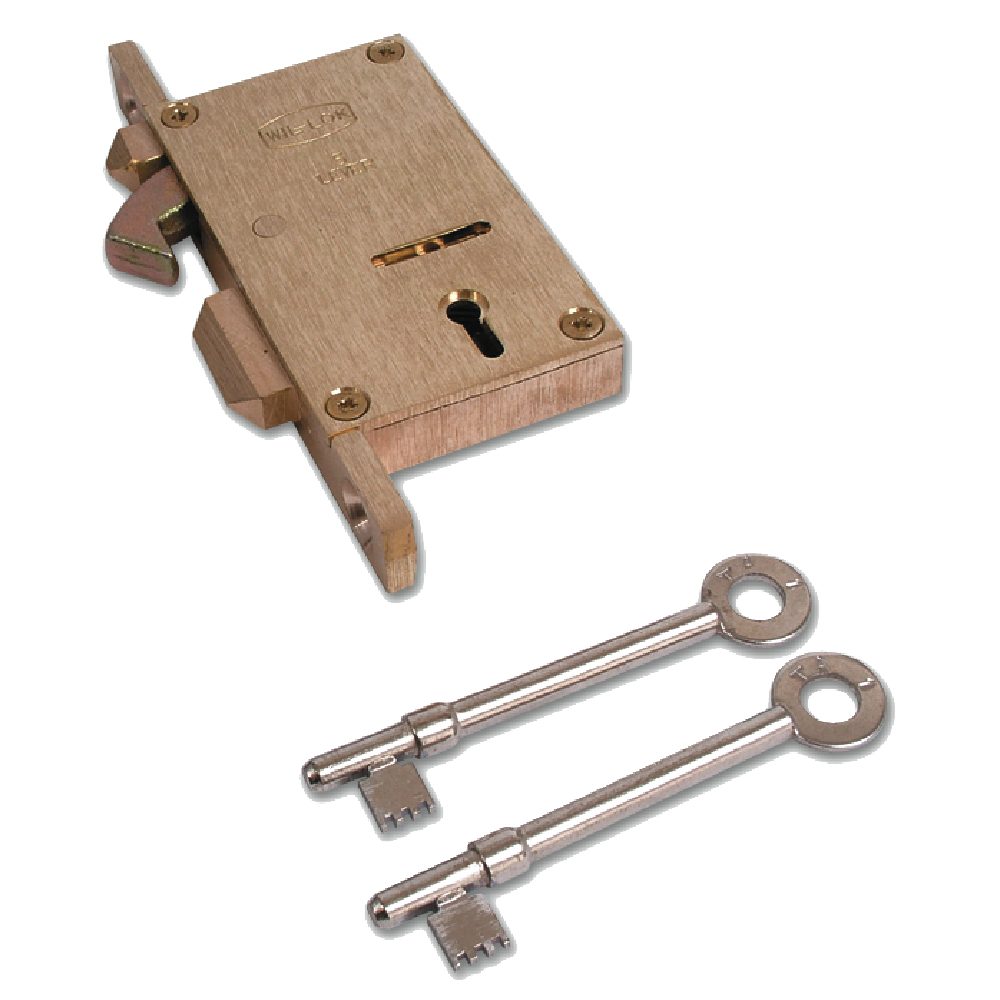

WILLENHALL LOCKS G17 5 Lever Gatelock

The Willenhall Locks G17 is a robust, face-fixed 5-lever hookbolt gate lock designed to provide reliable security for gates. Featuring a 32mm backset and a durable satin brass finish, this lock is ideal for external gate installations where strength and security are paramount.

One of the standout design features of the G17 is the inclusion of 'steady' bolts located at both the top and bottom of the lock case. These steady bolts prevent the gate from being lifted, ensuring the hookbolt cannot be forced open or released. The hookbolt itself can be conveniently locked or unlocked by key from either side of the gate, offering flexible access control.

Supplied keyed to differ with two keys, the Willenhall G17 is a dependable security solution. For added protection and neatness of installation, an optional steel locking box is also available.

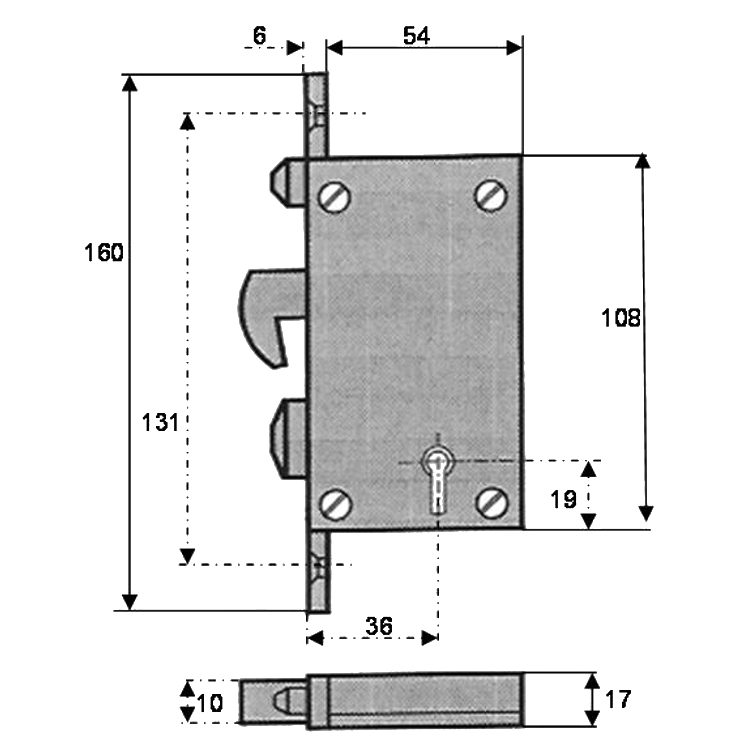

Technical Specifications

• Brand: Willenhall Locks
• Mechanism: 5 Lever
• Backset: 32mm
• Case Depth: 60mm
• Case Height: 108mm
• Fixing Centres: 132mm
• Depth: 18mm
• Finish: Satin Brass
• Keying: Keyed to differ (supplied with 2 keys)
• Differs: 100
• Weight: 710g

Key Features

• Anti-Lift Design: Integrated 'steady' bolts at the top and bottom prevent the gate from being lifted to release the hookbolt.
• Double-Sided Key Operation: The hookbolt can be locked or unlocked using a key from either side of the gate.
• Face-Fix Installation: Designed for straightforward face-fixed mounting on gates.
• Optional Steel Locking Box: Compatible with an optional steel locking box (available separately) for enhanced protection.
• Satin Brass Finish: Durable and attractive satin brass finish on the case and forend.
