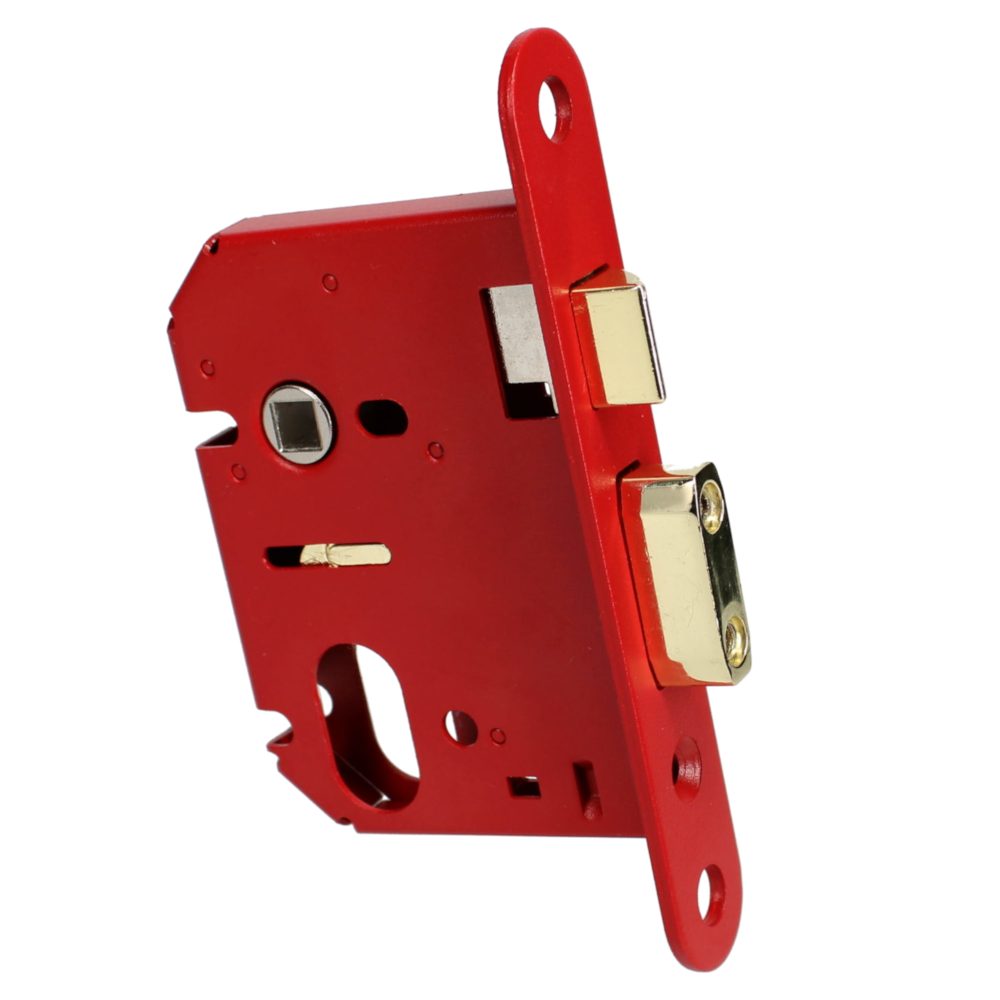

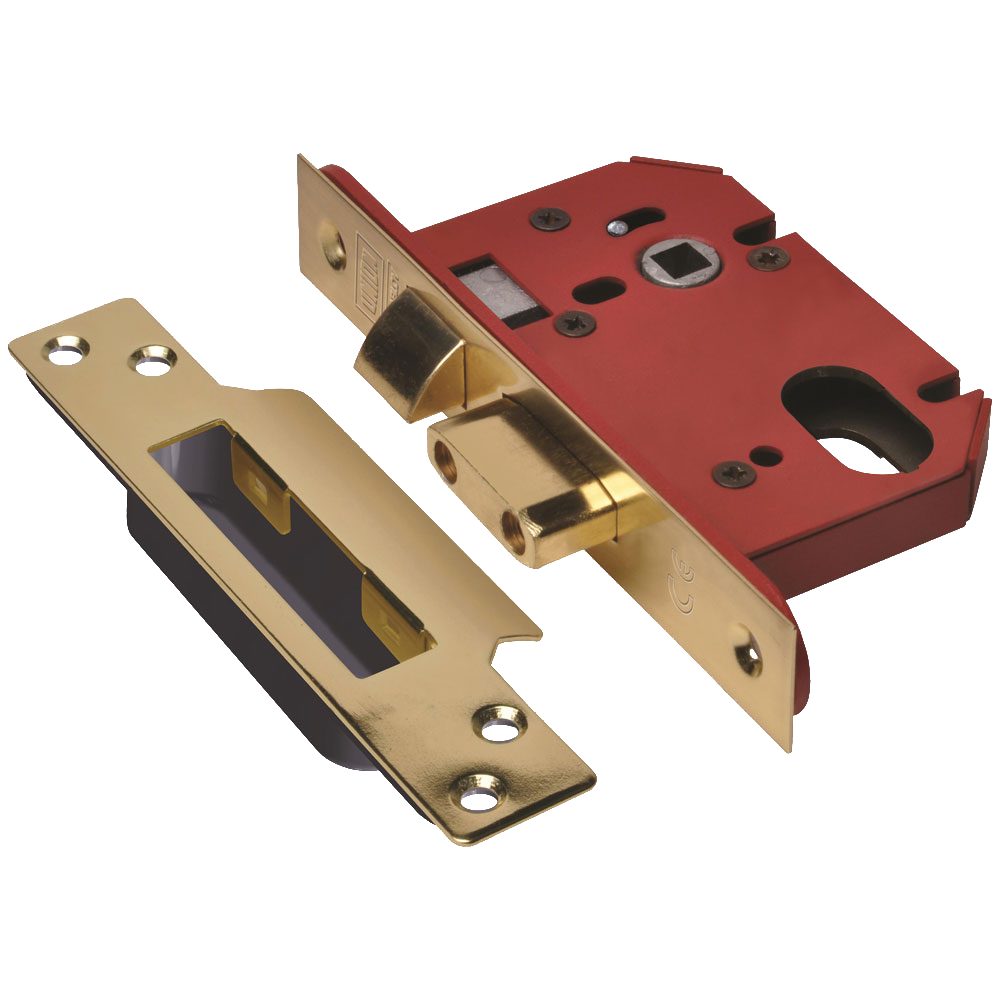

UNION JL22OVS StrongBOLT Oval Sashcase

The UNION JL22OVS StrongBOLT Oval Sashcase is a high-security mortice sashlock designed for use with an oval profile cylinder. Built with the renowned StrongBOLT™ design, it features a unique chamfered deadbolt that provides superior resistance against side load and physical attacks, including drilling, sawing, and picking.

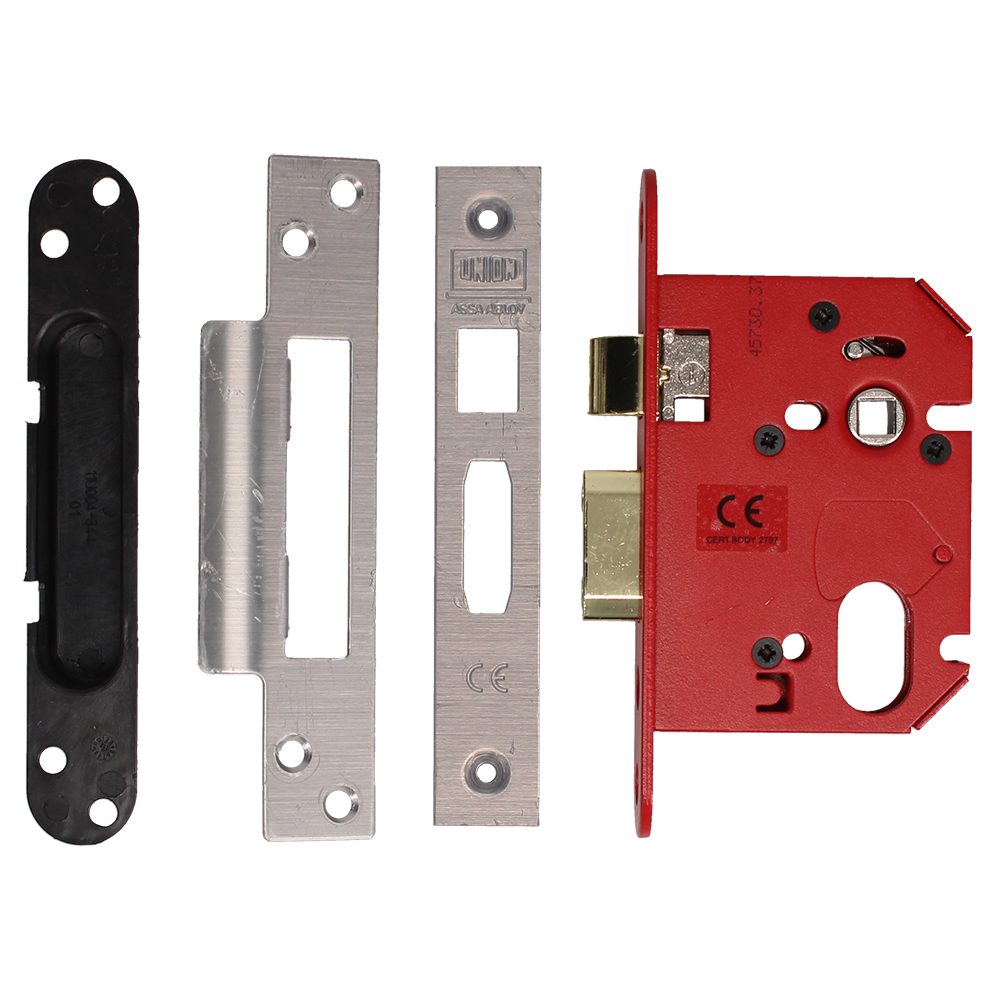

This sashcase is highly versatile and easy to install, featuring a square faceplate combined with a radius inner forend that fits easily into standard UK mortices. It utilizes UNION’s innovative SwitchLatch™ technology for a quick and easy reversible radius latch, making it suitable for both left and right-handed doors. It also comes complete with an anti-rattle adjustable strike for precise onsite fine-tuning and a plastic splinter guard to ensure a clean, professional finish.

Approved for use on 60-minute timber fire doors, this lock is CE marked, Certifire approved, and Secured by Design accredited. It is available in multiple backsets, case depths, and finishes - including Polished Brass and Stainless Steel. Please choose your required options from the selection below.

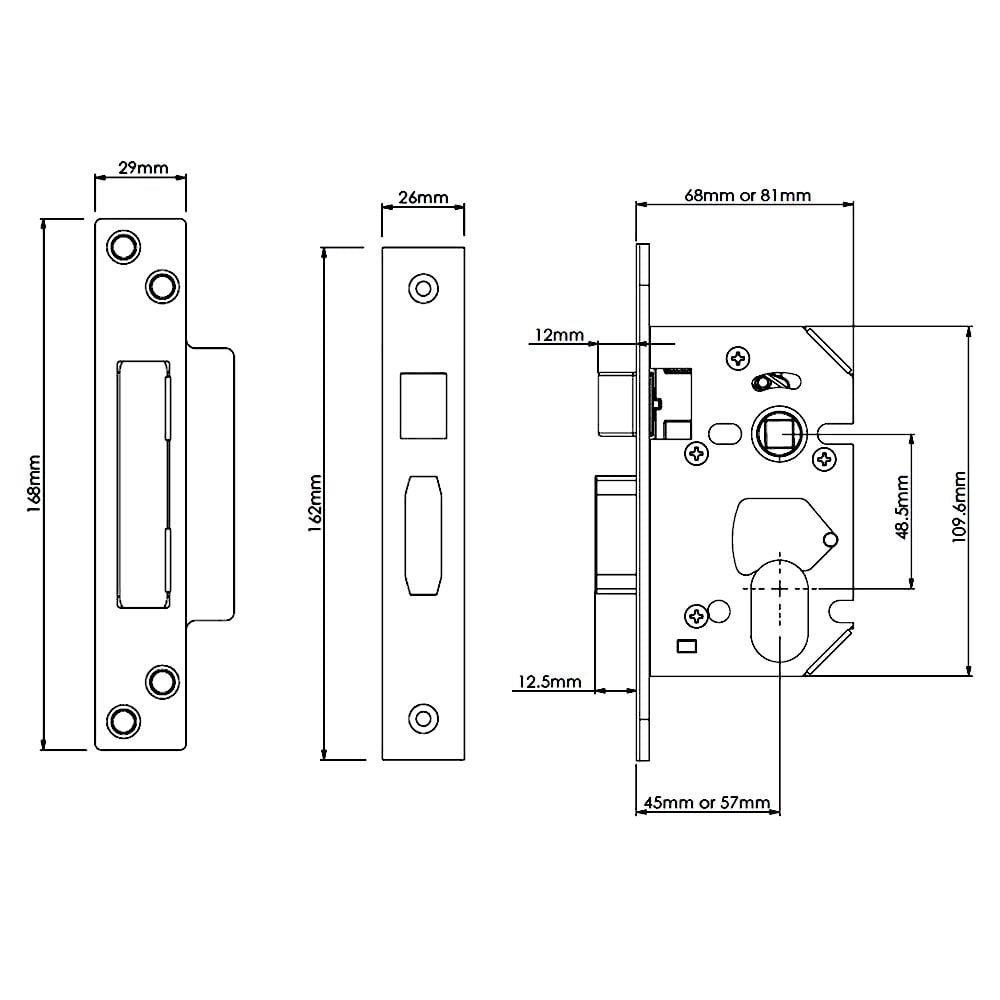

Technical Specifications

• Mechanism: Oval Cylinder (cylinder not included)
• Backset: 45mm or 57mm (please select from the options below)
• Case Depth: 68mm or 81mm (please select from the options below)
• Case Height: 109.6mm
• Centres: 47.5mm
• Bolt Throw: 14mm
• Spindle: 8mm
• Forend Dimensions: 162mm (L) x 26mm (W)

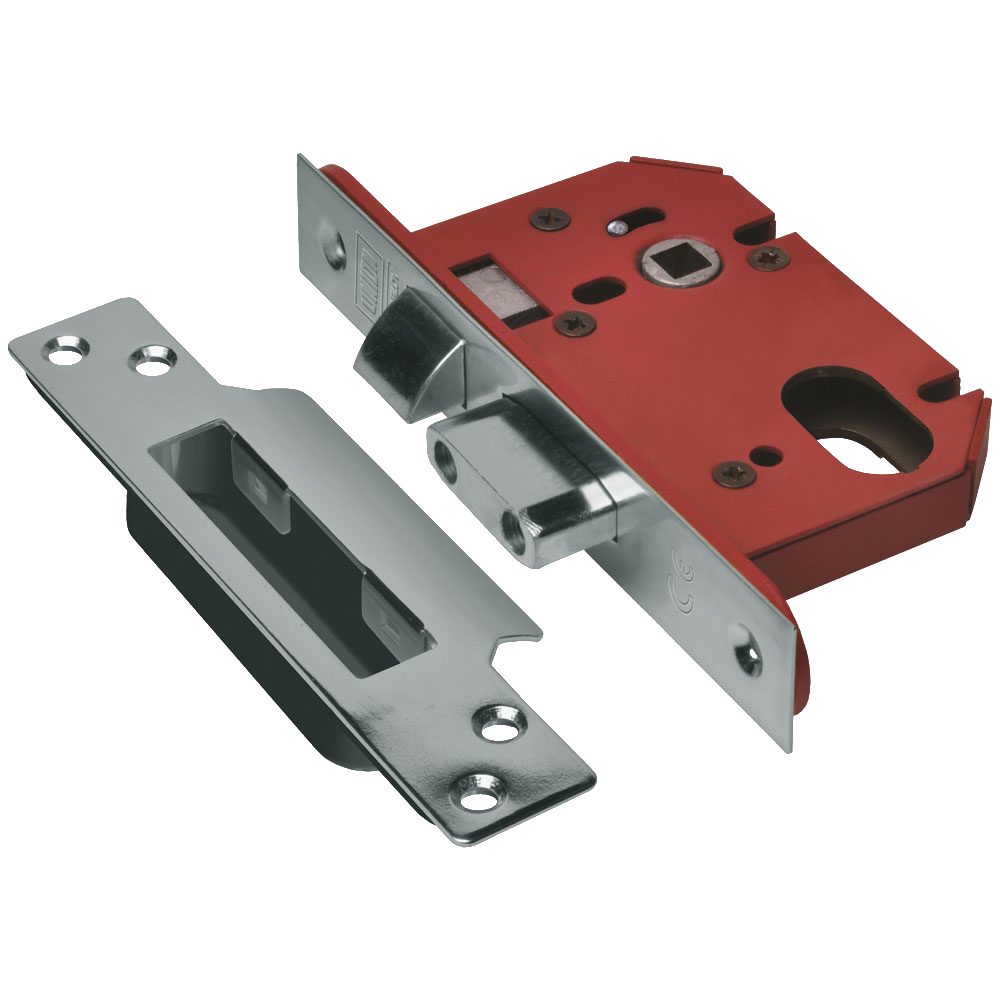

• Finish: Polished Brass or Stainless Steel (please select from the options below)
• Fire Tested: 1-hour timber doors (BS EN 1634-1)
• Standards: BS EN 12209:2003, CE Marked, Certifire Approved, Secured by Design
• Guarantee: 10 Year

Key Features

• Enhanced Security: Chamfered deadbolt design increases resistance against side load and drilling attacks.
• Attack Resistant: Highly resistant to picking, sawing, and force.
• SwitchLatch™ Technology: Easy reversible radius latch allows for quick handing adjustments on-site.
• Simple Installation: Features a square faceplate and radius inner forend for easy fitting or retrofitting.
• Professional Finish: Supplied with a plastic splinter guard and an anti-rattle adjustable strike for fine-tuning.
• Fire Door Approved: Certified for use on 60-minute timber fire doors.
• Multiple Options: Available in a choice of backsets, case depths, and finishes to suit your door requirements.
