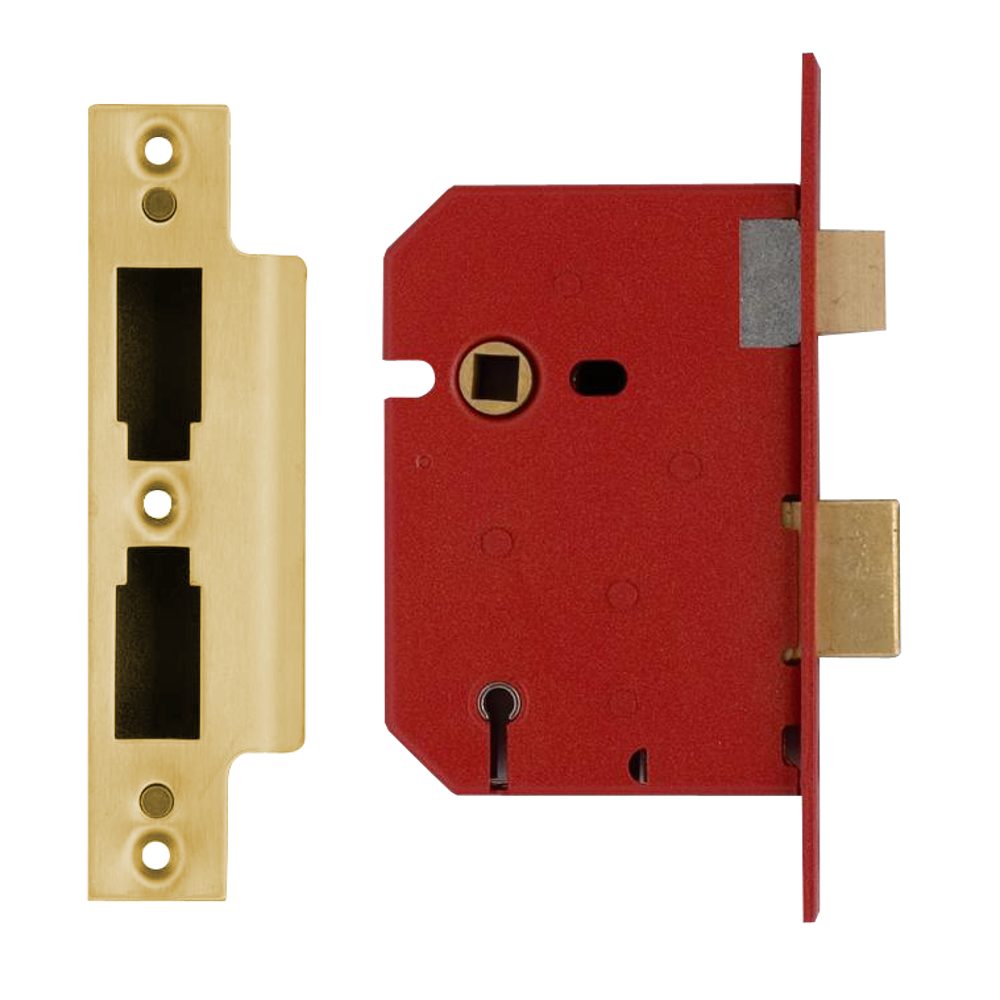

UNION 2201 5 Lever Sashlock

The UNION 2201 5 Lever Sashlock is a highly reliable, medium-security mortice lock designed for timber doors where British Standard (BS 3621) insurance compliance is not required. It is ideal for internal doors or low-risk external doors up to 54mm thick, offering a robust locking mechanism operated by key from either side, alongside a latch bolt operated by lever handles.

The UNION 2201 5 Lever Sashlock is a highly reliable, medium-security mortice lock designed for timber doors where British Standard (BS 3621) insurance compliance is not required. It is ideal for internal doors or low-risk external doors up to 54mm thick, offering a robust locking mechanism operated by key from either side, alongside a latch bolt operated by lever handles.

This versatile sashlock features a reversible latch bolt, making it easily adaptable for both left and right-hand hung doors. For added security, it is supplied with a security box striking plate. It is also fire-tested to EN1634-1, making it fully certified for use on 60-minute timber fire doors (FD60).

To suit your specific installation needs, please select your preferred backset (44mm or 57mm, with corresponding 64mm or 75mm case depths), finish (Satin Chrome or Polished Lacquered Brass), and keying option (Keyed to Differ or Keyed Alike) from the options below.

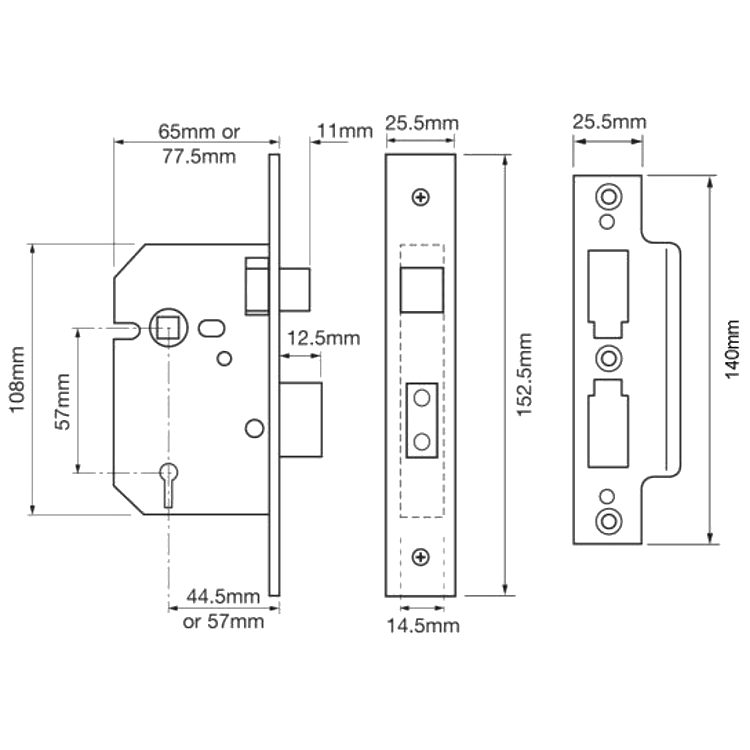

Technical Specifications

• Brand: UNION
• Mechanism: 5 Lever
• Case Depth: 64mm or 75mm (please choose from the options below)
• Backset: 44mm or 57mm (please choose from the options below)
• Centres: 57mm
• Case Height: 108mm
• Forend Dimensions: 152mm (L) x 25mm (W)
• Follower: 8mm (one-way action)
• Door Thickness: Suitable for doors up to 54mm thick
• Handing: Reversible latch bolt
• Keying Options: Keyed to Differ or Keyed Alike (please choose from the options below)
• Keys Supplied: 2 keys per lock
• Fire Rating: EN1634-1 approved for 60-minute timber fire doors (FD60)

Key Features

• 10-Year Guarantee: Backed by UNION’s robust 10-year manufacturer's guarantee for long-term peace of mind.
• Fire Door Approved: Certified under EN1634-1 for use on 60-minute timber fire doors.
• Flexible Keying: Available Keyed to Differ or Keyed Alike (can be keyed alike with UNION 2201/2401 series).
• Reversible Latch: Easily reversible latch bolt from the outside of the case, making it suitable for both left and right-hand hung doors.
• Enhanced Security Strike: Supplied with a security box striking plate for added resistance against physical attacks.

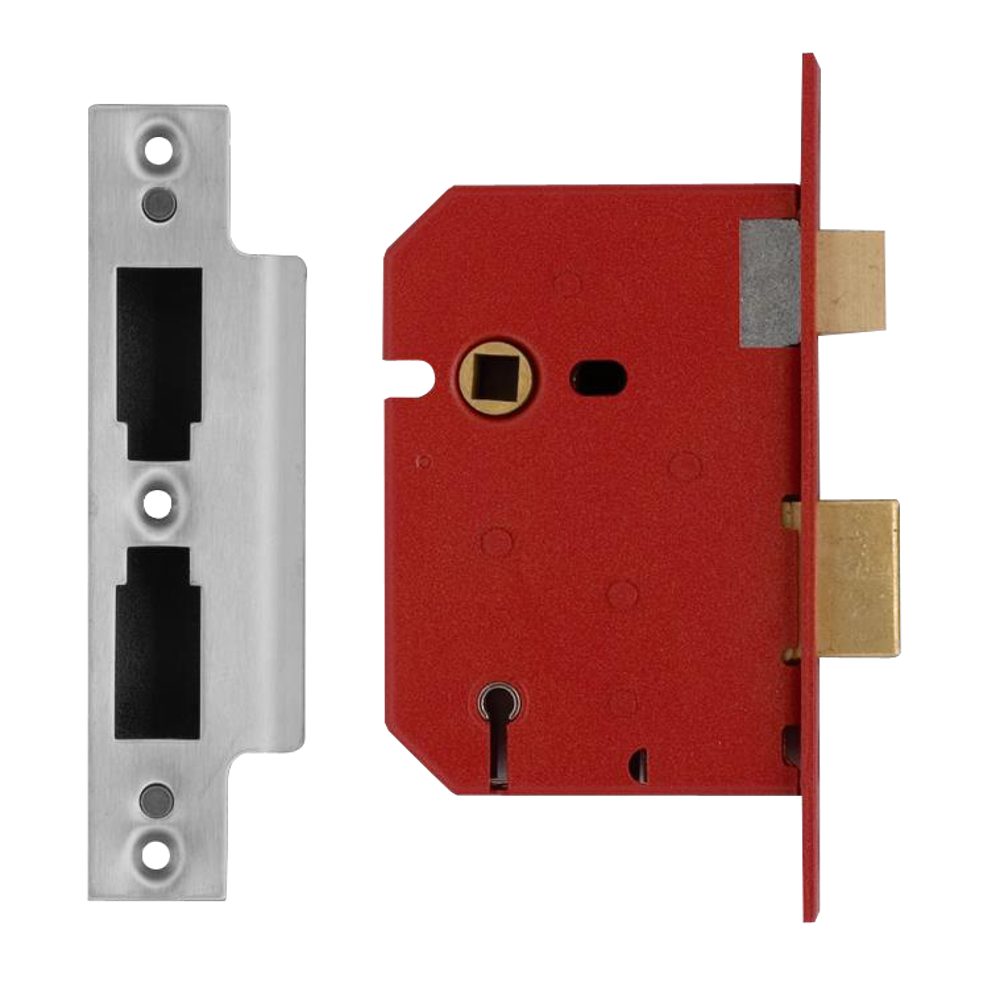

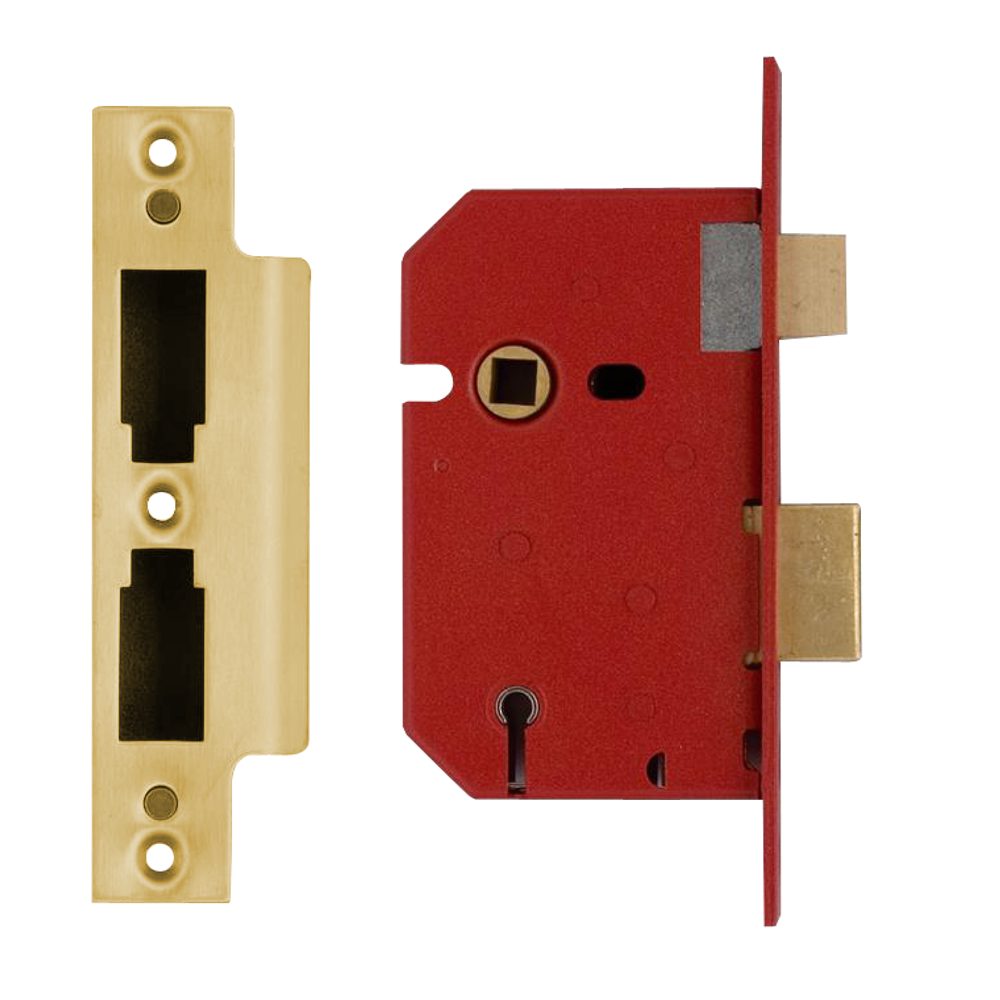

• Multiple Finishes: Available in high-quality Satin Chrome or Polished Lacquered Brass to match your existing door hardware.
