ICS Fire Rated Solenoid Bolt
ICS

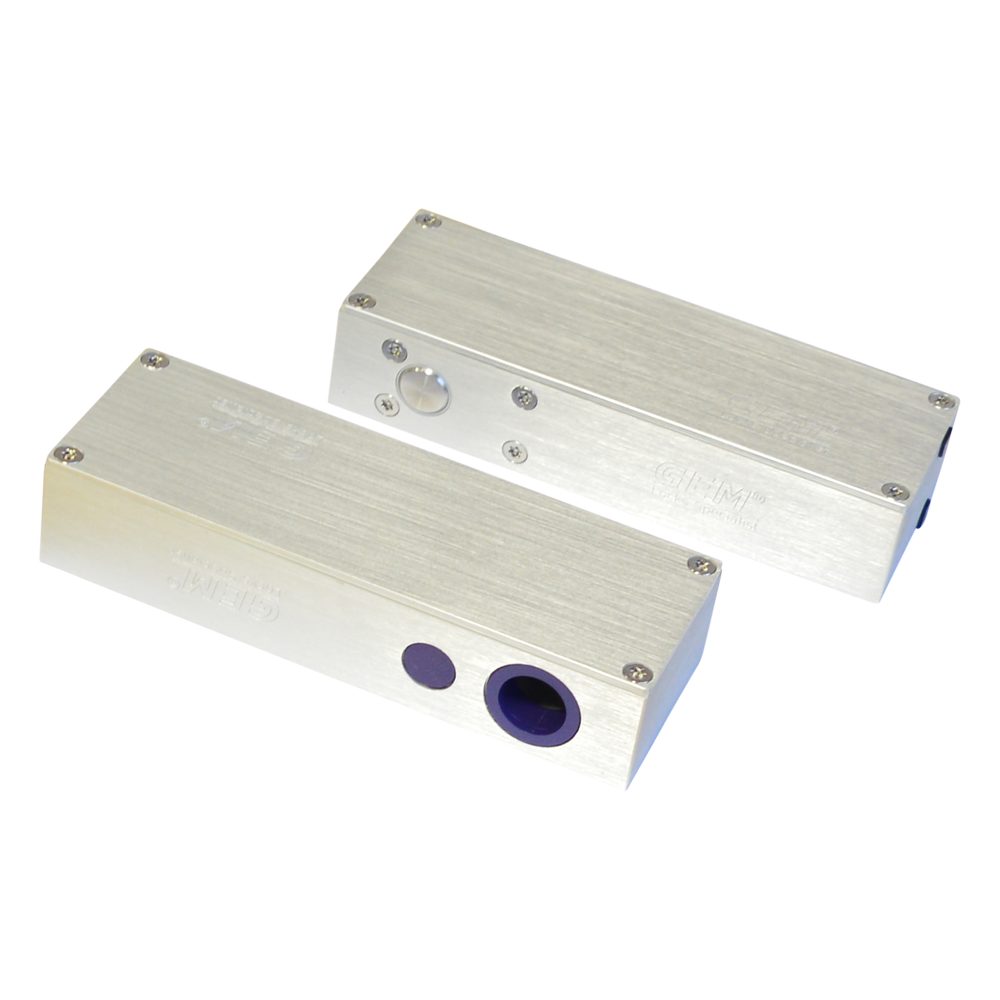

The ICS FR-EB300 Fire Rated Solenoid Bolt is a highly reliable, high-security electric locking solution designed for both timber and metal doors. Rigorously tested to BS EN 1634, this robust solenoid bolt is fully certified for use on FD30 and FD60 fire doors, making it an ideal choice for commercial and residential fire safety applications.
Operating on a 12V DC input, the FR-EB300 is a fail-safe (fail unlocked) device, ensuring that the door automatically unlocks in the event of a power failure to allow safe egress. It features an adjustable auto-relocking timer delay of 0, 3, 6, or 9 seconds, giving you complete control over access timing. Built for longevity, it has been tested to 500,000 cycles and can be installed either horizontally or vertically to suit your door configuration.
Technical Specifications
- Brand: ICS
- Manufacturer Reference: FR-EB300
- Input Voltage: 12V DC
- Current Consumption: Pull 0.9A, Holding 0.3A
- Holding Force: 544kg (1200lbs)
- Operation: Fail Unlocked (Fail-Safe)
- Fire Rating: BS EN 1634 (Suitable for FD30 and FD60 applications)
- Installation: Horizontal or vertical
- Operating Temperature: -10°C to +45°C
- Dimensions: 166mm (H) x 56mm (W) x 32mm (D)
- Finish: Satin Anodised Aluminium
- Weight: 3.8kg
- Guarantee: 1 Year
Key Features
- Fire Rated Security: Fully tested to BS EN 1634 for FD30 and FD60 timber and metal fire doors.
- Fail-Safe Operation: Automatically unlocks when power is cut, ensuring safe emergency evacuation.
- Adjustable Auto-Relock Delay: Built-in timer delay can be set to 0, 3, 6, or 9 seconds.
- High Durability: Tested to 500,000 cycles for long-lasting, reliable performance.
- Flexible Mounting: Suitable for both horizontal and vertical installation.
