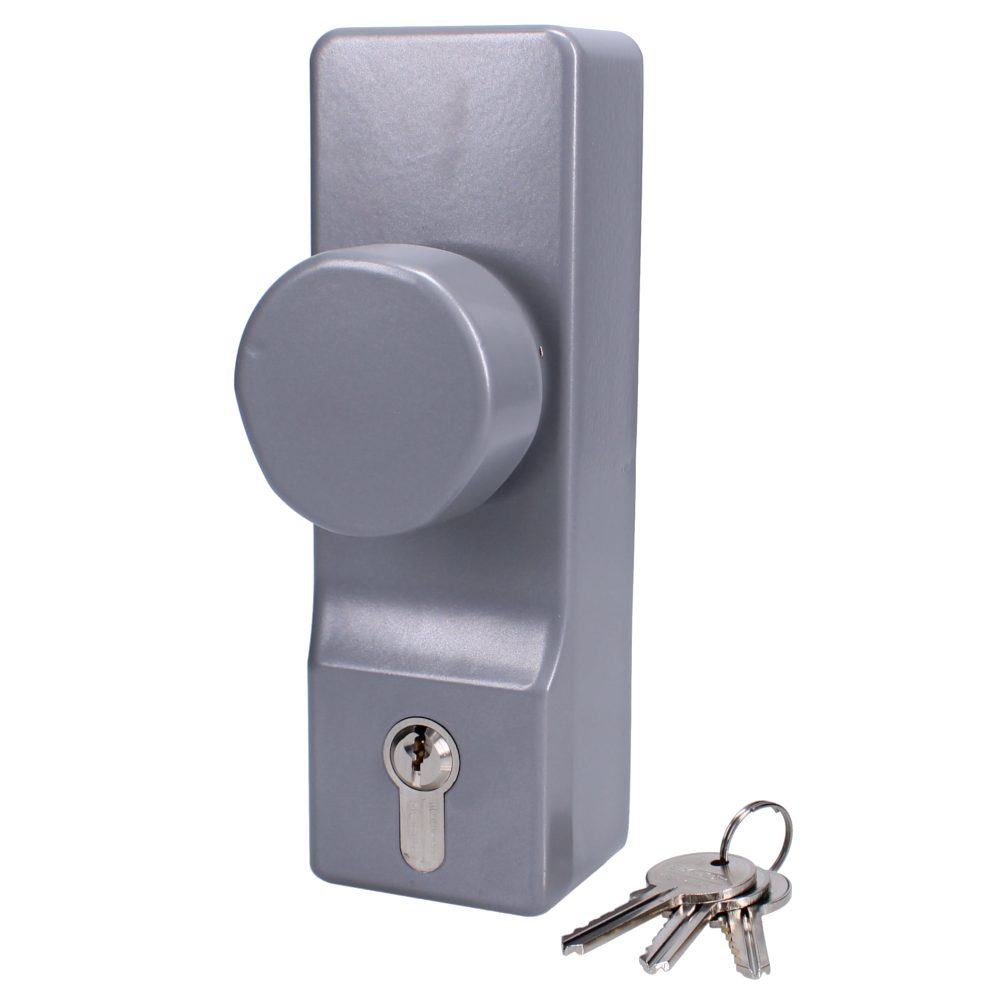

EXIDOR 302 Knob Operated Outside Access Device With Cylinder

The Exidor 302 Knob Operated Outside Access Device (OAD) provides a secure and reliable solution for external access on doors fitted with emergency exit hardware. Supplied complete with a 40mm Euro profile cylinder and three keys, this unit is fully compatible with Exidor 200 and 300 series panic bolts and latches.

Designed for versatility, the Exidor 302 is non-handed and suitable for both timber and steel doors up to 45mm thick. It features a smart silver enamelled finish and is fire-rated, CE marked, and Certifire approved.

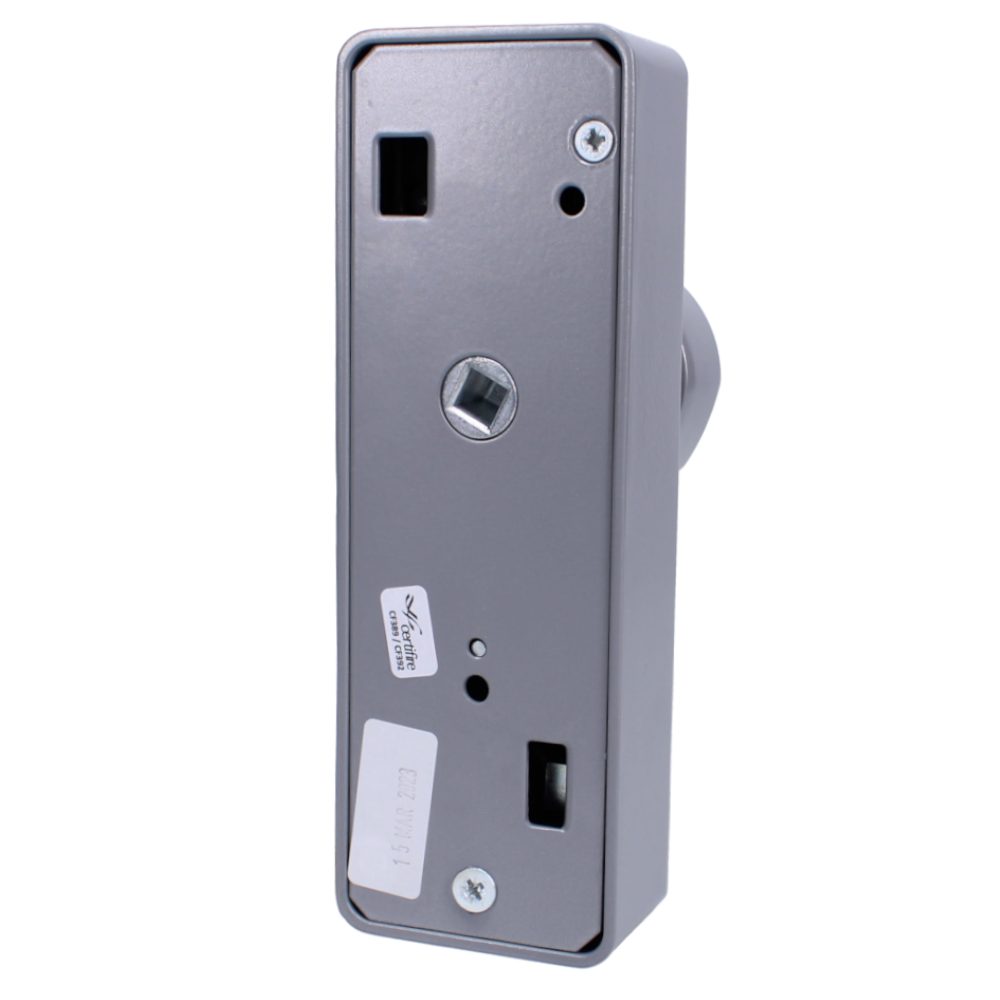

When locked, the internal mechanism disengages, allowing the round knob to rotate freely. This clever design prevents forced entry by resisting pulling, prying, and twisting attacks. Unlocking the cylinder engages the knob, allowing users to retract the internal panic hardware and gain entry. The device is surface-mounted from the outside using concealed bolt-through machine screws, ensuring a clean, secure installation.

Technical Specifications

• Brand: Exidor
• Manufacturer Reference: 302SE
• Finish: Silver Enamelled
• Cylinder Type: 40mm Euro profile cylinder (supplied with 3 keys)
• Door Thickness: Suitable for timber and steel doors up to 45mm thick
• Handing: Reversible (non-handed)
• Compatibility: Exidor 200 & 300 series bolts and latches
• Standards: CE Marked, Certifire approved

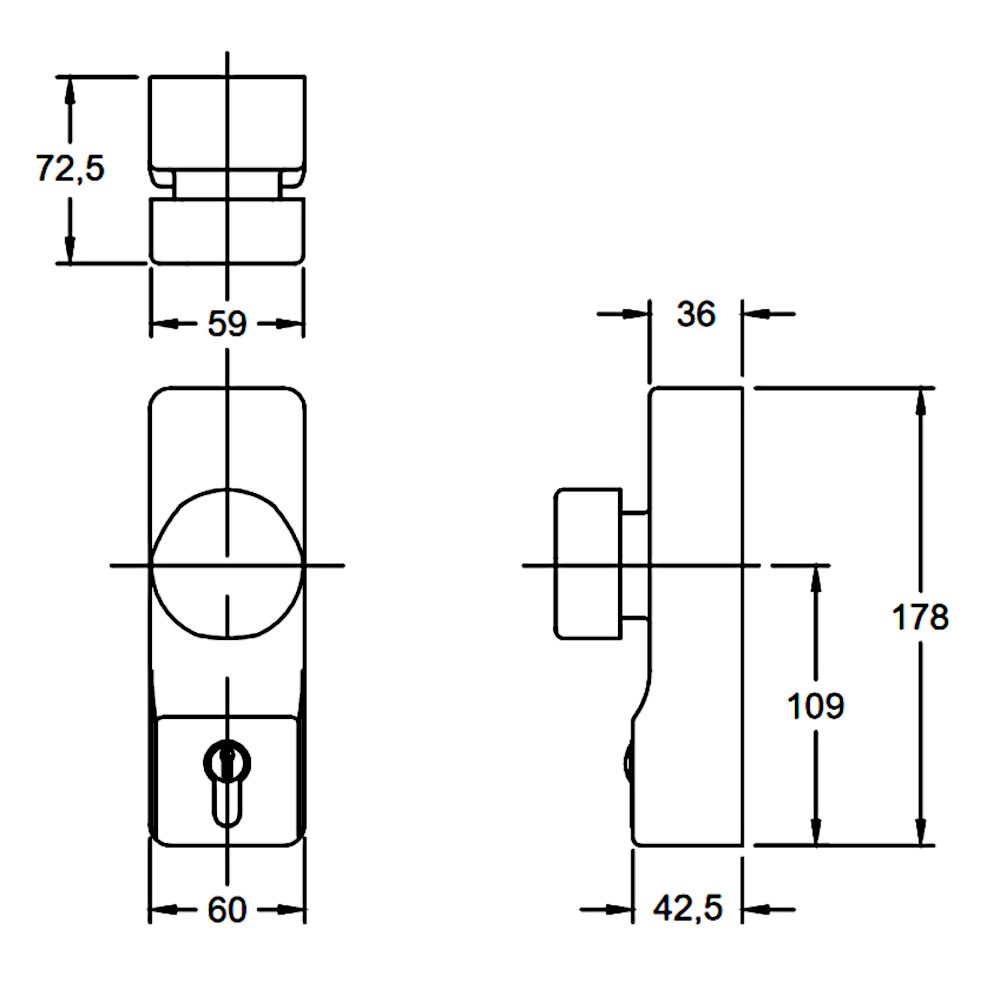

• Width: 60mm
• Depth: 70mm
• Body Depth: 43mm

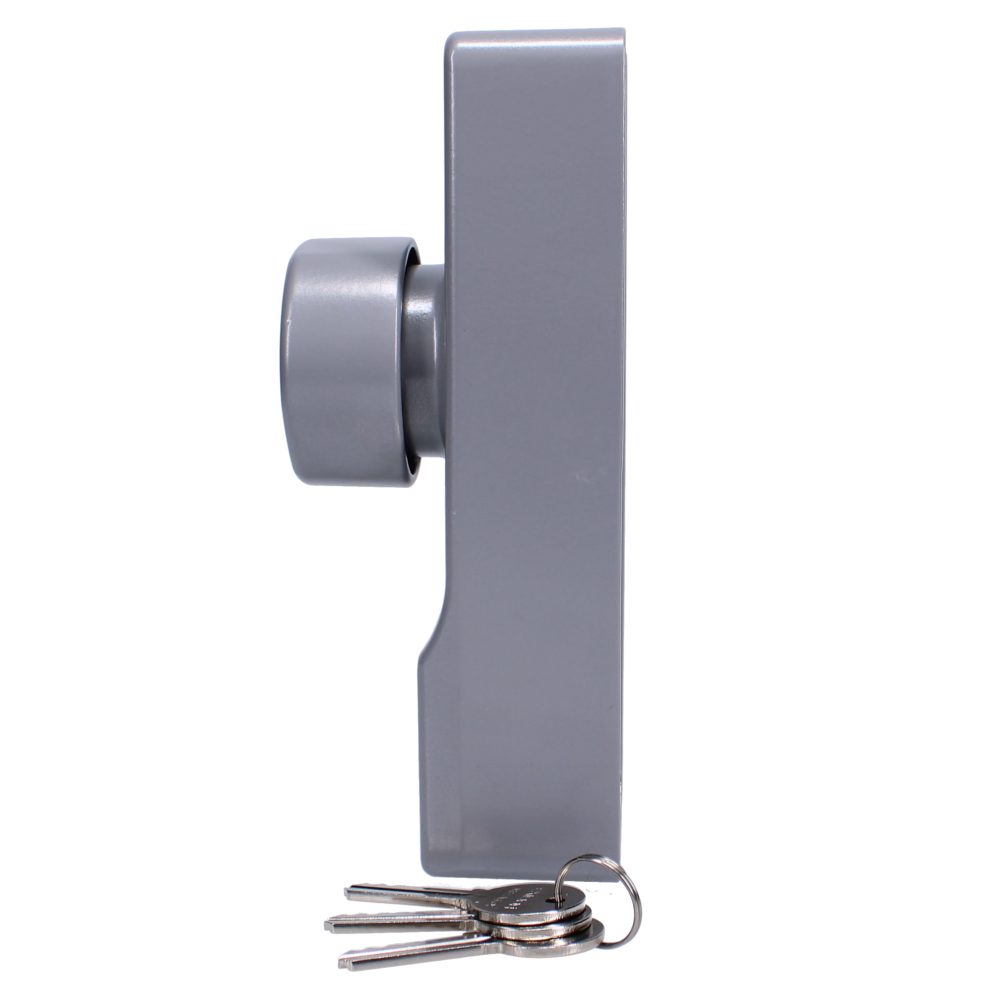

• Knob Projection: 27mm
• Weight: 900g
• Pack Quantity: 1

Key Features

• Free-Spinning Knob: When locked, the mechanism disengages to allow the knob to rotate freely, resisting pulling and prying attacks.
• Fire Rated: Certifire approved for use on both timber and steel fire doors.
• Supplied with Cylinder: Includes a 40mm Euro profile cylinder and three keys as standard.
• Concealed Fixings: Surface-mounted on the outside of the door using secure, concealed machine screws.
• Fully Reversible: Non-handed design ensures easy installation on both left and right-handed doors.
• Robust Construction: Durable silver enamelled finish suitable for commercial and public buildings.
