DORMAKABA 8066 Double Action Top Centre Complete Unit

The dormakaba 8066 Double Action Top Centre is a heavy-duty complete unit designed for use with timber doors. It is specifically engineered to work seamlessly with the dormakaba BTS concealed floor spring range, particularly the BTS80.

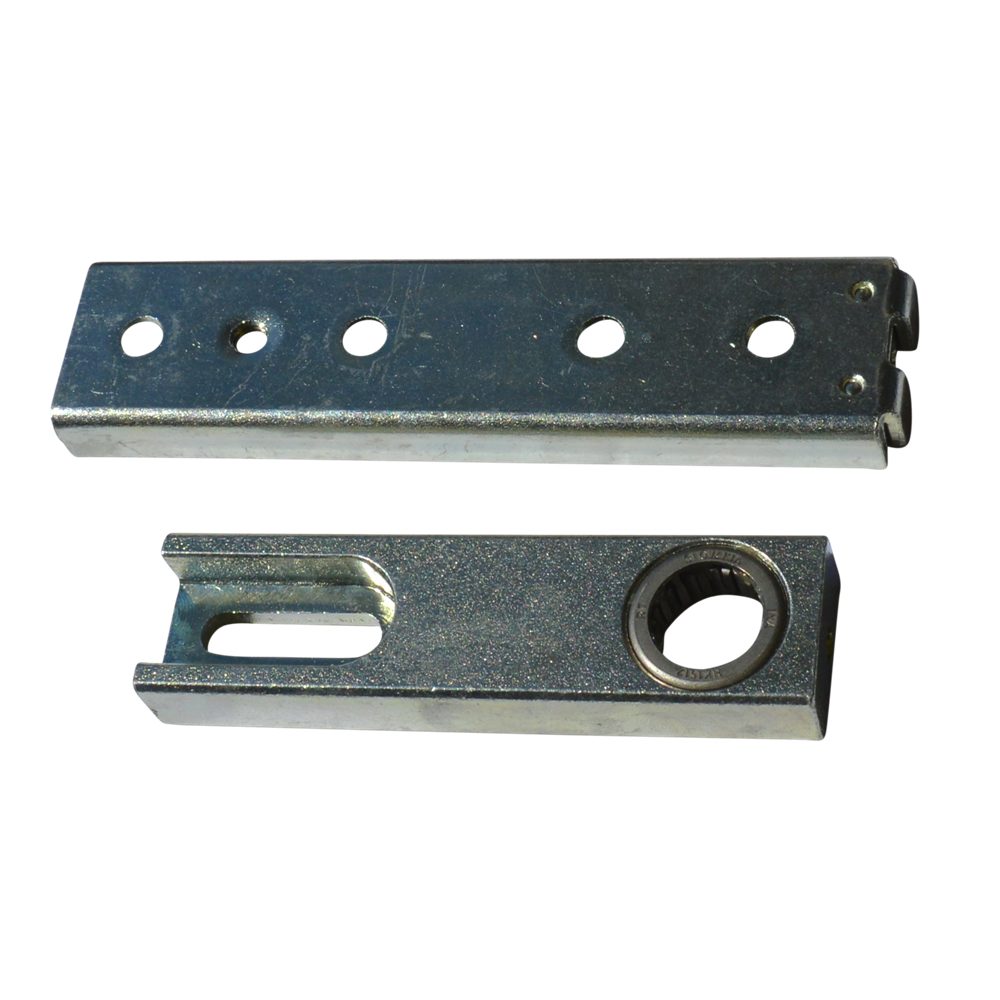

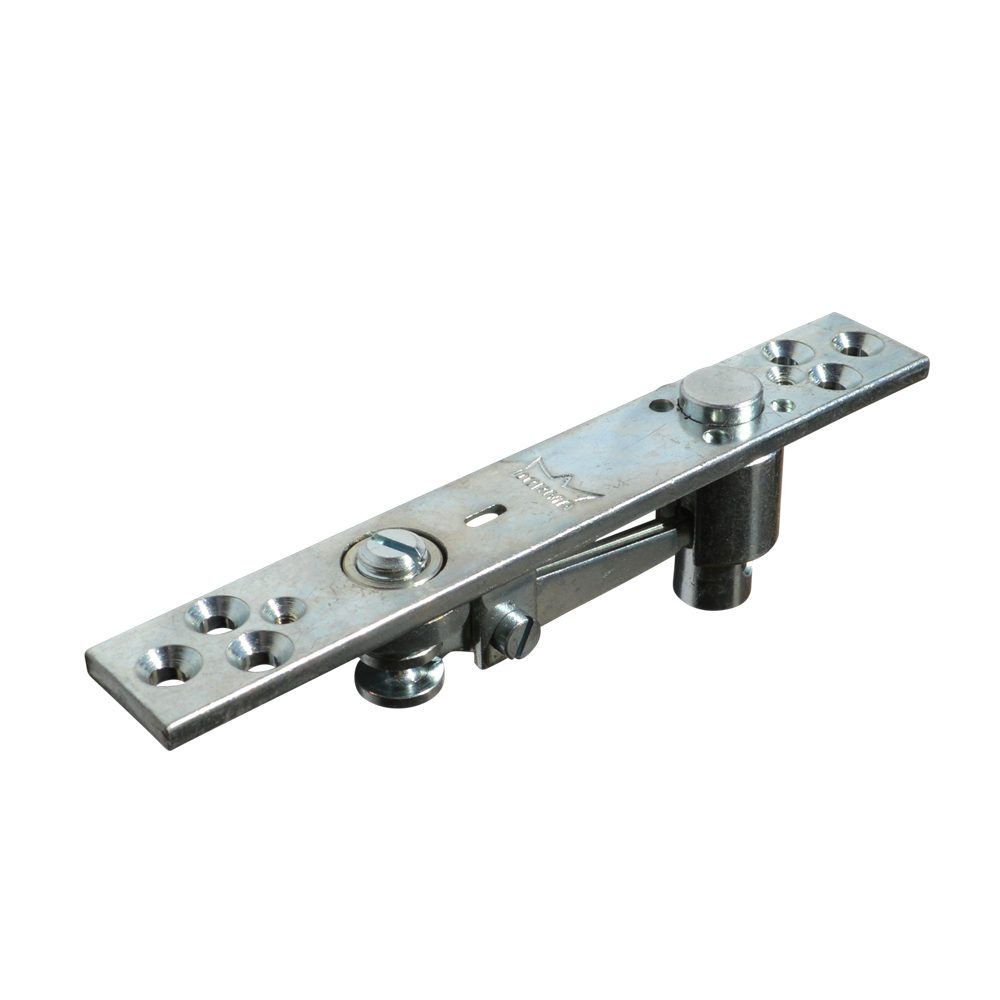

This complete set includes both the frame portion and the door portion. The frame portion features an adjustable pin, allowing it to accommodate deep profiles of up to 16mm. The door portion is equipped with a high-quality needle bearing to ensure smooth, reliable double-action operation.

Constructed from robust steel, this top centre is non-handed (fully reversible) and capable of supporting heavy doors weighing up to 300kg. It provides a durable and discreet pivot solution for demanding commercial and residential timber door installations.

Technical Specifications

• Manufacturer: dormakaba
• Model: 8066
• Material: Steel
• Maximum Door Weight: 300kg
• Handing: Non-handed (reversible)
• Compatibility: Suitable for timber doors; designed for use with dormakaba BTS floor springs (such as BTS80)

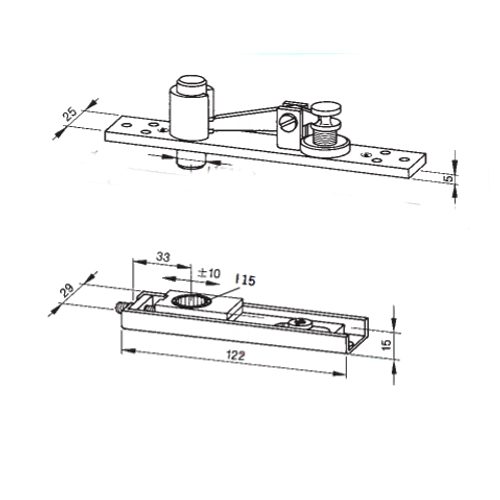

• Adjustability: Frame portion pin adjustable for deep profiles up to 16mm
• Bearing Type: Needle bearing in the door portion
• Weight: 600g

Key Features

• Complete Unit: Includes both the frame portion and the door portion for a complete installation.
• Heavy-Duty Capacity: Supports robust timber doors weighing up to 300kg.
• Smooth Operation: Equipped with a needle bearing to ensure reliable double-action movement.
• Flexible Fitting: Features an adjustable pin to accommodate deep frame profiles up to 16mm.
• Non-Handed Design: Reversible configuration makes it suitable for both left and right-handed doors.
