CODELOCKS CL610 Series Digital Lock With Tubular Latch

The Codelocks CL610 Series (including the CL610 and CL615 models) represents a range of heavy-duty mechanical digital locks designed for high-traffic commercial and domestic environments. These robust locks feature Codelocks' innovative 'Quick Code' system, allowing users to change the entry code directly on the door in seconds without removing the lock.

The Codelocks CL610 Series (including the CL610 and CL615 models) represents a range of heavy-duty mechanical digital locks designed for high-traffic commercial and domestic environments. These robust locks feature Codelocks' innovative 'Quick Code' system, allowing users to change the entry code directly on the door in seconds without removing the lock.

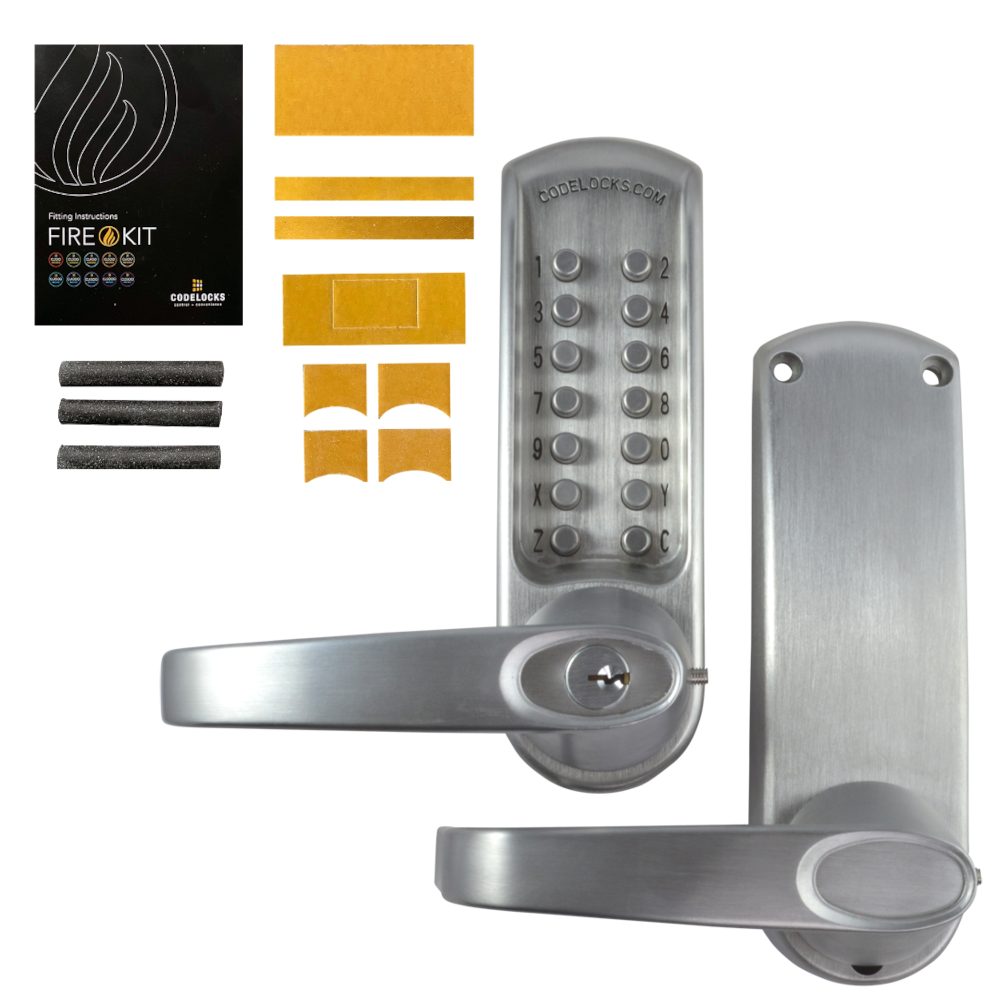

This versatile series is available in multiple configurations to suit your specific security and access requirements. You can choose whether you require a passage set (code-free access) or a standard non-passage setup, and select between fire-tested (BS EN 1634-1 compliant) or non-fire-tested models. The product weight also varies between 3.499kg and 3.8kg depending on the selected kit. With various manufacturer references, barcodes, and kit notes available, please choose from the options below to find the perfect configuration for your door.

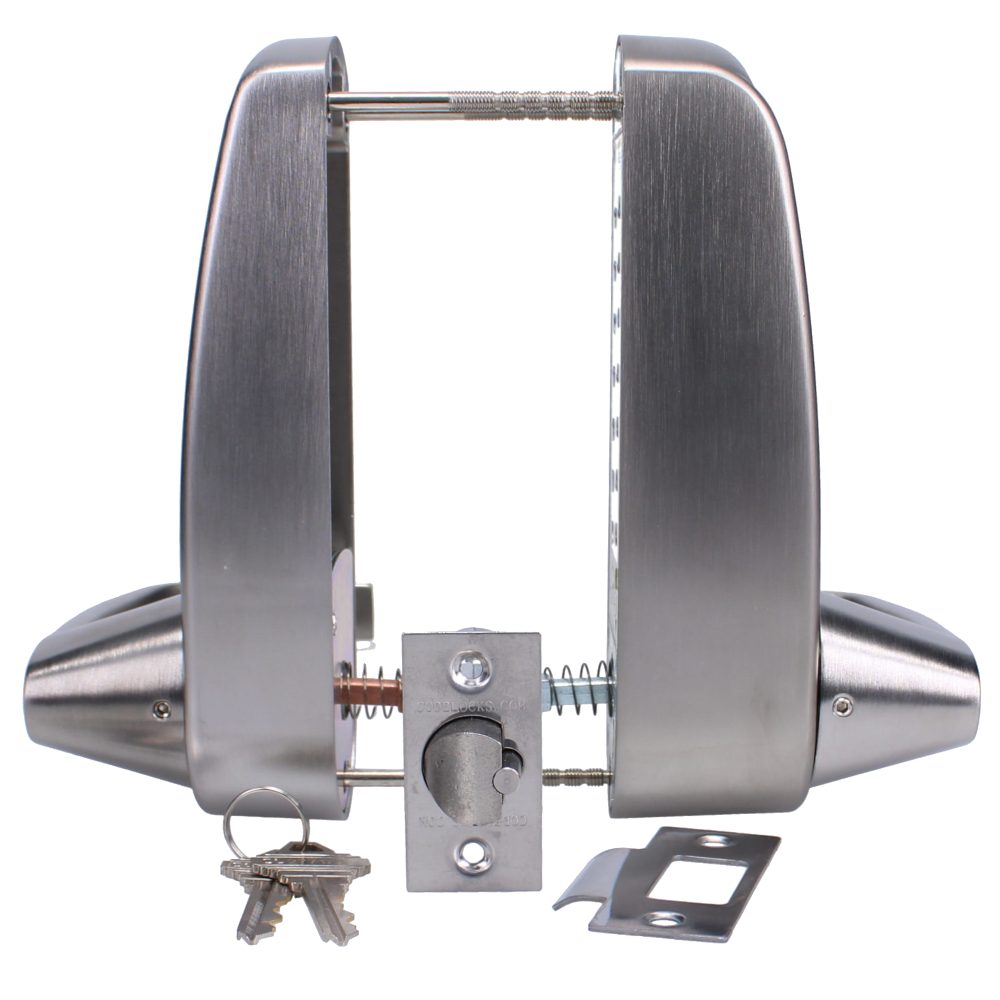

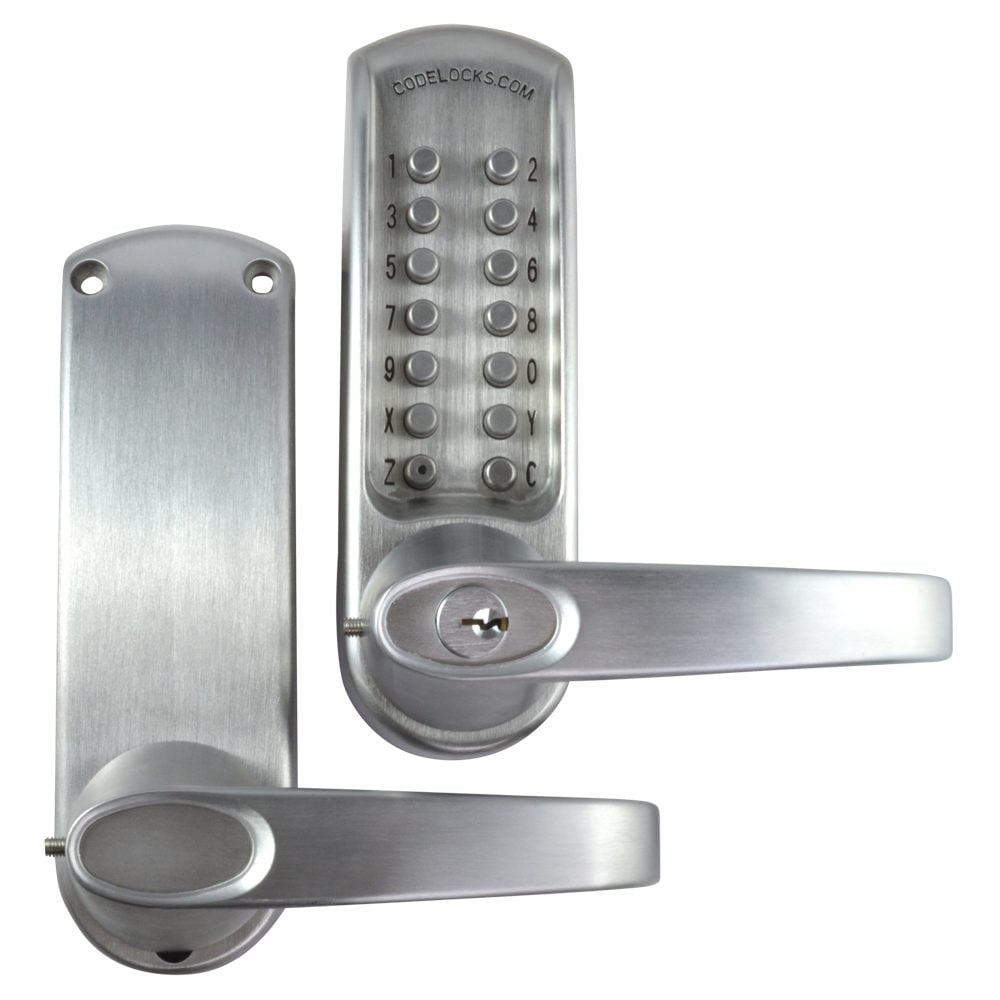

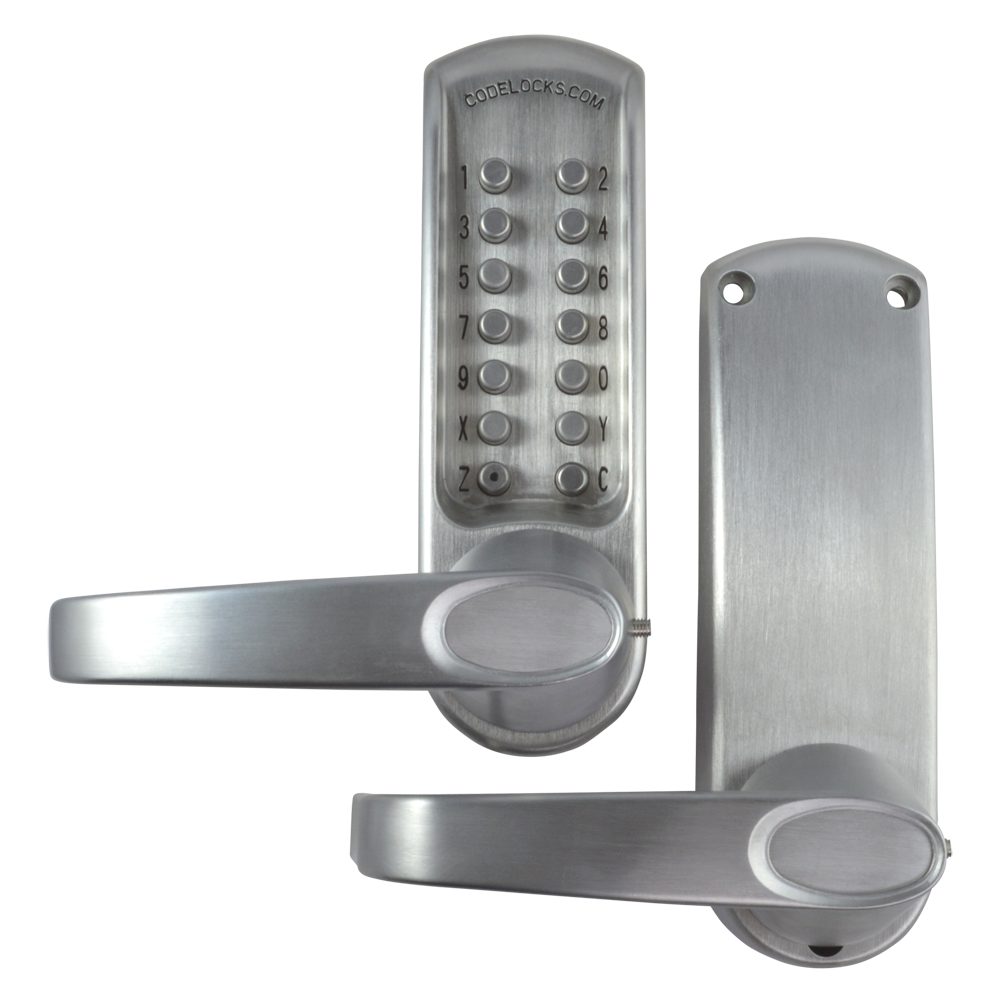

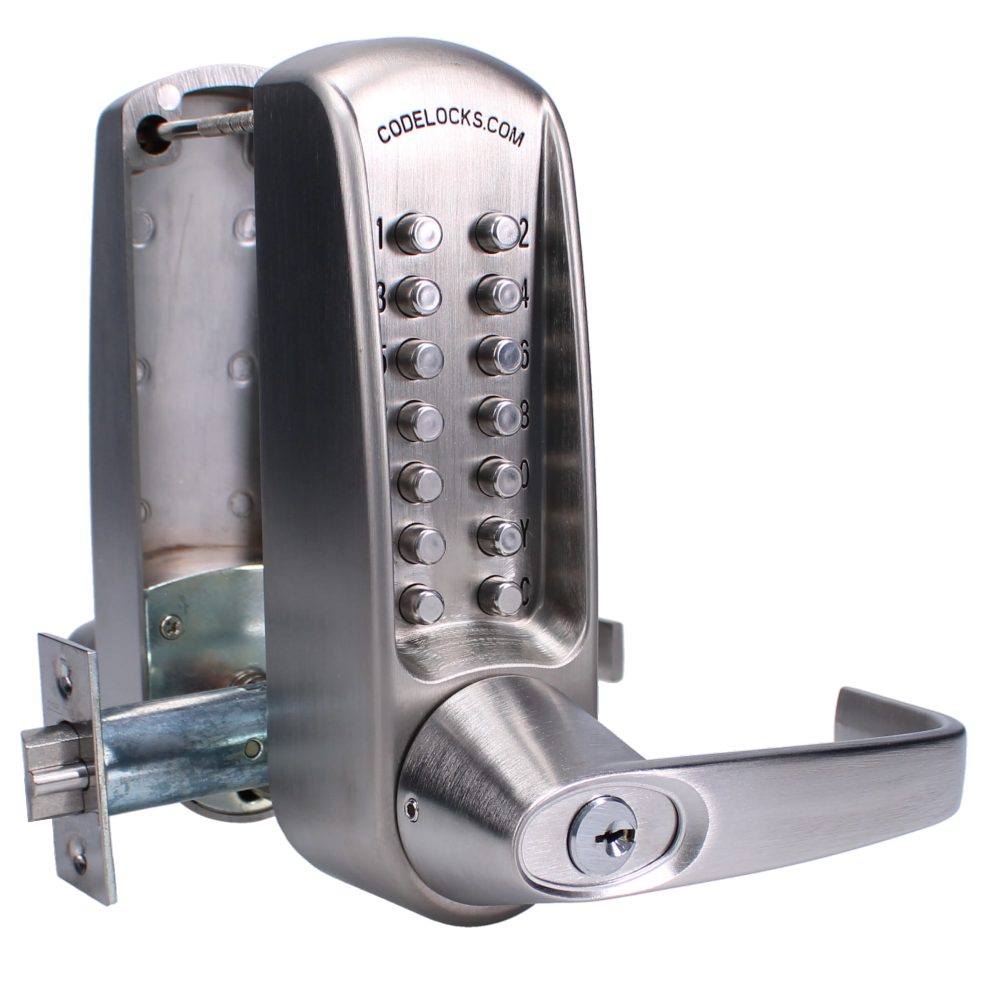

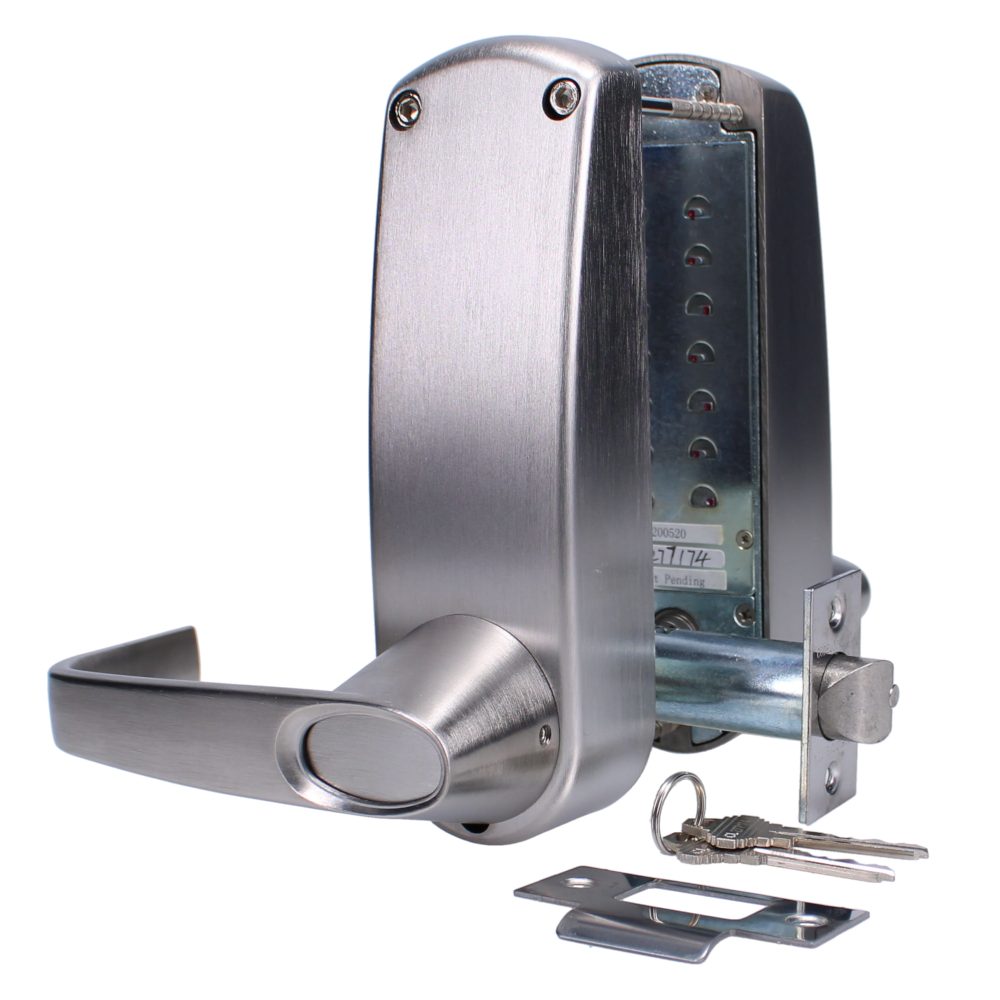

Each lock is equipped with a 60mm standard tubular latch, a key override for emergency access, and a dual-lever handle setup. The outside lever retracts the latch after entering a correct 4 to 6-digit code, while the inside lever provides free exit at all times. Suitable for both internal and external doors, these non-handed, reversible units are built to withstand heavy use.

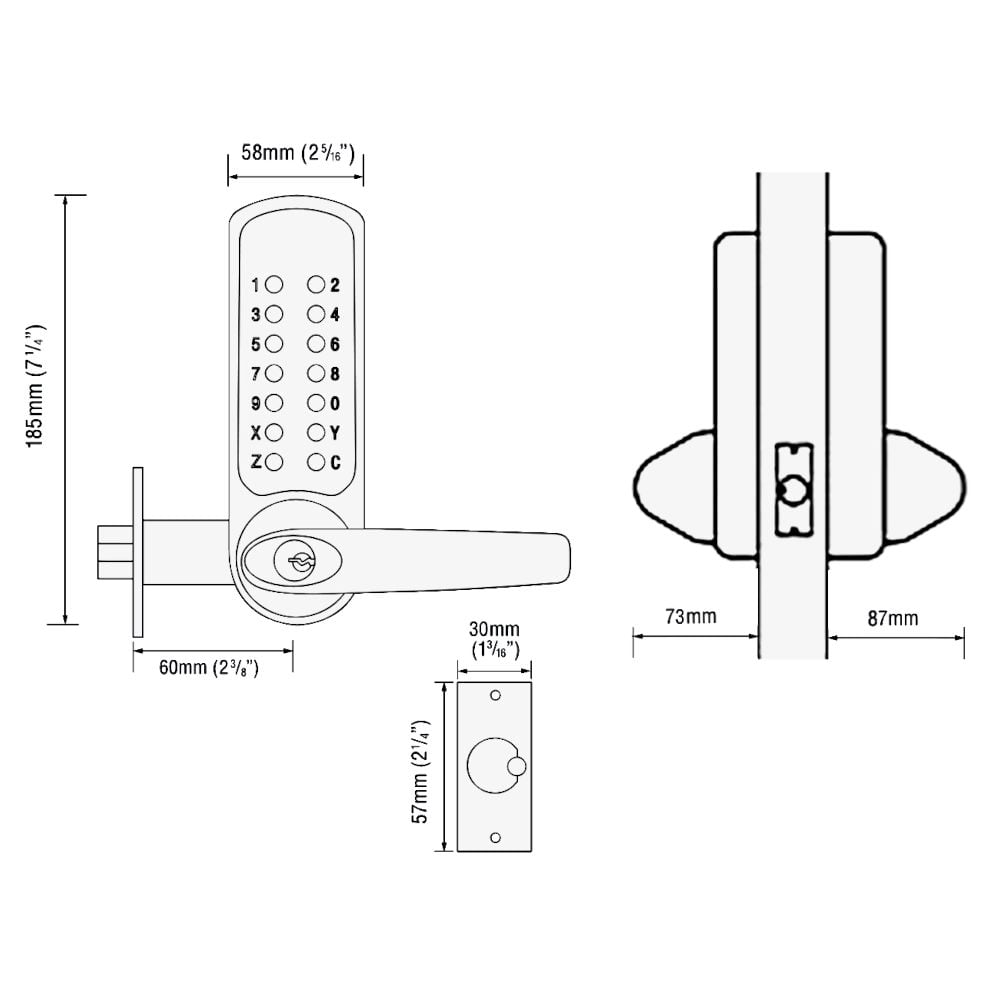

Technical Specifications

• Brand: Codelocks
• Backset: 60mm
• Case Depth Required: 85mm
• Door Thickness: 35mm to 65mm
• Finish: Stainless Steel
• Key Override: Yes (2 keys supplied)
• Code Length: 4 to 6 digits
• Combinations: 8,000+
• Buttons: 14
• Operation Outside: Lever handle on entry of code
• Operation Inside: Lever handle free exit
• Weather Resistant: Yes
• Standards: Tested to Grade 2 - ANSI - A156.2 (BS EN 1634-1 for fire-tested variants)

Key Features

• On-Door Code Change: Quick Code system allows code changes in seconds without removing the lock from the door
• Heavy-Duty Design: Robust construction suitable for high-traffic internal and external doors
• Configurable Options: Available with or without passage set (code-free access) and fire testing - please choose from the options below
• Key Override: Emergency key override function for peace of mind (2 keys included)
• Non-Handed: Reversible lever handles suitable for both left and right-handed doors
• Free Exit: Inside lever handle allows quick and easy egress at all times
