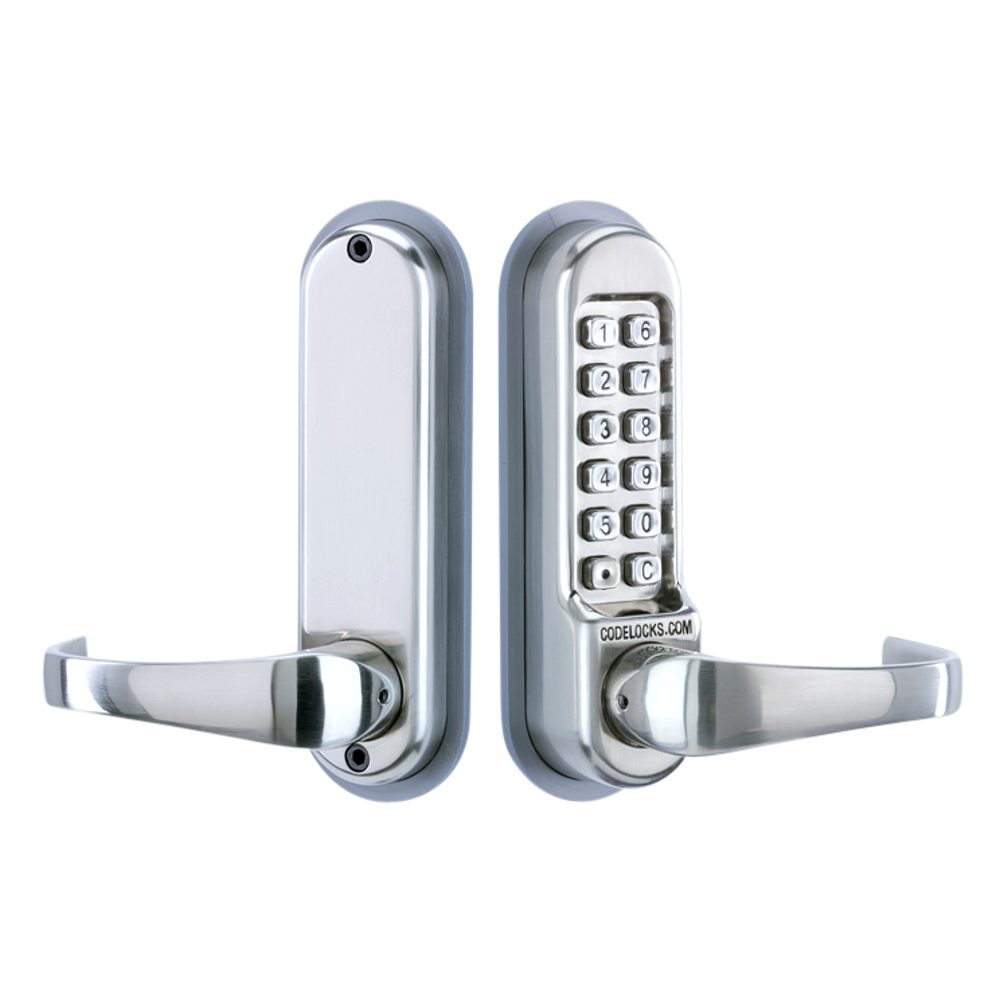

The Codelocks CL510 Series is a heavy-duty mechanical digital lock designed for high-traffic internal and external doors. Equipped with a robust tubular mortice latch, this lock provides reliable security and ease of use. The outside lever handle retracts the latch once a correct code is entered, and the spring-loaded latchbolt locks automatically when the door is closed, while the inside lever handle provides free exit at all times.

The Codelocks CL510 Series is a heavy-duty mechanical digital lock designed for high-traffic internal and external doors. Equipped with a robust tubular mortice latch, this lock provides reliable security and ease of use. The outside lever handle retracts the latch once a correct code is entered, and the spring-loaded latchbolt locks automatically when the door is closed, while the inside lever handle provides free exit at all times.

This series is available in two models to suit your requirements. The CL510 model offers standard coded entry, while the CL515 model features a passage set (code-free entry) option, allowing free passage without a code when required. Please select your preferred model, passage set option, and barcode from the choices below.

To achieve a fire rating, these digital locks must be fitted with an appropriate intumescent pack (available separately). Additionally, the optional "Clean by Codelocks" photocatalytic finish is available to special order to help reduce bacterial growth.

Please note: If you are ordering a front/back plate set to use with an existing lock case, please ensure your current lock case is tested for compatibility before purchasing.

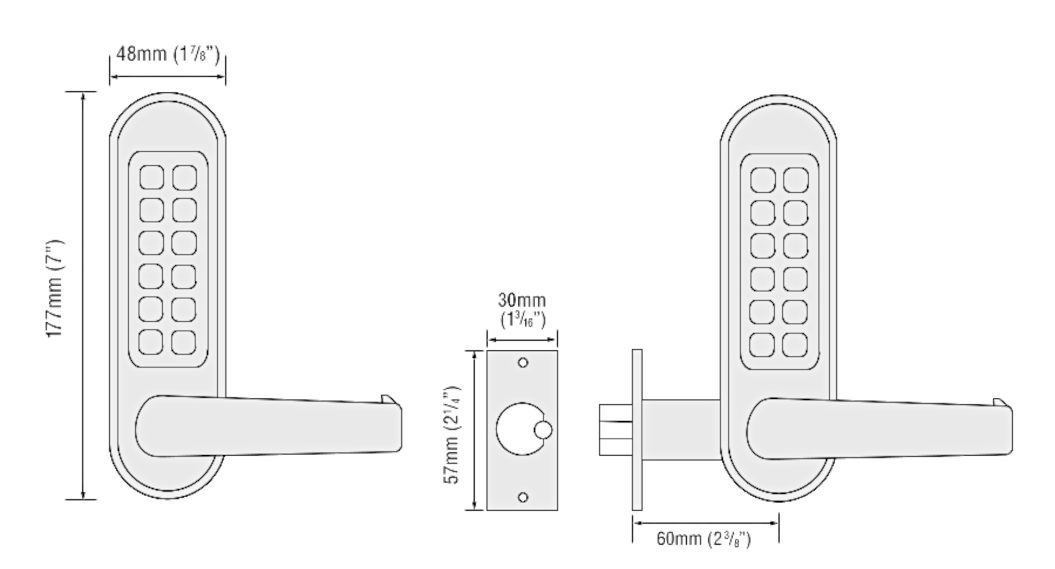

Technical Specifications

• Brand: Codelocks
• Manufacturer Reference: 510 or 515 (please choose from the options below)
• Passage Set: Yes or No (please choose from the options below)
• Barcode: 5031913000837 or 5031913000844 (please choose from the options below)
• Backset: 60mm
• Case Depth Required: 85mm
• Door Thickness: 35mm to 65mm
• Finish: Stainless Steel
• Buttons: 12
• Code Length: 4 to 6 digits
• Combinations: 8,000+
• Handing: Reversible (non-handed)
• Spindle: 8mm square spindle
• Width: 48mm
• Weight: 2.14kg

Key Features

• Heavy-Duty Construction: Suitable for high-traffic internal and external door applications.
• Automatic Locking: Spring-loaded latchbolt locks automatically upon door closure.
• Free Exit: Inside lever handle allows quick and easy egress.
• Weather Resistant: Durable PVD finish designed to withstand the elements.
• Optional Passage Mode: CL515 model features a code-free entry option for unrestricted access.
• Fire Rated Potential: Can be fire rated when fitted with the appropriate intumescent pack (sold separately).
