BRITON 2400 Size 2-4 Concealed Cam Action Door Closer

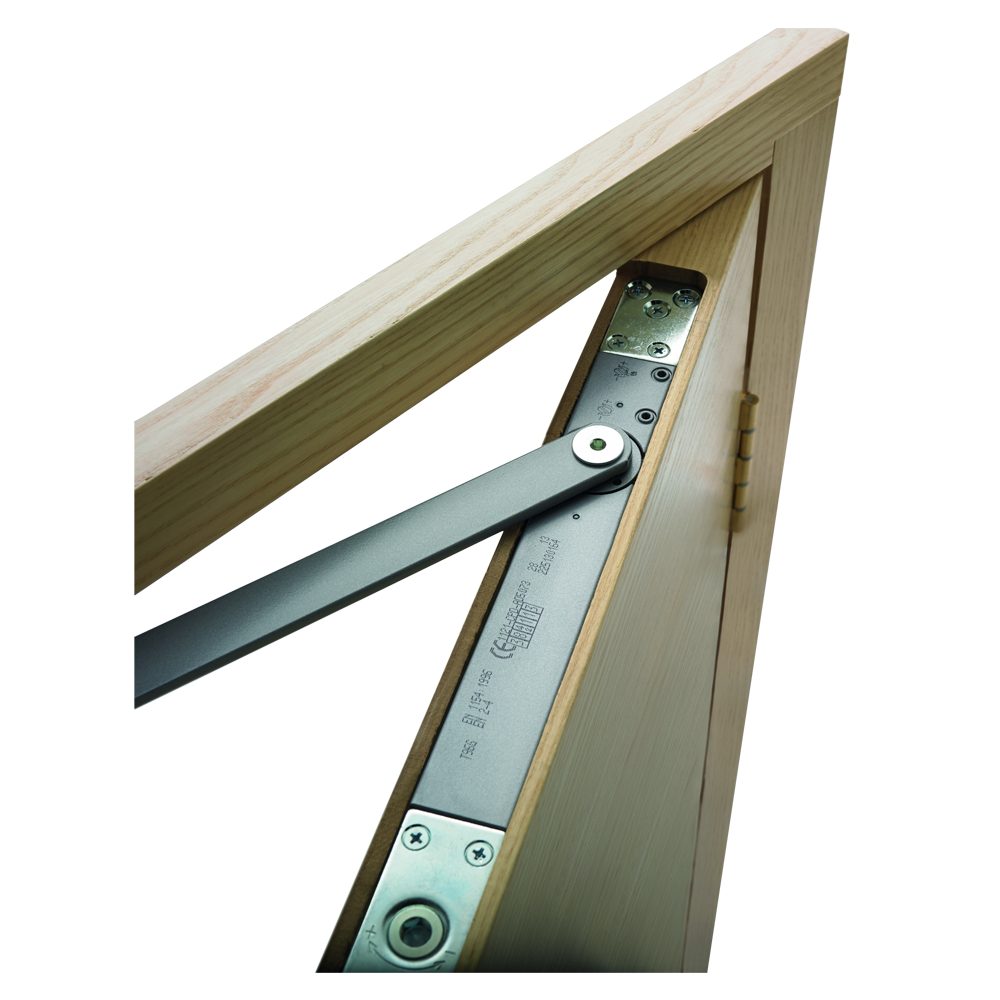

The Briton 2400 series of Concealed Cam Action Door Closers combines innovative design with advanced cam-action technology, making it the ideal choice for environments where a discreet, high-performance door closer is preferred. Because the closer body is mounted within the top of the door and the slide track is fitted inside the head frame, this device remains fully concealed when the door is closed, offering excellent resistance to tampering and a clean, aesthetic finish.

This non-handed closer is suitable for all popular applications and provides a maximum opening angle of 120°. The low initial opening forces of the cam-action design ensure easy operation and accessibility for users, while still maintaining the necessary closing force for fire safety. It features fully adjustable closing speeds from a 120° opening down to the final 7°, alongside an adjustable latch action to ensure a secure close. Fully adjustable to EN power sizes 2 to 4, this closer is CE marked for EN compliance and fire tested to EN 1634 standards on timber doors to achieve a 1-hour fire rating.

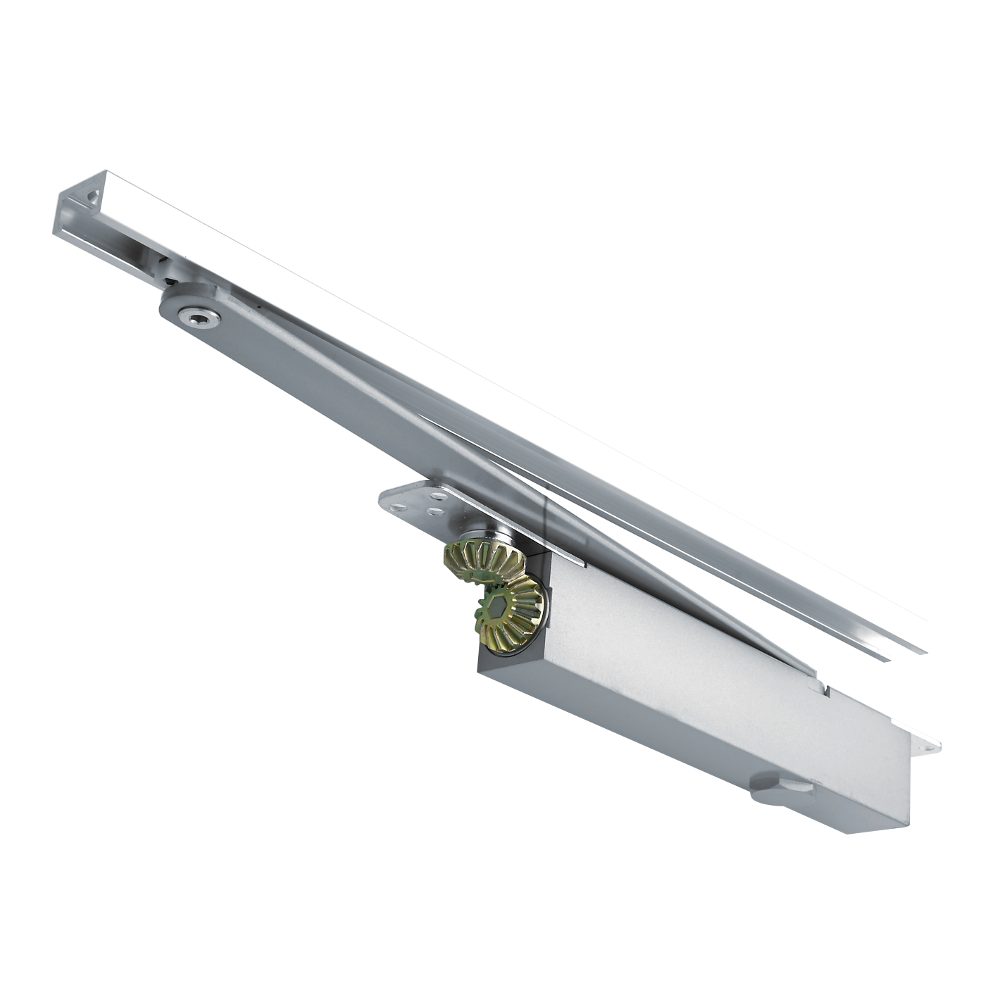

This door closer is available in multiple finishes, including Satin Stainless Steel and Silver Enamelled, with corresponding manufacturer references 2420.T.SS and 2420.T.SE. Please select your preferred finish, manufacturer reference, and barcode from the options below.

Technical Specifications

• Brand: Briton
• Power Size: EN 2 to 4 (fully adjustable)
• Maximum Door Width: 1100mm
• Maximum Door Weight: 80kg

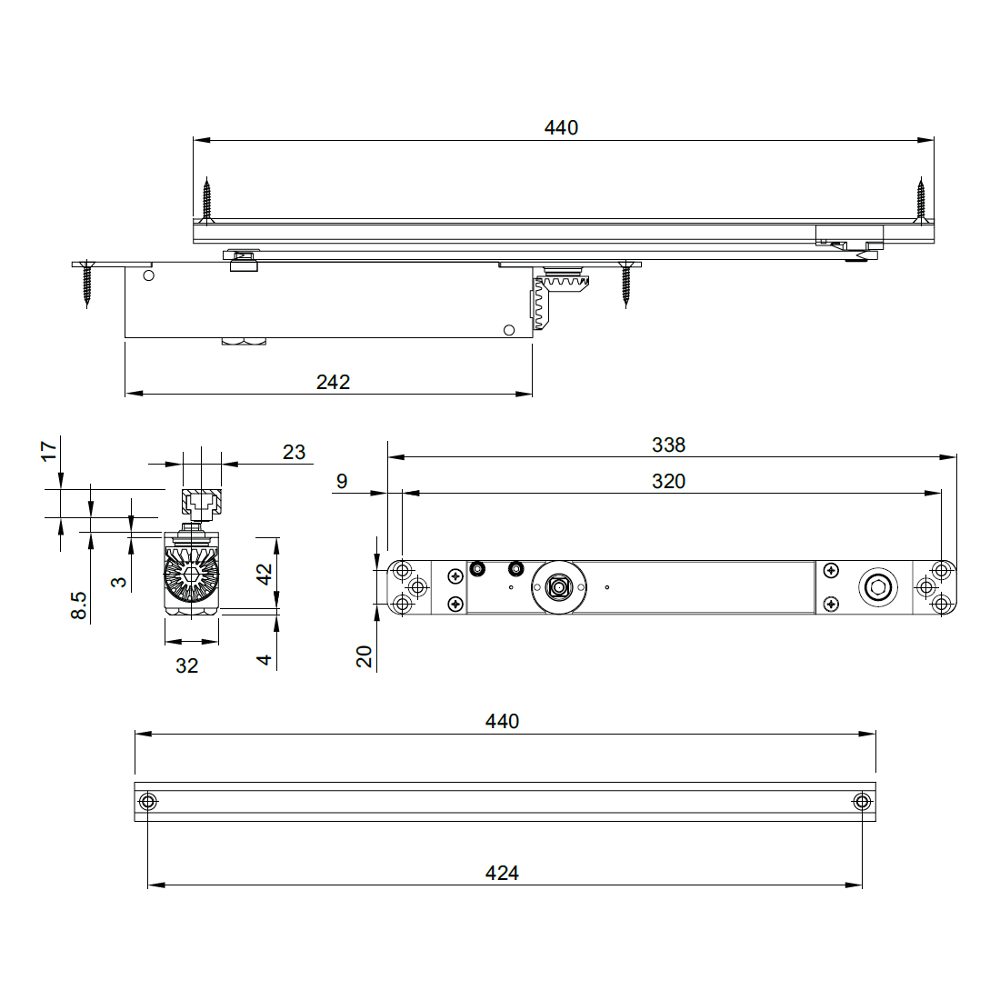

• Dimensions: 24.2cm (Length) x 42mm (Width) x 32mm (Body Height)
• Overall Height: 62mm (including arm)
• Standards: BS EN 1154, CE Marked
• Fire Rating: 1-hour fire rated on timber doors (EN 1634)
• Handing: Non-handed

Key Features

• Concealed Design: Fits discreetly inside the door leaf and frame, remaining completely hidden when the door is closed
• High-Efficiency Cam Action: Provides low opening resistance for easier accessibility while maintaining strong closing force
• Adjustable Closing & Latch Speed: Fully adjustable closing speed from 120° to 7° and adjustable latch action for a secure close
• 10-Year Warranty: Backed by a 10-year manufacturer's mechanical warranty for long-term peace of mind
• Multiple Finishes Available: Choose from Satin Stainless Steel or Silver Enamelled options below to suit your project's aesthetic
