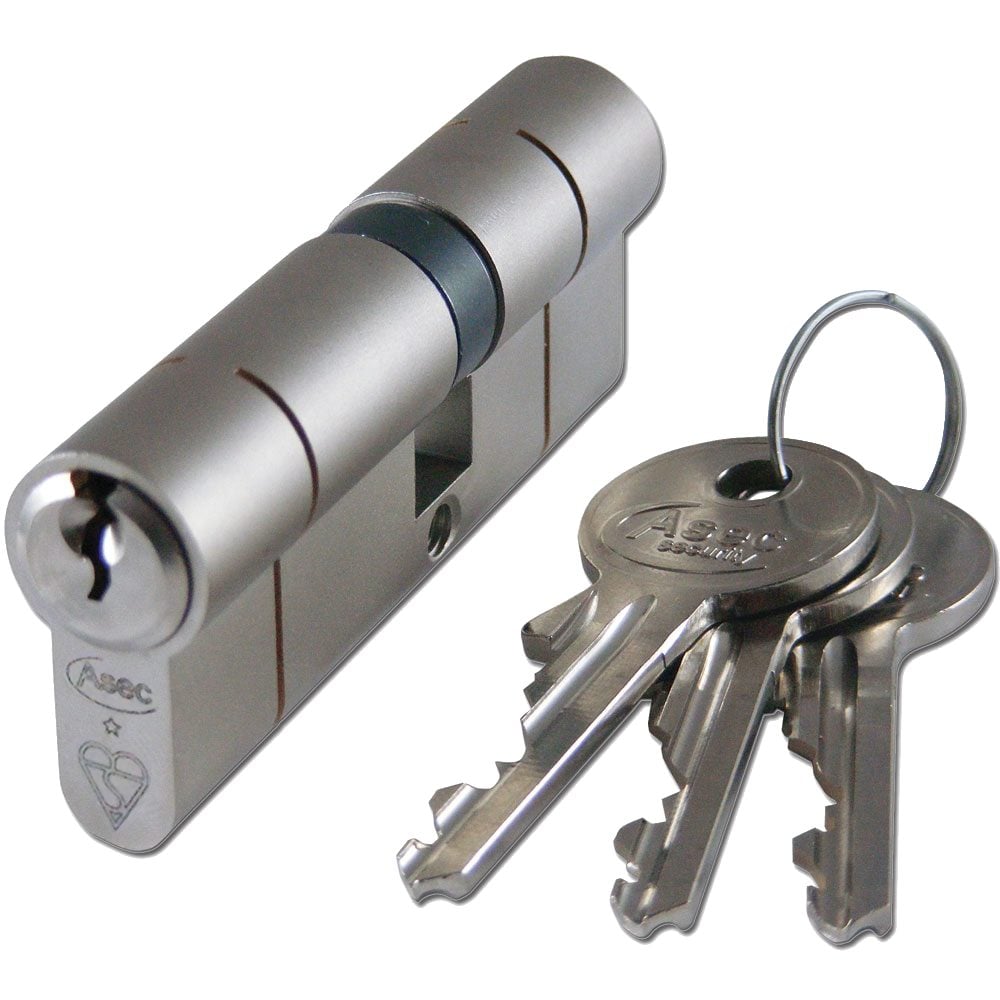

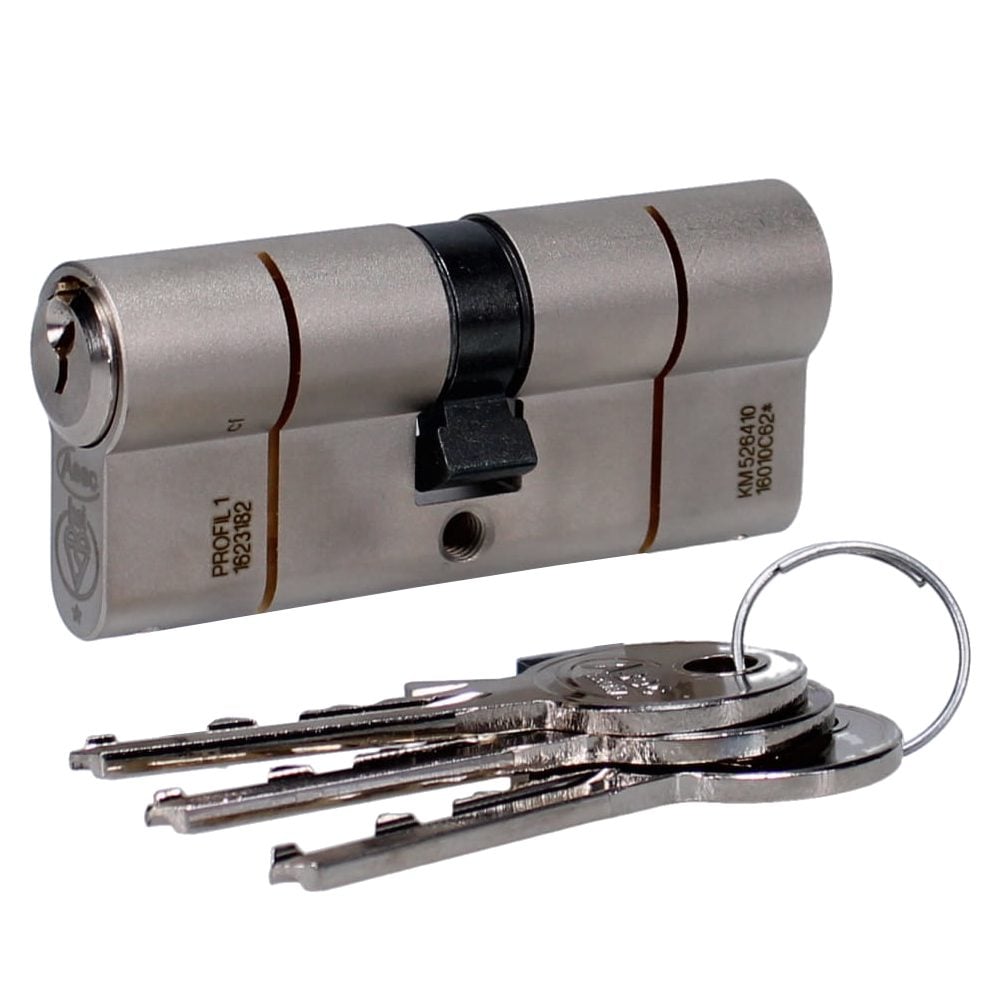

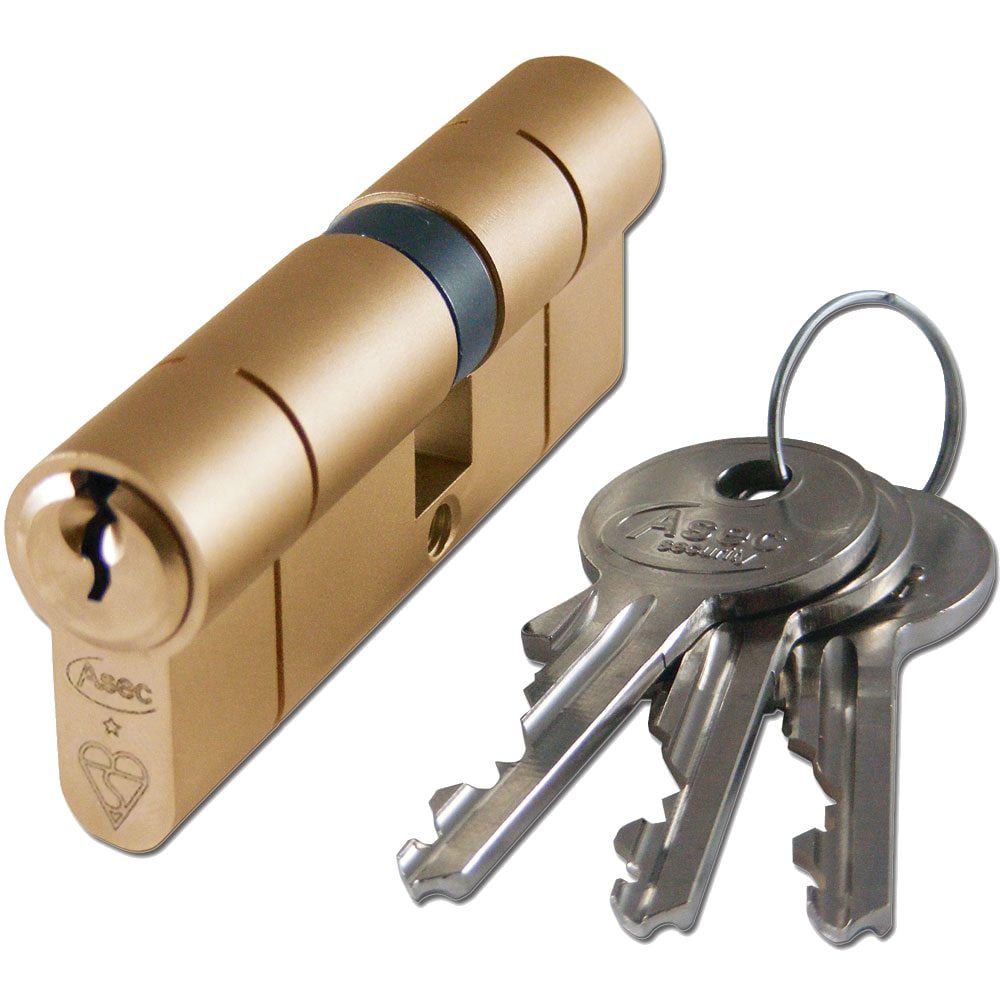

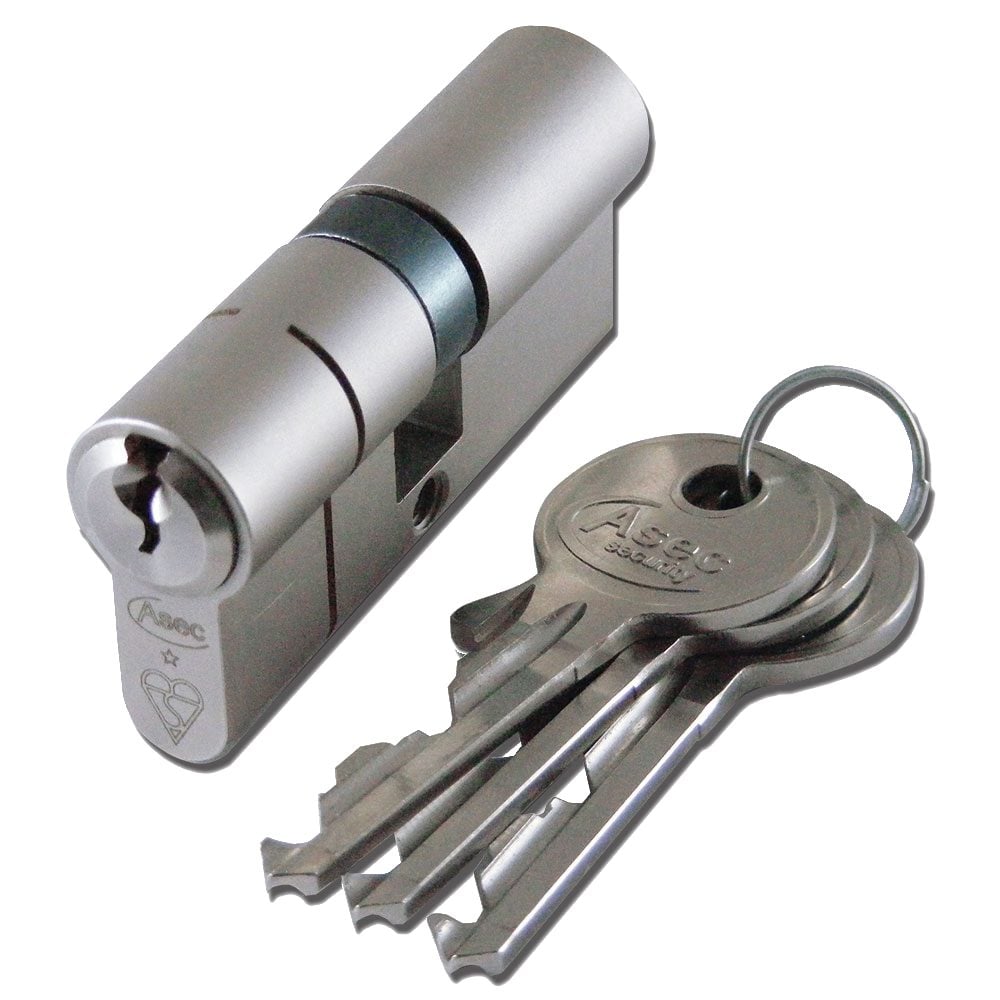

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder

Asec logo Asec More Asec Double Euro
Price
£44.34
Select size, finish, and quantity from the variant table.
View options

The Asec Kite BS 1 Star Kitemarked Euro Double Cylinder range offers reliable security and peace of mind for residential and commercial doors. Independently tested and certified, these cylinders have achieved a TS007 1 Star rating and are Secured by Design approved, ensuring high-quality performance and protection against common attack methods.

Equipped with robust security features, the Asec Kite cylinder includes anti-bump, anti-pick, and anti-drill protection to deter intruders. When paired with 2-star security door furniture, it also provides effective snap resistance to achieve a full 3-star security rating.

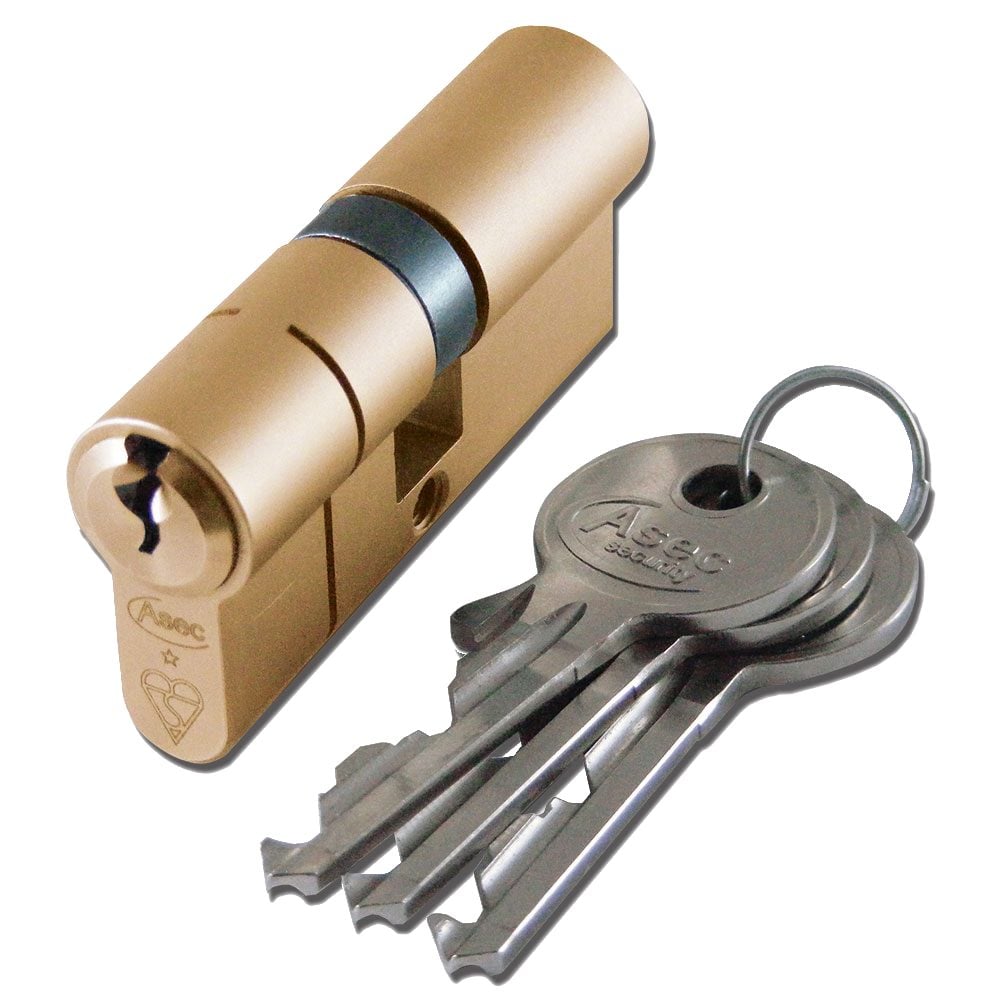

These cylinders are available in a wide range of overall sizes, with A-side measurements from 30mm to 50mm and B-side measurements from 30mm to 65mm. You can also choose from three high-quality finishes: Nickel Plated, Polished Brass, and Satin Brass. Please select your required size and finish from the options below. Each cylinder is supplied with three keys as standard.

Technical Specifications

  • Cylinder Profile: Euro
  • Cylinder Type: Double (key entry at both ends)
  • Mechanism: 6-pin
  • Security Standards: BS EN 1303:2005, TS 007:2012 - 1 Star
  • Certifications: BSI Kitemarked, Secured by Design approved (SBD licence held by Aldridge Security)
  • Fire Testing: Grade B fire tested
  • Keys Supplied: 3 keys
  • Finishes Available: Nickel Plated, Polished Brass, and Satin Brass (please choose from the options below)
  • Sizes Available: Overall lengths from 60mm to 110mm (please choose from the options below)

Key Features

  • TS007 1 Star Rated: Meets British Standards for enhanced cylinder security and reliability.
  • Secured by Design: Official police security initiative approved for peace of mind.
  • Comprehensive Attack Resistance: Built-in anti-drill, anti-pick (via a special driver profile), and anti-bump (BKP device fitted as standard) protection.
  • Snap Resistant: Offers snap resistance when installed in conjunction with 2-star security door furniture.
  • Versatile Options: Available in multiple sizes and finishes to suit your door's requirements.
Downloads
Datasheets and product documents
Datasheet.pdf
PDF Generated datasheet
Download
ASEC_0812~Asec Kite 1 Star Cylinder Datasheet.pdf
PDF • 398.9 KB • ASEC_0812~Asec Kite 1 Star Cylinder Datasheet
Download
Trustpilot
Master Locksmiths Association BSI Kitemark

Master locksmiths with BSI accreditation

MLA approved locksmiths, BSI certified key systems, and independently audited security standards.

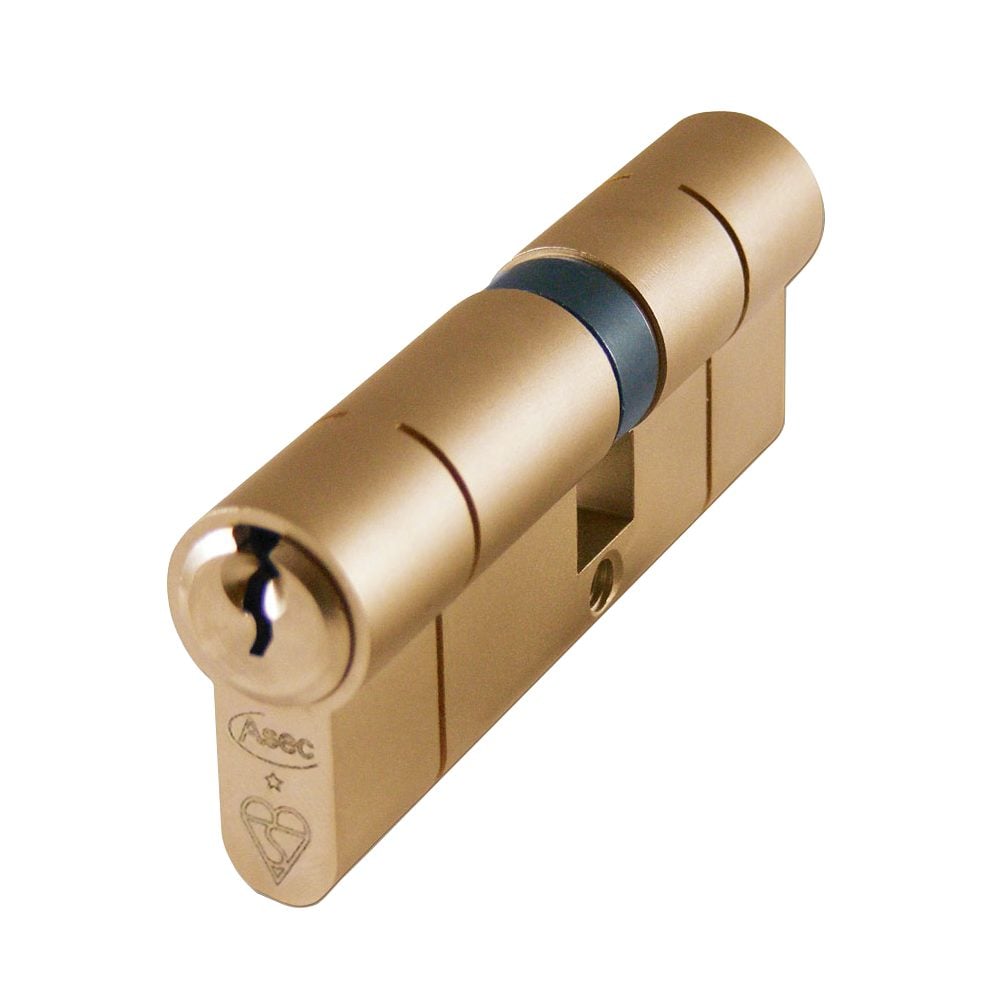

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10019 - 30/40 - Polished Brass - AS10019
AS10019 Ref: AS10019
Cylinder Size Overall: 30/40 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10020 - 30/40 - Nickel Plated - AS10020
AS10020 Ref: AS10020
Cylinder Size Overall: 30/40 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10126 - 30/30 - Nickel Plated - AS10126
AS10126 Ref: AS10126
Cylinder Size Overall: 30/30 (More)
£ 44.34

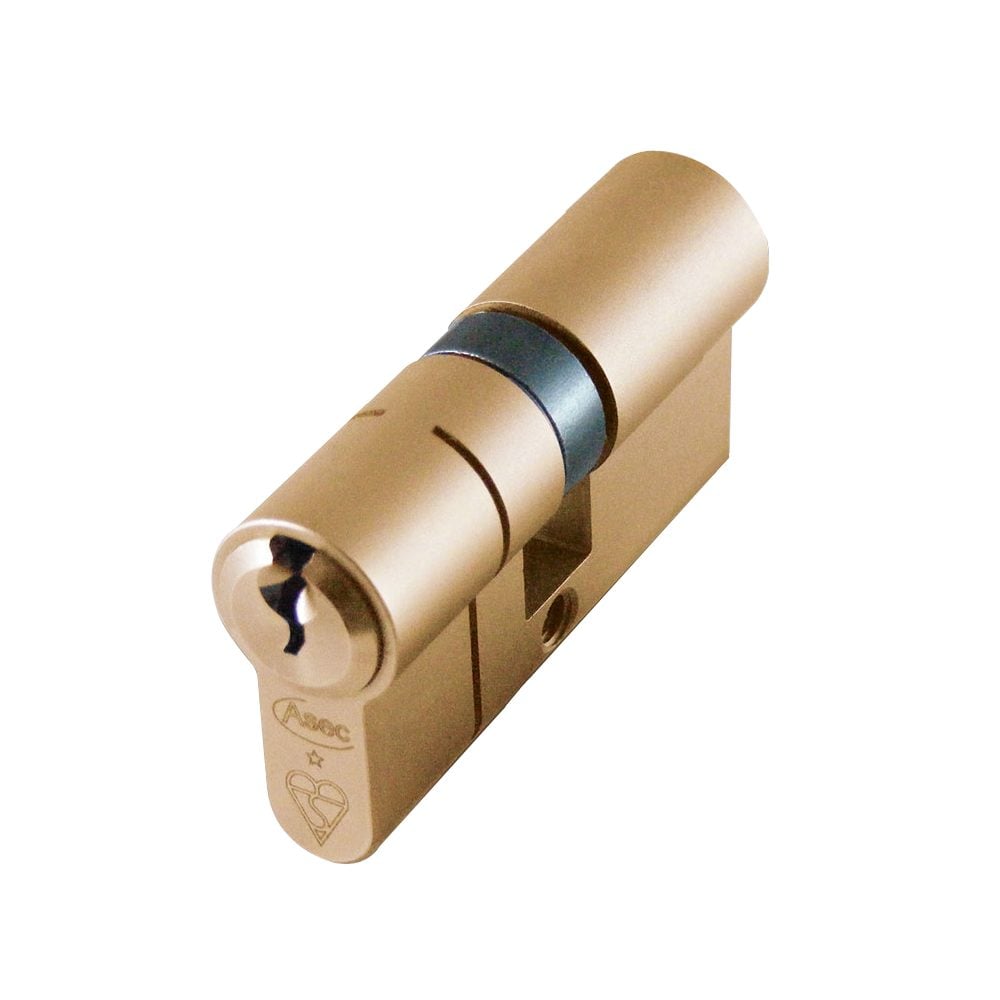

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10127 - 30/30 - Satin Brass - AS10127
AS10127 Ref: AS10127
Cylinder Size Overall: 30/30 (More)
£ 44.34

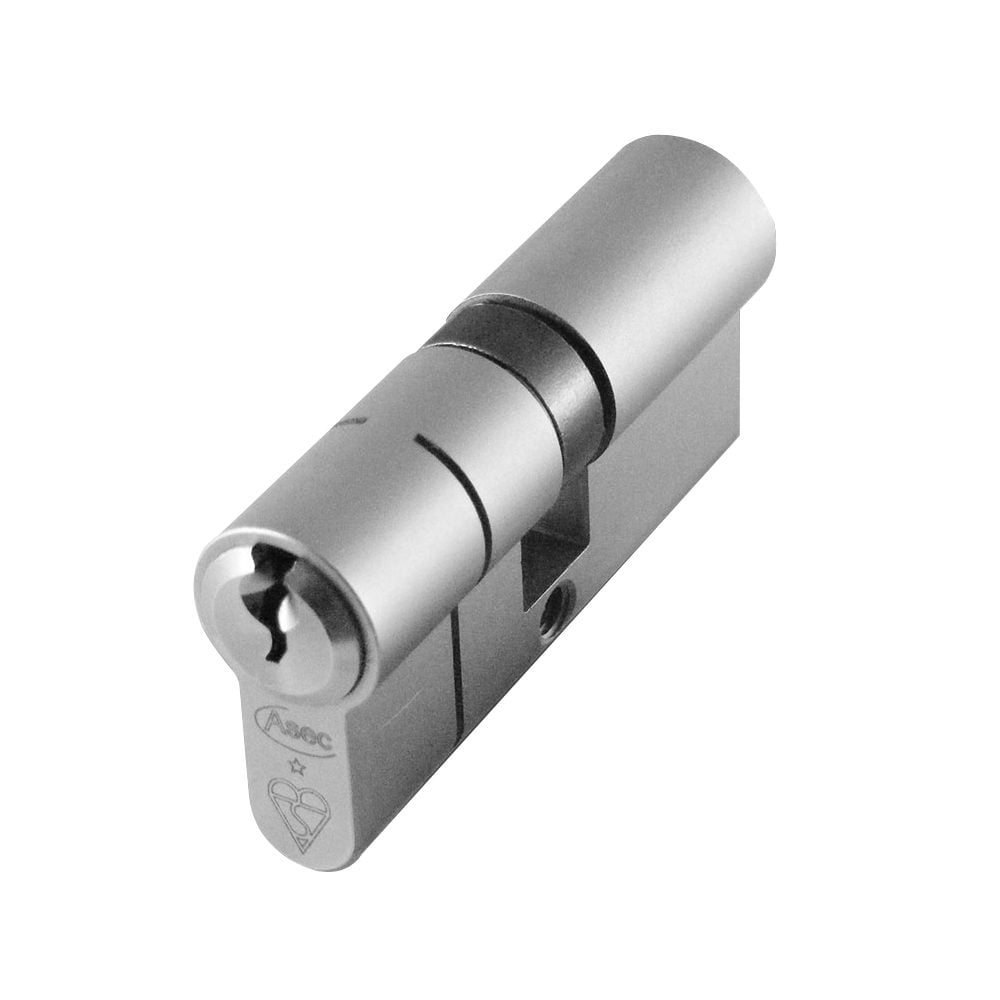

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10128 - 35/35 - Nickel Plated - AS10128
AS10128 Ref: AS10128
Cylinder Size Overall: 35/35 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10129 - 35/35 - Satin Brass - AS10129
AS10129 Ref: AS10129
Cylinder Size Overall: 35/35 (More)
£ 44.34

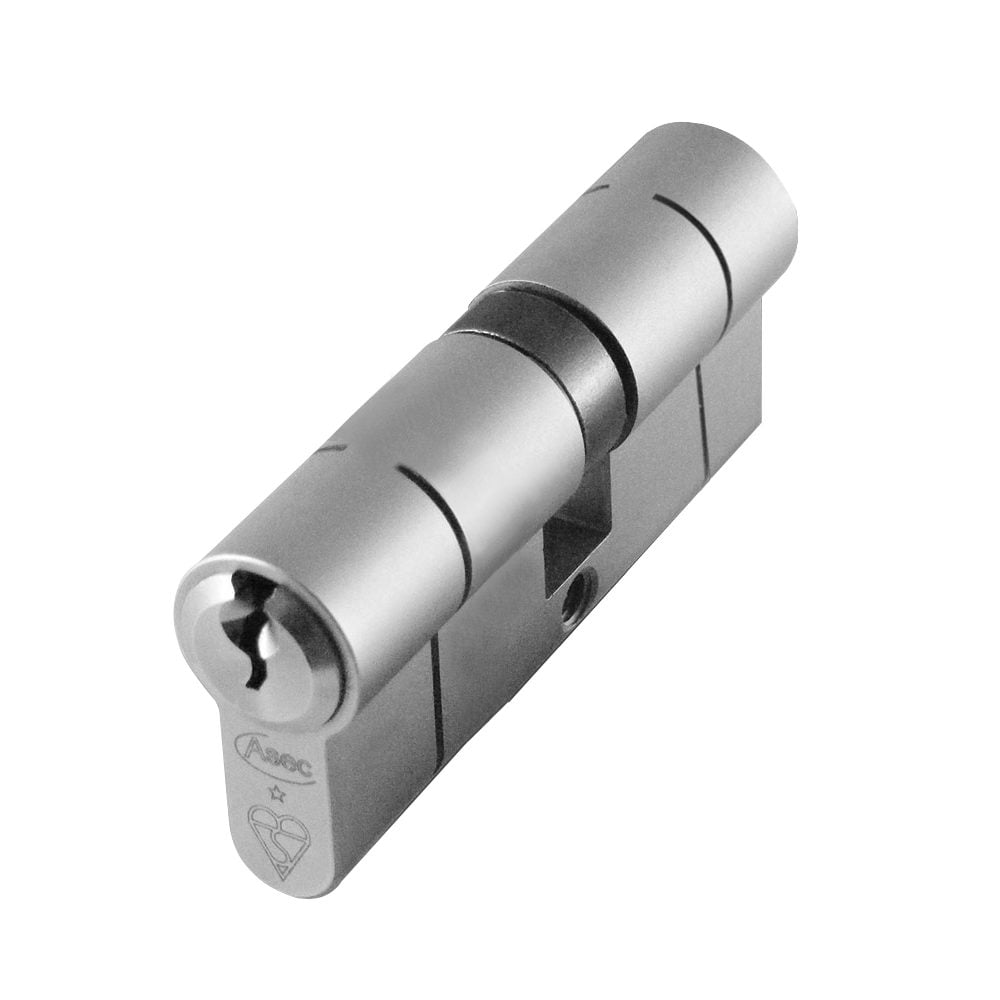

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10130 - 35/40 - Nickel Plated - AS10130
AS10130 Ref: AS10130
Cylinder Size Overall: 35/40 (More)
£ 44.34

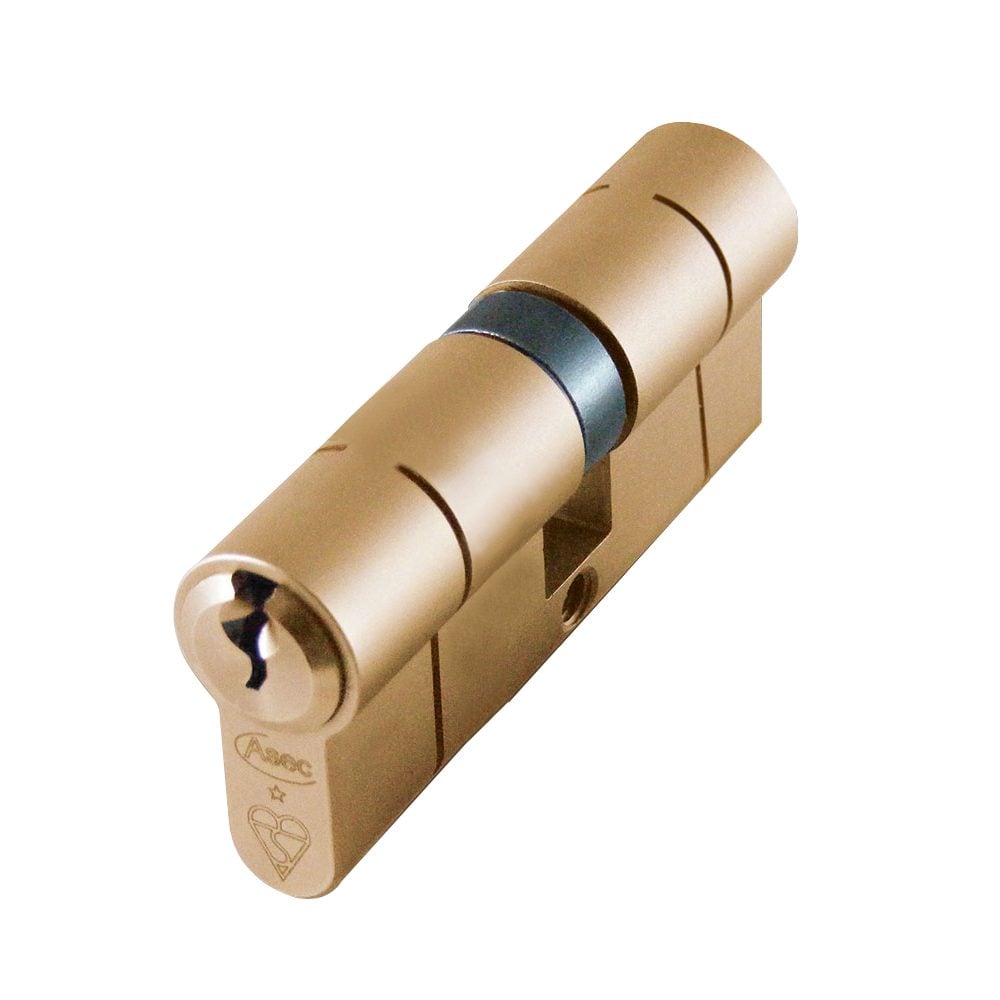

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10131 - 35/40 - Satin Brass - AS10131
AS10131 Ref: AS10131
Cylinder Size Overall: 35/40 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10132 - 35/45 - Nickel Plated - AS10132
AS10132 Ref: AS10132
Cylinder Size Overall: 35/45 (More)
£ 44.34

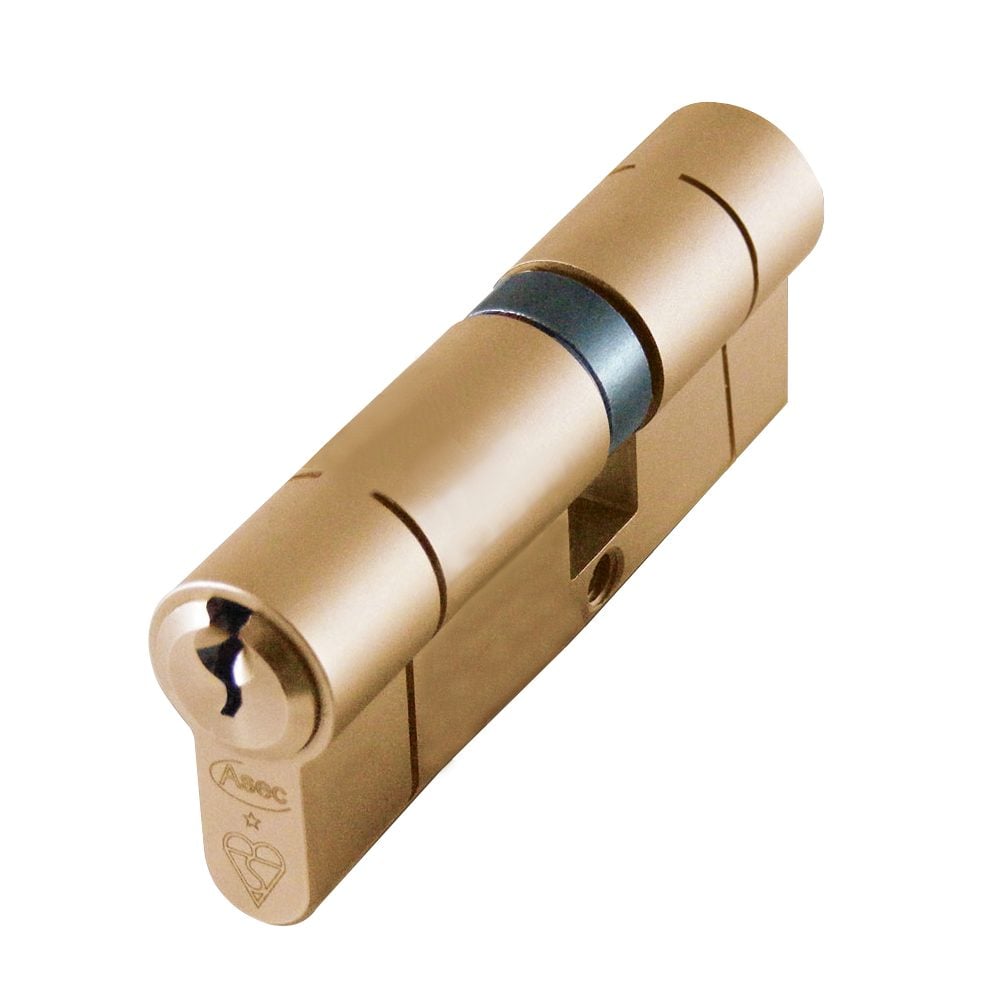

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10133 - 35/45 - Satin Brass - AS10133
AS10133 Ref: AS10133
Cylinder Size Overall: 35/45 (More)
£ 44.34

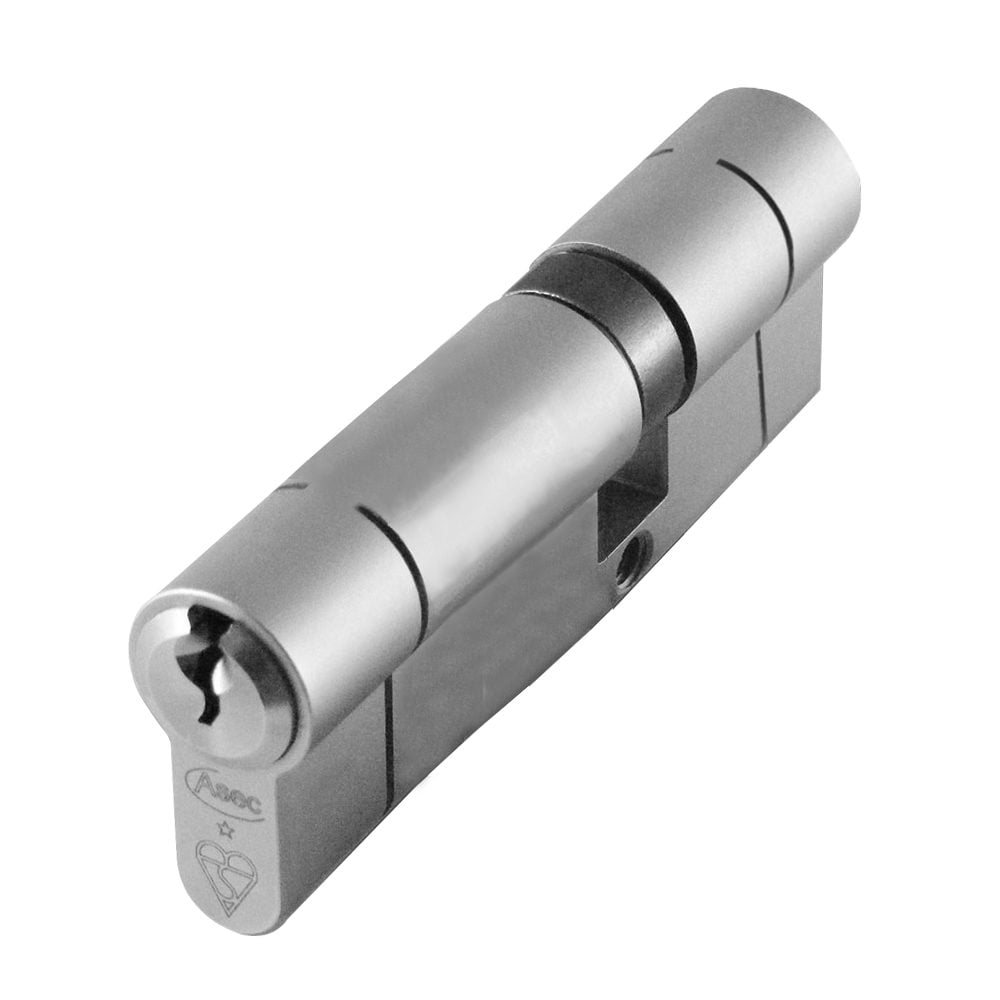

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10134 - 35/50 - Nickel Plated - AS10134
AS10134 Ref: AS10134
Cylinder Size Overall: 35/50 (More)
£ 44.34

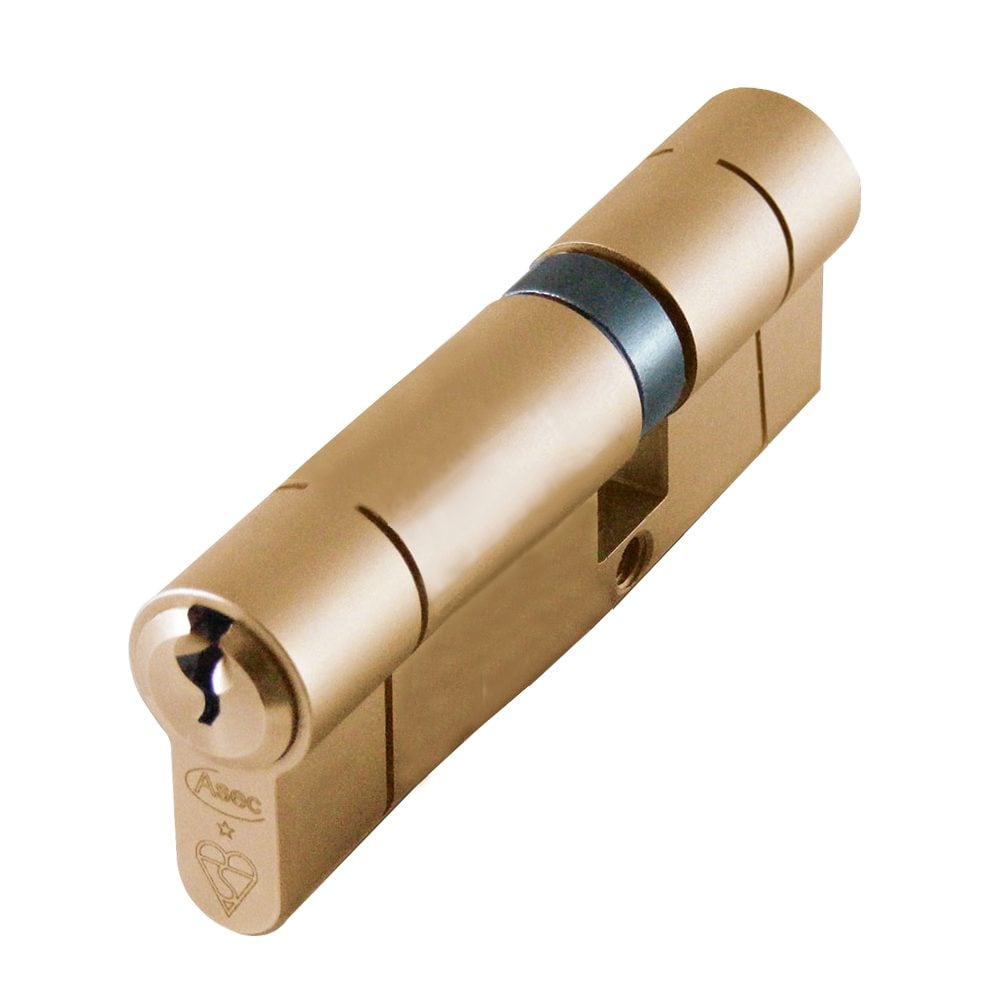

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10135 - 35/50 - Satin Brass - AS10135
AS10135 Ref: AS10135
Cylinder Size Overall: 35/50 (More)
£ 44.34

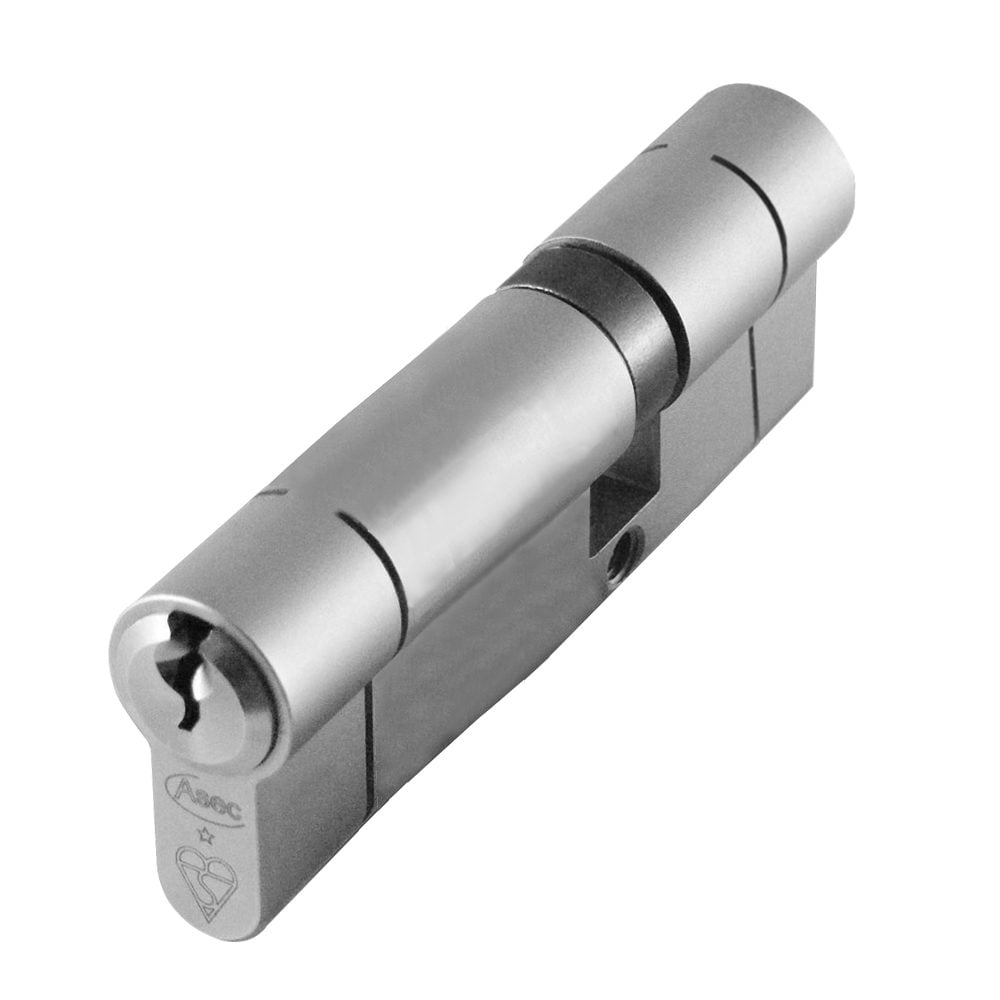

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10136 - 35/55 - Nickel Plated - AS10136
AS10136 Ref: AS10136
Cylinder Size Overall: 35/55 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10137 - 35/55 - Satin Brass - AS10137
AS10137 Ref: AS10137
Cylinder Size Overall: 35/55 (More)
£ 44.34

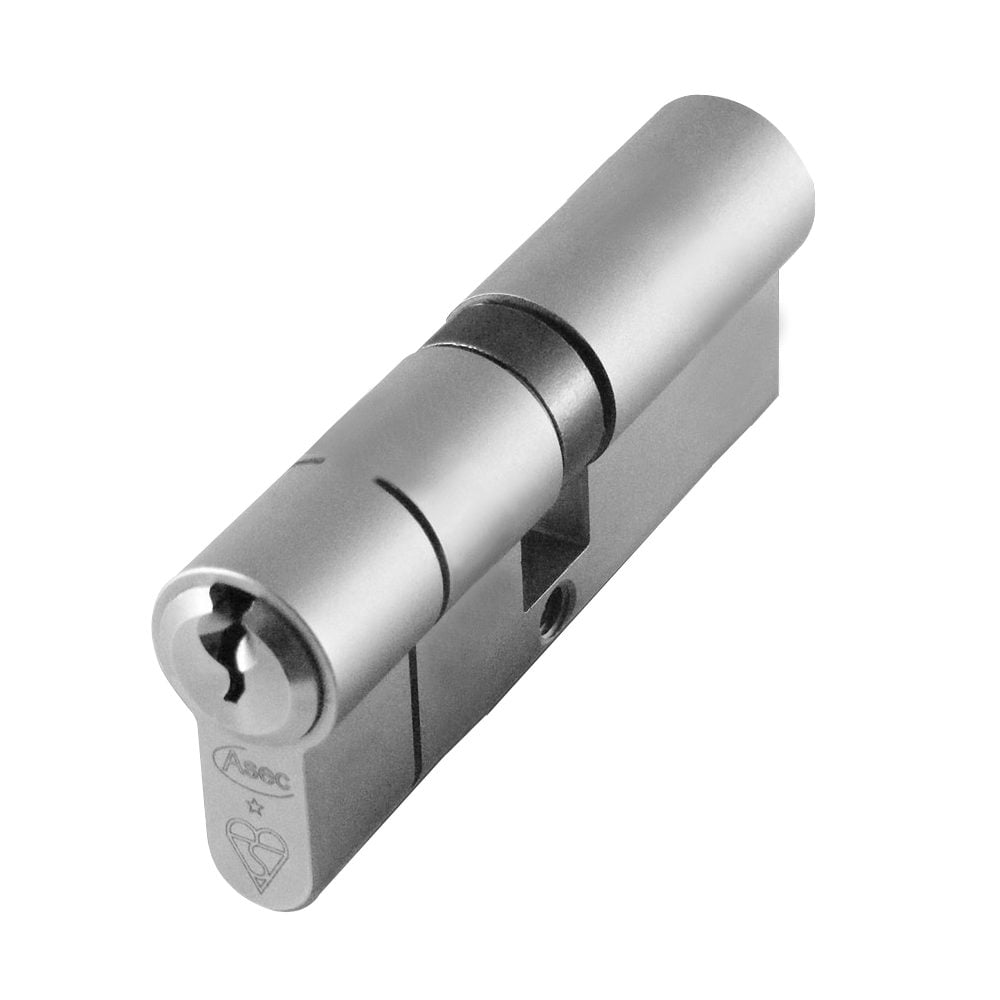

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10138 - 40/40 - Nickel Plated - AS10138
AS10138 Ref: AS10138
Cylinder Size Overall: 40/40 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10139 - 40/40 - Satin Brass - AS10139
AS10139 Ref: AS10139
Cylinder Size Overall: 40/40 (More)
£ 44.34

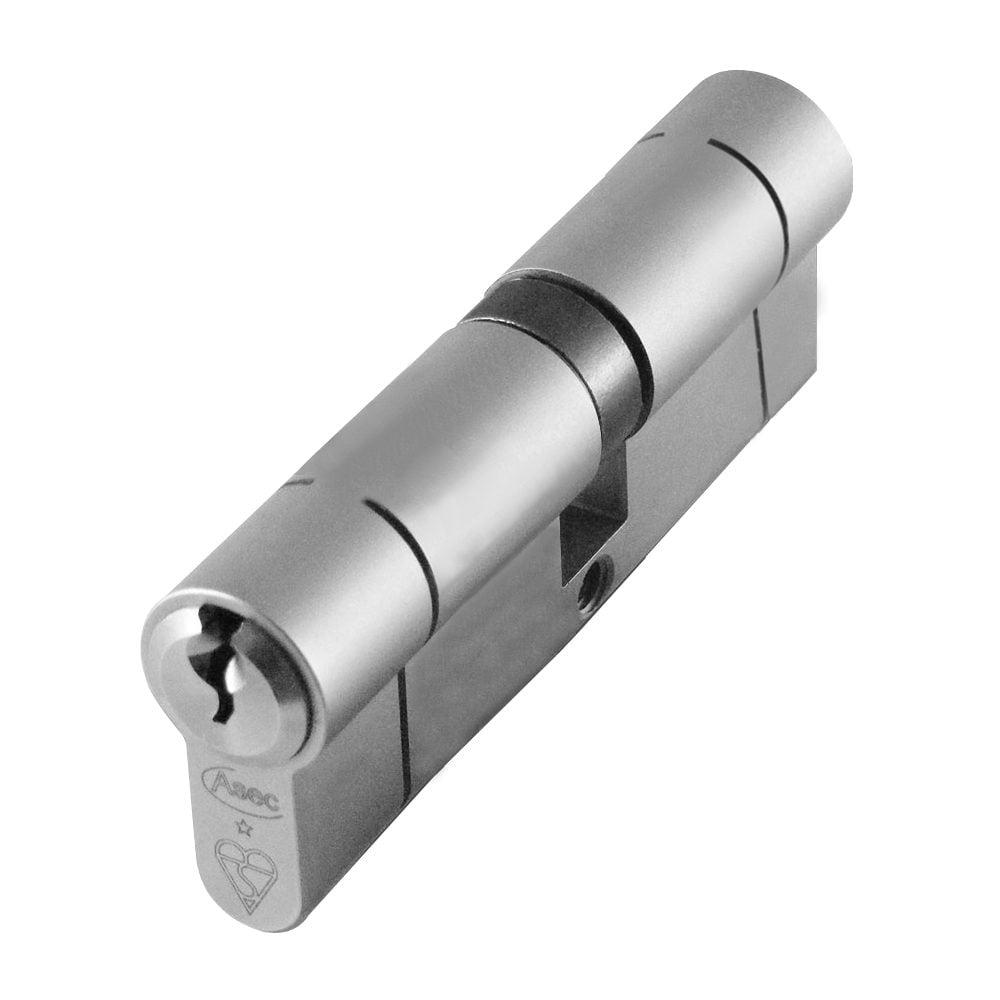

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10140 - 40/45 - Nickel Plated - AS10140
AS10140 Ref: AS10140
Cylinder Size Overall: 40/45 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10141 - 40/45 - Satin Brass - AS10141
AS10141 Ref: AS10141
Cylinder Size Overall: 40/45 (More)
£ 44.34

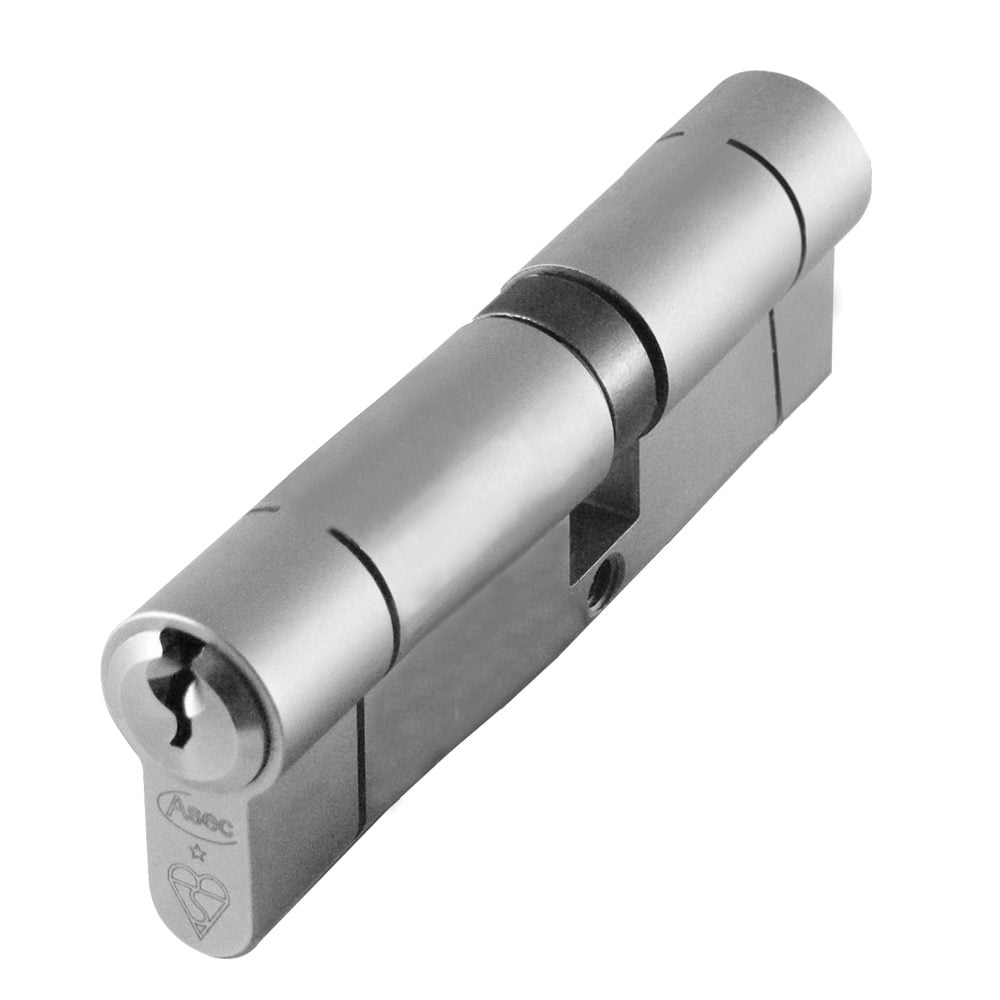

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10142 - 40/50 - Nickel Plated - AS10142
AS10142 Ref: AS10142
Cylinder Size Overall: 40/50 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10143 - 40/50 - Satin Brass - AS10143
AS10143 Ref: AS10143
Cylinder Size Overall: 40/50 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10144 - 40/55 - Nickel Plated - AS10144
AS10144 Ref: AS10144
Cylinder Size Overall: 40/55 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10145 - 40/55 - Satin Brass - AS10145
AS10145 Ref: AS10145
Cylinder Size Overall: 40/55 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10146 - 40/60 - Nickel Plated - AS10146
AS10146 Ref: AS10146
Cylinder Size Overall: 40/60 (More)
£ 44.34

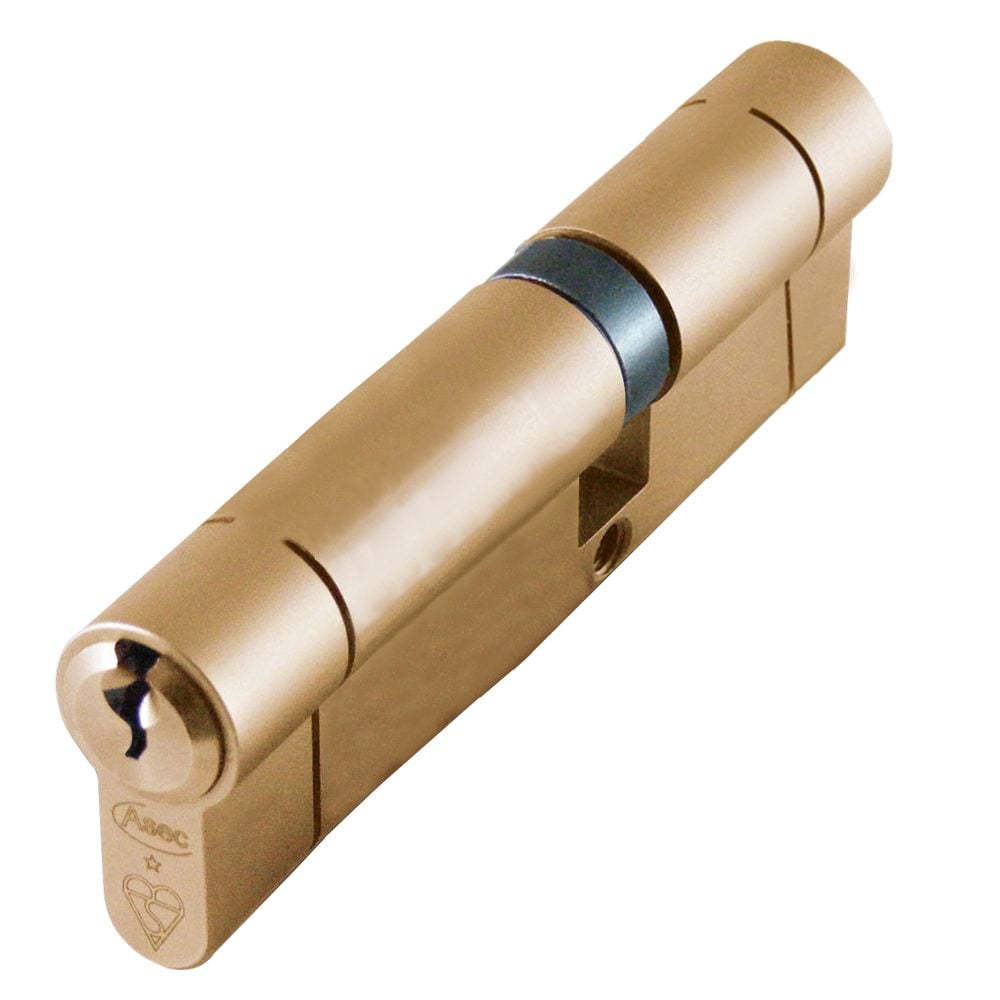

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10147 - 40/60 - Satin Brass - AS10147
AS10147 Ref: AS10147
Cylinder Size Overall: 40/60 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10148 - 45/45 - Nickel Plated - AS10148
AS10148 Ref: AS10148
Cylinder Size Overall: 45/45 (More)
£ 44.34

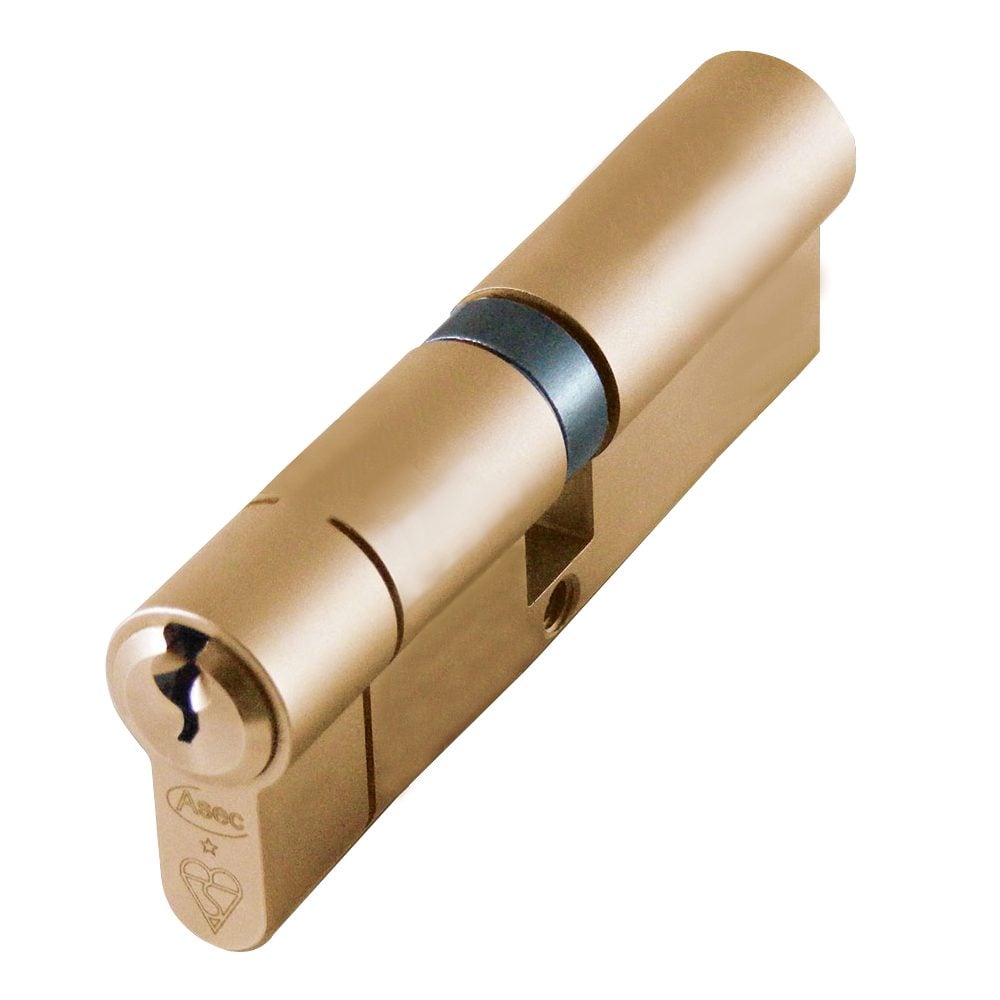

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10149 - 45/45 - Satin Brass - AS10149
AS10149 Ref: AS10149
Cylinder Size Overall: 45/45 (More)
£ 44.34

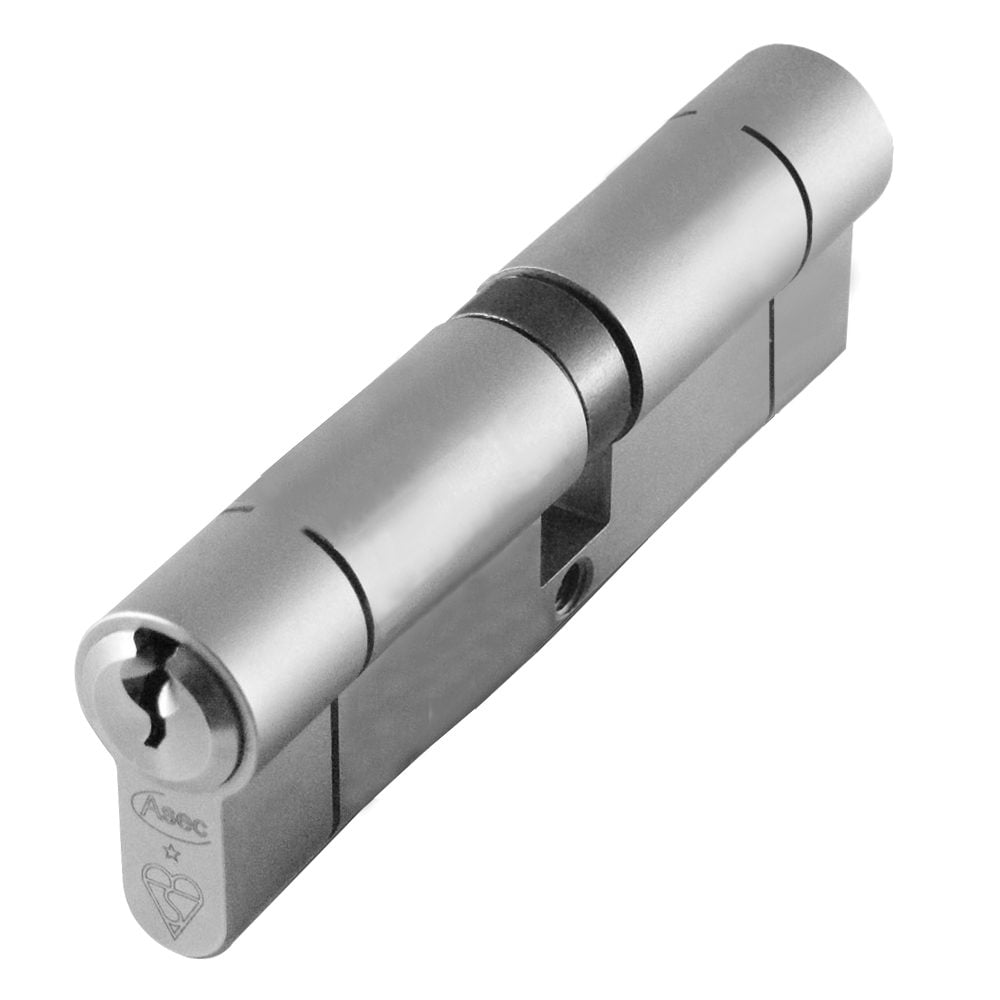

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10150 - 45/50 - Nickel Plated - AS10150
AS10150 Ref: AS10150
Cylinder Size Overall: 45/50 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10151 - 45/50 - Satin Brass - AS10151
AS10151 Ref: AS10151
Cylinder Size Overall: 45/50 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10152 - 45/55 - Nickel Plated - AS10152
AS10152 Ref: AS10152
Cylinder Size Overall: 45/55 (More)
£ 44.34

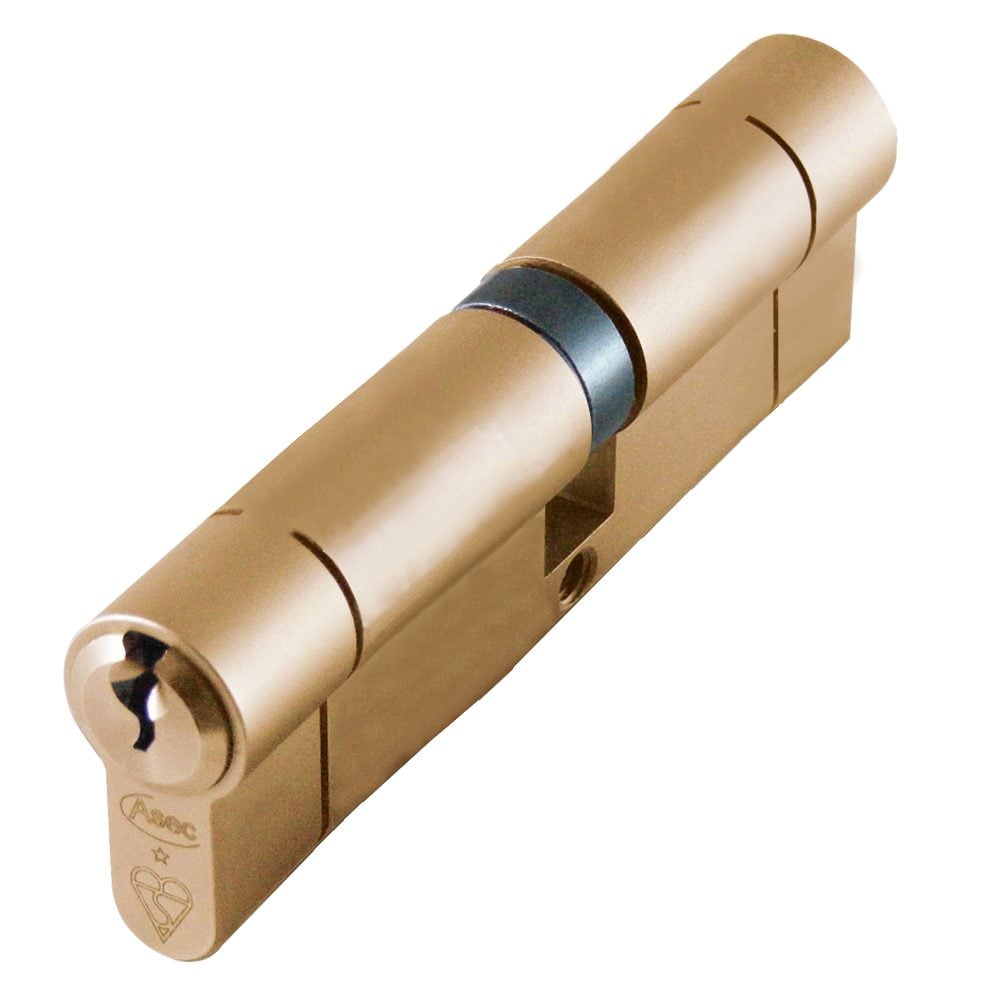

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10153 - 45/55 - Satin Brass - AS10153
AS10153 Ref: AS10153
Cylinder Size Overall: 45/55 (More)
£ 44.34

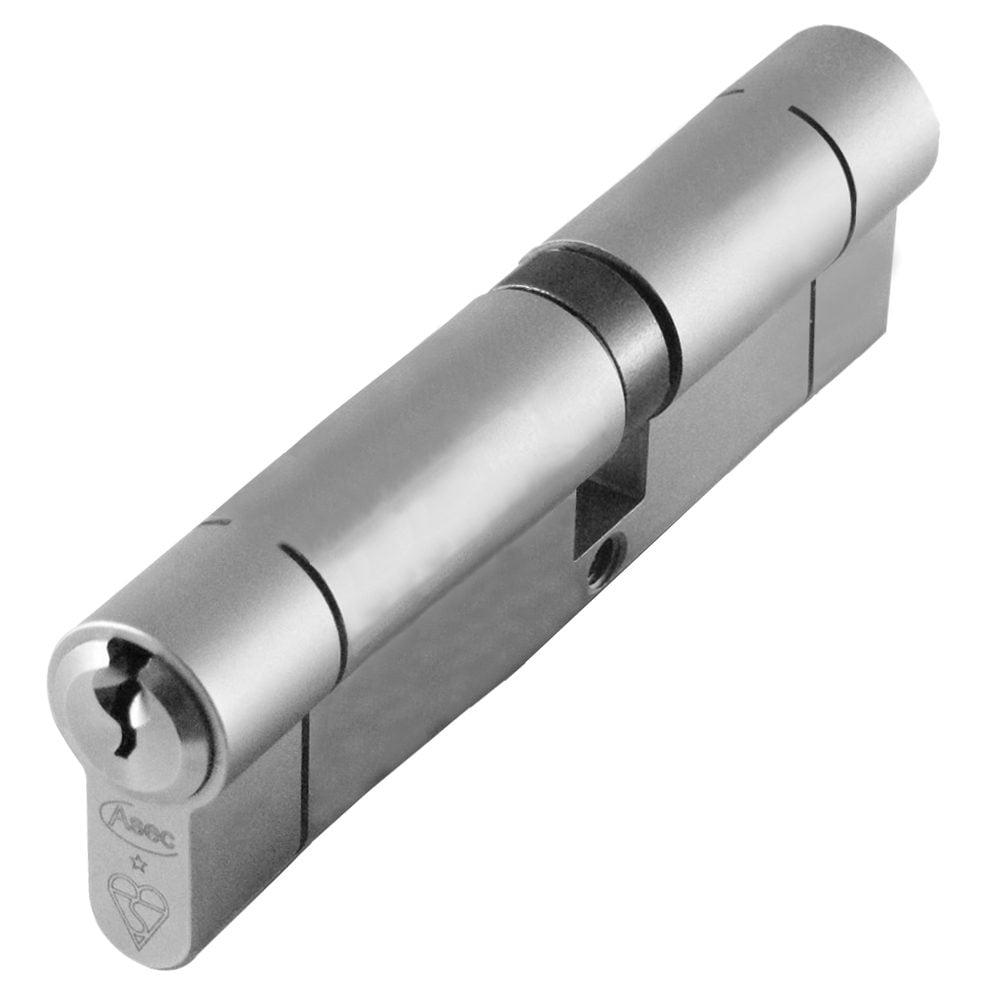

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10154 - 45/60 - Nickel Plated - AS10154
AS10154 Ref: AS10154
Cylinder Size Overall: 45/60 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10155 - 45/60 - Satin Brass - AS10155
AS10155 Ref: AS10155
Cylinder Size Overall: 45/60 (More)
£ 44.34

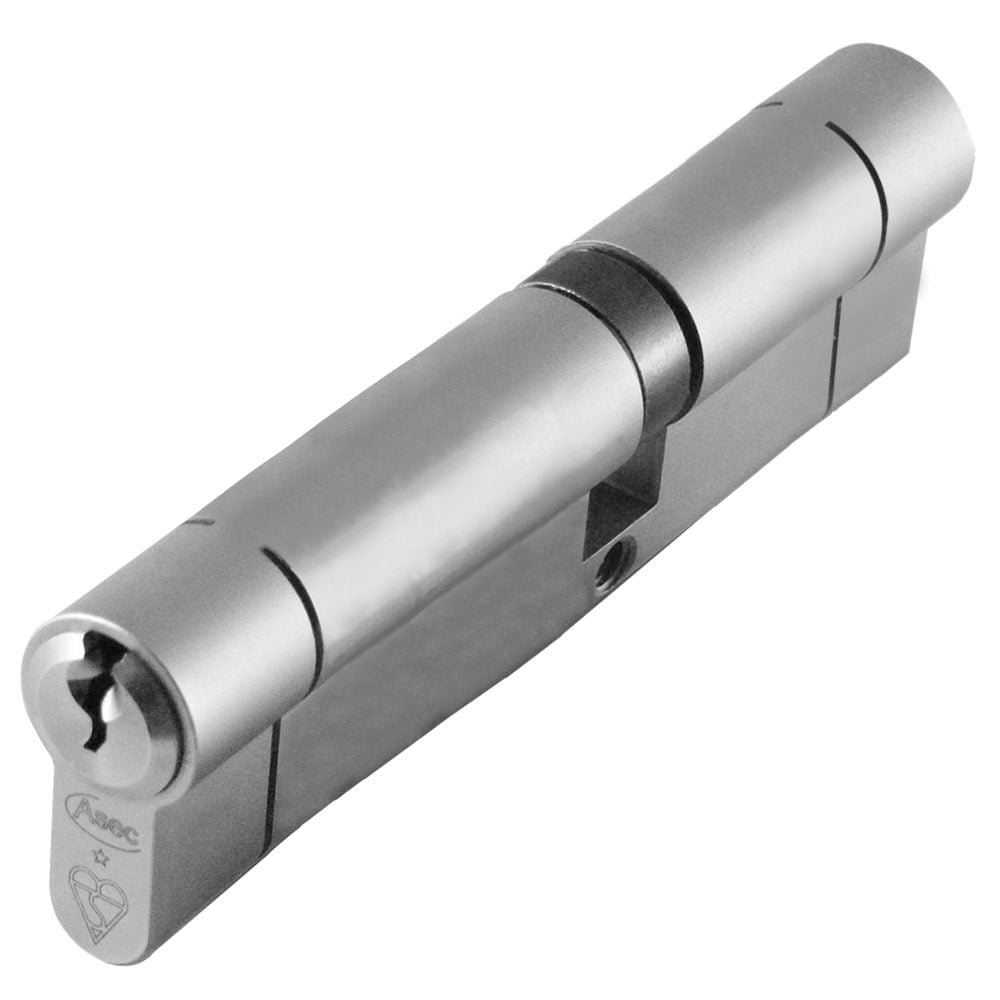

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10156 - 45/65 - Nickel Plated - AS10156
AS10156 Ref: AS10156
Cylinder Size Overall: 45/65 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10157 - 45/65 - Satin Brass - AS10157
AS10157 Ref: AS10157
Cylinder Size Overall: 45/65 (More)
£ 44.34

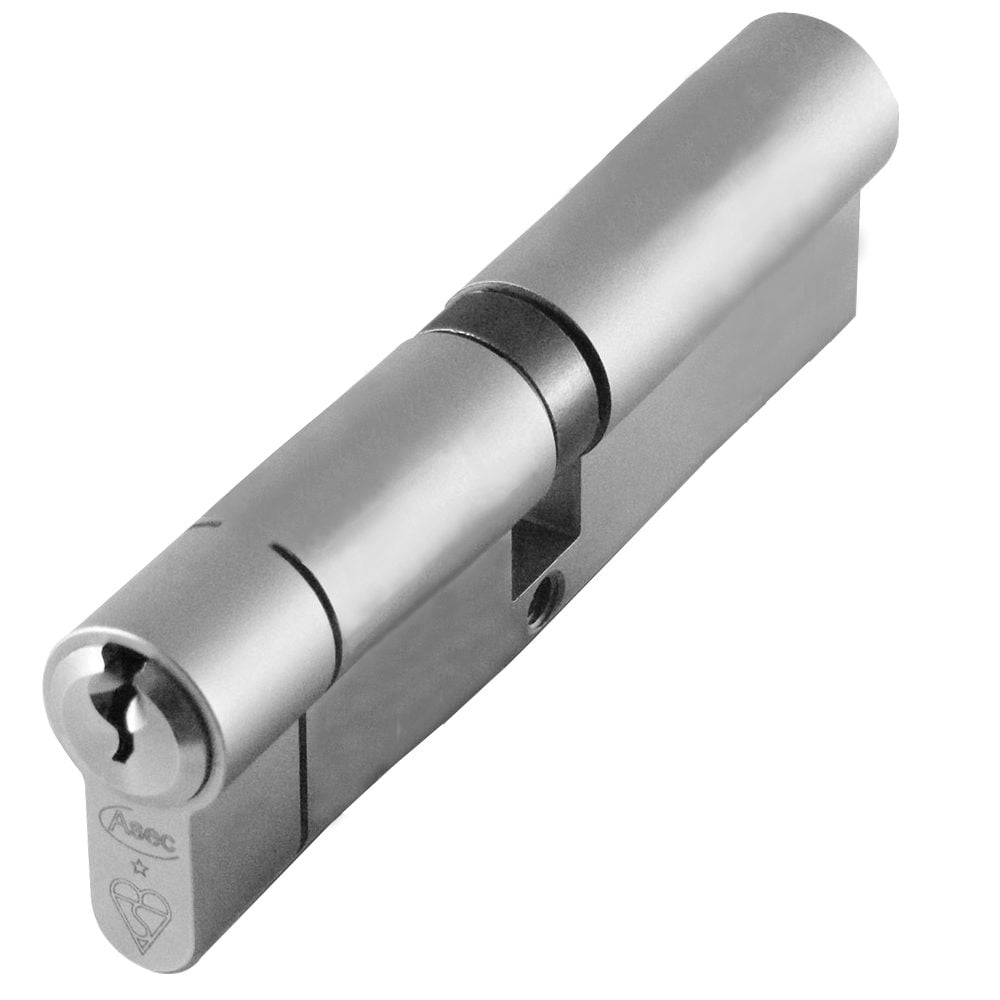

ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10158 - 50/50 - Nickel Plated - AS10158
AS10158 Ref: AS10158
Cylinder Size Overall: 50/50 (More)
£ 44.34
ASEC Kite BS 1 Star Kitemarked Euro Double Cylinder - AS10159 - 50/50 - Satin Brass - AS10159
AS10159 Ref: AS10159
Cylinder Size Overall: 50/50 (More)
£ 44.34
Review variants and add to basket when ready.
