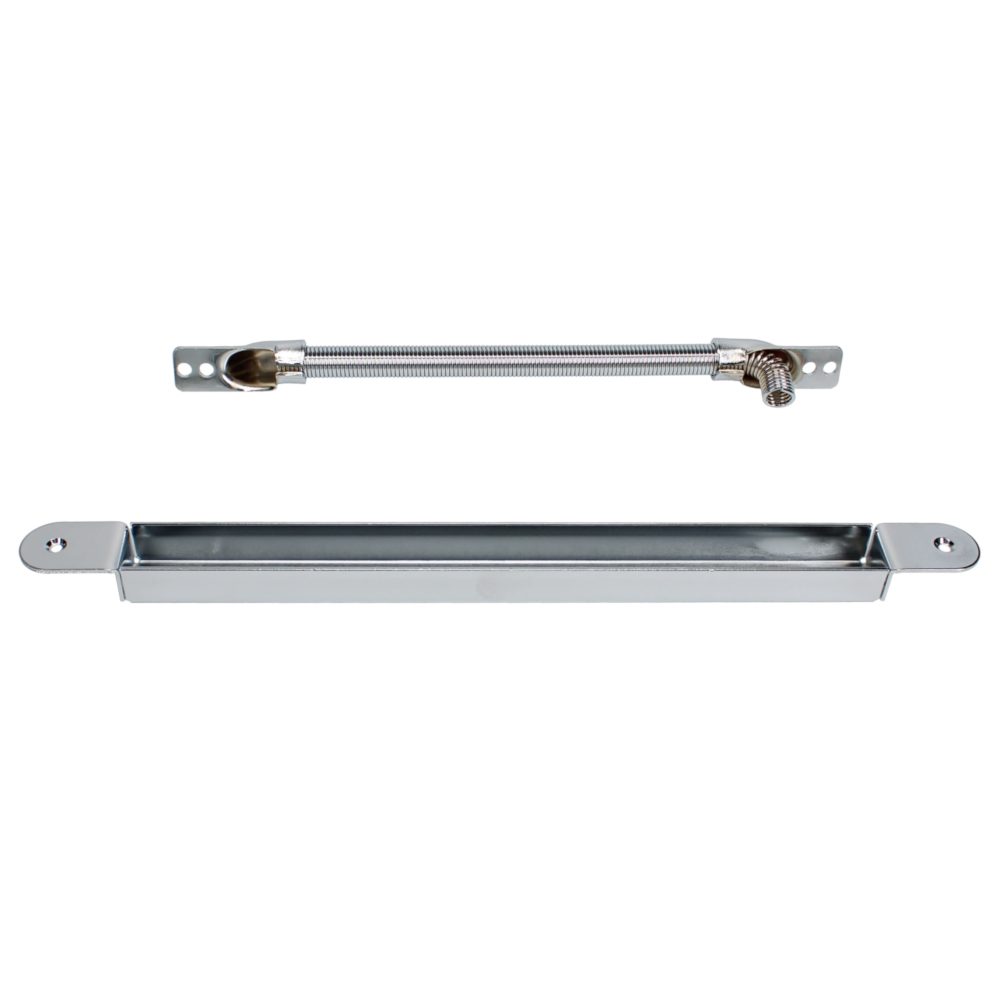

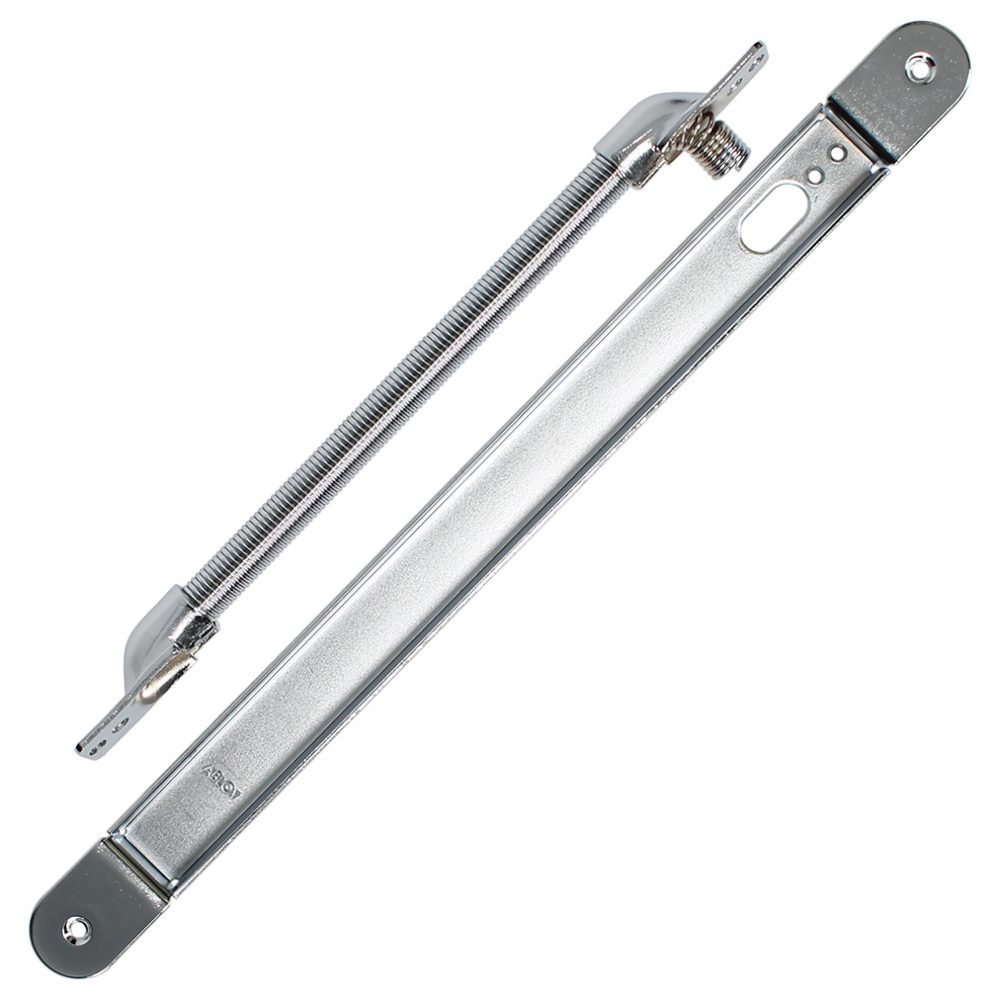

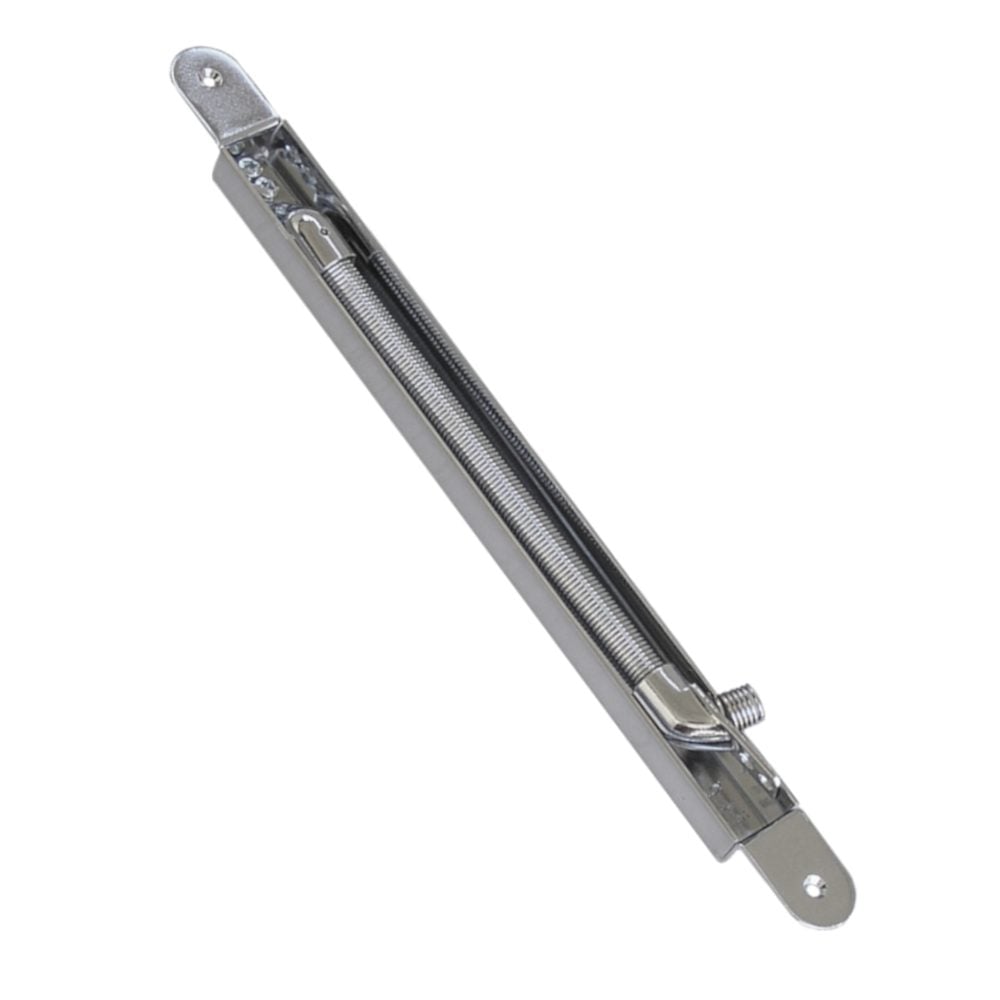

ABLOY EA280 Concealed Door Loop For Doors Opening 120 Degrees

The ABLOY EA280 Concealed Door Loop is a premium, discreet lead cover designed to facilitate the safe and unbroken transfer of electrical cables between a door frame and the door leaf. Perfect for high-spec commercial and residential installations, this door loop is completely hidden from view when the door is closed, preserving the clean, uninterrupted aesthetics of your entryway.

Engineered for durability and reliability, the EA280 is ideal for doors equipped with motorised, solenoid, or electronic locks that require a continuous power supply. It accommodates wire bundles up to 7.5mm in diameter, ensuring plenty of space for standard multi-core cabling.

This concealed loop is designed specifically for doors with a maximum opening angle of 120 degrees and where the distance from the hinge pin to the door frame is under 20mm. Please note that it is not suitable for use on centrally pivoted doors.

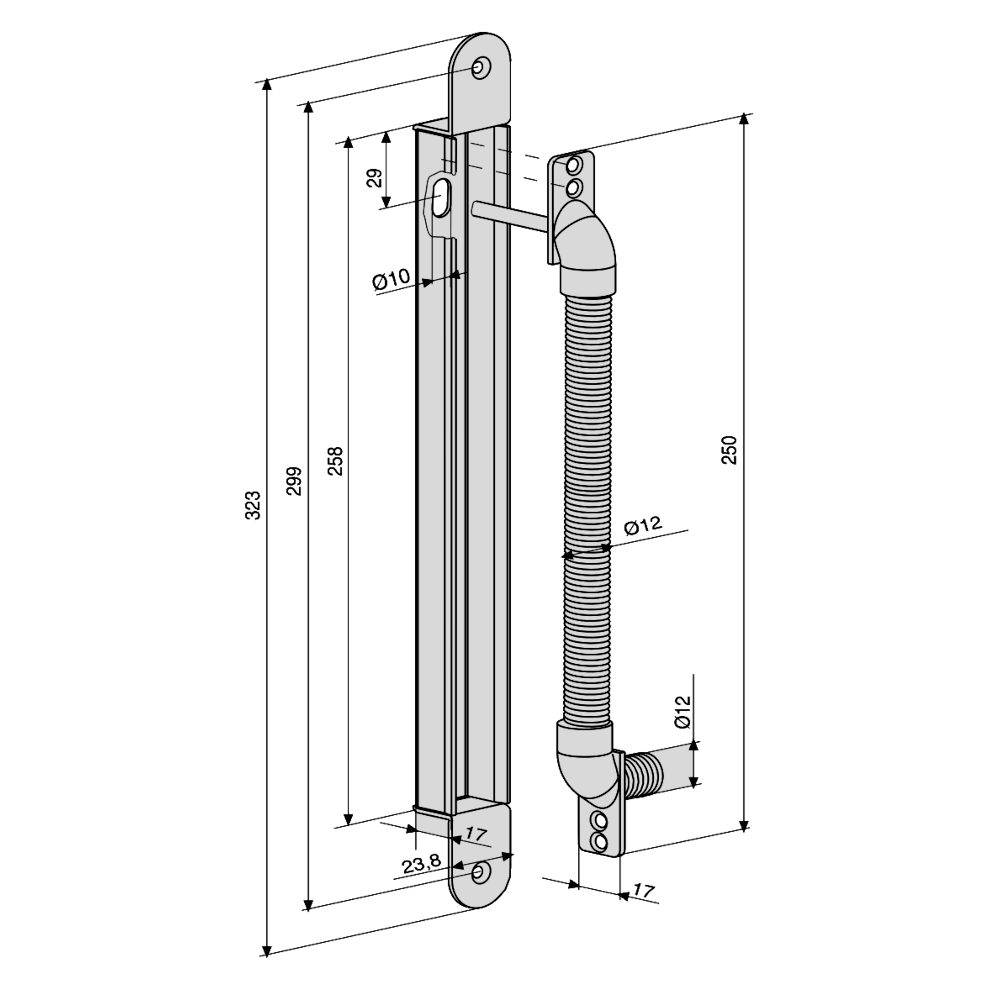

Technical Specifications

• Brand: Assa Abloy
• Model: EA280
• Material: Steel
• Finish: Bright Chrome
• Height: 323mm
• Width: 24mm
• Maximum Wire Bundle Diameter: 7.5mm
• Maximum Door Opening Angle: 120°
• Hinge Pin to Frame Distance: Below 20mm
• Weight: 100g

Key Features

• Concealed Design: Completely hidden from view when the door is closed to maintain clean door aesthetics.
• Unbroken Power Transfer: Enables safe, continuous transfer of wires between the frame and door leaf.
• Robust Construction: Made from durable steel with a high-quality bright chrome finish.
• Ideal for Electronic Locks: Perfect for powering motorised, solenoid, or smart lock systems.
• Generous Cable Capacity: Accommodates wire bundles up to 7.5mm in diameter.
