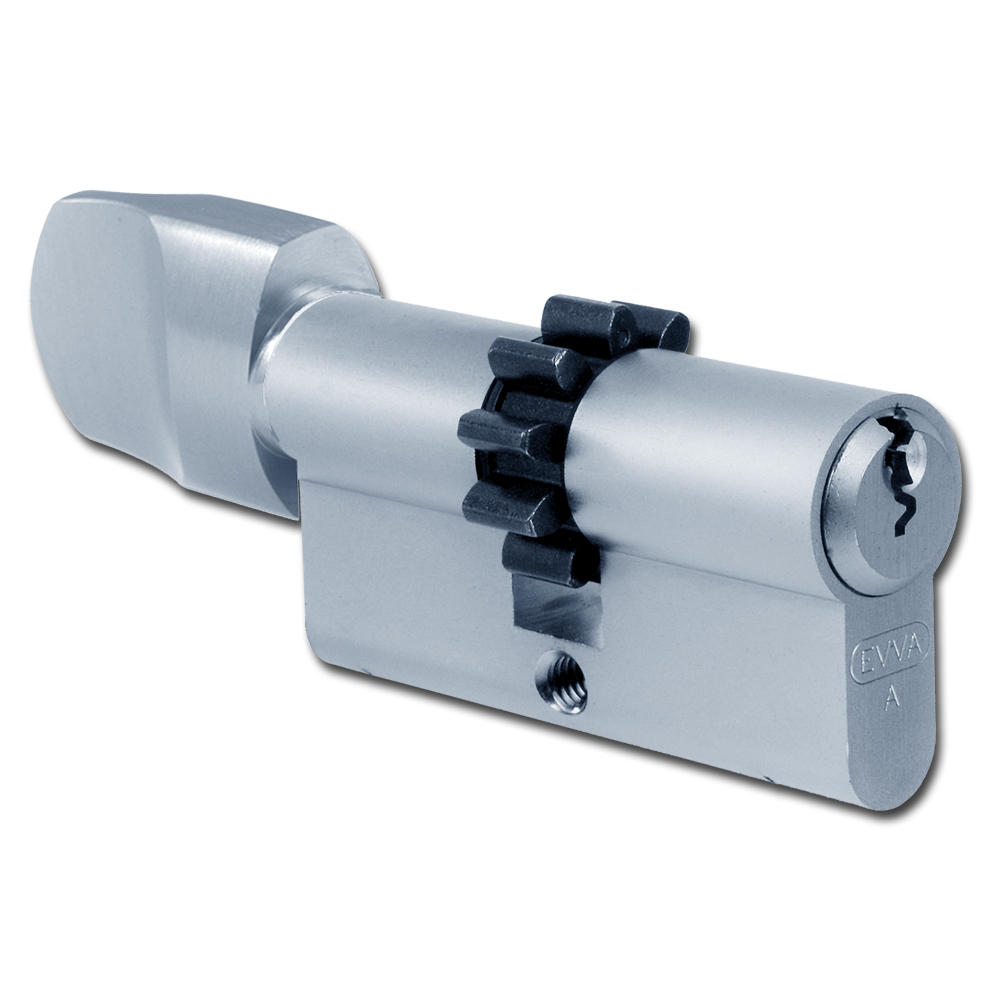

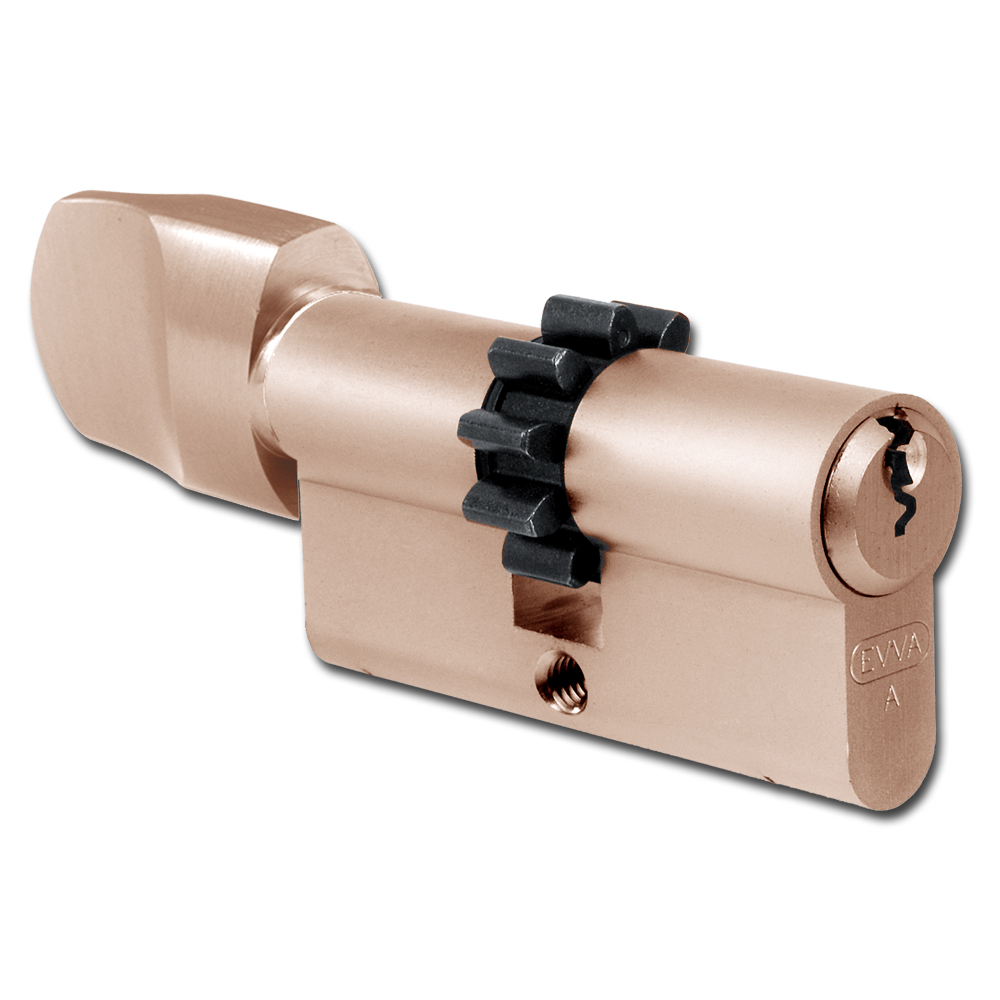

EVVA A5 KDZ COG Euro Key & Turn Cylinder 10 Tooth KD

The EVVA A5 KDZ COG Euro Key & Turn Cylinder is a robust and reliable 5-pin locking solution designed for doors requiring convenient thumbturn operation from the inside and secure key access from the outside. This cylinder is equipped with a 10-tooth cog wheel cam, making it ideal for use with multi-point locks or specialist mortice locks that operate via a gear ring or a toothed rack.

Built on the dependable EVVA A5 system, this cylinder features an unrestricted 'A' section key profile (with 'F' section available to special order) and is fire-tested to offer 30-minute fire resistance up to 821°C.

This cylinder is available in multiple overall lengths, ranging from 62mm to 82mm, with various internal and external side measurements to suit different door thicknesses. It is also offered in two high-quality finishes: Polished Brass and Nickel Plated. Please select your required size, configuration, and finish from the options below.

Technical Specifications

• Cylinder Profile: Euro
• Cylinder Type: Key & Turn (Thumbturn)
• Locking Mechanism: 5-pin
• Cam Type: 10-tooth cog wheel
• Keying: Keyed to Differ (KD)
• Key Profile: Unrestricted 'A' section (F section to special order)
• Fire Resistance: 30-minute fire resistance to 821°C
• Finishes Available: Polished Brass, Nickel Plated (please choose from the options below)
• Sizes Available: Overall lengths of 62mm, 72mm, and 82mm (please choose from the options below)
• Keys Supplied: 3 keys as standard

Key Features

• 10-Tooth Cog Cam: Specifically designed for smooth operation with multi-point locks and gear-driven mortice locks.
• Convenient Key & Turn Operation: Provides quick, keyless egress from the inside while maintaining secure key entry from the outside.
• Robust 5-Pin Security: Built on the reliable EVVA A5 system for durable, everyday locking protection.
• Fire Tested: Certified for 30-minute fire resistance up to 821°C, making it suitable for fire door applications.
• Multiple Options: Available in a range of sizes and finishes to perfectly match your door hardware - simply select your configuration below.
