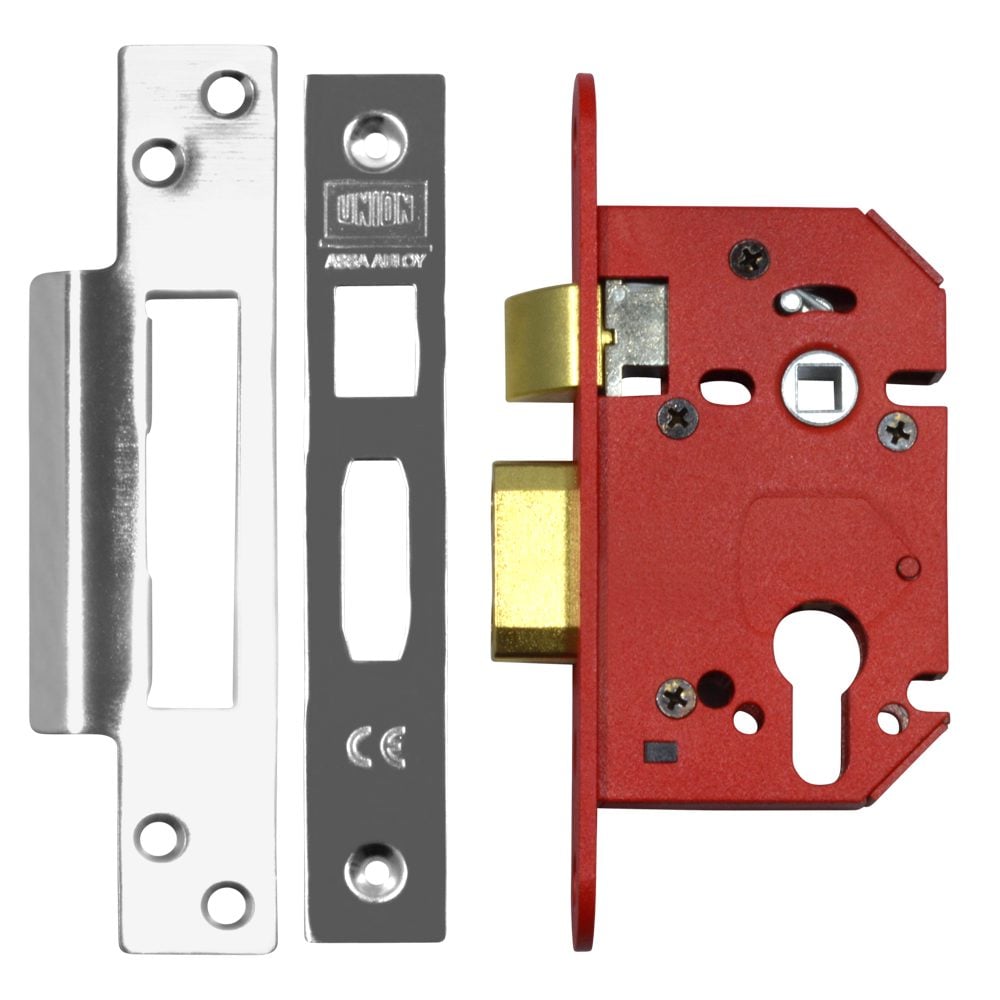

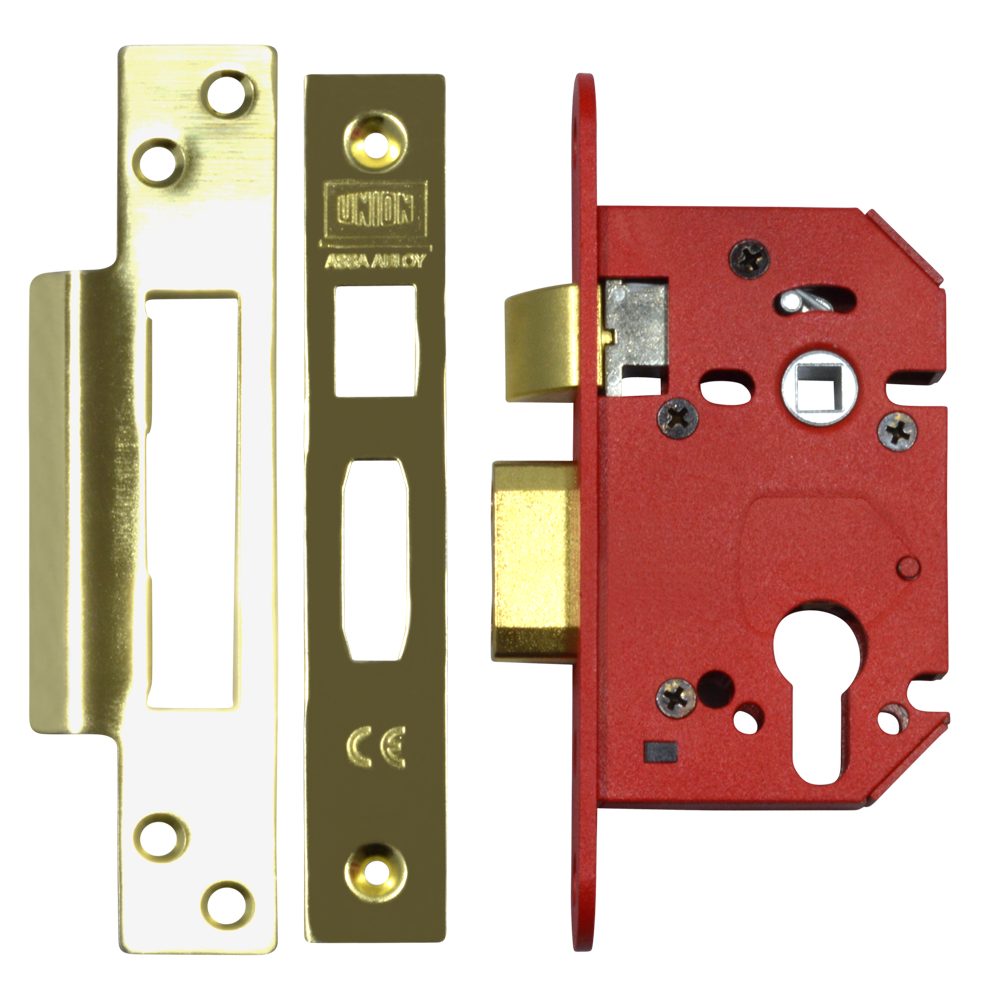

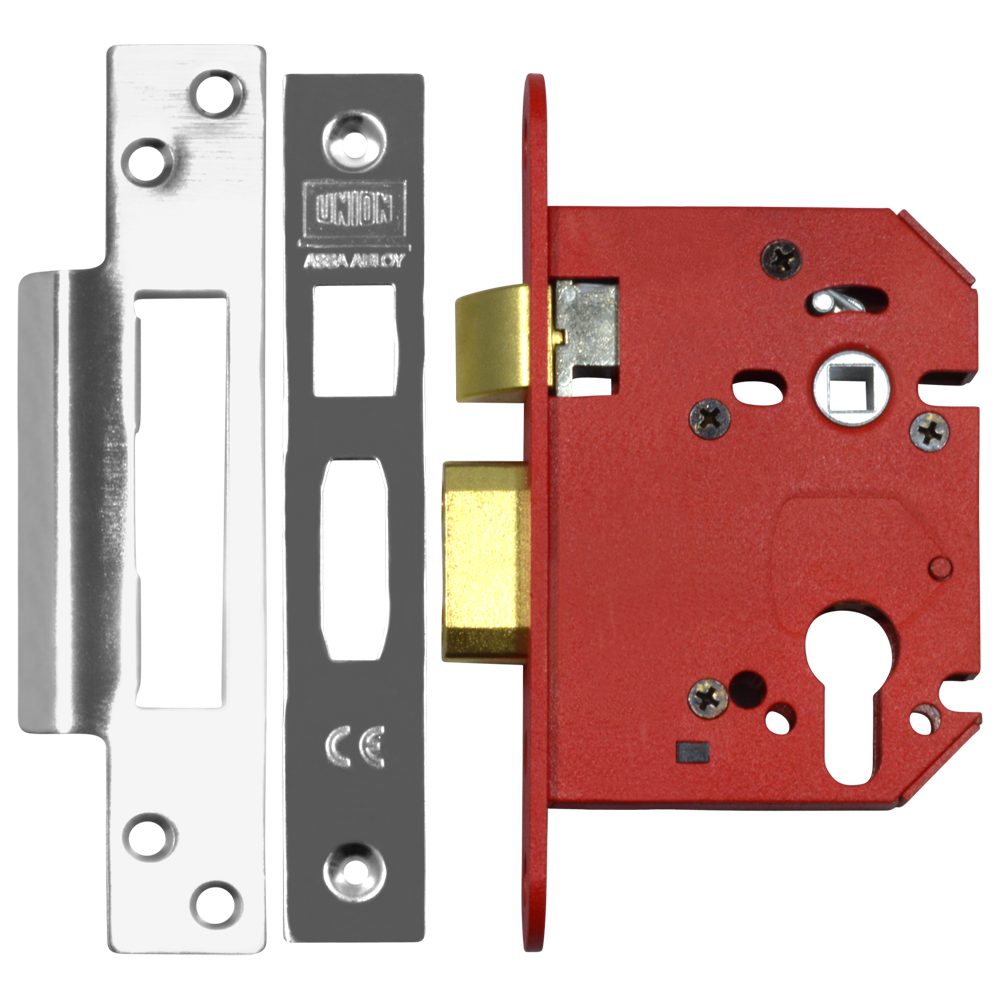

UNION JL22EUS StrongBOLT Euro Sashcase

The UNION JL22EUS StrongBOLT Euro Sashcase is a high-security mortice lockcase designed for use with a euro profile cylinder. Engineered to deliver exceptional protection and ease of installation, it features a unique chamfered deadbolt that resists drilling, sawing, and picking attacks.

This robust sashcase incorporates UNION's innovative SwitchLatch™ technology, allowing for quick and easy latch reversal on-site without opening the lockcase. It also features an anti-rattle adjustable strike plate for fine-tuning the door fit, alongside a plastic splinter guard to ensure a clean, professional finish during installation.

Available in multiple backset sizes, case depths, and finishes, please choose your required options from the selection below to find the perfect match for your door.

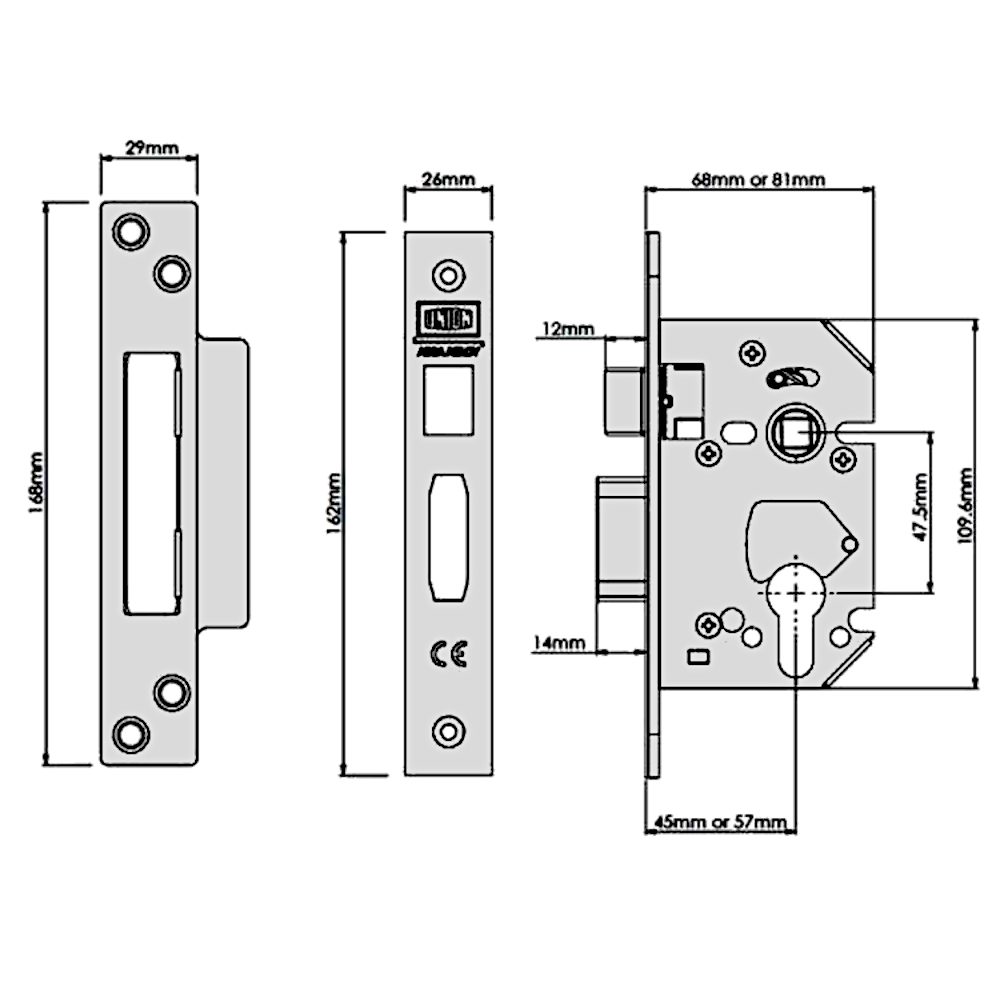

Technical Specifications

• Mechanism: Euro Cylinder (cylinder sold separately)
• Centres: 47.5mm
• Backset: 45mm or 57mm (please choose from the options below)
• Case Depth: 68mm or 81mm (please choose from the options below)
• Case Height: 109.6mm
• Case Width: 15mm
• Bolt Throw: 14mm
• Forend Dimensions: 162mm (L) x 26mm (W)
• Spindle Size: 8mm
• Finish: Polished Brass or Stainless Steel (please choose from the options below)
• Fire Tested: 1-hour timber doors (BS EN 1634-1)
• Standards: BS EN 12209:2003, Secured by Design, CE Marked, Certifire approved
• Weight: 625g or 715g (please choose from the options below)
• Guarantee: 10-year manufacturer's guarantee

Key Features

• Enhanced Security: Chamfered deadbolt with hardened steel rollers provides excellent resistance against drilling, sawing, and picking.
• SwitchLatch™ Technology: Easy, tool-free reversible latch mechanism allows for quick handing adjustment on-site.
• Adjustable Strike: Anti-rattle adjustable strike plate enables fine-tuning for a perfect, secure door fit.

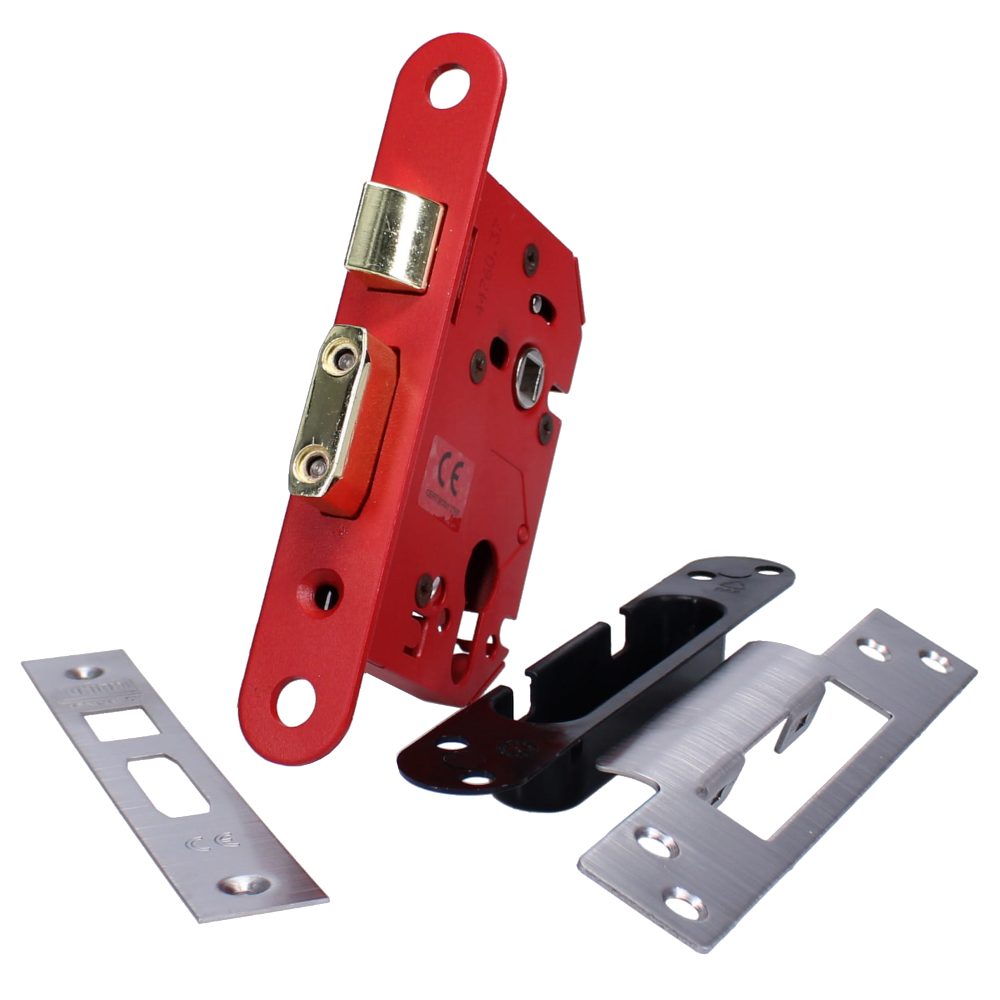

• Easy Installation: Features a square faceplate and a radiused inner forend for simpler preparation, plus a plastic splinter guard for a professional finish.
• Fire Door Suitable: Certifire approved and CE marked, making it suitable for use on timber fire doors.
• Flexible Options: Available in multiple backsets and finishes to suit your specific installation requirements.
