UNION J2205 StrongBOLT 5 Lever Sashlock
Union
The UNION J2205 StrongBOLT 5 Lever Sashlock is a highly reliable, premium-quality mortice lock designed for timber doors. Engineered with a unique chamfered deadbolt design, it offers enhanced resistance against side load attacks, while hardened steel pins provide robust protection against sawing.
This sashlock features UNION’s innovative SwitchLatch™ technology, allowing for a quick and easy reversible radius latch without the need for complex disassembly. It is also designed with a square faceplate and a radius inner forend for simpler, faster installation. For a professional finish, it comes complete with an anti-rattle adjustable strike for on-site fine-tuning and a plastic splinter guard.
Certified for safety, the J2205 is CE marked, Certifire approved, and suitable for use on 1-hour timber fire doors.
This versatile lock is available in multiple configurations. Please choose your preferred backset (45mm or 57mm), case depth (64mm or 75mm), finish (Polished Brass or Stainless Steel), and packaging type (Boxed or Visi) from the options below.

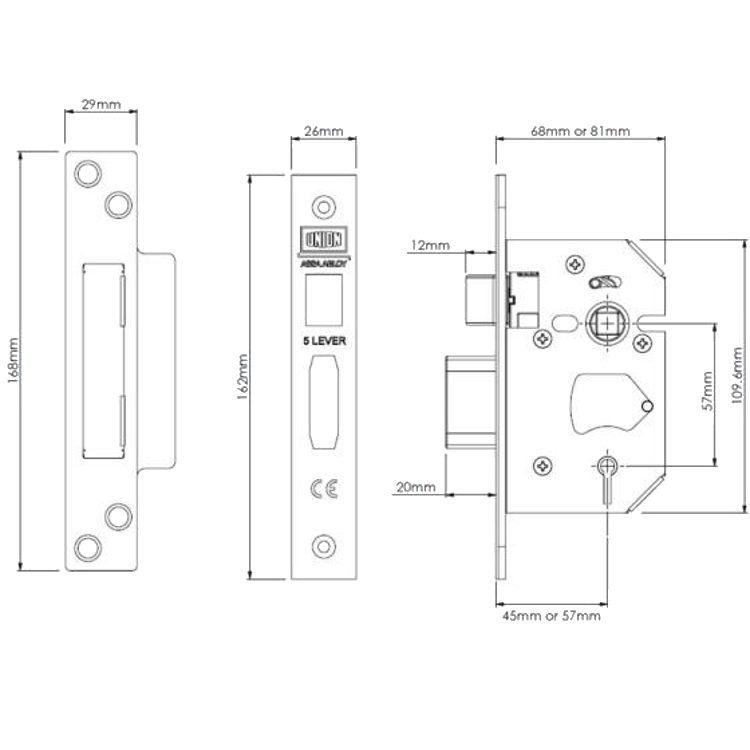

Technical Specifications
- Brand: Union
- Mechanism: 5 Lever
- Backset: 45mm or 57mm (please select below)
- Case Depth: 64mm or 75mm (please select below)
- Case Height: 109.6mm
- Centres: 57mm
- Bolt Throw: 20mm
- Forend Dimensions: 162mm (L) x 26mm (W)
- Finish: Polished Brass or Stainless Steel (please select below)
- Fire Tested: 1 Hour Timber (Certifire approved)
- Keys Supplied: 2
- Handing: Reversible
Key Features
- Chamfered Bolt Design: Offers superior resistance against side load and physical force attacks.
- SwitchLatch™ Technology: Features an easily reversible radius latch for quick handing on-site.
- Enhanced Security: Built with pick, saw, and force-resistant features, including hardened steel pins in the deadbolt.
- Easy Installation: Designed with a square faceplate, radius inner forend, and a plastic splinter guard for a clean finish.
- Adjustable Strike: Includes an anti-rattle adjustable strike plate for precise on-site fine-tuning.
- Fire Door Approved: CE marked and Certifire approved for use on 1-hour timber fire doors.
- 10-Year Guarantee: Backed by a manufacturer's decade-long peace of mind guarantee.
Master locksmiths with BSI accreditation
MLA approved locksmiths, BSI certified key systems, and independently audited security standards.
| Image | Part No. | Manufacturer Ref | Price | Actions |
|---|---|---|---|---|
|
L19734 | J2205S-PB-2.5 |
£
55.39
|
|
|
L19735 | J2205S-PB-3.0 |
£
55.39
|
|
|
L19736 | J2205S-SS-2.5 |
£
55.39
|
|
|
L19737 | J2205S-SS-3.0 |
£
55.39
|
|
|
L19742 | Y2205S-PB-2.5 |
£
58.43
|
|
|
L19743 | Y2205S-PB-3.0 |
£
58.43
|
|
|
L19745 | Y2205S-SS-3.0 |
£
58.43
|
