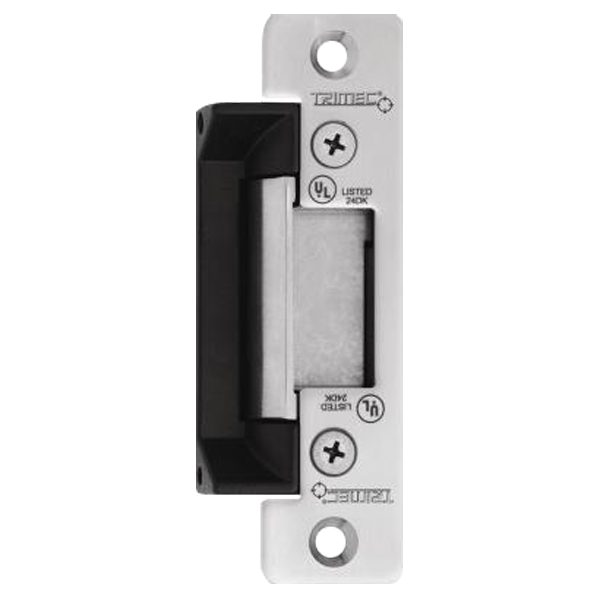

TRIMEC ES110 Series Mortice Release To Suit Aluminium And Timber

Trimec More Trimec Aluminium

From

£353.24

Select size, finish, and quantity from the variant table.

View options

The Trimec ES110 Series Mortice Release is a robust, cost-effective electric strike designed for use with both aluminium and timber doors. Featuring a solid one-piece cast aluminium body and a high-strength stainless steel striker, it offers a reliable and secure electronic locking solution for commercial and residential access control systems.

Its deeper-than-normal strike-keeper area allows it to work seamlessly with an extensive range of locks. The ES110 is IP56 weather-resistant as standard, making it ideal for both internal and external installations, including high-traffic or exposed areas. It is supplied with both long and short stainless steel faceplates to suit different frame requirements, and an installation template is included for straightforward fitting.

This versatile mortice release is available in both Fail Locked (Fail Secure) and Fail Unlocked (Fail Safe) operations. Please select your preferred operation option from the choices below to suit your specific security and safety requirements.

Technical Specifications

Brand: Trimec
Fitting: Mortice
Body Height: 70mm
Faceplate Height: Short (124mm) or Long (201mm) (both supplied)
Faceplate Width: Short (32mm) or Long (36mm) (both supplied)
Finish: Stainless Steel
Input Voltage: 12/24V DC (Continuously Rated)
Current Consumption: 0.25A @ 12V DC / 0.187A @ 24V DC
Holding Force: 680kg (1500lbs)
IP Rating: IP56
Jaw Dimensions: 38mm (H) x 17mm (W) x 15mm (D)
Operating Temperature: -20°C to 60°C
Mechanical Life: 1,000,000 operations
Handing: Reversible
Standards: CE Marked
Operation: Fail Locked or Fail Unlocked (please choose from the options below)

Key Features

High Durability: Solid one-piece cast aluminium body with a stainless steel striker for exceptional strength.
Versatile Compatibility: Suitable for aluminium and timber doors with an 18mm latch and 3mm door gap.
Weather Resistant: IP56 rated as standard, making it ideal for both internal and external high-traffic doors.
Flexible Installation: Supplied with both long and short stainless steel faceplates and an installation template.
Site Adaptable: Fail safe/fail secure changeable on site for maximum flexibility.
Peace of Mind: Backed by a Tricare 5-year manufacturer's warranty.
