SQUIRE Lion Range Brass Open Shackle Padlocks
Squire
From
£15.23-£45.32
Select size, finish, and quantity from the variant table.
The Squire Lion range of open shackle padlocks offers a premium level of security for both indoor and outdoor applications. Featuring a solid brass lock body and a hardened steel shackle, these padlocks are designed to deliver robust protection against tampering and harsh weather.
The Squire Lion range of open shackle padlocks offers a premium level of security for both indoor and outdoor applications. Featuring a solid brass lock body and a hardened steel shackle, these padlocks are designed to deliver robust protection against tampering and harsh weather.
Constructed with a thicker body section than the Squire Leopard range, the Lion series provides a larger shackle diameter and a greater number of key differs for enhanced security. These versatile padlocks are ideal for securing lockers, luggage, toolboxes, sheds, garages, gates, greenhouses, and boats.
These padlocks are available in multiple body widths, shackle diameters, and pin mechanisms. Please choose from the options below to find the perfect fit for your security requirements.
Technical Specifications
- Brand: Squire
- Material: Solid brass body with hardened steel shackle
- Body Width: Ranges from 24.5mm to 60mm (please choose from the options below)
- Body Depth / Thickness: Ranges from 11mm to 18.5mm (please choose from the options below)
- Shackle Diameter: Ranges from 4mm to 9.5mm (please choose from the options below)
- Horizontal Clearance: Ranges from 13.5mm to 35.5mm (please choose from the options below)
- Vertical Clearance: Ranges from 16.7mm to 33.5mm (please choose from the options below)
- Mechanism: 4-pin or 5-pin tumbler mechanism (please choose from the options below)
- Keying: Keyed to differ (supplied with 2 keys)
- Pack Quantity: Available as single units or pairs (please choose from the options below)
- Manufacturer Reference: LN2, LN3, LN4, LN4T, LN5, or LN60 (please choose from the options below)
Key Features
- Premium Solid Brass Body: High corrosion resistance for reliable indoor and outdoor use.
- Hardened Steel Shackle: Delivers robust protection against cutting and sawing.
- Double Locking: Double-locking mechanism featured on models 30mm and above for added security.
- Heavy-Duty Design: Thicker body and larger shackle diameter than the Leopard range.
- Multi-Purpose Security: Perfect for gates, garages, sheds, lockers, toolboxes, and boats.
| Image | Part No. | Manufacturer Ref | Price | Actions |
|---|---|---|---|---|
|
L30118 | LN2 |
£
15.23
|
|
|
|
L30119 | LN60 |
£
45.32
|
|
|
L9929 | LN3 |
£
17.41
|
|
|
L9931 | LN4 |
£
21.78
|
|
|
L9933 | LN4T |
£
41.40
|
|
|
L9934 | LN5 |
£
34.85
|
Protip: ctrl+f auto-expands all the products

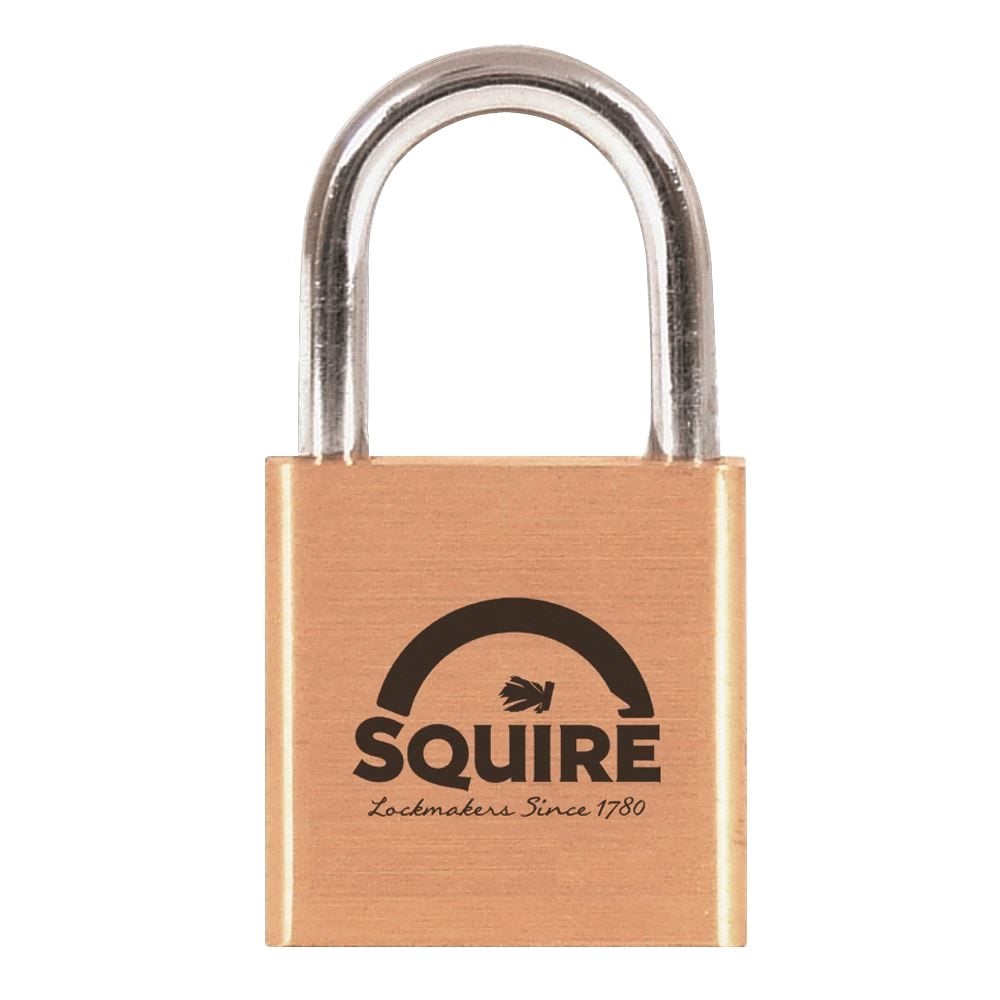

L30118
Ref: LN2
£
15.23
- Part No.: L30118
- Manufacturer Reference: LN2
- Barcode: 5012245002676
- Body Depth: 11mm (More)
- Body Thickness: 11mm (More)
- Body Width: 24.5mm (More)
- Brand: Squire (More)
- Finish: Brass (More)
- Horizontal Clearance: 13.5mm (More)
- Keyed: Keyed To Differ (More)
- Keys Supplied: 2 (More)
- Material: Brass (More)
- Mechanism: 4 Pin (More)
- Pack Quantity: 1 (More)
- Packaging: Visi
- Shackle Diameter: 4mm (More)
- Vertical Clearance: 16.7mm (More)
- Weight: 50g (More)

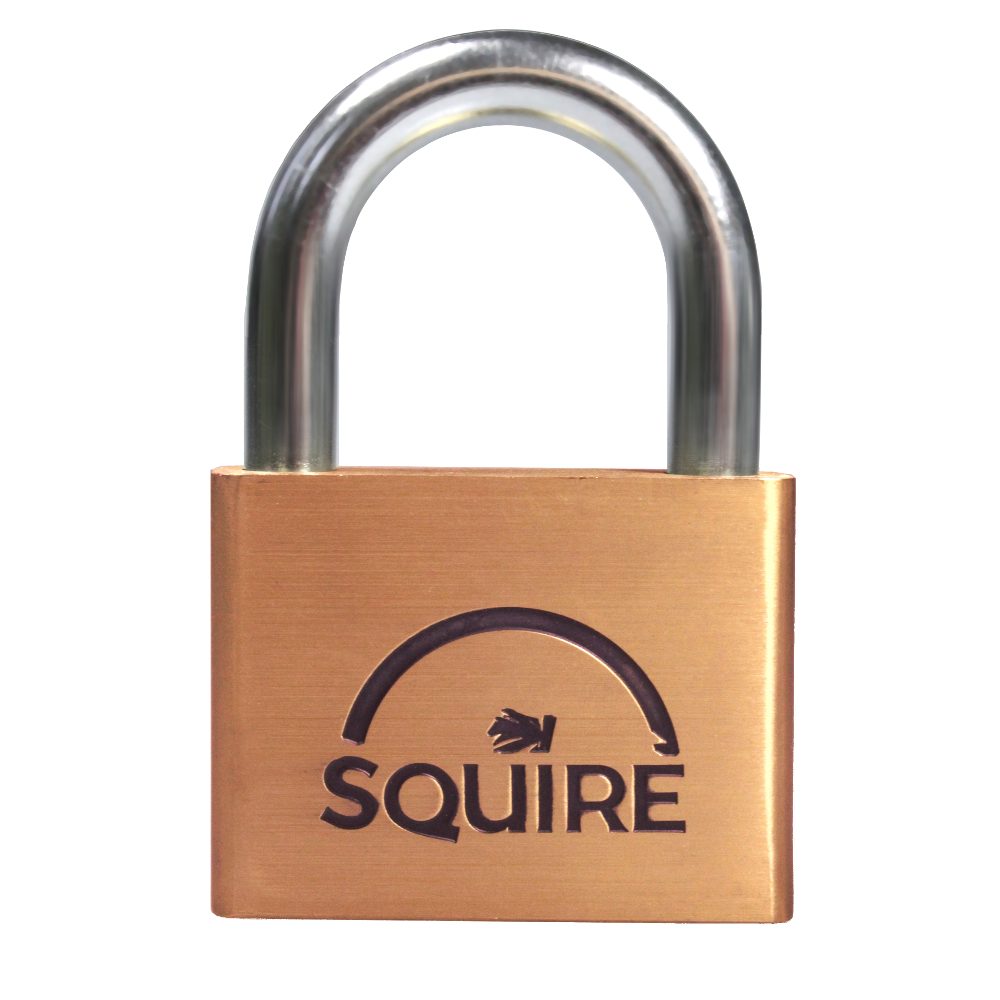

L30119
Ref: LN60
£
45.32
- Part No.: L30119
- Manufacturer Reference: LN60
- Barcode: 5012245003376
- Body Depth: 18.5mm (More)
- Body Thickness: 18.5mm (More)
- Body Width: 60mm (More)
- Brand: Squire (More)
- Finish: Brass (More)
- Horizontal Clearance: 35.5mm (More)
- Keyed: Keyed To Differ (More)
- Keys Supplied: 2 (More)
- Material: Brass (More)
- Mechanism: 5 Pin (More)
- Pack Quantity: 1 (More)
- Packaging: Visi
- Shackle Diameter: 9.5mm (More)
- Vertical Clearance: 33.5mm (More)
- Weight: 43g (More)

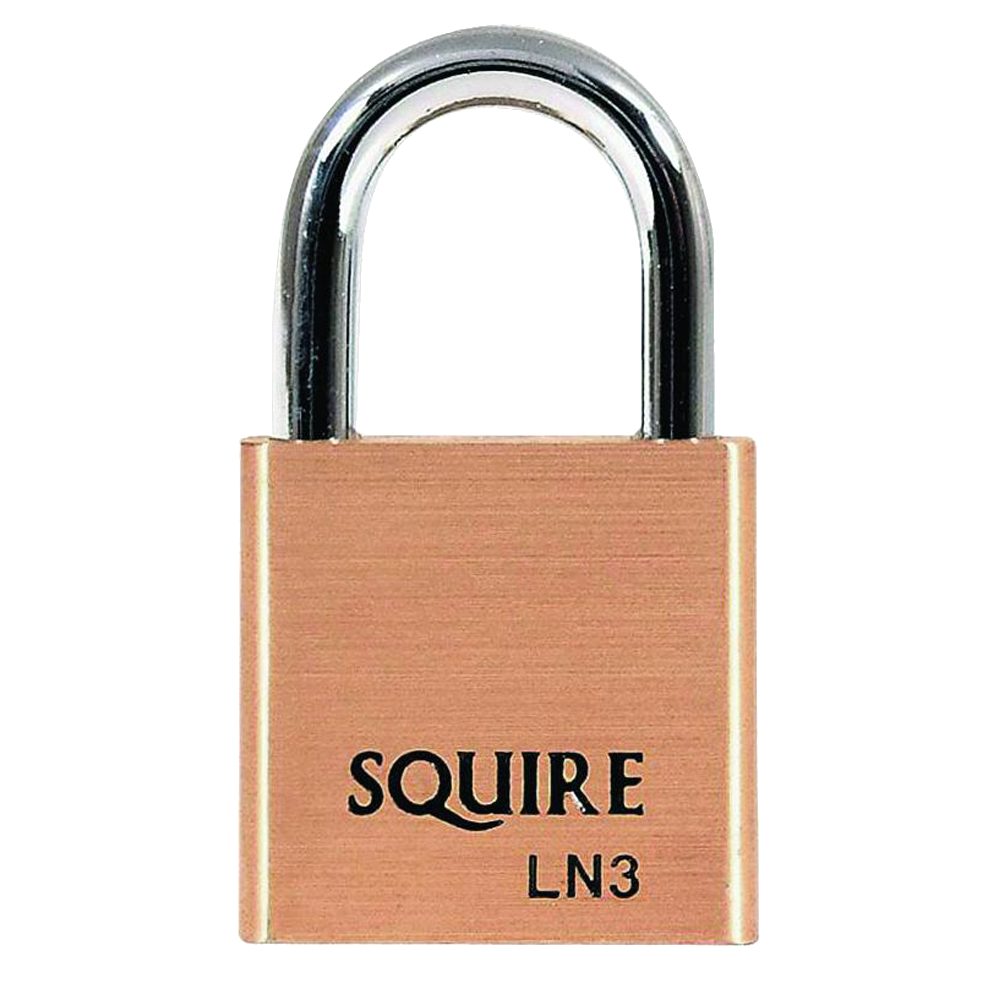

L9929
Ref: LN3
£
17.41
- Part No.: L9929
- Manufacturer Reference: LN3
- Barcode: 5012245002683
- Body Depth: 13mm (More)
- Body Thickness: 13mm (More)
- Body Width: 31.5mm (More)
- Brand: Squire (More)
- Finish: Brass (More)
- Horizontal Clearance: 16.5mm (More)
- Keyed: Keyed To Differ (More)
- Keys Supplied: 2 (More)
- Material: Brass (More)
- Mechanism: 4 Pin (More)
- Pack Quantity: Single (More)
- Packaging: Visi
- Shackle Diameter: 5.5mm (More)
- Vertical Clearance: 19.5mm (More)
- Weight: 120g (More)

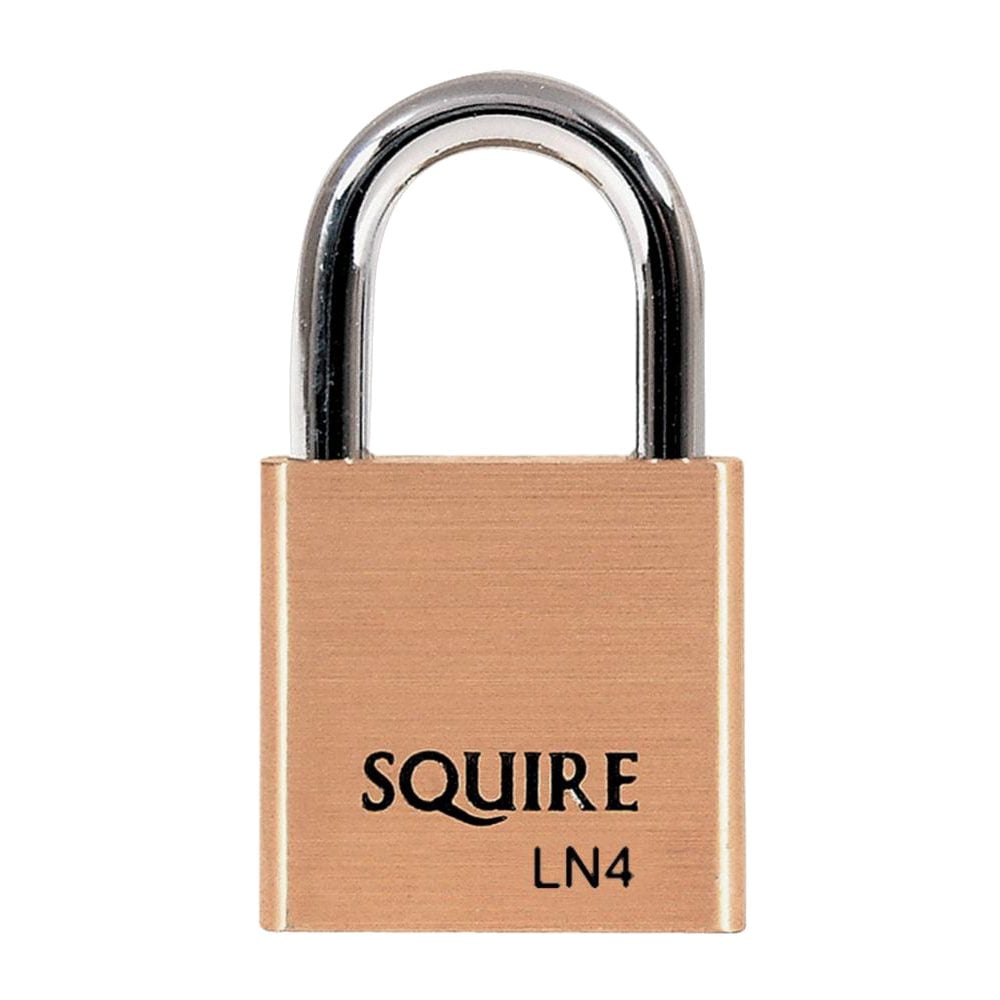

L9931
Ref: LN4
£
21.78
- Part No.: L9931
- Manufacturer Reference: LN4
- Barcode: 5012245002690
- Body Depth: 14mm (More)
- Body Thickness: 14mm (More)
- Body Width: 40mm (More)
- Brand: Squire (More)
- Finish: Brass (More)
- Horizontal Clearance: 22.5mm (More)
- Keyed: Keyed To Differ (More)
- Keys Supplied: 2 (More)
- Material: Brass (More)
- Mechanism: 5 Pin (More)
- Pack Quantity: Single (More)
- Packaging: Visi
- Shackle Diameter: 6mm (More)
- Vertical Clearance: 21mm (More)
- Weight: 190g (More)

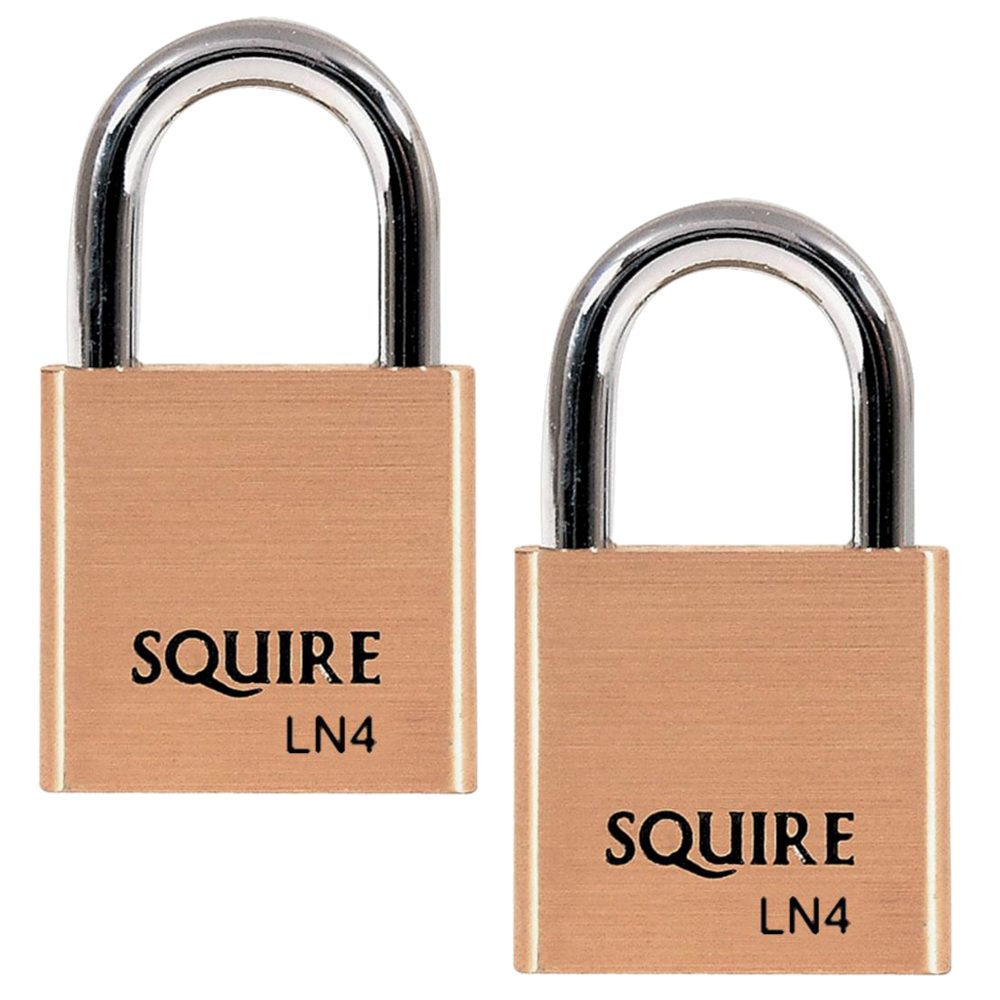

L9933
Ref: LN4T
£
41.40
- Part No.: L9933
- Manufacturer Reference: LN4T
- Barcode: 5012245003314
- Body Depth: 14mm (More)
- Body Thickness: 14mm (More)
- Body Width: 40mm (More)
- Brand: Squire (More)
- Finish: Brass (More)
- Horizontal Clearance: 22.5mm (More)
- Keyed: Keyed To Differ (More)
- Keys Supplied: 2 (More)
- Material: Brass (More)
- Mechanism: 5 Pin (More)
- Pack Quantity: 1 Pair (More)
- Packaging: Visi
- Shackle Diameter: 6mm (More)
- Vertical Clearance: 21mm (More)
- Weight: 320g (More)

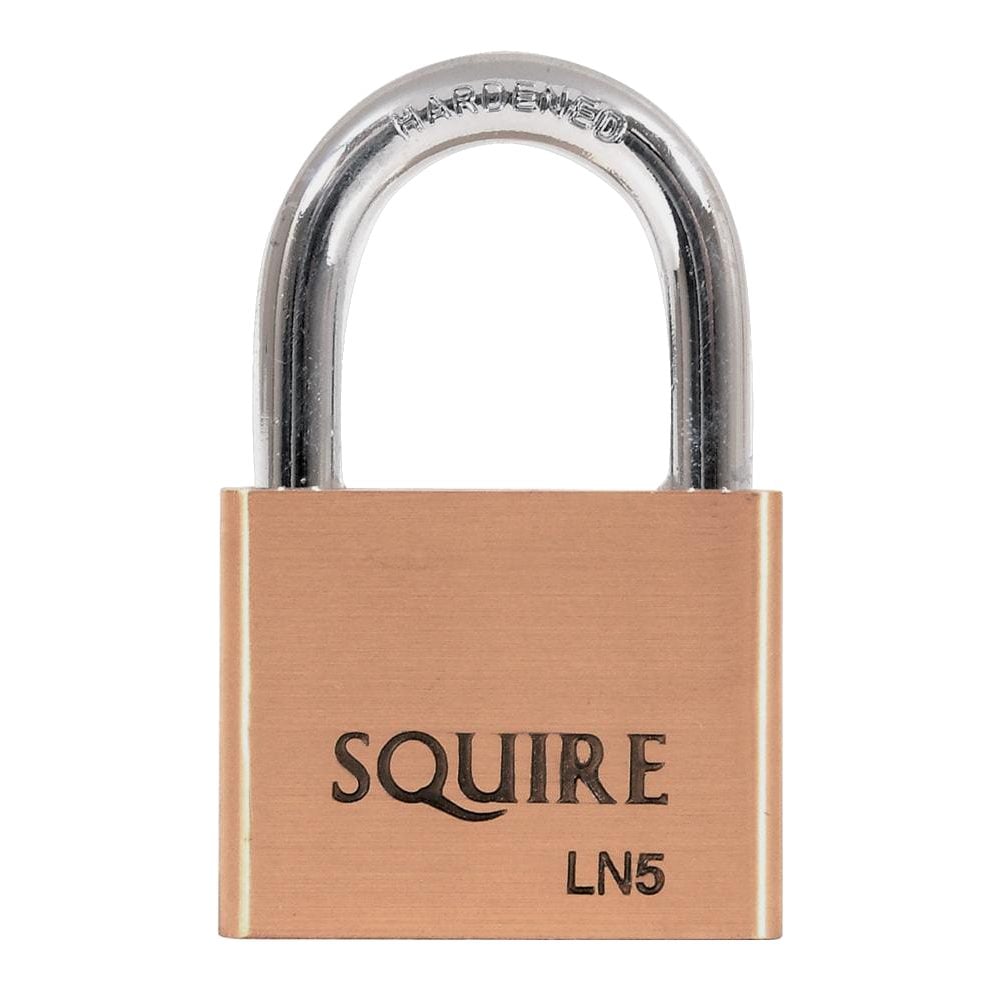

L9934
Ref: LN5
£
34.85
- Part No.: L9934
- Manufacturer Reference: LN5
- Barcode: 5012245002713
- Body Depth: 15.5mm (More)
- Body Thickness: 15.5mm (More)
- Body Width: 51mm (More)
- Brand: Squire (More)
- Finish: Brass (More)
- Horizontal Clearance: 28mm (More)
- Keyed: Keyed To Differ (More)
- Keys Supplied: 2 (More)
- Material: Brass (More)
- Mechanism: 5 Pin (More)
- Pack Quantity: Single (More)
- Packaging: Visi
- Shackle Diameter: 8.8mm (More)
- Vertical Clearance: 30mm (More)
- Weight: 300g (More)
