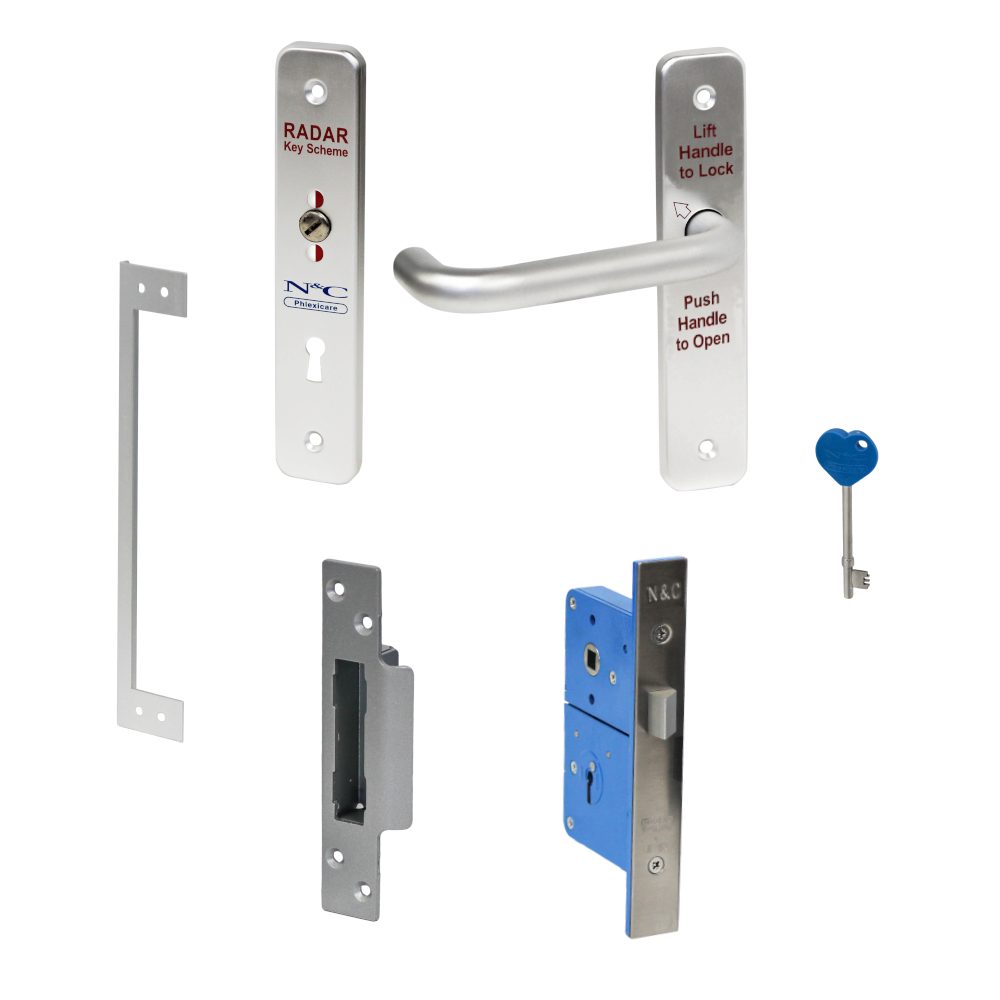

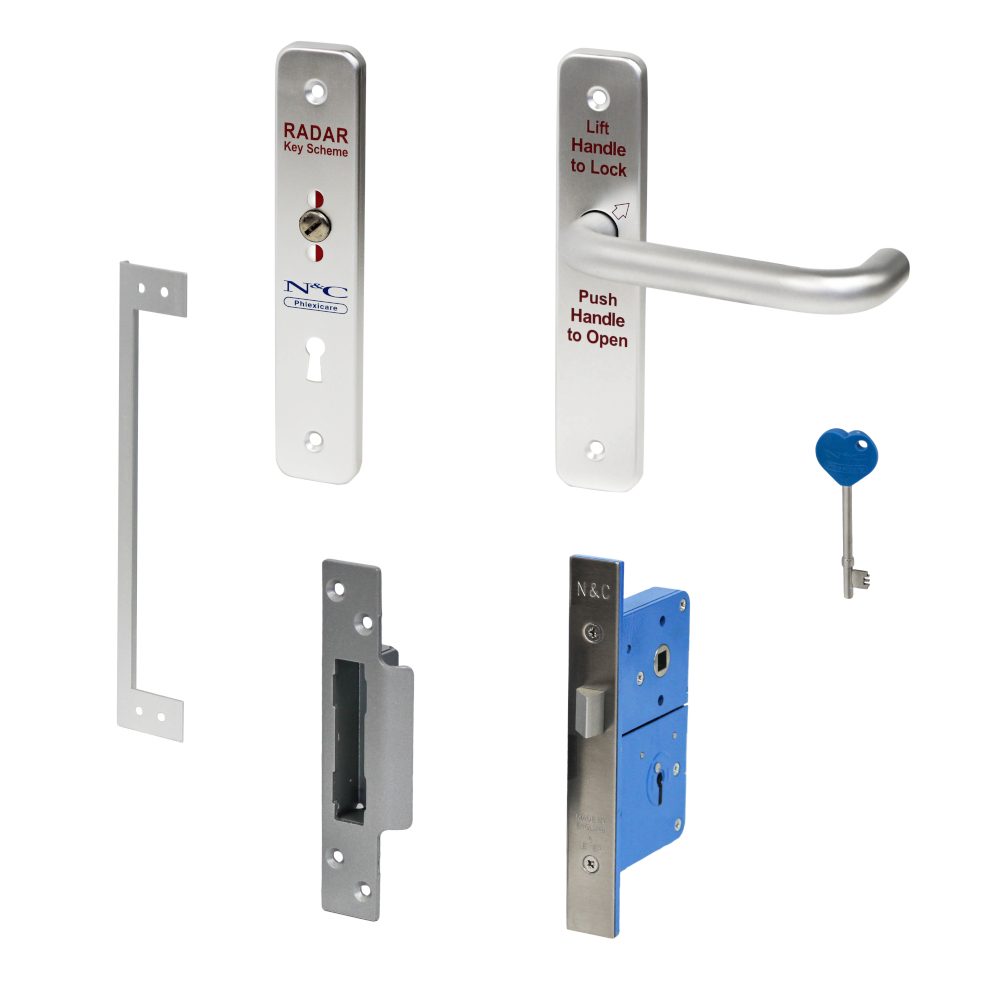

N&C Phlexicare Genuine RADAR Lockset SAA

The genuine N&C Phlexicare RADAR lockset is designed for disabled public toilets as part of the National Key Scheme (NKS), providing independent access for disabled users with a standard Radar key. Now in its 5th generation, this high-quality 6-lever lockset features a modern rounded-edge design and is designed to easily retrofit into existing installations.

The lockset includes an external indicator to show occupancy, an external emergency coin release for safety, and secure bolt-through fixings. It meets the requirements of BS8300 and comes complete with one genuine Radar key.

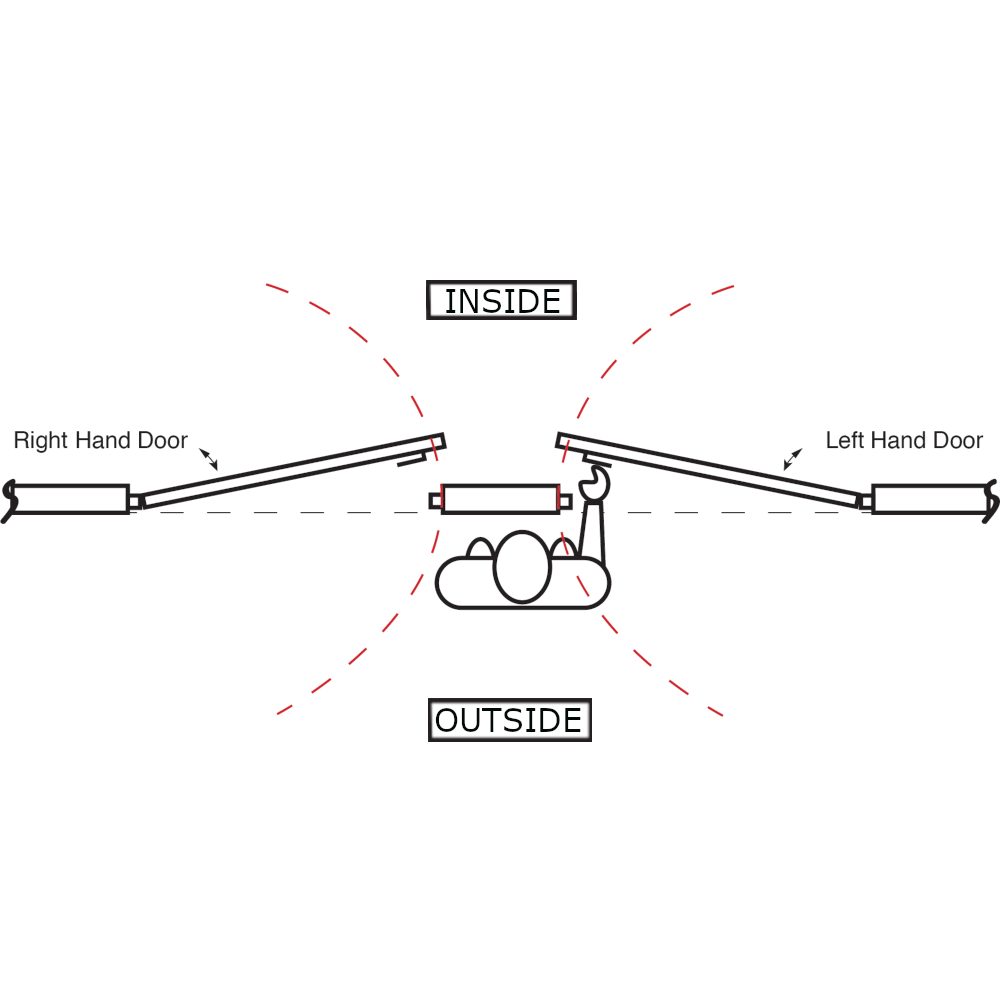

This lockset is available in both Left Hand and Right Hand configurations. To determine the correct handing for your door, stand inside the toilet cubicle:

• If the hinges are on the right, you will need a Right Hand lockset.
• If the hinges are on the left, you will need a Left Hand lockset.

Please select your required handing, barcode, and manufacturer reference from the options below.

Technical Specifications

• Backset: 50mm
• Case Depth: 70mm
• Case Height: 122mm
• Case Width: 15mm
• Faceplate Dimensions: 178mm (H) x 25mm (W)
• Finish: Satin Anodised Aluminium (SAA)
• Handing: Left Hand or Right Hand (please choose from the options below)
• Mechanism: 6 Lever
• Keys Supplied: 1 Radar key
• Standards: BS EN 8300
• Weight: 1.9kg

Key Features

• National Key Scheme (NKS) Approved: Offers independent access to disabled public toilets using a standard Radar key.
• 5th Generation Design: Modern rounded-edge design that easily retrofits into existing installations.
• Safety Features: Includes an external emergency coin release and a return-to-door safety lever handle.
• Clear Status Indicator: Features an external occupancy indicator.
• Reversible Latch: Latch bolt can be easily reversed to accommodate inward or outward opening doors.
• Secure Fixing: Supplied with robust bolt-through fixings.
