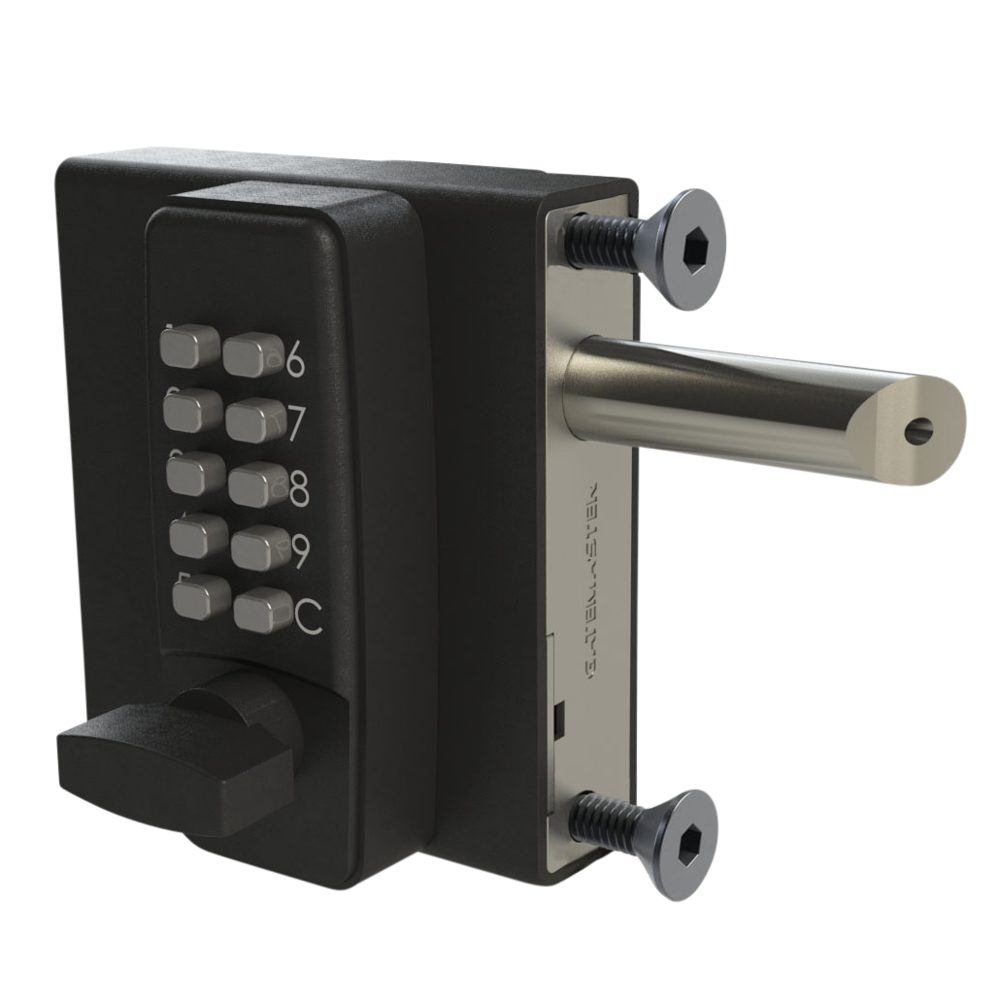

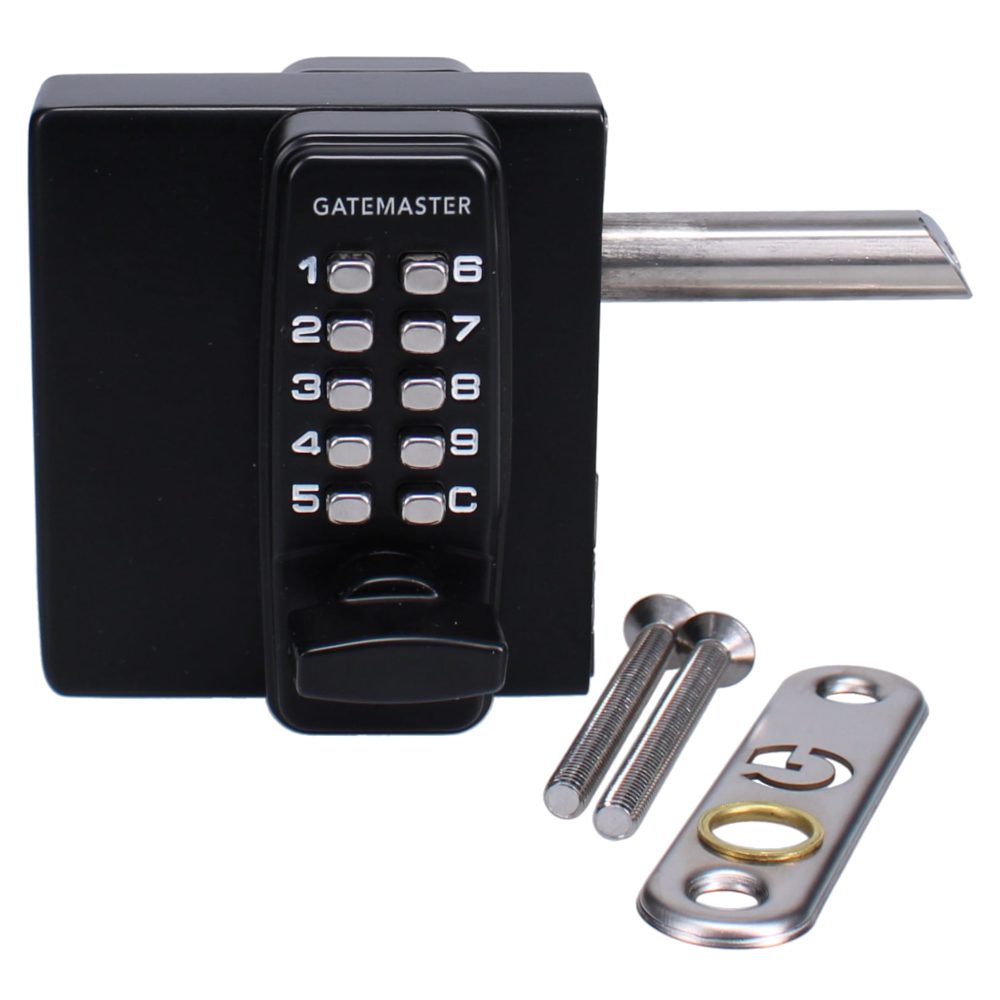

GATEMASTER DGL Digital Gate Lock

The Gatemaster DGL Digital Gate Lock is a highly durable, keyless security solution designed specifically for outdoor gates. Built to withstand the elements, this lock is weather-resistant and salt-spray tested to marine grade, ensuring reliable performance in harsh environments.

This mechanical digital lock features a double-sided keypad, requiring a code for entry from both sides. It operates entirely mechanically, meaning no power or wiring is required. For added convenience, the lock includes an auto-latching function that secures the gate automatically when closed, alongside a deadlocking function. It is supplied with a brass bearing plate to support the latchbolt, reducing wear and ensuring smooth operation.

The adjustable-length bolt makes the unit fully non-handed and suitable for both left and right-handed gates. This lock is available in multiple options to suit different gate frame thicknesses, ranging from 10mm to 30mm (DGL01) or 40mm to 60mm (DGL02). Please choose your required gate frame size and manufacturer reference from the options below.

Technical Specifications

• Brand: Gatemaster
• Mechanism: Mechanical Digital
• Keypad: Double-sided (10 buttons)
• Code Length: 3 to 5 digits (over 500 combinations)
• Operation: Thumbturn on entry of code (both inside and outside)

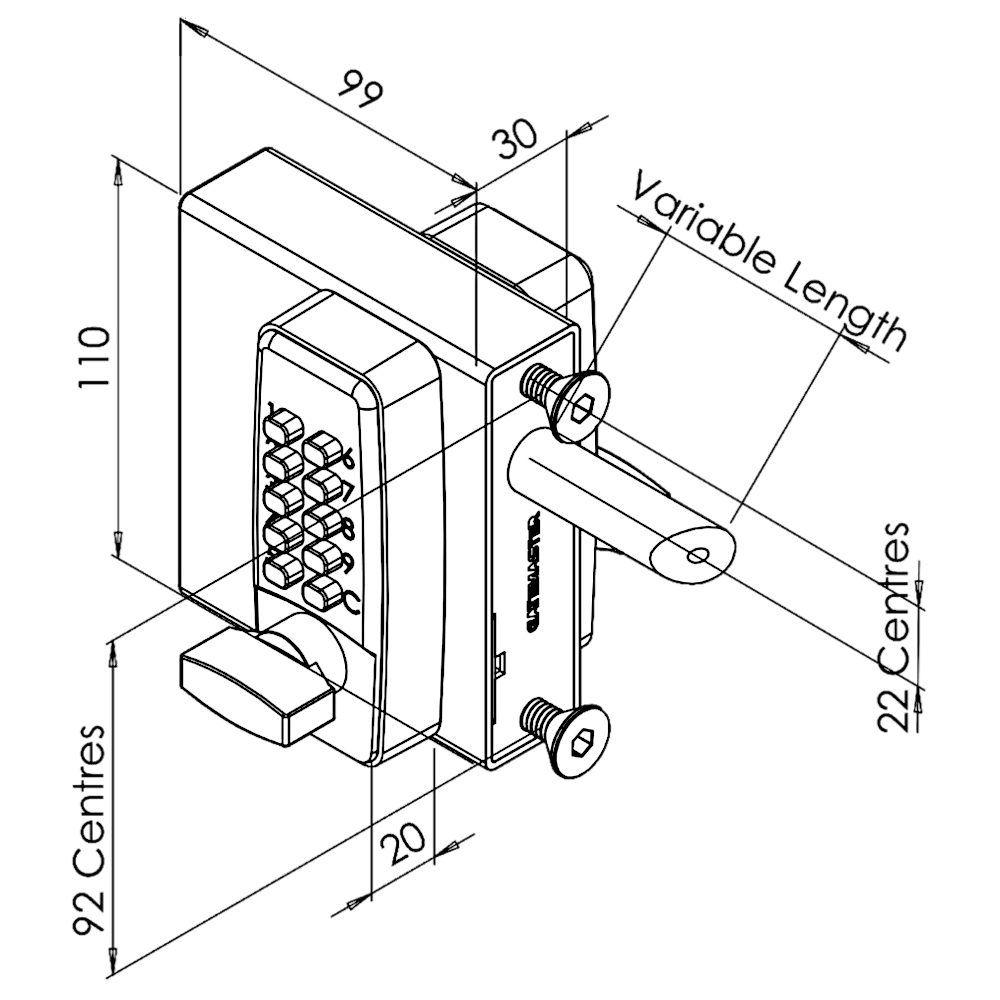

• Bolt Throw: 20mm (adjustable length)
• Case Width: 30mm
• Overall Width: 98mm
• Finish: Black
• Handing: Non-handed (reversible)
• Gate Frame Thickness: To suit 10mm to 30mm, or 40mm to 60mm gate frames (please choose from the options below)
• Manufacturer Reference: DGL01 or DGL02 (please choose from the options below)
• Guarantee: 1 Year

Key Features

• Marine Grade Durability: Salt-spray tested and weather-resistant for long-lasting outdoor performance.
• Double-Sided Keypad: Keyless access control requiring code entry from both sides of the gate.
• Auto-Latching & Deadlocking: Automatically latches shut when closed, with deadlocking functions for reliable security.
• Smooth Operation: Supplied with a brass bearing plate to support the latchbolt and reduce wear.
• Adjustable Bolt Length: Easily adjusted to suit left or right-handed applications.
• Easy Installation: Designed to be bolted securely in place on gate frames.
