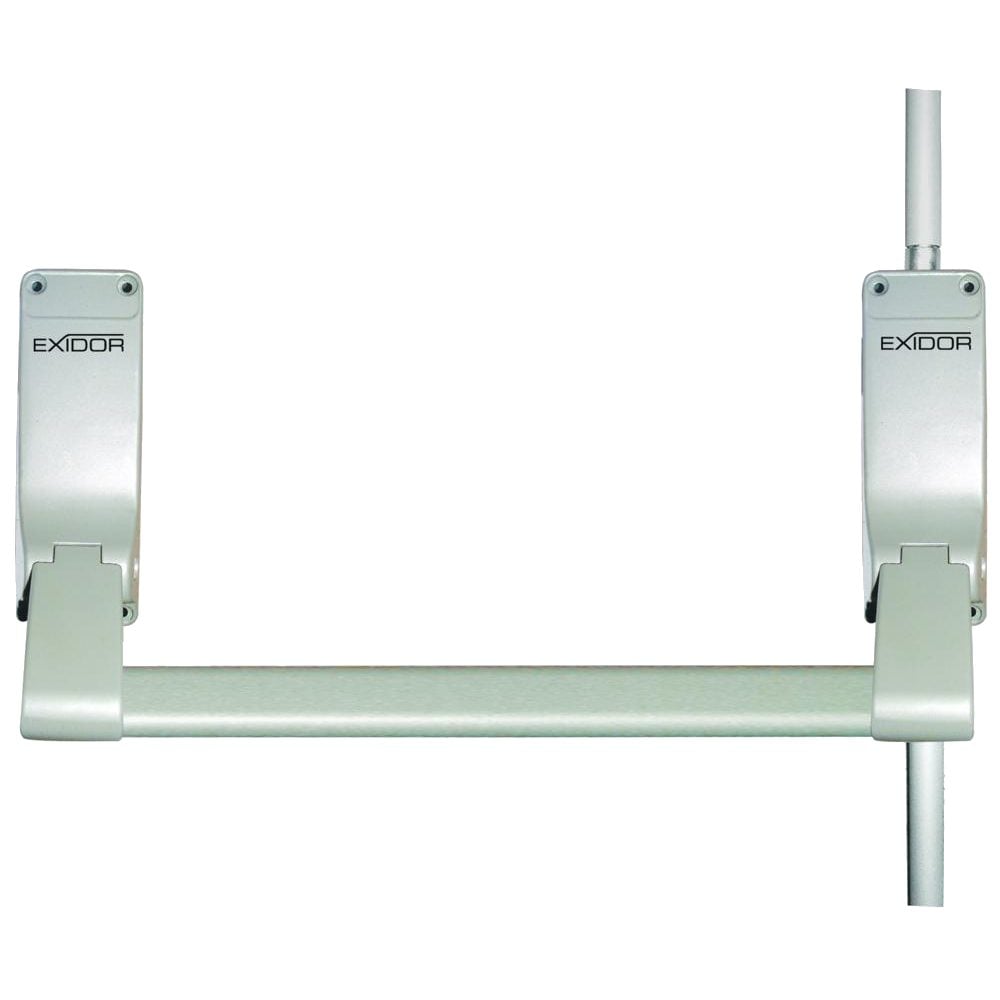

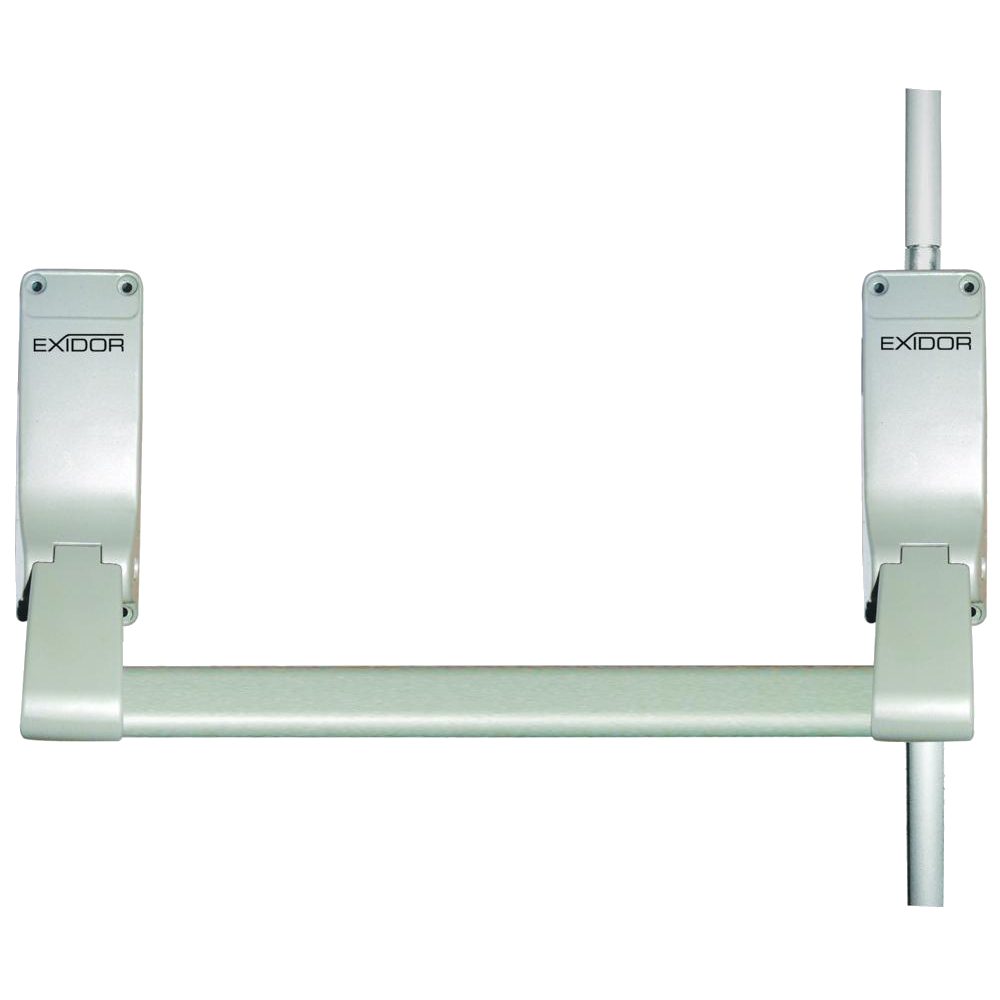

EXIDOR 294 Single Panic Bolt

The Exidor 294 Single Panic Bolt is an elegant, highly functional, and reliable emergency exit solution designed for single doors. It provides a secure two-point vertical locking mechanism that ensures swift and effortless egress in the event of an emergency, making it ideal for public buildings and commercial spaces.

This surface-mounted panic bolt is non-handed (fully reversible) and features an integrated anti-thrust device. This security feature prevents the top and bottom shoot bolts from being forced or leveraged out of their sockets from the outside. It comes complete with an automatic top trip mechanism to keep the bolts retracted while the door is open, and an easy-clean floor socket to prevent dirt build-up. Supplied with fittings suitable for timber doors as standard, the Exidor 294 is Certifire approved and fully compliant with BS EN 1125 standards.

Technical Specifications

• Brand: Exidor
• Manufacturer Reference: 294
• Standards: BS EN 1125, Certifire Approved
• Handing: Reversible (non-handed)
• Locking Points: 2 (top and bottom shoot bolts)
• Maximum Door Height: 2440mm
• Maximum Door Width: 1220mm
• Suitable Door Type: Timber doors (fittings supplied as standard)
• Finish: Silver Enamelled
• Weight: 4.35kg

Key Features

• Anti-Thrust Device: Prevents unauthorized leverage of the top and bottom shoot bolts from their sockets, enhancing security.
• Easy Egress: Simple push-bar operation ensures quick and safe exit during an emergency.
• Automatic Top Trip: Holds the bolts in the retracted position while the door is open and automatically releases them upon closing.
• Easy-Clean Floor Socket: Minimizes dirt and debris build-up to maintain smooth operation.
• Certified Safety: Fully compliant with BS EN 1125 for peace of mind in public and commercial environments.
