DORMAKABA TS93 Size 2-5 Side Channel Overhead Door Closer

dormakaba More dormakaba Overhead

Price

£389.17

Select size, finish, and quantity from the variant table.

View options

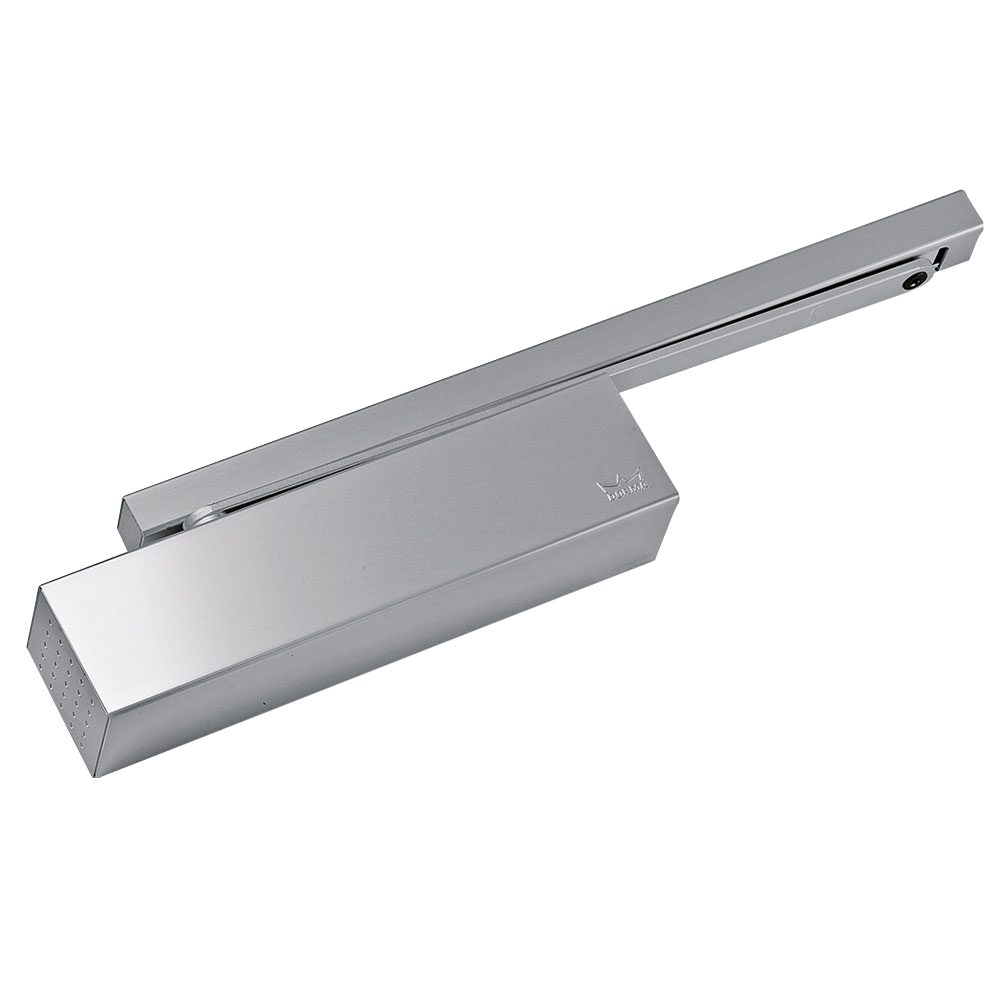

The dormakaba (formerly Dorma) TS93 Cam Action Overhead Door Closer is a premium architectural solution designed to deliver smooth, reliable door control. Featuring dormakaba's unique heart-shaped cam and roller technology, this slide channel door closer significantly reduces the force required to open the door, making it exceptionally easy to use and ideal for accessible buildings.

This highly versatile closer offers adjustable closing force (power size EN 2-5), delayed action, hydraulic backcheck, and adjustable sweep and latching speeds, allowing you to customise its performance to your exact requirements. It is fully BS EN 1154 compliant and CERTIFIRE approved for use on fire doors, ensuring outstanding safety and performance.

The TS93 is available in both Push (TS93G) and Pull (TS93B) handed configurations to suit your specific installation needs. Please choose your preferred handed option, manufacturer reference, and barcode from the options below.

Technical Specifications

Brand: dormakaba
Standards: BS EN 1154
Fire Tested: CERTIFIRE approved for fire doors
Strength Size: EN 2 to 5
Finish: Silver Enamelled
Handed: Pull or Push (please select from the options below)
Manufacturer Reference: TS93B or TS93G (please select from the options below)
Barcode: Multiple options available (please select from the options below)
Adjustable Closing Speed: Yes
Adjustable Latch Action: Yes
Backcheck: Yes

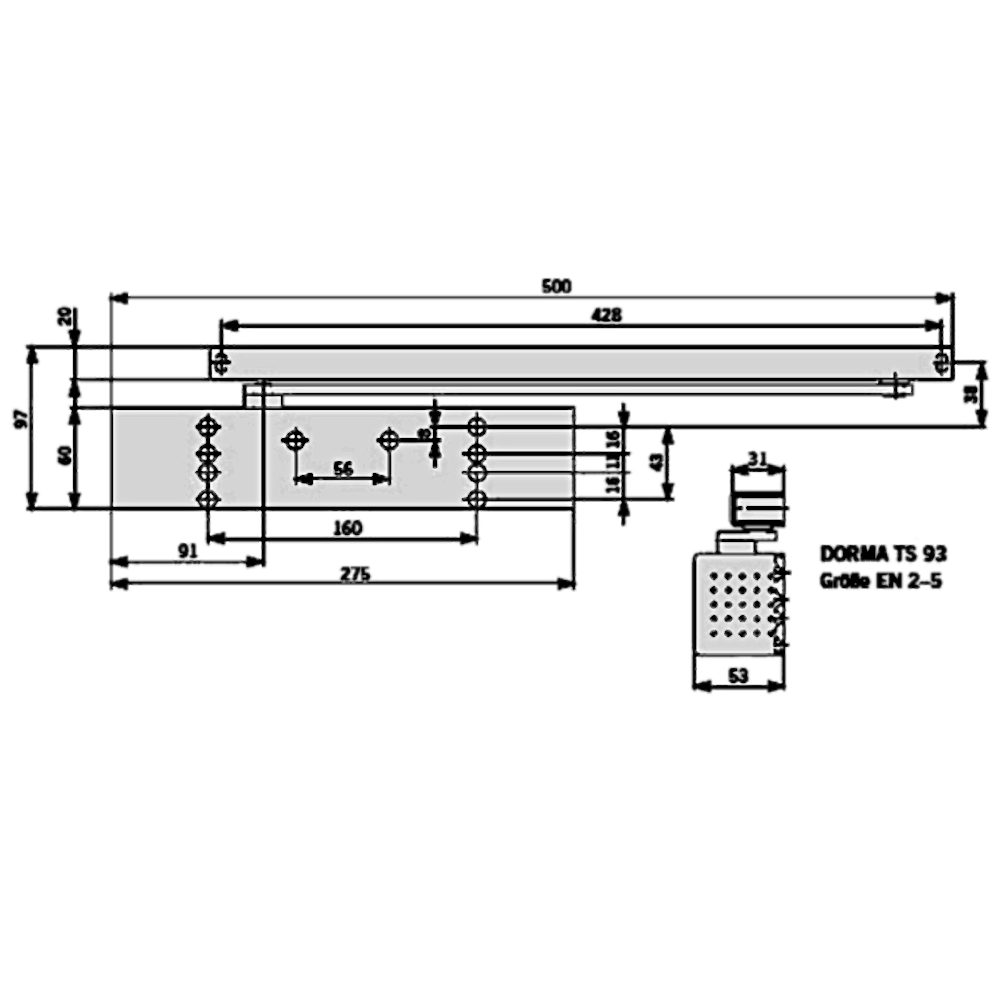

Depth: 53mm
Height: 53mm
Width: 60mm
Weight: 4.42kg
Packaging: Boxed
Pack Quantity: 1

Key Features

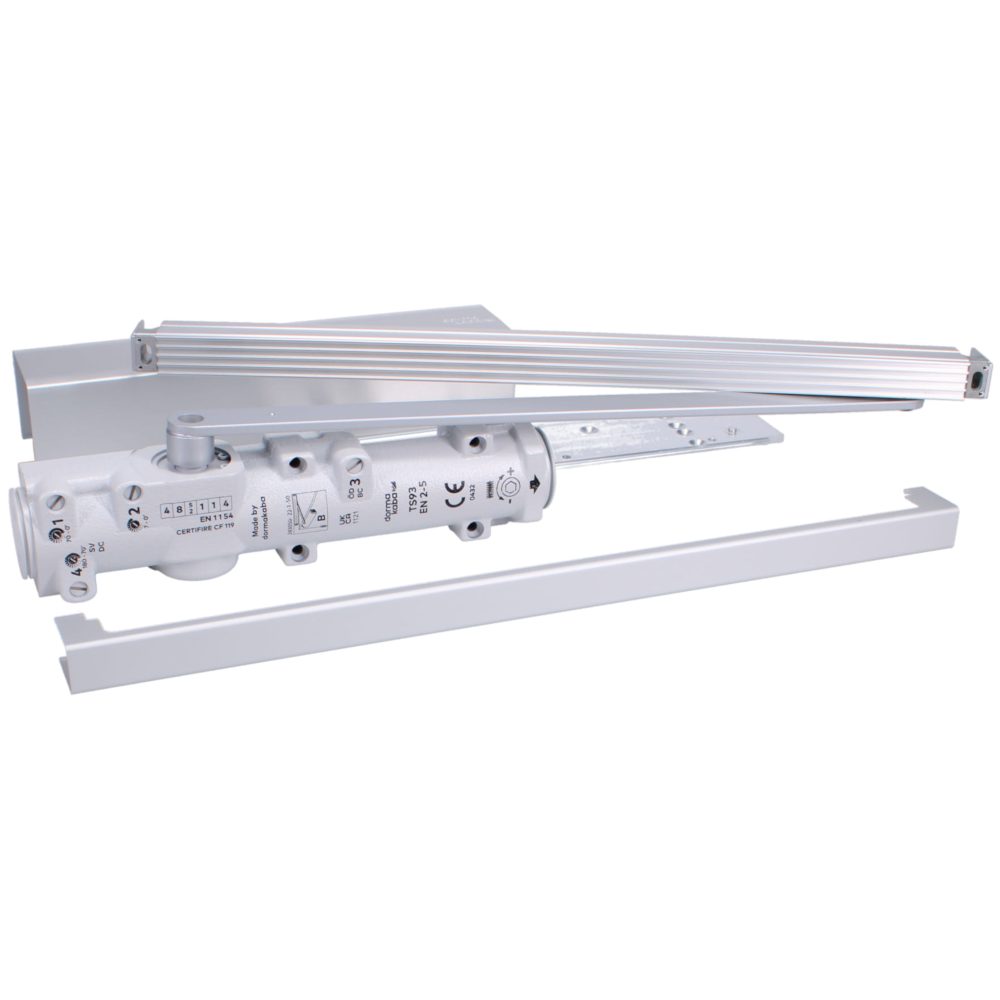

Cam Action Technology: Unique heart-shaped cam and roller design ensures exceptional ease of opening
Adjustable Performance: Features adjustable closing force, delayed action, and hydraulic backcheck
Precise Control: Adjustable sweep and latching speed for tailored door closing

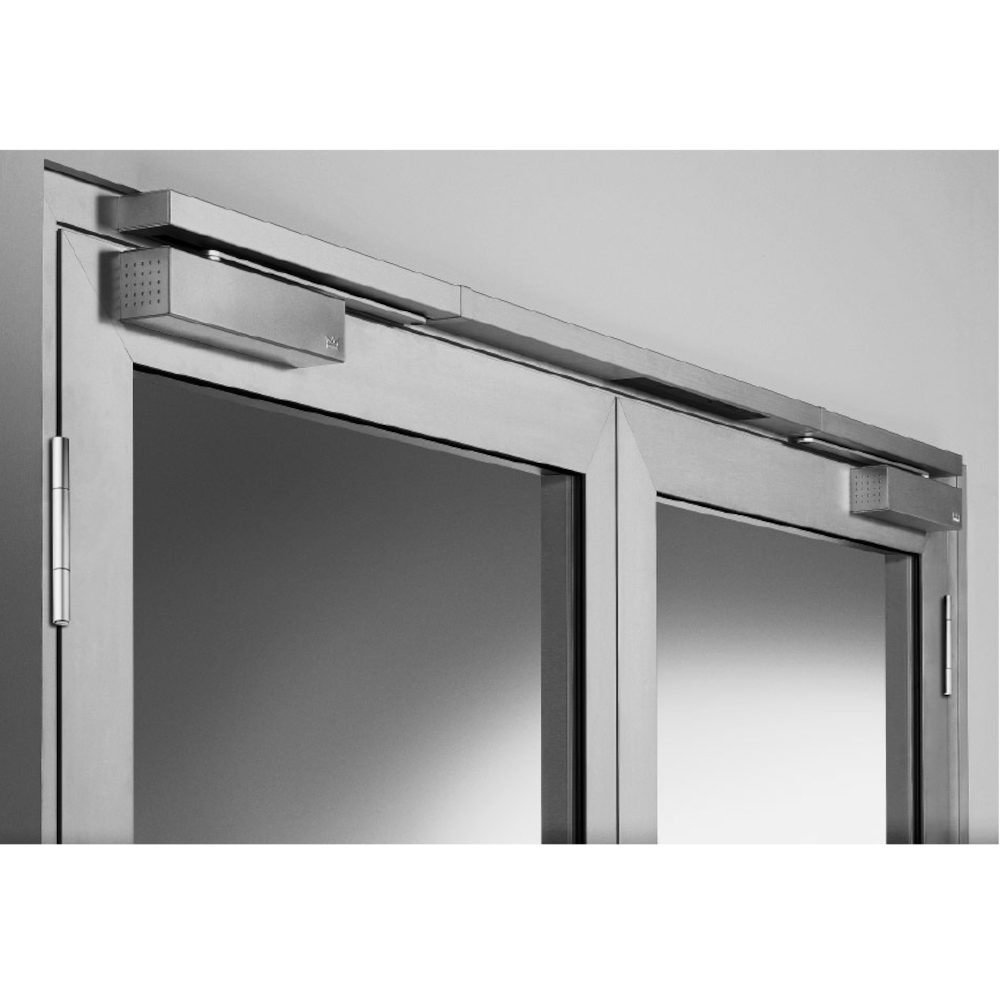

Versatile Mounting: Suitable for all fixing positions and can be mounted on both single- and double-leaf doors
Multiple Options: Available in Push and Pull handed options to suit your installation requirements
