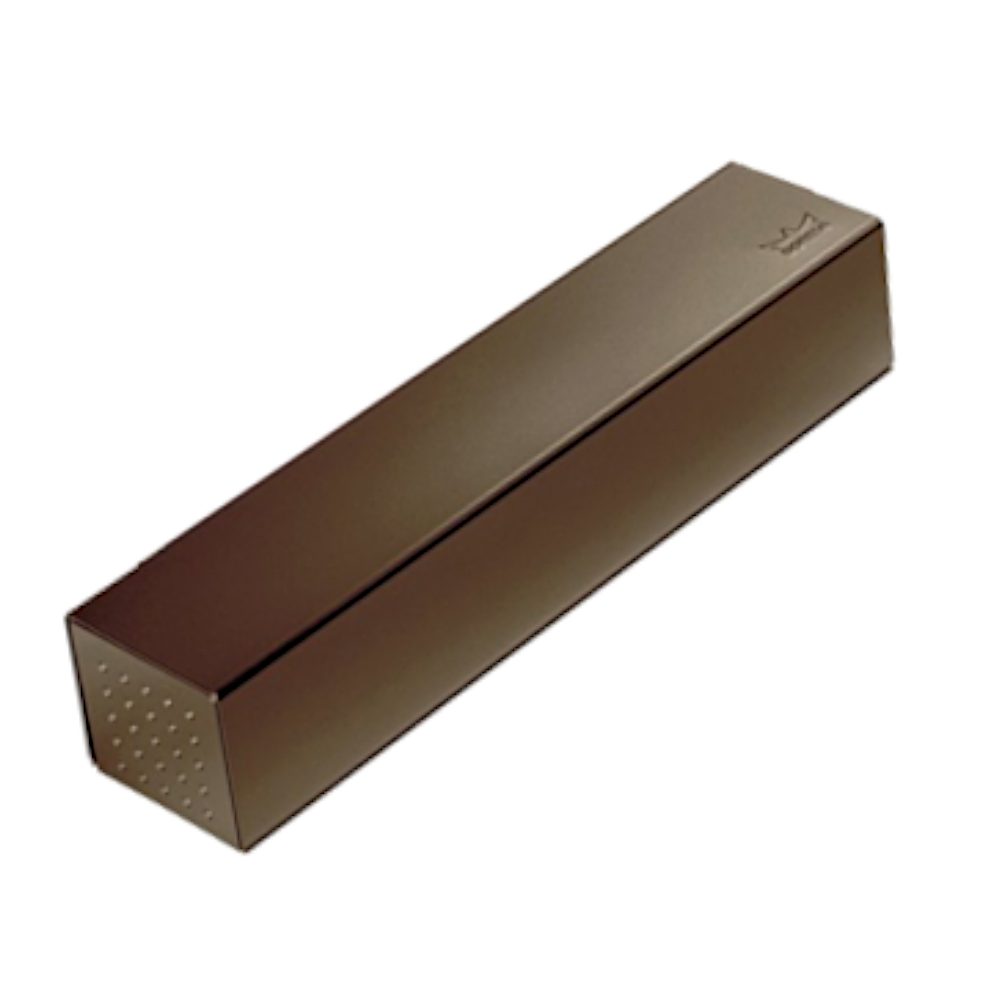

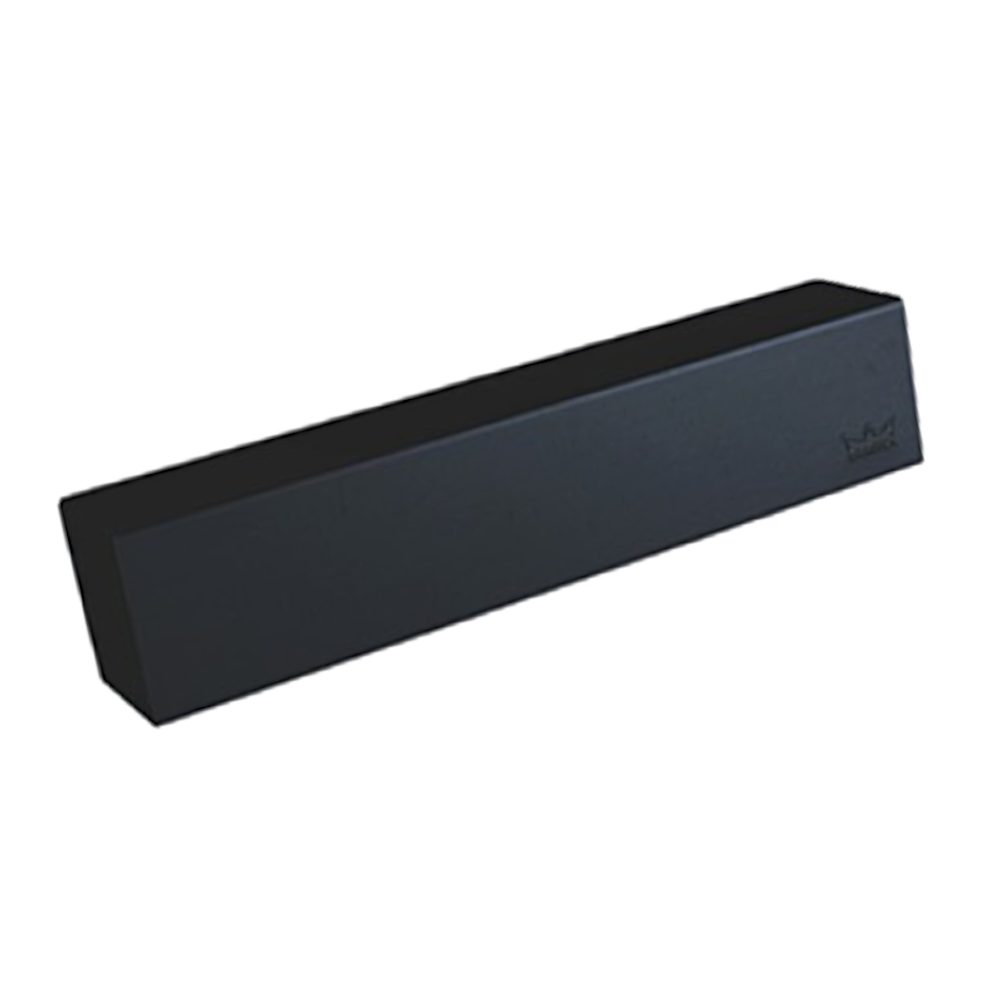

DORMAKABA TS93 Size 2-5 Contur Cam Action Door Closer With Backcheck & Delay Closing Body Only

The Dormakaba TS93 Size 2-5 Contur Cam Action Door Closer (Body Only) is a high-quality, high-performance overhead door closer designed for commercial and public buildings. Featuring Dormakaba's unique heart-shaped cam and roller design, it significantly reduces the opening resistance, ensuring exceptionally smooth and easy door operation. This makes it an ideal solution for satisfying the accessibility requirements of BS8300 and Approved Document M.

This unit is supplied as a body-only package with a stylish Contur cover and matching end caps. It requires a separate slide channel and arm to complete the setup. It features adjustable power size EN 2-5, making it suitable for internal doors up to 1250mm wide. It also includes adjustable backcheck to prevent damage from forcefully opened doors, and a delayed closing action to allow safe passage for slow-moving users.

This door closer is available in multiple finishes (including Black and Dark Brown) and handed configurations (Pull side or Push side) with varying weights. Please select your preferred options from the choices below.

Technical Specifications

• Brand: dormakaba
• Power Size: EN 2 to 5 (adjustable)
• Maximum Door Width: 1250mm
• Minimum Fire Door Width: 767mm (to meet BS8300 and Approved Document M)
• Standards: BS EN 1154, CE Marked, Certifire Approved (CF119)
• Handing: Pull (TS93B) or Push (TS93G) options (please select below)
• Finish: Black or Dark Brown options (please select below)
• Weight: 2.05kg to 3.52kg range (please select below)
• Manufacturer Reference: Multiple options available (please select below)
• Inclusions: Body only with Contur cover and end caps (slide channel and arm required separately)

Key Features

• Cam Action Technology: Heart-shaped cam ensures rapidly decreasing opening resistance for effortless door operation
• Adjustable Controls: Features adjustable backcheck to protect walls and doors, plus delayed closing action for safer passage
• Accessibility Friendly: Helps satisfy BS8300 and Approved Document M requirements on suitable fire doors
• Aesthetic Design: Award-winning Contur design with sleek cover and matching end caps
• Fire Rated: Certifire approved and CE marked for use on fire doors
