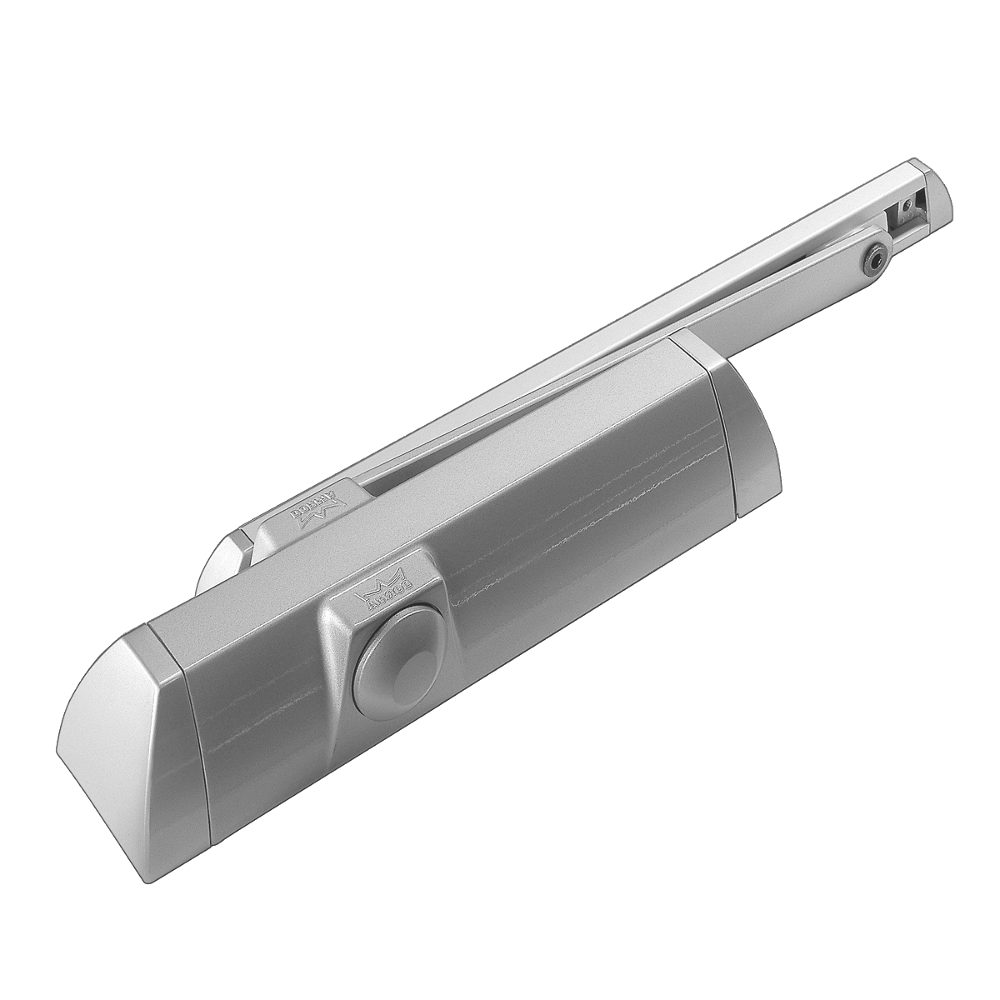

DORMAKABA TS90 Size 3 Cam Action Overhead Door Closer

The dormakaba TS90 Impulse is an entry-level, slide-channel overhead door closer featuring advanced cam-action technology. Designed with dormakaba’s unique heart-shaped cam and linear drive, it significantly reduces opening resistance. This "Easy Open" technology makes it an ideal choice for environments requiring barrier-free access, ensuring that children, the elderly, and users with limited mobility can open doors with minimal effort while still benefiting from a secure, reliable close.

This non-handed, highly versatile door closer is suitable for single-leaf internal doors up to 950mm wide and weighing up to 60kg. It features two independent regulating valves, allowing for precise adjustment of the closing speed to suit your environment. With a 2-hour fire rating and independent testing to BS EN 1154, the TS90 delivers exceptional performance, safety, and durability in a sleek, compact silver finish.

Technical Specifications

• Brand: dormakaba
• Power Size: EN 3
• Max Door Width: 950mm
• Max Door Weight: 60kg
• Application: Fig 1 & Fig 61
• Handing: Reversible (non-handed)
• Adjustable Latch Action: Yes
• Backcheck: No
• Hold Open: No
• Fire Tested: 2 Hours
• Finish: Silver

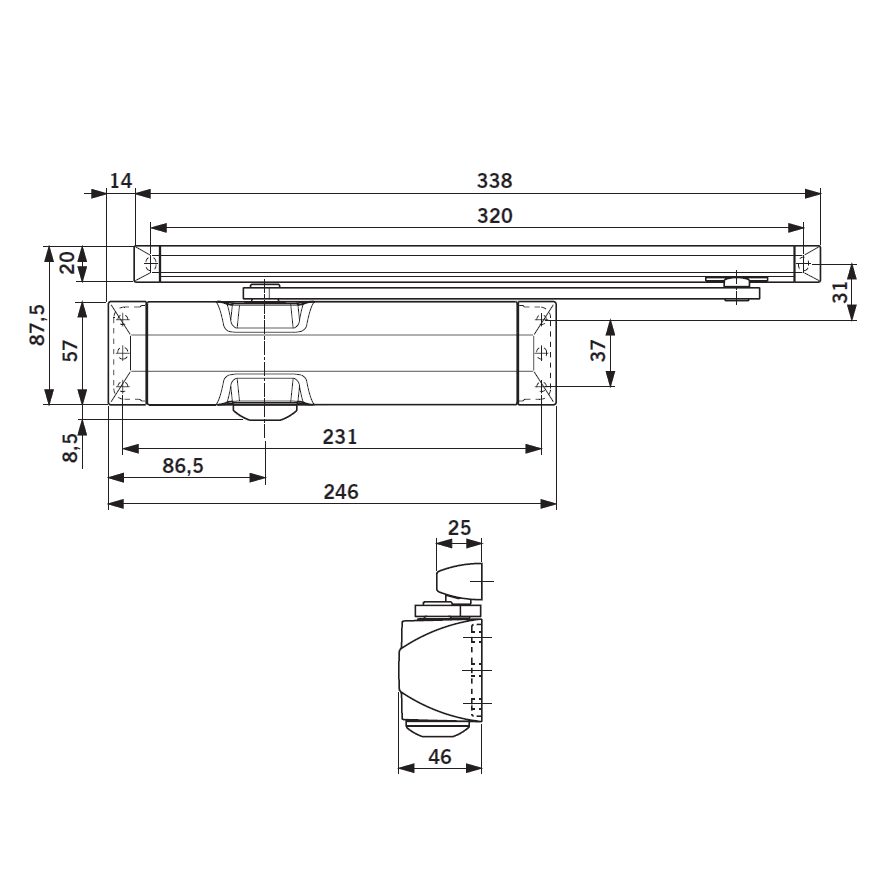

• Depth: 47mm
• Height: 47mm
• Width: 57mm
• Weight: 2.036kg
• Standards: Tested to BS EN 1154

Key Features

• Cam-Action Technology: Utilises a heart-shaped cam and linear drive to dramatically reduce opening resistance for easy, barrier-free access.
• Adjustable Closing Speed: Features two independent regulating valves for precise control over the closing cycle.
• Sleek Slide Channel: Low-profile slide arm design offers a neat, modern aesthetic compared to traditional scissor-arm closers.
• Easy Installation: Simple to install and fit to standard single-leaf doors.
• Robust Fire Protection: Fire-tested for up to 2 hours to ensure reliable performance in emergency situations.
