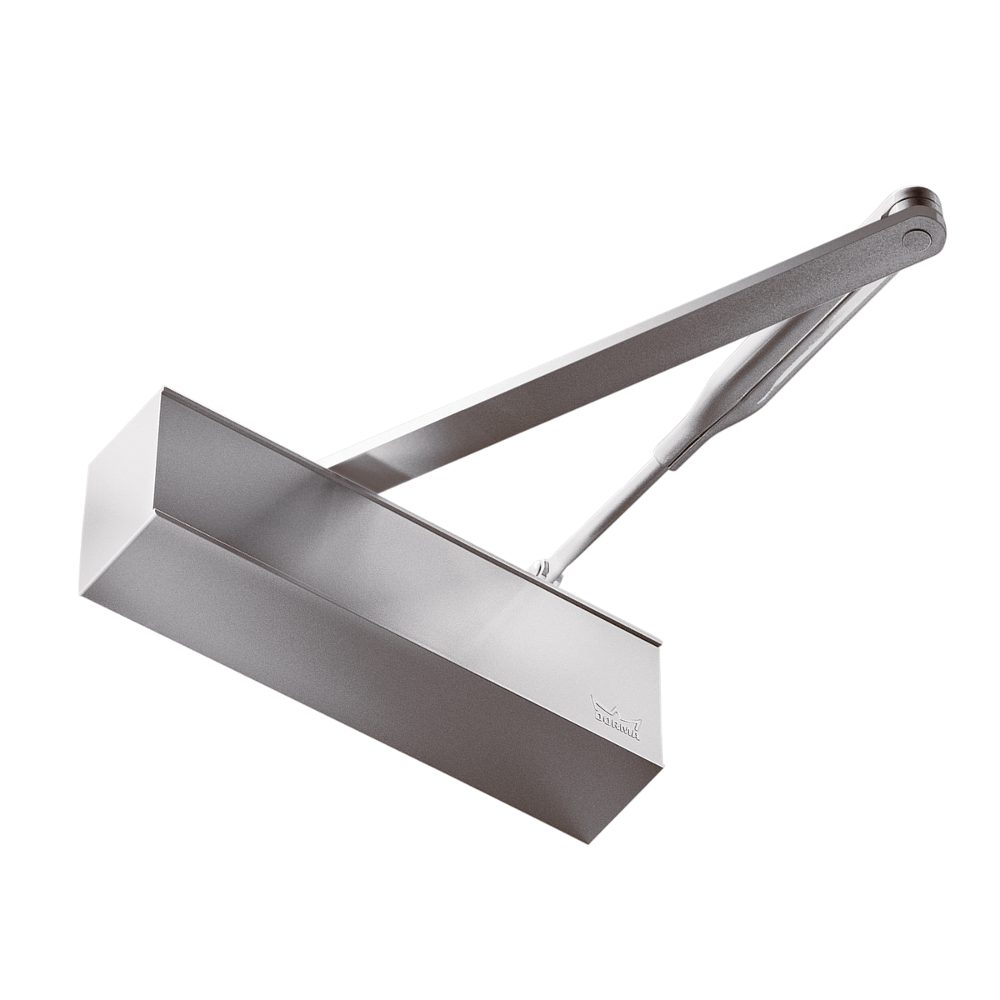

DORMAKABA TS71EN Size 3-4 Overhead Door Closer

The dormakaba TS71EN (formerly Dorma) Overhead Door Closer is a highly reliable and cost-effective solution designed for standard single- and double-leaf doors. With a template-adjustable power size of EN 3 to 4, this compact rack-and-pinion closer is suitable for doors with a maximum width of 1100mm and a maximum weight of 80kg.

Engineered for quick and easy installation, the TS71EN is fully reversible (non-handed) and supports Fig 1, Fig 61, and Fig 66 mounting applications. It features two independent regulating valves to adjust the closing speed, alongside an adjustable latch action to ensure secure closing. This model is exceptionally durable and has been fire-tested for up to 2 hours on timber doors and 4 hours on metal doors, making it an ideal choice for fire-rated door applications.

Technical Specifications

• Brand: dormakaba
• Manufacturer Reference: TS71EN
• Strength Size: EN 3 to 4
• Maximum Door Width: 1100mm
• Maximum Door Weight: 80kg
• Handing: Reversible (non-handed)
• Application: Fig 1, Fig 61, and Fig 66
• Fire Tested: 2 hours timber & 4 hours metal
• Adjustable Latch Action: Yes
• Backcheck: No
• Finish: Silver Enamelled

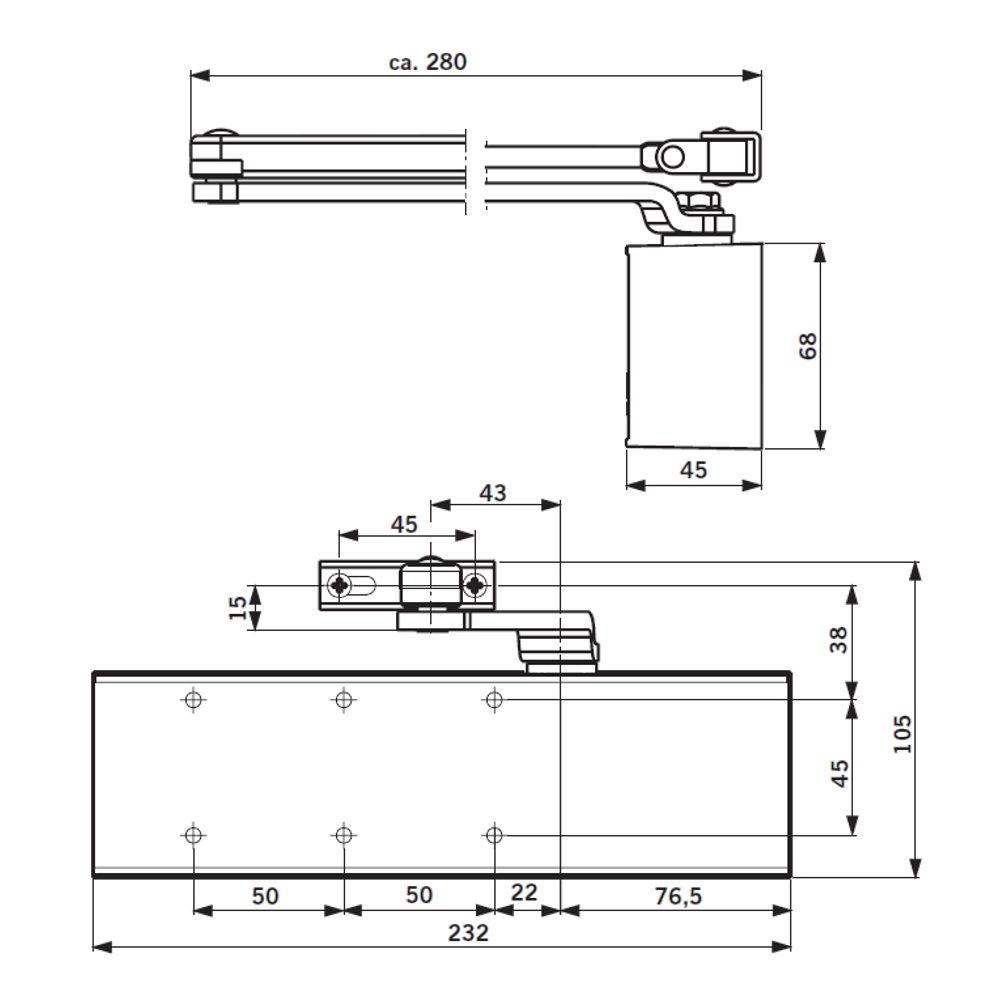

• Height: 45mm
• Width: 68mm
• Depth: 45mm
• Weight: 1.921kg

Key Features

• Cost-Effective & Reliable: An inexpensive yet high-quality solution for standard single- and double-leaf doors.
• Adjustable Power: Easily adapt the spring strength (size 3-4) to suit different door sizes.
• Versatile Mounting: Suitable for Fig 1 (pull side), Fig 61 (transom), and Fig 66 (push side) applications.
• Fire Safety Certified: Fully fire-tested for up to 120 minutes on timber doors and 240 minutes on metal doors.
• Smooth Operation: Features dual regulating valves for consistent closing speed control, virtually unaffected by temperature fluctuations.
• Easy Installation: Compact construction and non-handed design allow for quick and hassle-free fitting.
