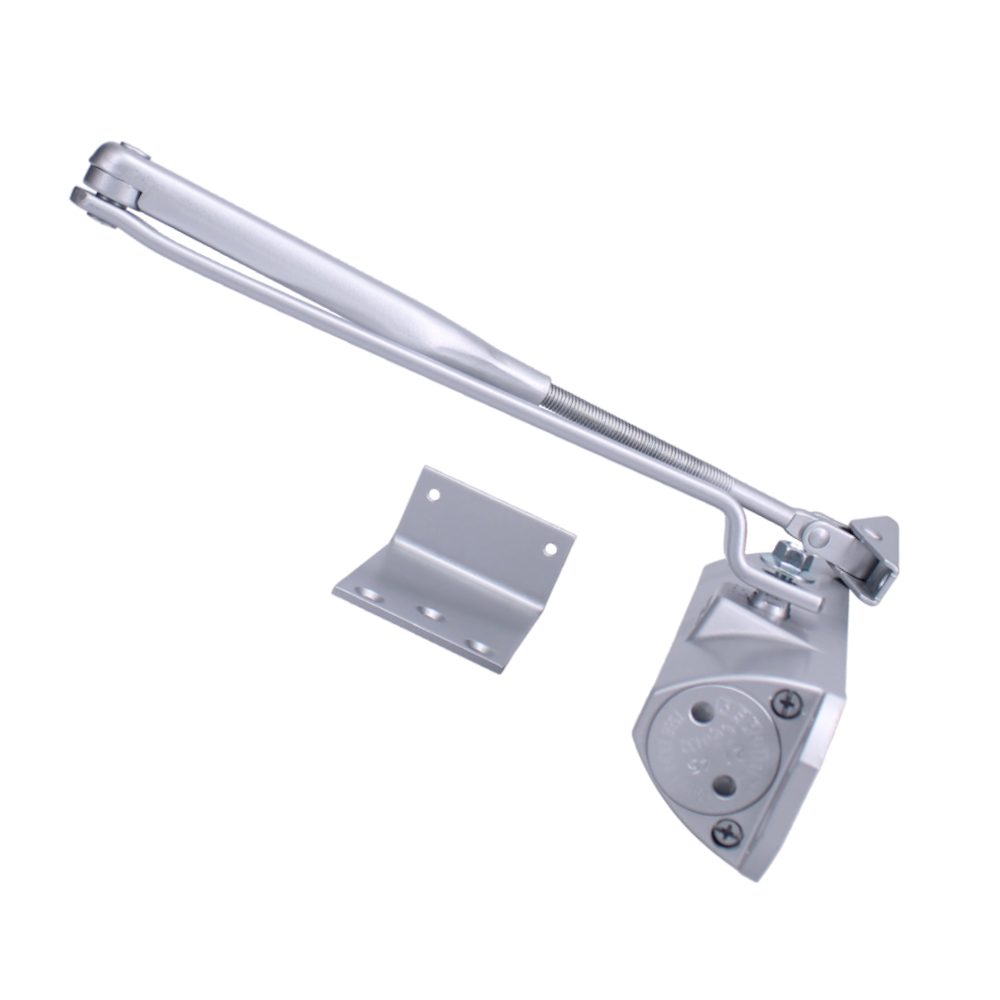

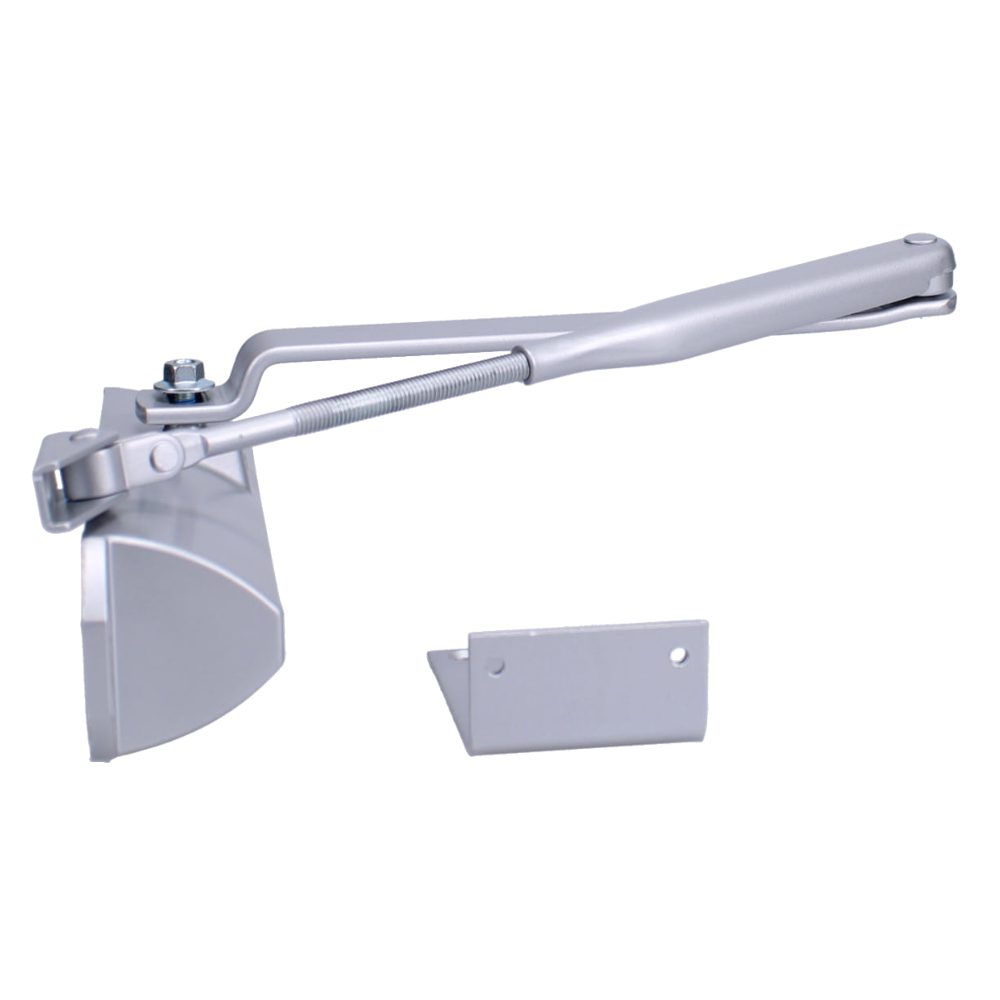

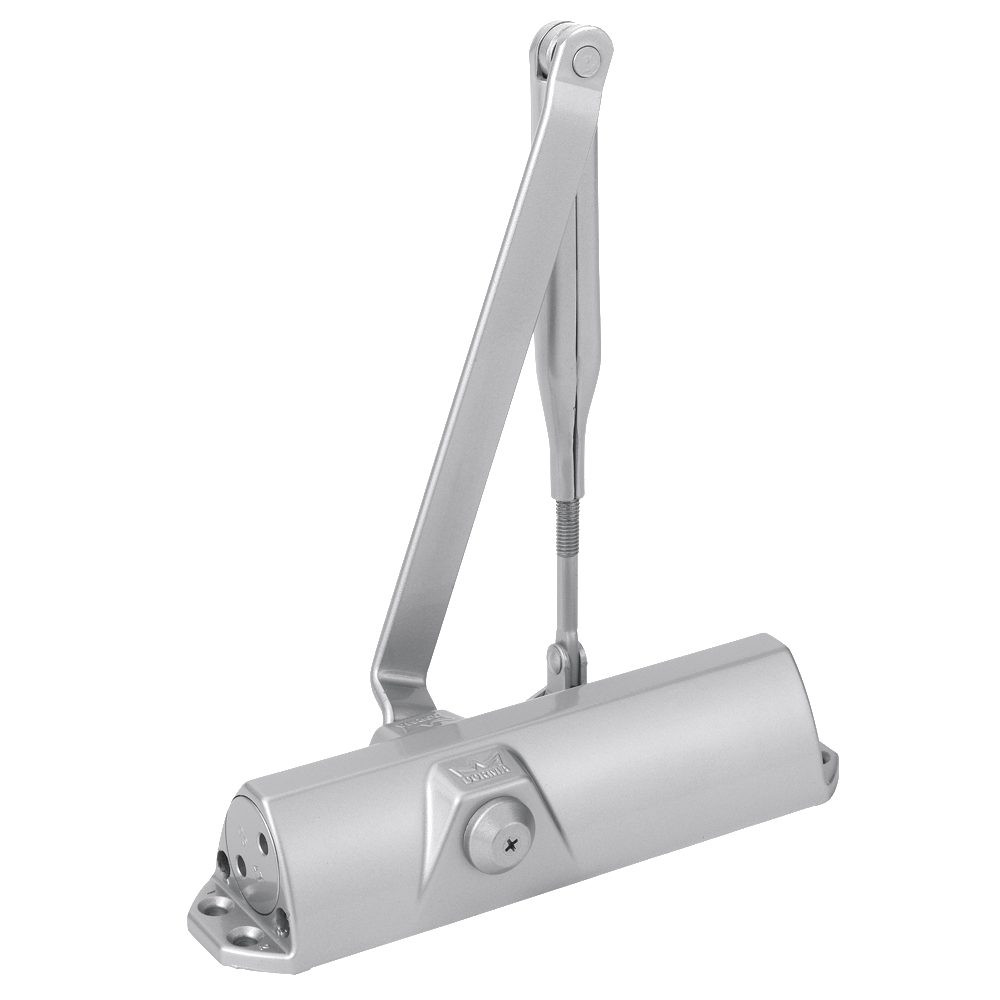

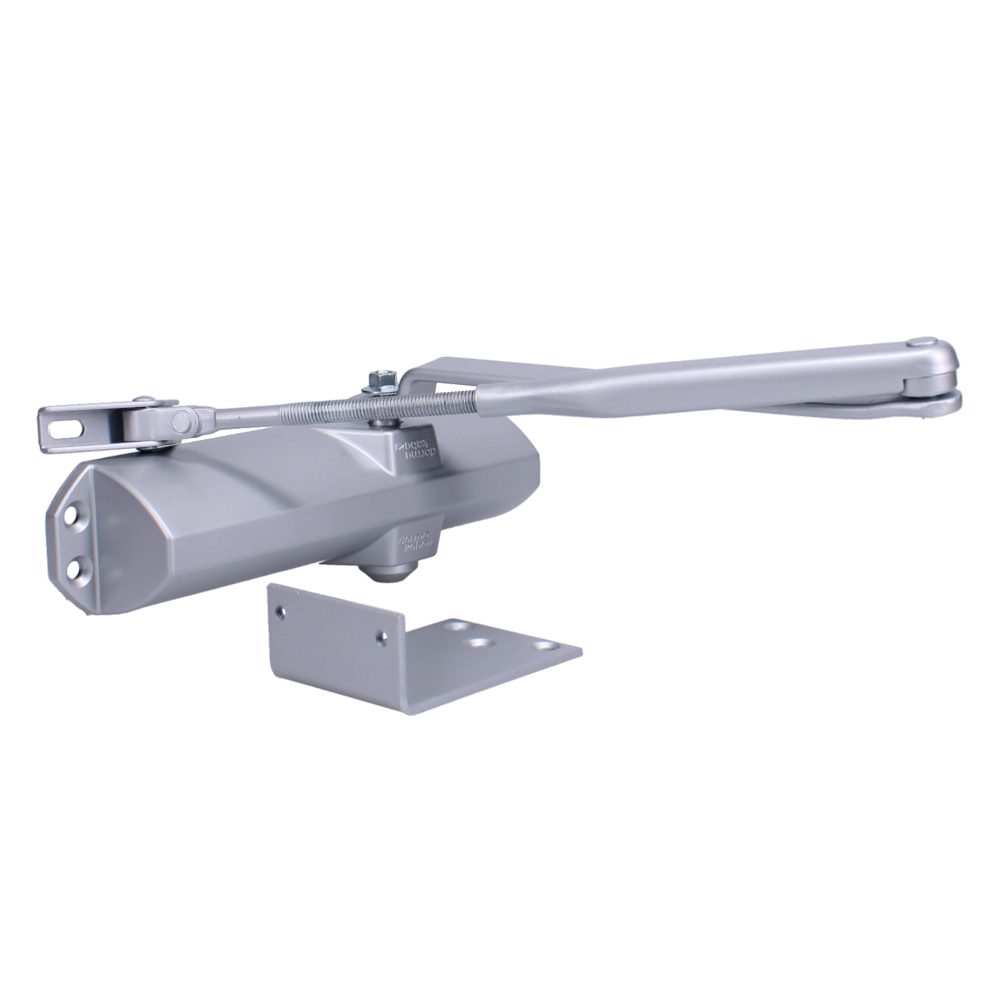

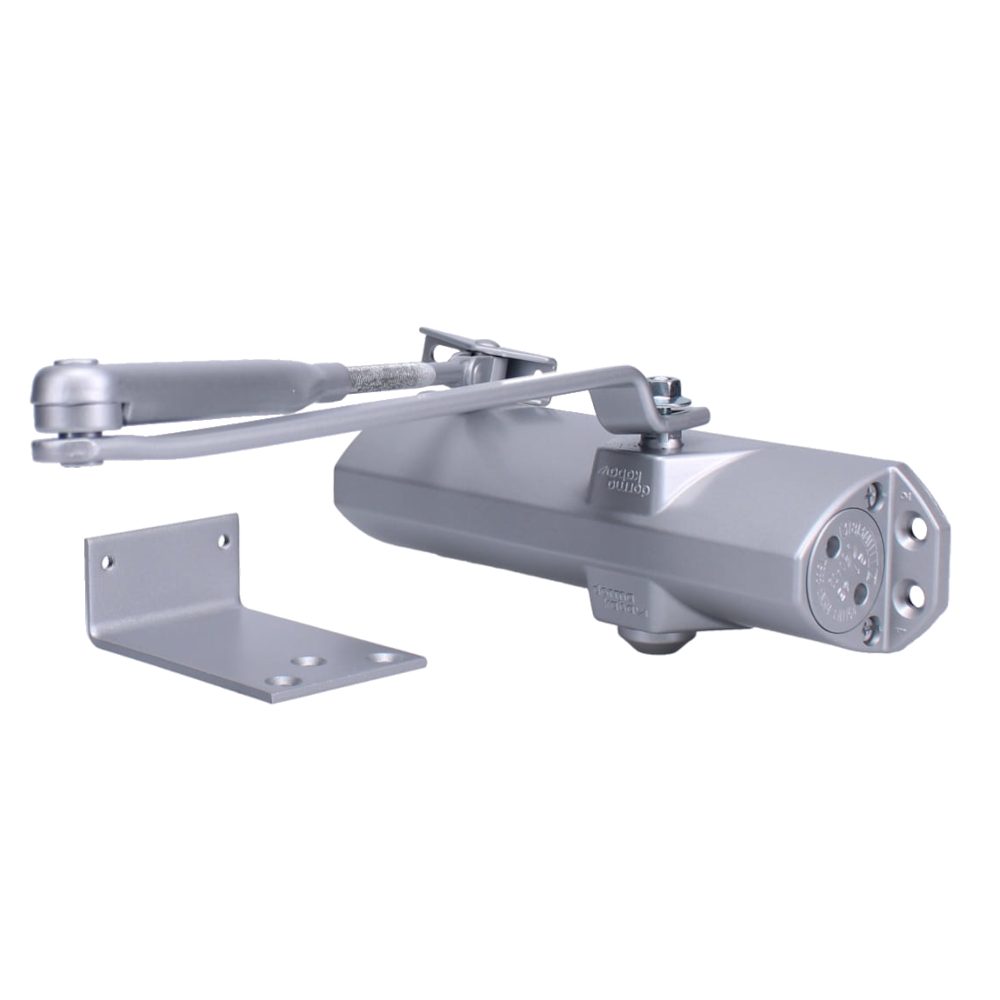

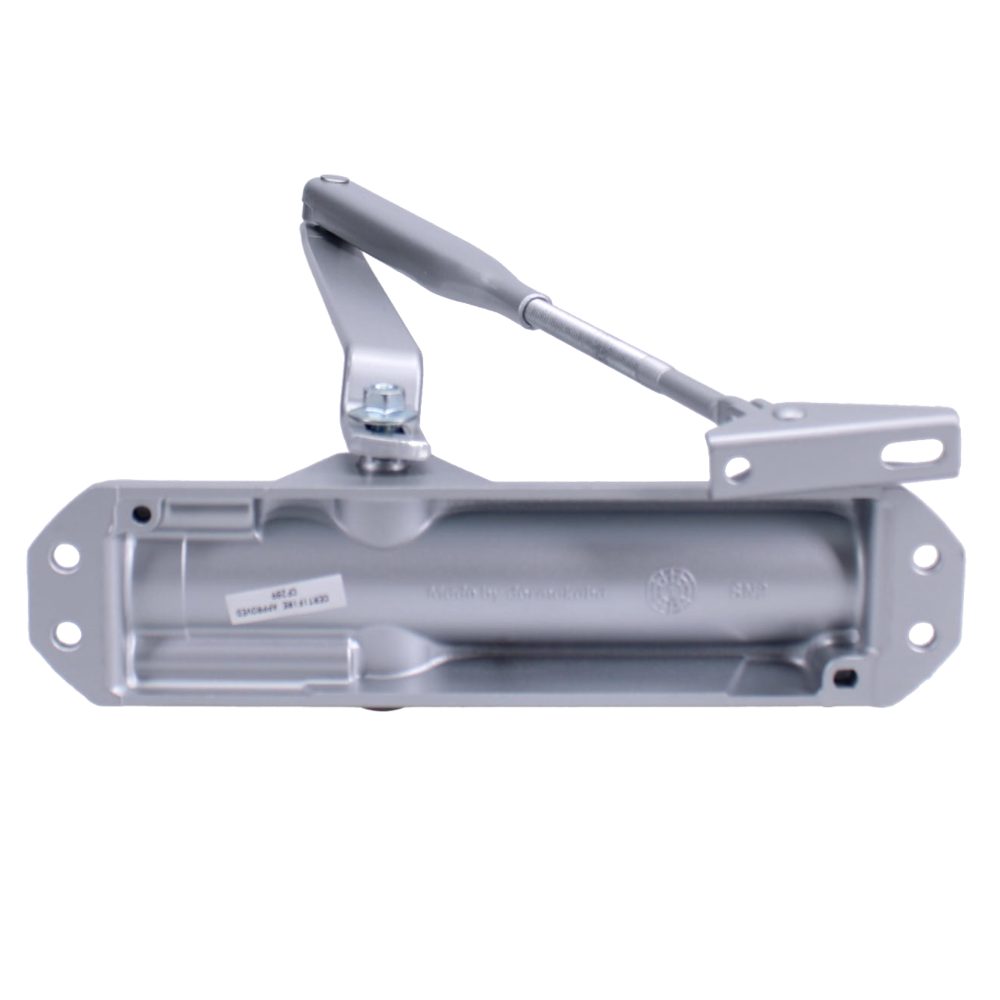

DORMAKABA TS68 Size 2-4 Overhead Door Closer

The dormakaba TS68 is a highly reliable, cost-effective overhead door closer designed for standard internal doors in residential, commercial, and light public environments. This versatile rack-and-pinion closer is an ideal entry-level solution, offering proven performance without the need for a mounting backplate, making installation exceptionally quick and straightforward.

The dormakaba TS68 is a highly reliable, cost-effective overhead door closer designed for standard internal doors in residential, commercial, and light public environments. This versatile rack-and-pinion closer is an ideal entry-level solution, offering proven performance without the need for a mounting backplate, making installation exceptionally quick and straightforward.

With a template-adjustable power size covering EN 2, 3, and 4, the TS68 can be easily tailored to suit different door widths up to 1100mm. The closing force is selected during installation by adjusting the position of the closer body and the arm's power shoe. It features two independent valves for precise control over the closing speed and latching action, ensuring a smooth and secure close every time.

For safety and compliance, the TS68 is tested to BS EN 1154 and is Certifire approved for use on timber fire doors for up to 120 minutes (FD120) when installed in the standard pull-side configuration. It is non-handed, making it suitable for both left and right-handed doors.

Technical Specifications

• Brand: dormakaba
• Model: TS68
• Power Size: EN 2 - 4 (adjustable via templating and power shoe)
• Maximum Door Width: 1100mm
• Finish: Silver Enamelled
• Mechanism: Rack and pinion
• Handing: Non-handed (suitable for left or right-handed doors)
• Fire Rating: Certifire approved for timber fire doors up to 120 minutes (FD120)
• Standards: Tested to BS EN 1154, CE & UKCA marked

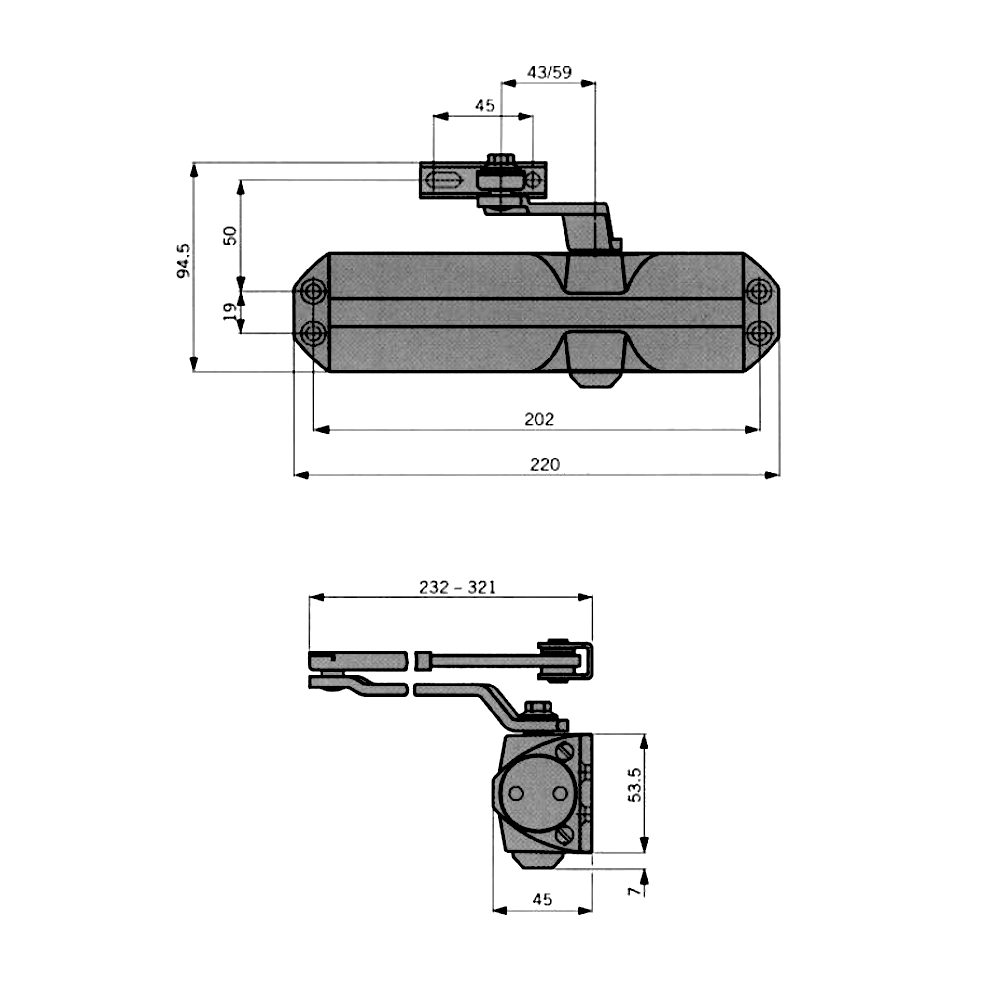

• Dimensions: 220mm (Length) x 45mm (Depth)
• Weight: 1.604kg
• Backcheck: No

Key Features

• Cost-Effective Solution: Offers reliable, professional-grade performance at an economical price point.
• Easy Installation: Quick to fit directly to the door and frame without the need for a mounting backplate.
• Adjustable Closing Force: Single unit covers EN sizes 2, 3, and 4 to suit various door widths.
• Dual-Valve Control: Two independent valves allow precise adjustment of the closing speed and latching action.
• Universal Fitting: Suitable for standard pull-side, transom, and parallel arm installation.
• Optional Hold-Open: Supports an optional hold-open arm function (note: hold-open is not suitable for fire-rated doors).
