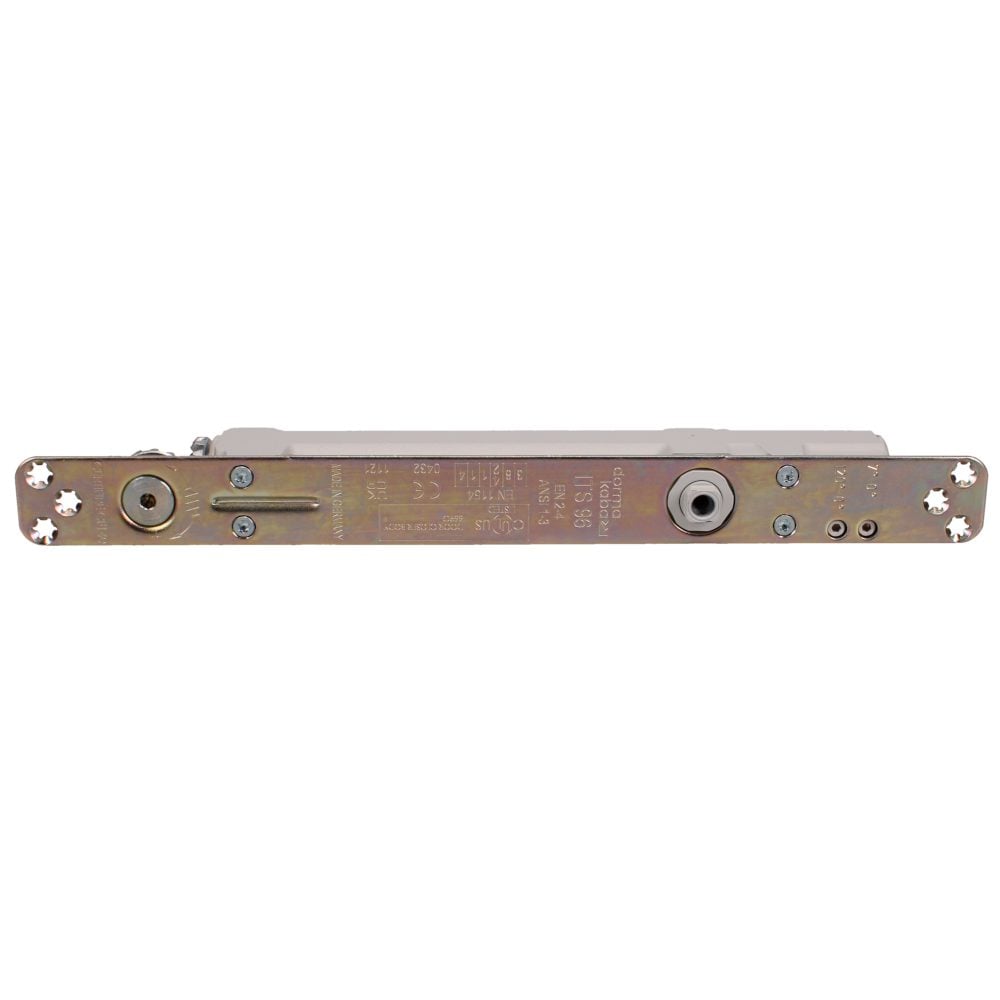

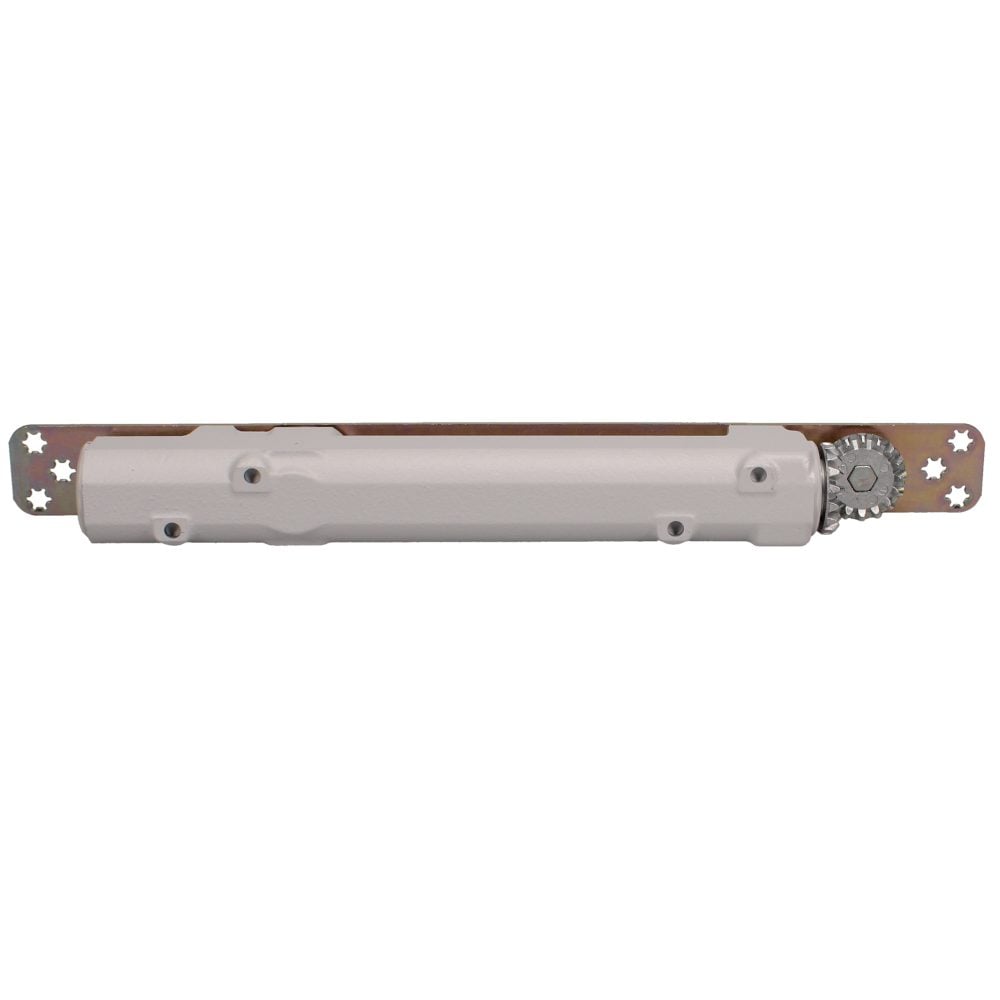

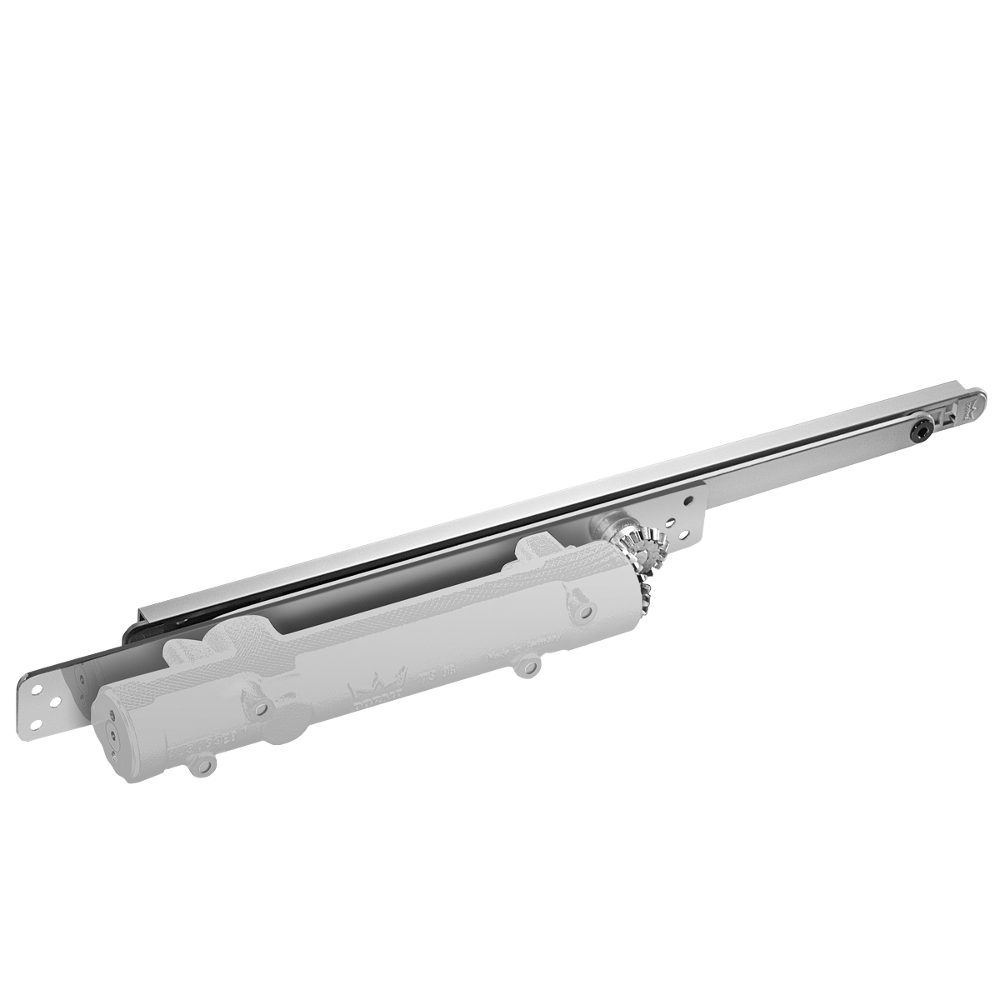

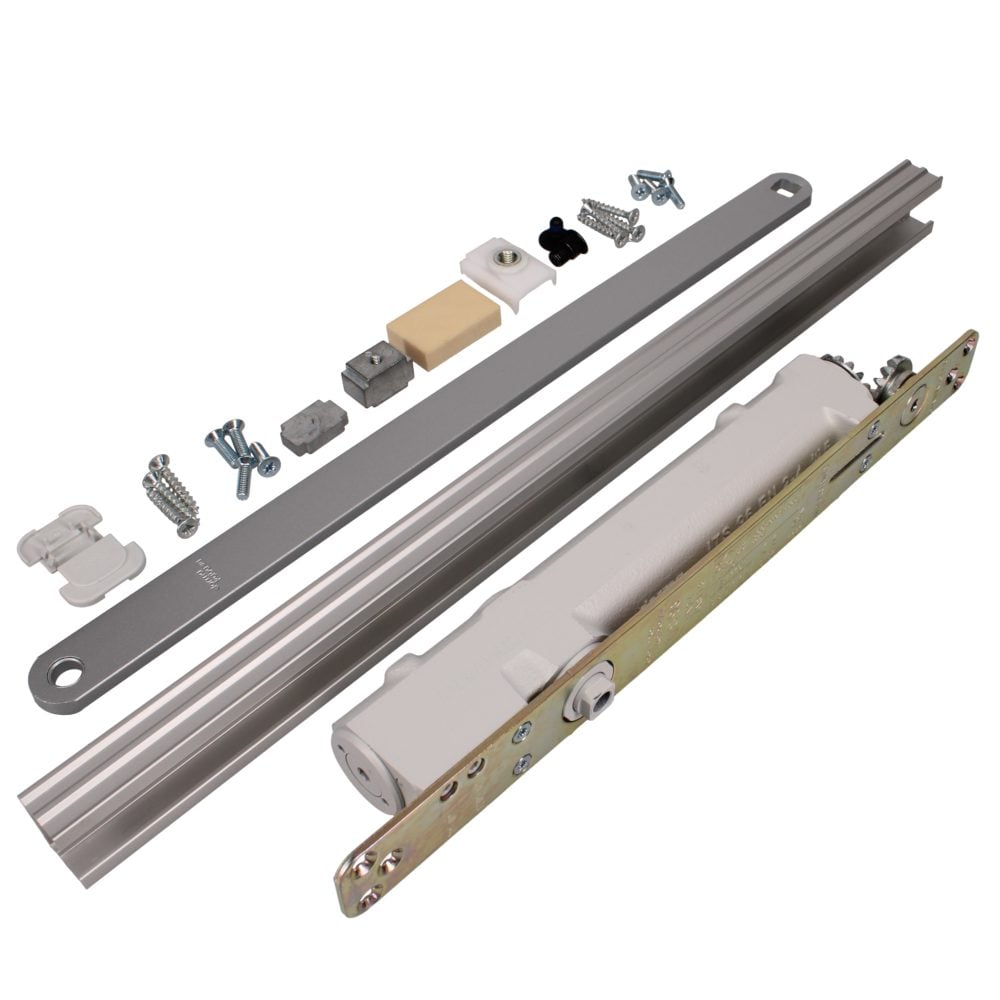

DORMAKABA ITS96 Concealed Door Closer

The dormakaba ITS96 Concealed Door Closer is a high-quality, overhead door-closing system designed to be integrated seamlessly into the door leaf and frame. By remaining completely out of sight when the door is closed, it provides a clean, minimalist aesthetic without compromising on performance or safety. This makes it an ideal choice for premium architectural projects, commercial properties, and modern residential spaces.

The dormakaba ITS96 Concealed Door Closer is a high-quality, overhead door-closing system designed to be integrated seamlessly into the door leaf and frame. By remaining completely out of sight when the door is closed, it provides a clean, minimalist aesthetic without compromising on performance or safety. This makes it an ideal choice for premium architectural projects, commercial properties, and modern residential spaces.

Engineered for versatility, the exceptionally slender ITS96 body can be installed in virtually all doors with a leaf thickness of 40mm or more. It is fully reversible (non-handed) and suitable for doors up to 1100mm wide and weighing up to 100kg. The closer features an adjustable spring strength (power size EN 2 to 4), adjustable latch action, and a cushioned dead stop to ensure smooth, controlled closing. It is also BS EN 1154 compliant and fire-tested for up to 1 hour on timber doors and 4 hours on metal doors.

Technical Specifications

• Brand: dormakaba
• Manufacturer Reference: ITS96
• Standards: BS EN 1154
• Fire Tested: 1 hour timber & 4 hours metal doors
• Power Size: EN 2 to 4 (adjustable spring strength)
• Maximum Door Width: 1100mm
• Maximum Door Weight: 100kg
• Minimum Door Leaf Thickness: 40mm
• Handing: Reversible
• Finish: Silver
• Dimensions: 45mm (H) x 32mm (W) x 45mm (D)
• Weight: 2.802kg

Key Features

• Concealed Installation: Fits out of sight inside the door leaf and frame, preserving clean door aesthetics.
• Adjustable Spring Strength: Power size can be adjusted between EN 2 and EN 4 to suit different door sizes and site conditions.
• Controlled Closing: Features adjustable latch action and a cushioned dead stop for smooth, reliable operation.
• Slender Profile: Compact dimensions allow for installation in doors with a thickness of 40mm or more.
• Fire Rated: Certified for use on fire doors, offering up to 1 hour protection on timber and 4 hours on metal doors.
