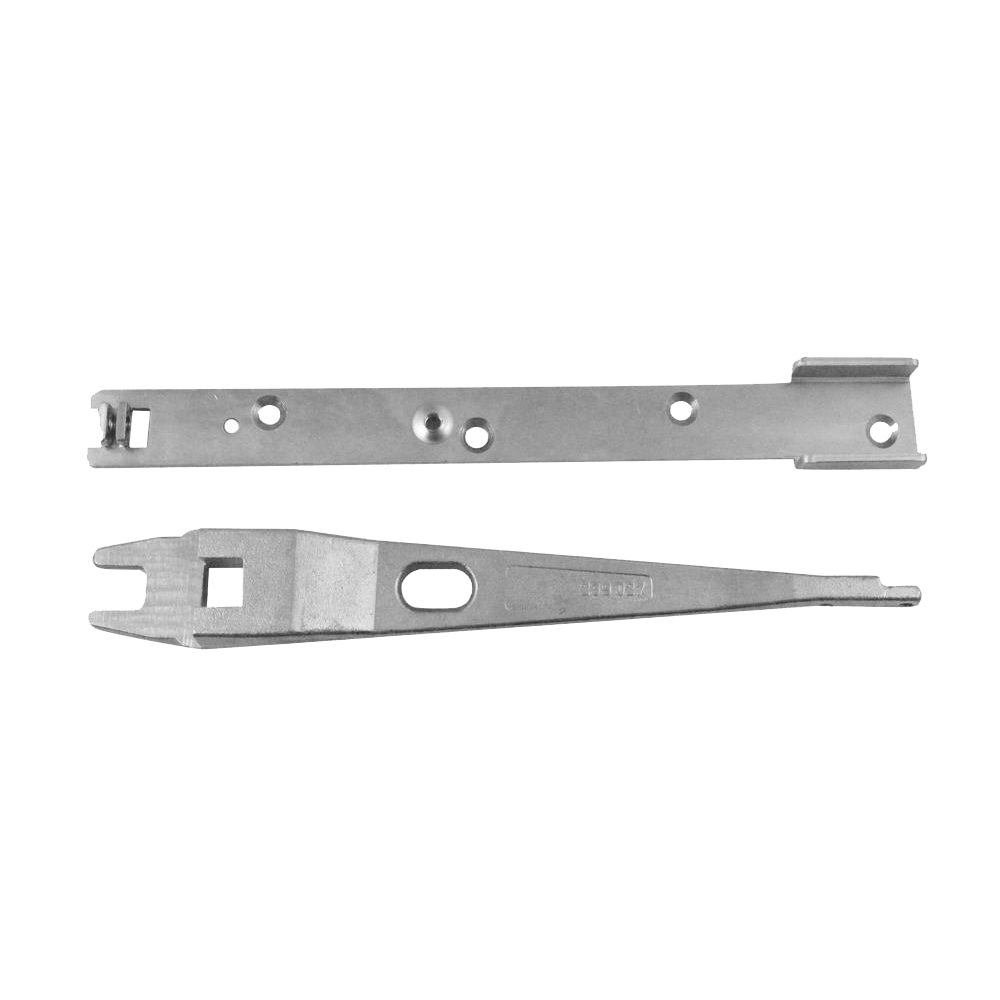

DORMAKABA 8534 End Load Arm & Channel

The dormakaba 8534 End Load Arm and Channel (formerly Dorma) is a premium accessory designed for use with overhead transom door closers, including the RTS85, RTS87, and RTS80 EMB series. This component is suitable for both single and double-action doors, making it a popular choice for commercial and shopfitting installations where maintaining clean aesthetics is key.

Engineered specifically for end-load installation, this system allows the door to be easily offered onto the floor pivot and spindle simultaneously while in the open position. The floor pivot locks automatically, and the spindle connection is secured with a robust clamping piece to ensure a stable, long-lasting setup. It is designed to fit top rails with a minimum channel depth of 21mm and a minimum width of 35mm.

Technical Specifications

• Brand: dormakaba
• Manufacturer Reference: 8534
• Compatibility: Suitable for dormakaba RTS85, RTS87, and RTS80 EMB transom door closers
• Minimum Channel Depth: 21mm
• Minimum Channel Width: 35mm
• Pivot Point: Suitable for 70mm pivot point configurations
• Pack Quantity: 1
• Weight: 605g

Key Features

• End-Load Installation: Simplifies fitting by allowing the door to be offered onto the pivot and spindle simultaneously in the open position.
• Automatic Locking: The floor pivot locks automatically for a secure and hassle-free setup.
• Secure Connection: Features a clamping piece to firmly secure the connection to the spindle.
• Versatile Application: Suitable for single and double-action timber or aluminium doors.
• Complete Set: Supplied with the closer arm, channel, and necessary fixing screws.
