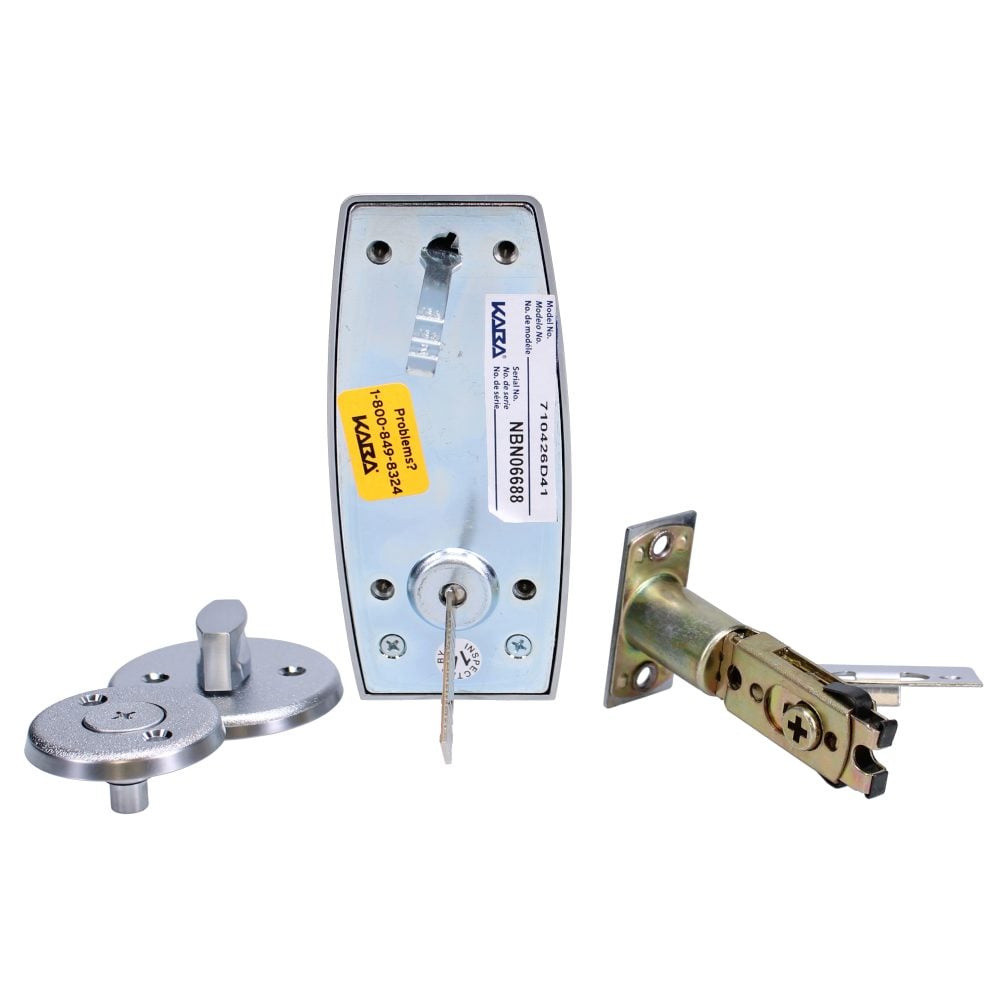

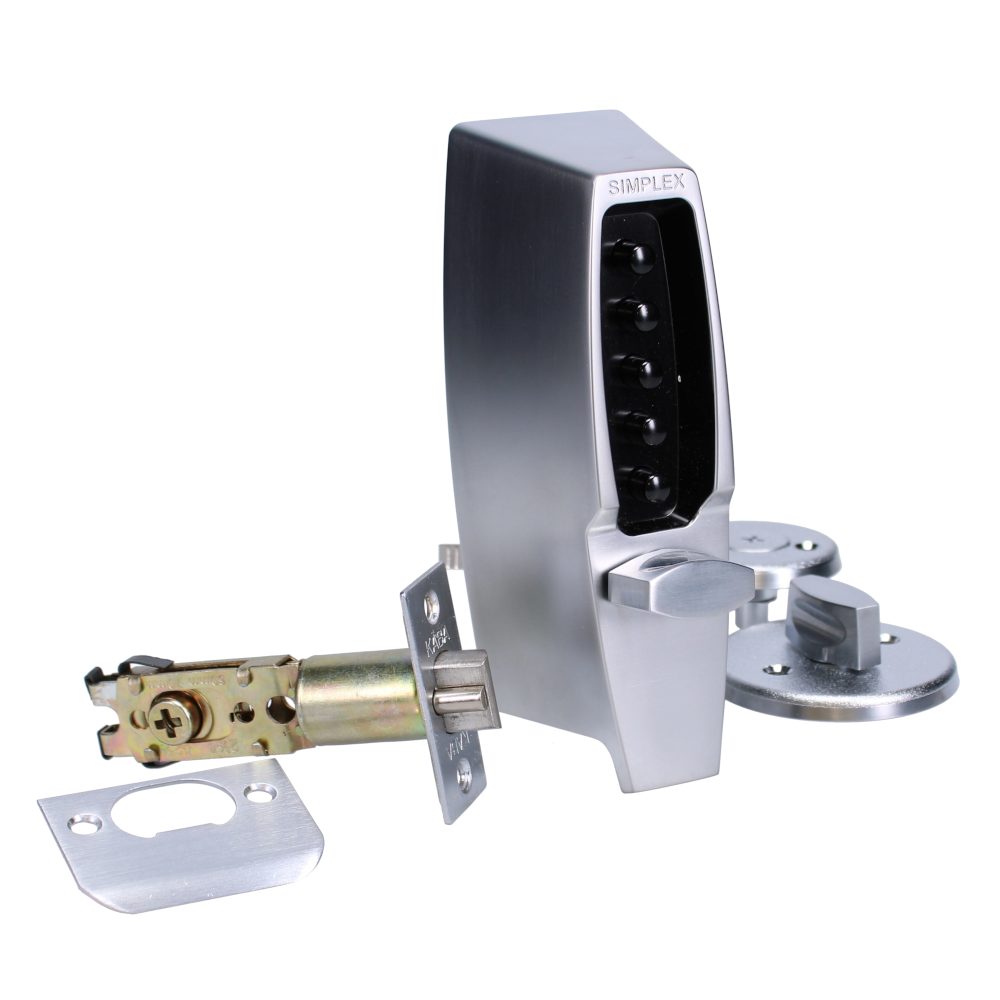

DORMAKABA 7100 Series 7104 Digital Lock Mortice Deadlatch

DORMAKABA 7100 Series 7104 Digital Lock Mortice Deadlatch

From
£324.86
Select size, finish, and quantity from the variant table.
View options

The dormakaba 7100 Series 7104 is a robust, slimline mechanical digital lock designed for light commercial and residential applications. Utilising the highly reliable Simplex code chamber, this lock provides secure, keyless access control without the need for batteries, wiring, or complex computer programming.

This model features a deadlocking latch that automatically relocks every time the door is closed, ensuring the property remains secure. It is fully non-handed and field-reversible, making it highly versatile for installation on both left and right-handed doors. It also features a protective clutch mechanism to prevent damage from forced entry attempts, and allows for quick code changes while the unit remains fitted to the door.

The 7104 digital lock is available in multiple finishes, including Polished Brass and Satin Chrome, with corresponding manufacturer references. Please select your preferred finish and option from the selection below.

Technical Specifications

  • Brand: dormakaba
  • Series: 7100 Series (Model 7104)
  • Backset: 70mm
  • Case Depth Required: 98mm
  • Door Thickness: Suitable for doors 35mm to 57mm thick
  • Code Length: 1 to 5 digits (single access code with over 1,000 combinations)
  • Operation Outside: Thumbturn on entry of correct code
  • Operation Inside: Thumbturn with free exit
  • Handing: Reversible (non-handed)
  • Holdback: No
  • Key Override: No
  • Weather Resistant: Yes
  • Weight: 1.5kg
  • Width: 56mm

Key Features

  • Fully Mechanical Operation: Eliminates the hassle and expense of battery replacements or wiring.
  • Automatic Relocking: Deadlatch automatically relocks every time the door is closed for continuous security.
  • Fast Code Changes: Easily change the 1 to 5-digit code while the lock remains fitted to the door.
  • Protective Clutch: Built-in clutch mechanism protects the lock from forced entry attempts.
  • Weather Resistant: Rugged, all-metal construction designed to withstand outdoor conditions.
  • Multiple Finishes Available: Choose from Polished Brass or Satin Chrome options below to match your hardware.
Downloads
Datasheets and product documents
Datasheet.pdf
PDF Generated datasheet
Download

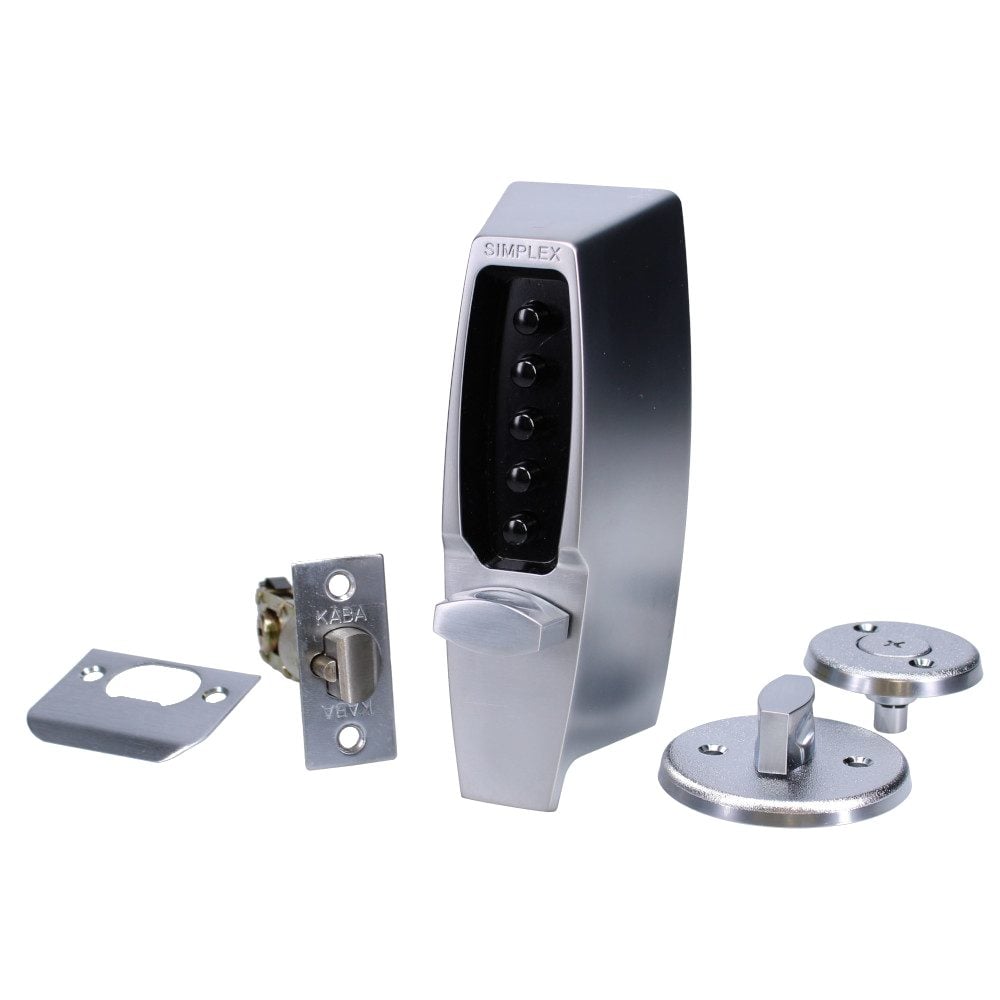

DORMAKABA 7100 Series 7104 Digital Lock Mortice Deadlatch - L3288 - Satin Chrome - 7104-26D-41
L3288 Ref: 7104-26D-41
£ 324.86

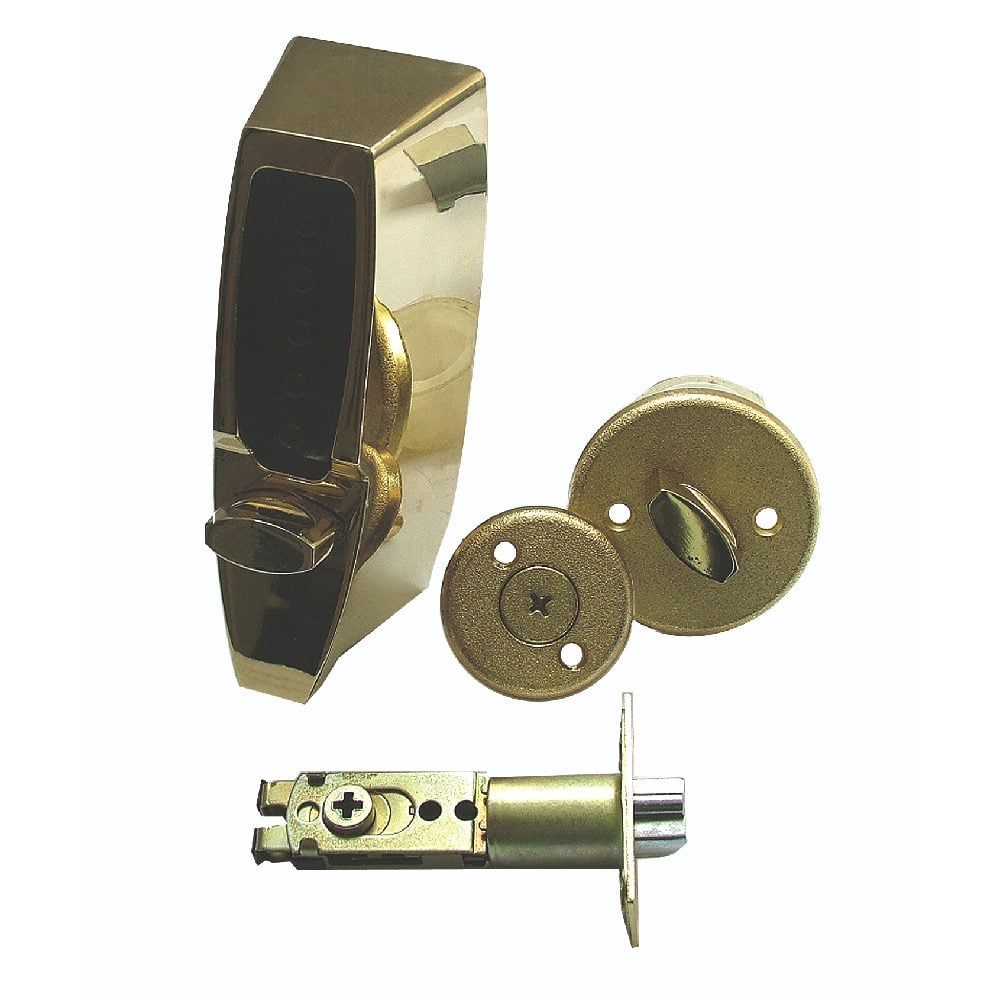

DORMAKABA 7100 Series 7104 Digital Lock Mortice Deadlatch - L3289 - Polished Brass - 7104-03
L3289 Ref: 7104-03
£ 439.12
Review variants and add to basket when ready.
