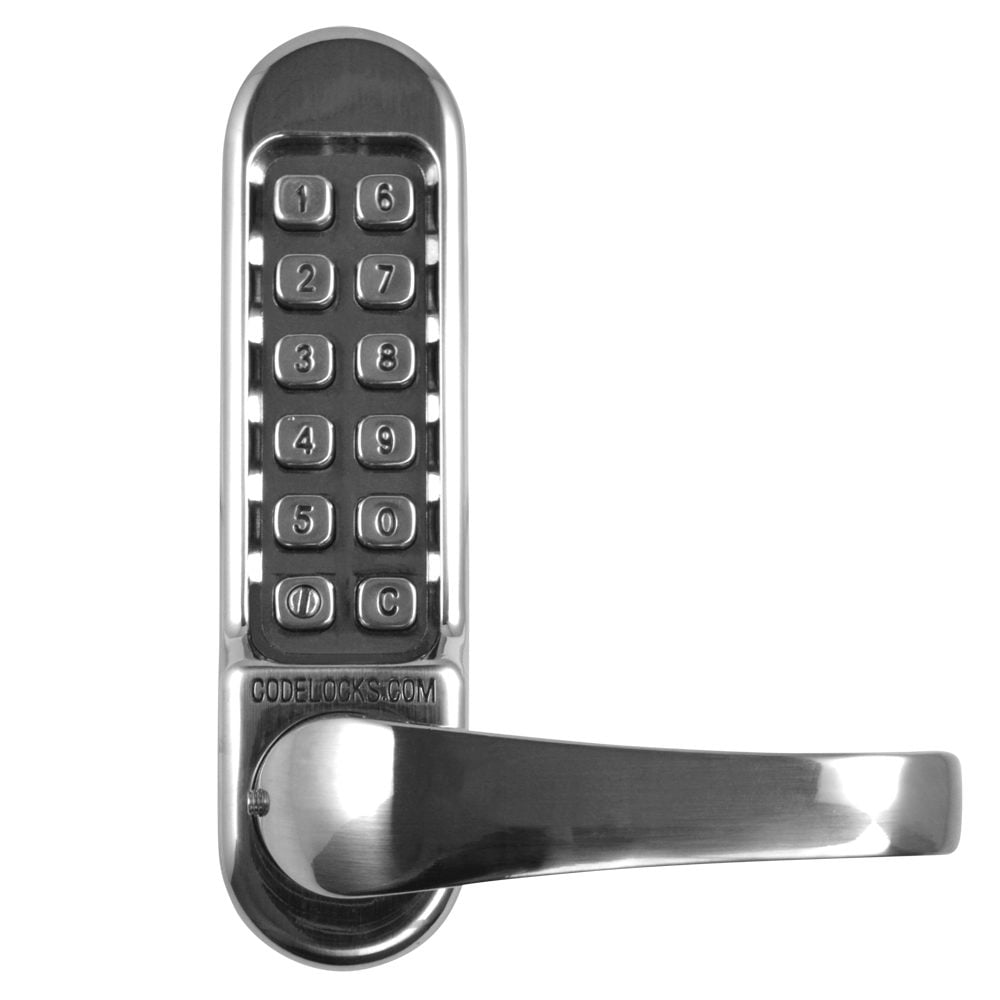

CODELOCKS CL520 Series Digital Lock With Mortice Lock

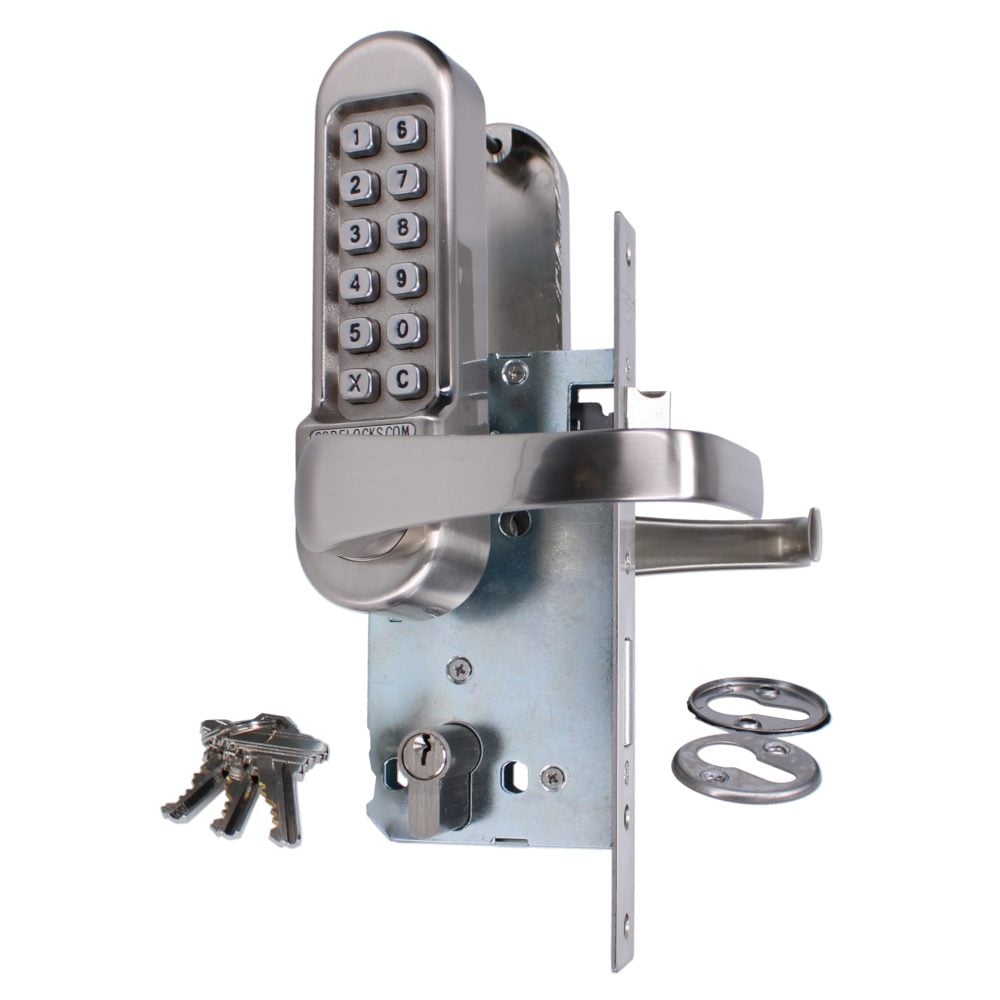

The Codelocks CL520 Series is a heavy-duty mechanical digital lock designed for both internal and external doors. It features a robust Euro profile mortice sash lock with a double cylinder, three keys, and a split follower safety mechanism. This anti-panic safety feature allows the inside lever handle to retract both the deadbolt and the latchbolt simultaneously, preventing accidental lock-ins and ensuring a safe means of escape.

The Codelocks CL520 Series is a heavy-duty mechanical digital lock designed for both internal and external doors. It features a robust Euro profile mortice sash lock with a double cylinder, three keys, and a split follower safety mechanism. This anti-panic safety feature allows the inside lever handle to retract both the deadbolt and the latchbolt simultaneously, preventing accidental lock-ins and ensuring a safe means of escape.

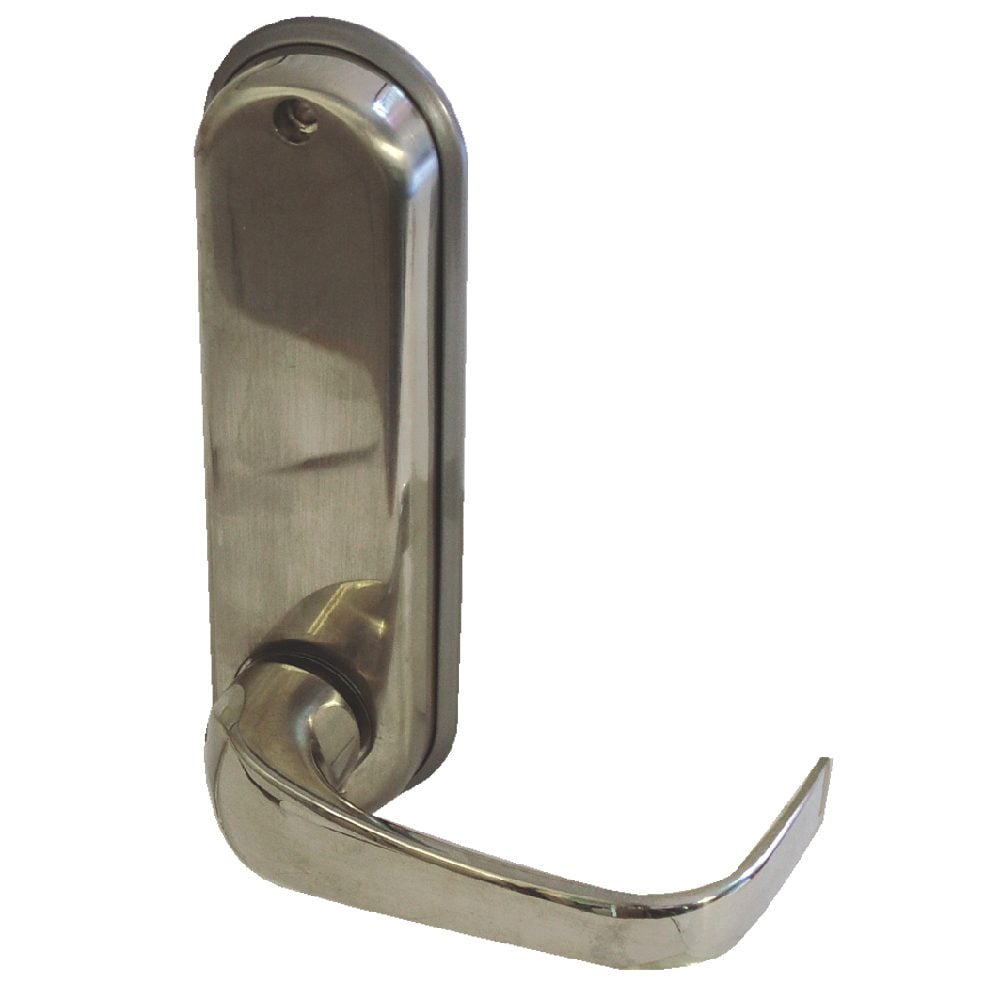

The outside lever handle retracts the latch once a correct code is entered, and the spring-loaded latchbolt locks automatically when the door is closed. For added security, the key can be used to control the deadbolt position (which denies access to code users when projected) or to retract the latchbolt for key-only entry.

This versatile series is available in multiple configurations, including options with or without a passage set (code-free entry option), and fire-tested versions (compliant with BS EN 1634-1 and CE marked, supplied with a fire pack). Please choose your preferred options from the selections below.

Important Compatibility Note: Before ordering a Codelocks front/back plate set for use on an existing lock case, please ensure your current lock case is fully compatible.

Technical Specifications

• Brand: Codelocks

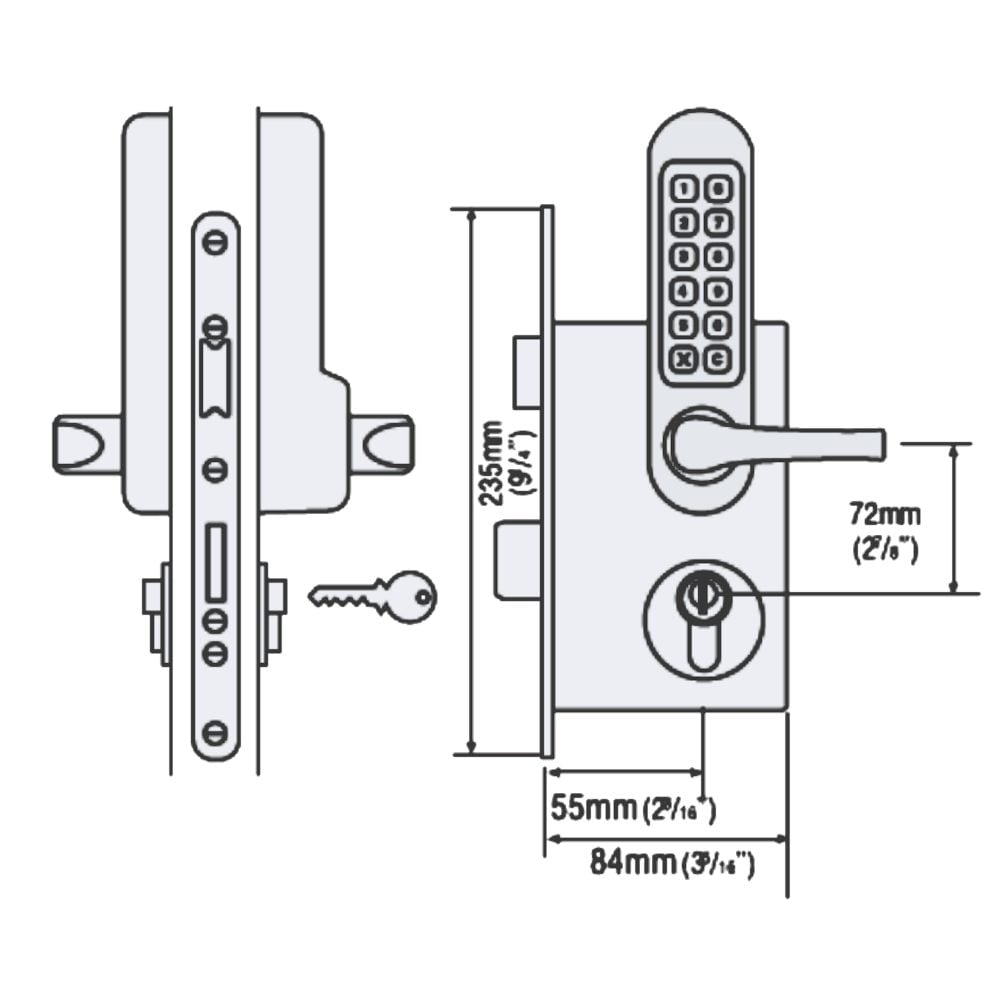

• Backset: 55mm
• Case Depth Required: 85mm
• Door Thickness: 35mm to 65mm
• Finish: Stainless Steel
• Code Length: 4 to 6 digits
• Combinations: 8,000+
• Key Override: Yes (supplied with 3 keys)
• Handing: Reversible

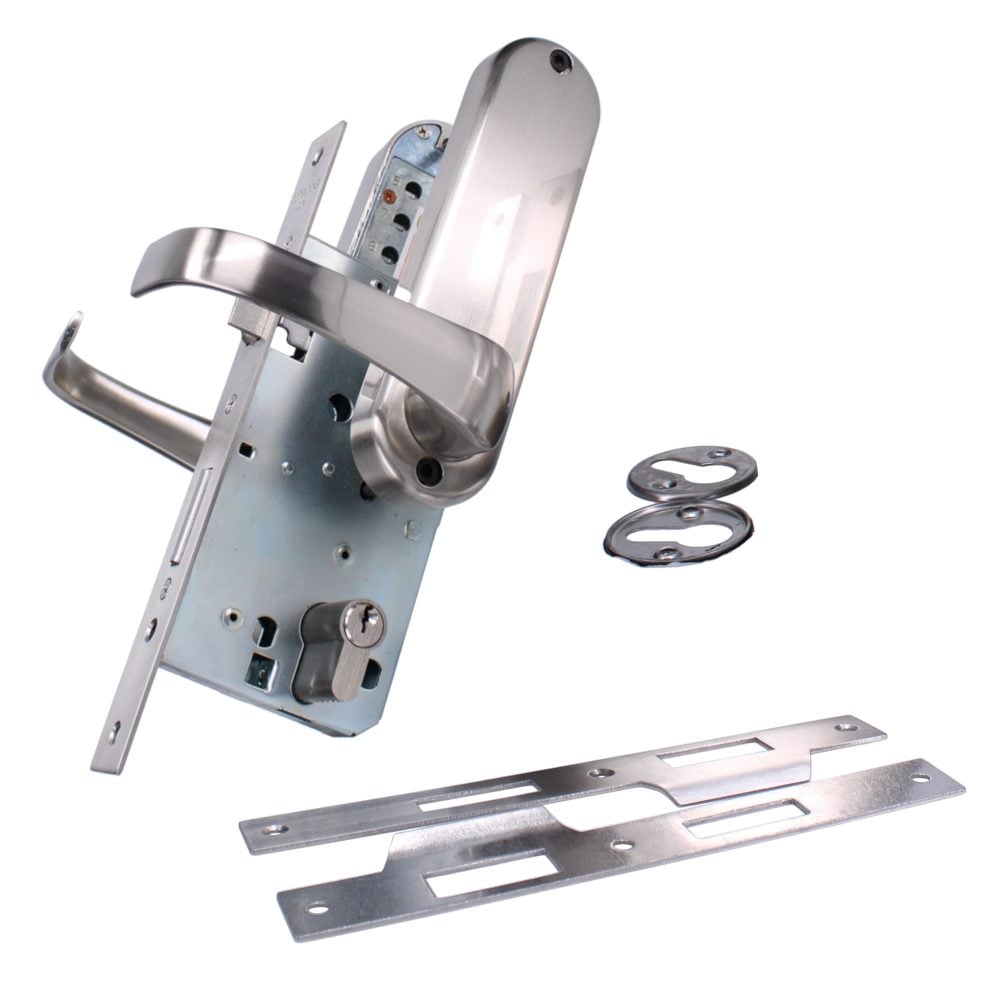

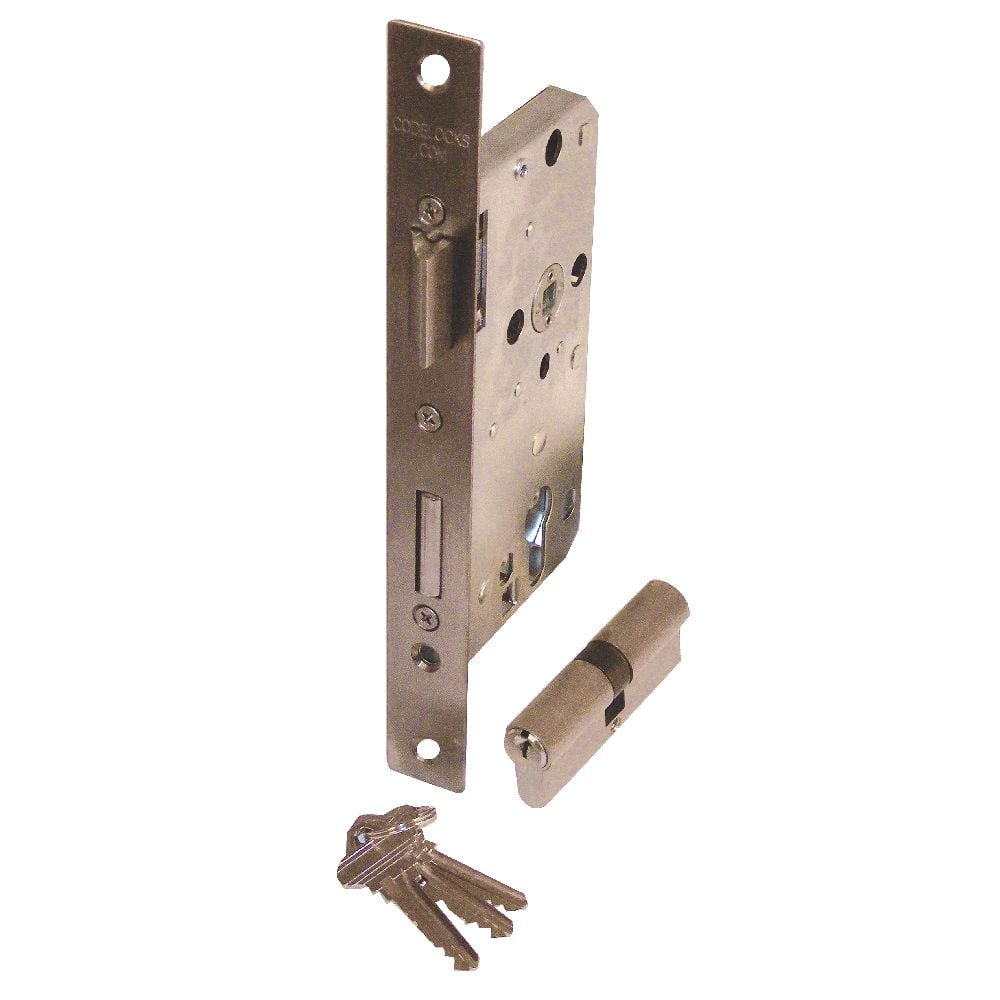

• Lock Type: Euro Profile Mortice Sash Lock
• Fire Tested: Available in fire-tested (BS EN 1634-1, CE Marked) and non-fire-tested options (please select below)
• Passage Set (Code Free): Available in options with or without passage function (please select below)
• Weight: 2.974kg to 3.14kg (depending on option selected)
• Width: 48mm
• Guarantee: Limited Lifetime

Key Features

• Heavy-duty mechanical digital lock suitable for internal and external doors

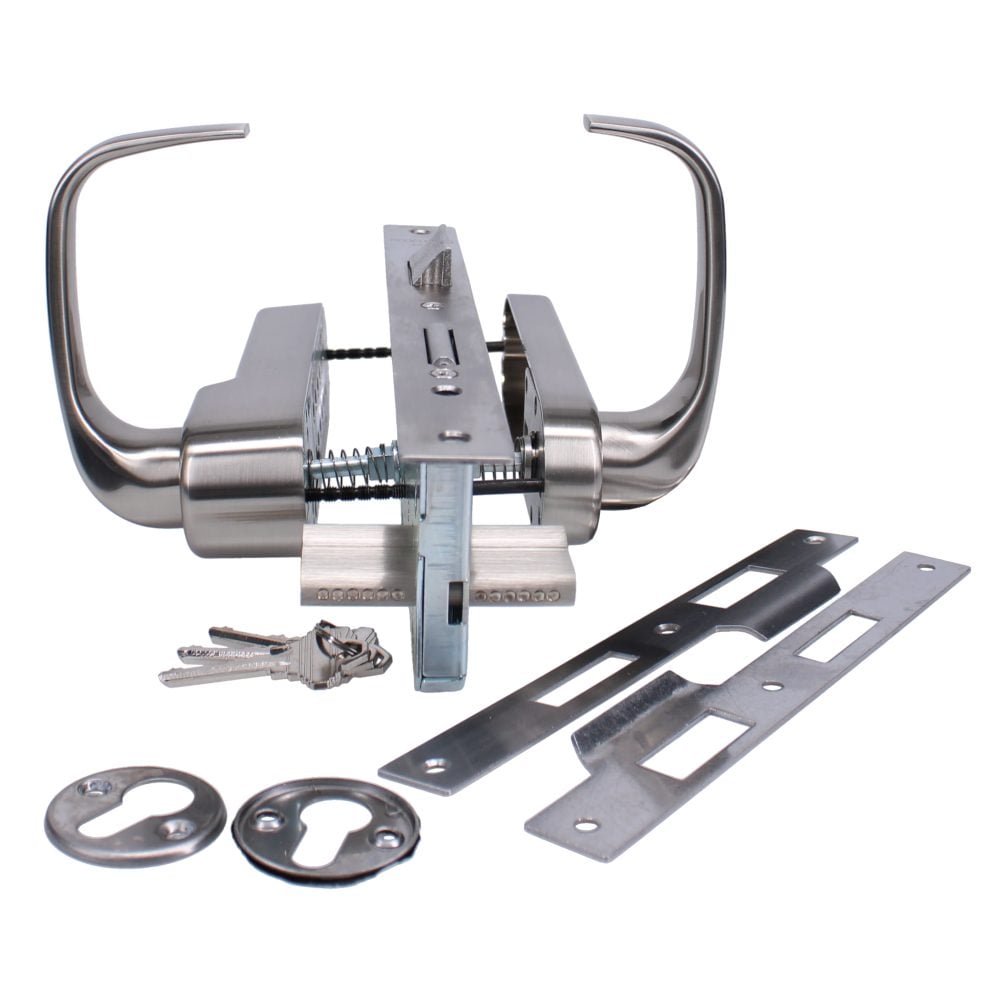

• Split follower safety feature allows the inside lever to retract both the deadbolt and latchbolt to prevent accidental lock-ins
• Key override retracts the latchbolt for entry without a code and controls the deadbolt position
• Weather-resistant PVD stainless steel finish
• Reversible handing to fit both left and right-hand hung doors
• Available with or without a passage set (code-free) option (please choose below)

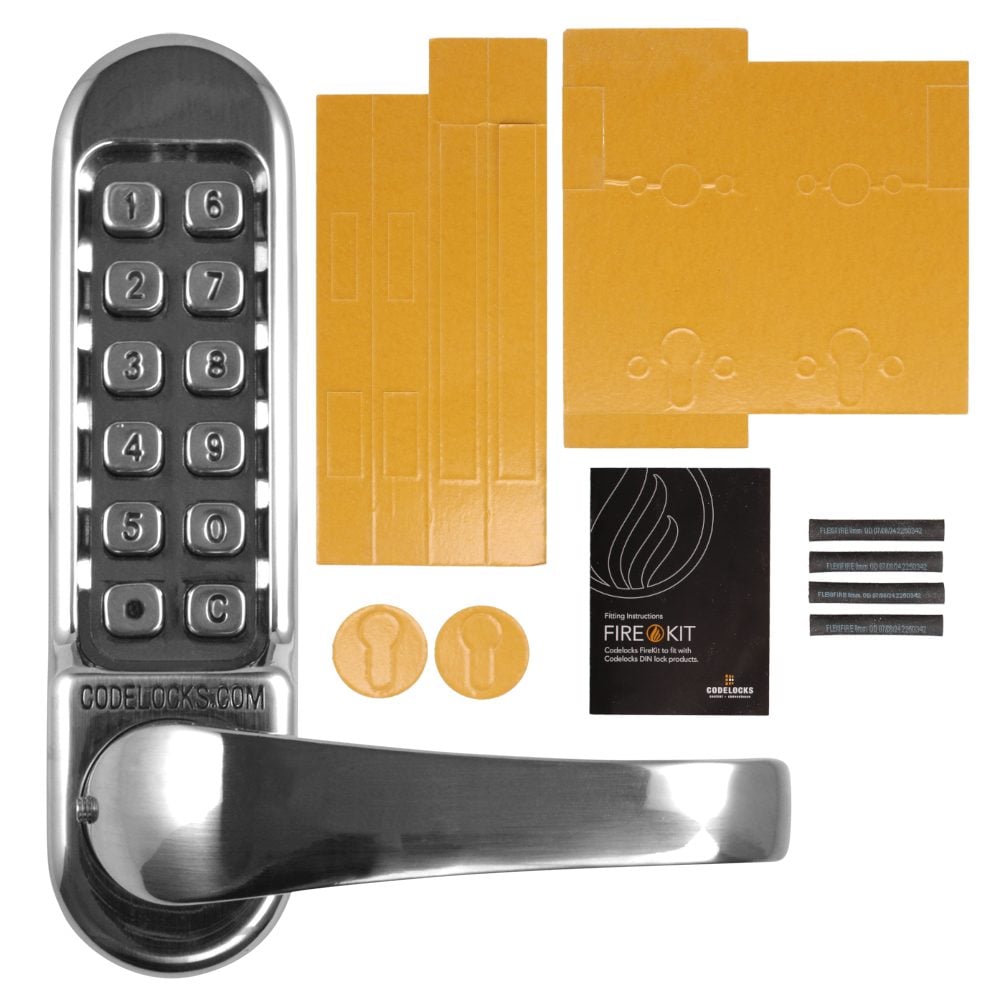

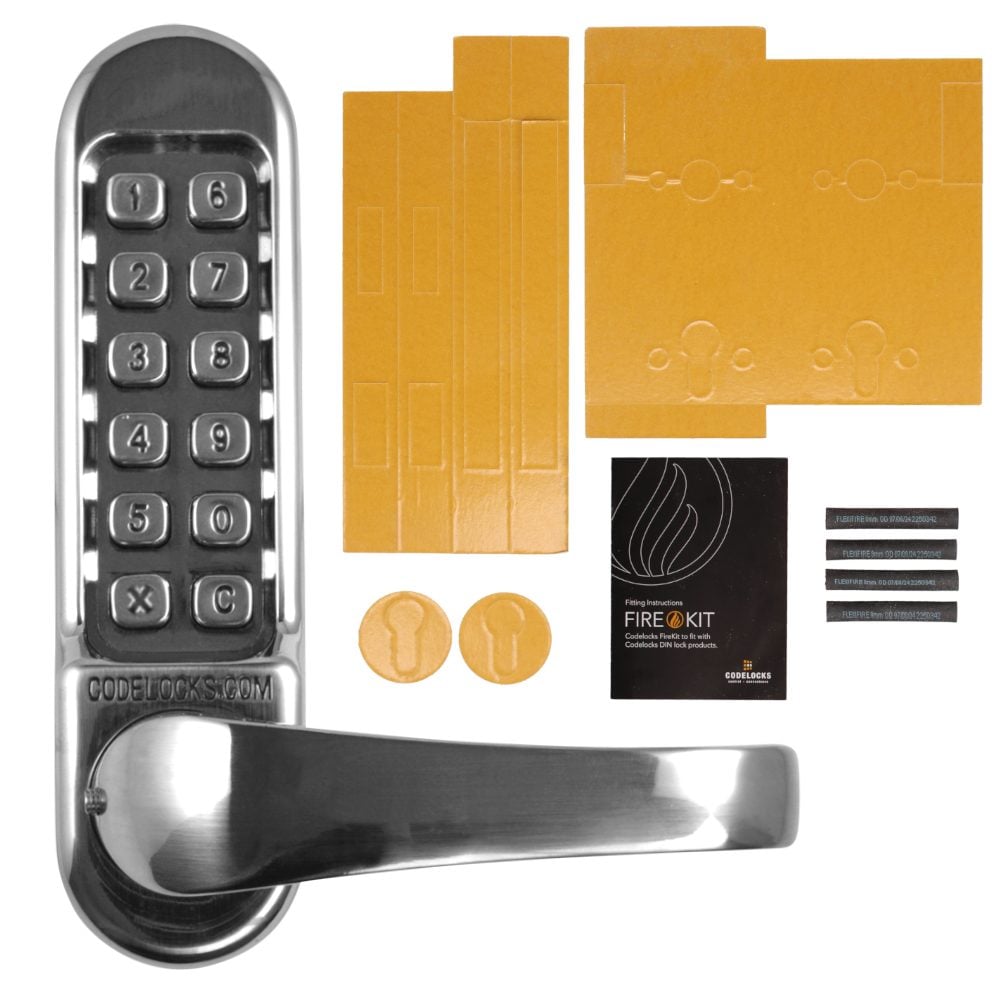

• Fire-tested options available, supplied with an intumescent fire pack (please choose below)
• Backed by a Codelocks limited lifetime guarantee
