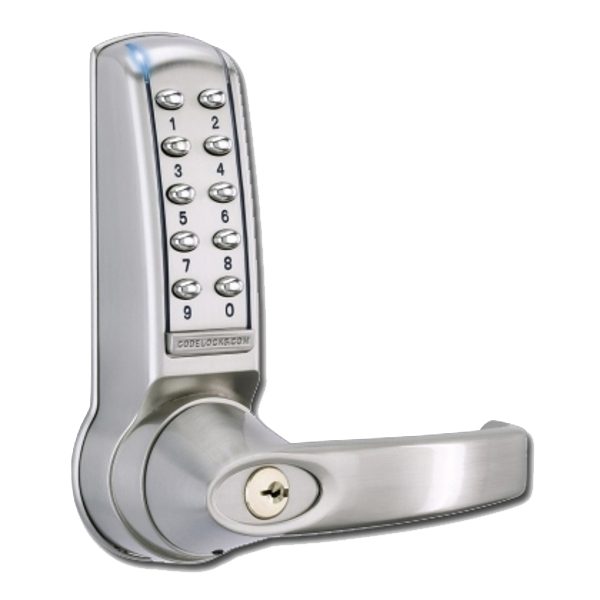

CODELOCKS CL4020 Battery Operated Digital Lock

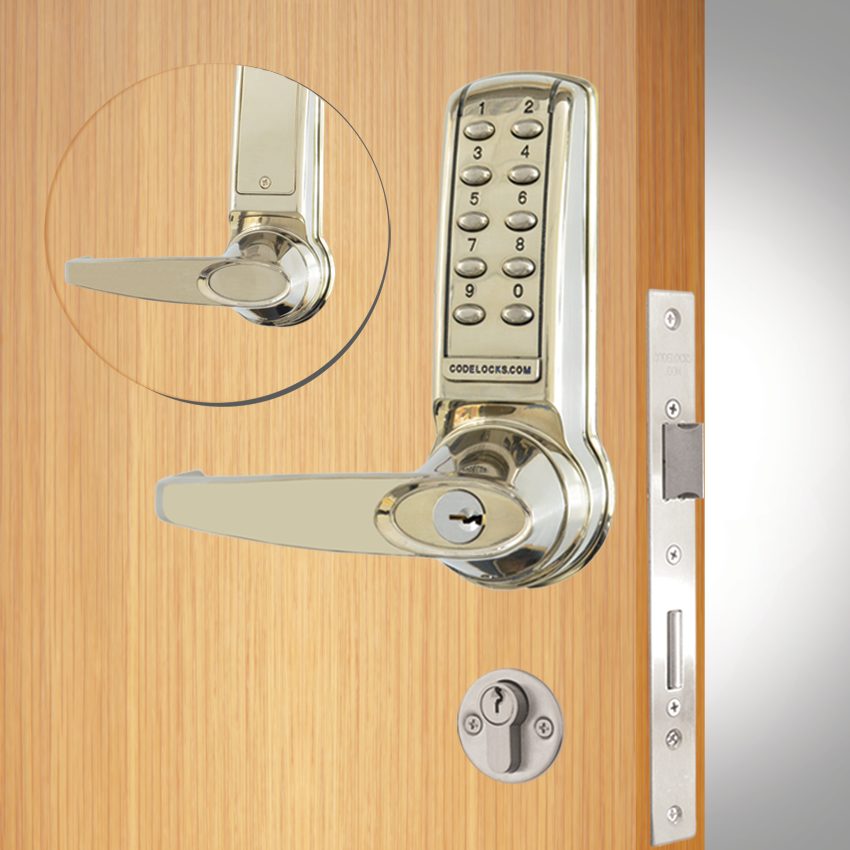

The Codelocks CL4020 is a high-quality, battery-operated electronic digital lock designed for low to medium traffic areas, suitable for both indoor and outdoor applications. This euro profile mortice sash lock features a deadbolt and latchbolt, complete with a double cylinder to control the deadbolt and retract the latchbolt. When the deadbolt is locked, access is denied to standard code users, while the key override remains available for management functions such as security and cleaning.

For added safety, the split follower allows the inside lever handle to retract both the deadbolt and latchbolt, preventing accidental lock-ins. This lock is non-handed and fully reversible, making it suitable for doors hung on either the left or right.

Depending on your requirements, this lock is available in fire-tested and non-fire-tested versions, with weights ranging from 3.053kg to 3.4kg. Please select your preferred fire rating, manufacturer reference (CL4020 or CL4020L SS FKP), and barcode option from the selections below.

Technical Specifications

• Brand: Codelocks
• Mechanism: Electronic Digital
• Backset: 55mm
• Case Depth Required: 85mm
• Width: 63mm
• Power: 4 x AA batteries
• Battery Life: Up to 200,000 operations
• Code Length: 4 to 6 digits
• User Codes: Up to 80 codes
• Finish: Brushed Steel PVD
• Handing: Reversible
• Key Override: Yes (supplied with 2 keys)
• Operation Outside: Lever handle on entry of code or by key
• Operation Inside: Lever handle free exit
• Passage Set: Yes
• Weather Resistant: Yes

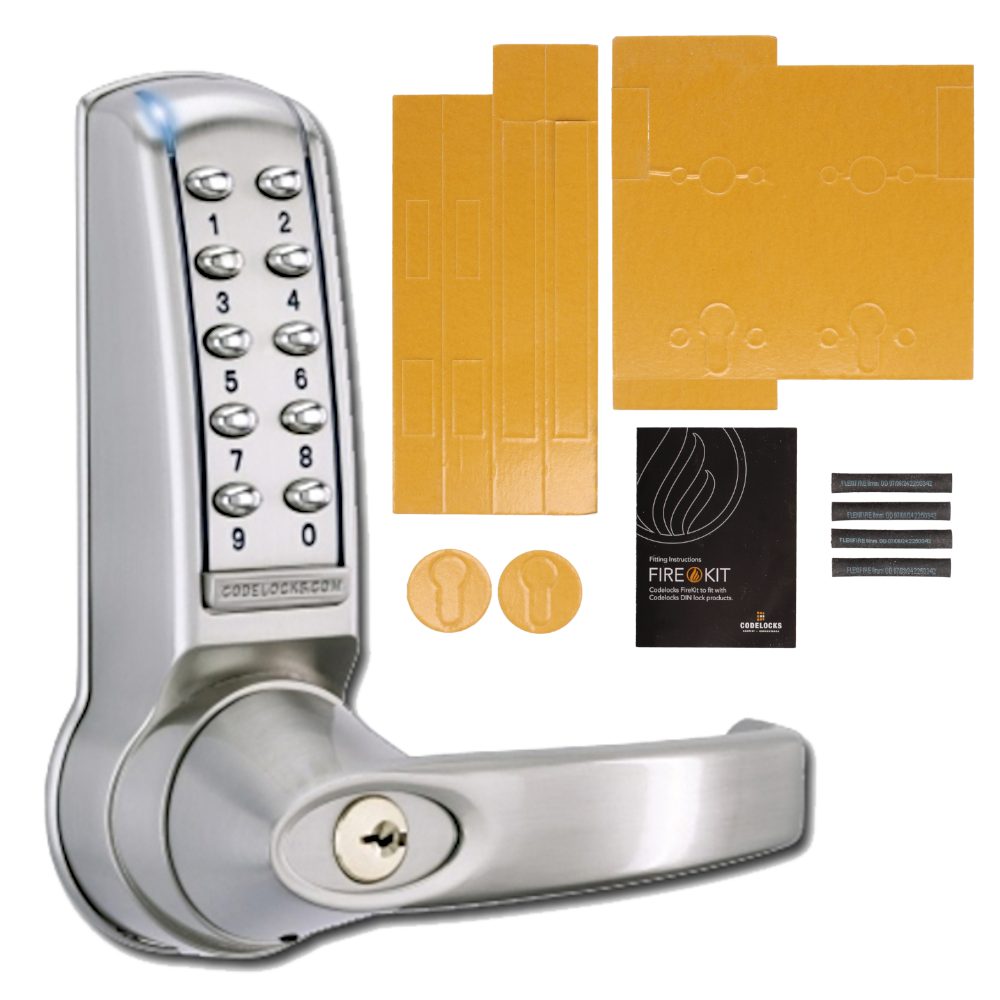

• Fire Tested: Available in fire-tested (BS EN 1634-1, CE Marked) and non-fire-tested options (please choose below)
• Manufacturer Reference: CL4020 / CL4020L SS FKP (please choose below)
• Weight: 3.053kg to 3.4kg (please choose below)
• Guarantee: 2 Year

Key Features

• Euro Profile Mortice Sash Lock: Features a deadbolt and latchbolt with a double cylinder for comprehensive control.
• Code Lockout Function: Locking the deadbolt denies access to standard code users for enhanced security.
• Anti-Lock-In Safety Feature: Split follower allows the inside lever to retract both the deadbolt and latchbolt.
• Key Override: Supplied with 2 keys for management override, cleaning, or emergency access.
• Weather Resistant Finish: Hardwearing Brushed Steel PVD finish suitable for internal and external use.
• Flexible Programming: Supports up to 80 user codes of 4 to 6 digits, easily programmed via the keypad.
