CODELOCKS CL4010 Battery Operated Digital Lock

The Codelocks CL4010 is a versatile, medium-duty electronic digital lock designed for low to medium-traffic doors in commercial, educational, and residential environments. Offering convenient keyless entry, this battery-operated lock features on-door keypad programming and a mechanical key override for management functions and emergency access.

The Codelocks CL4010 is a versatile, medium-duty electronic digital lock designed for low to medium-traffic doors in commercial, educational, and residential environments. Offering convenient keyless entry, this battery-operated lock features on-door keypad programming and a mechanical key override for management functions and emergency access.

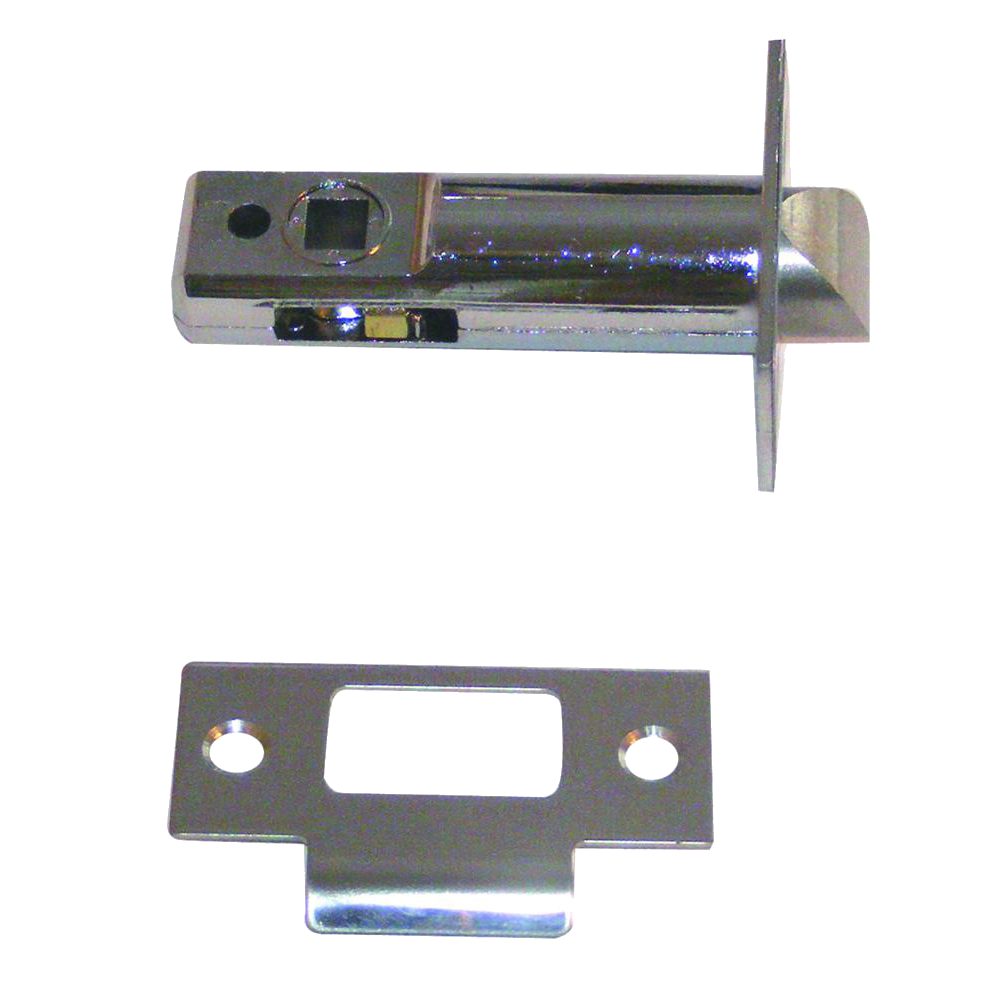

The outside handle (available as either a lever or knobset) turns freely without retracting the latch until a valid code is entered. Once a valid code is entered, the blue LED illuminates, allowing the handle to retract the spring latch, which automatically locks behind you when the door closes. For added flexibility, the key or keypad can be used to set the lock into a 'Code Free' passage mode, allowing unrestricted access without a code during busy periods.

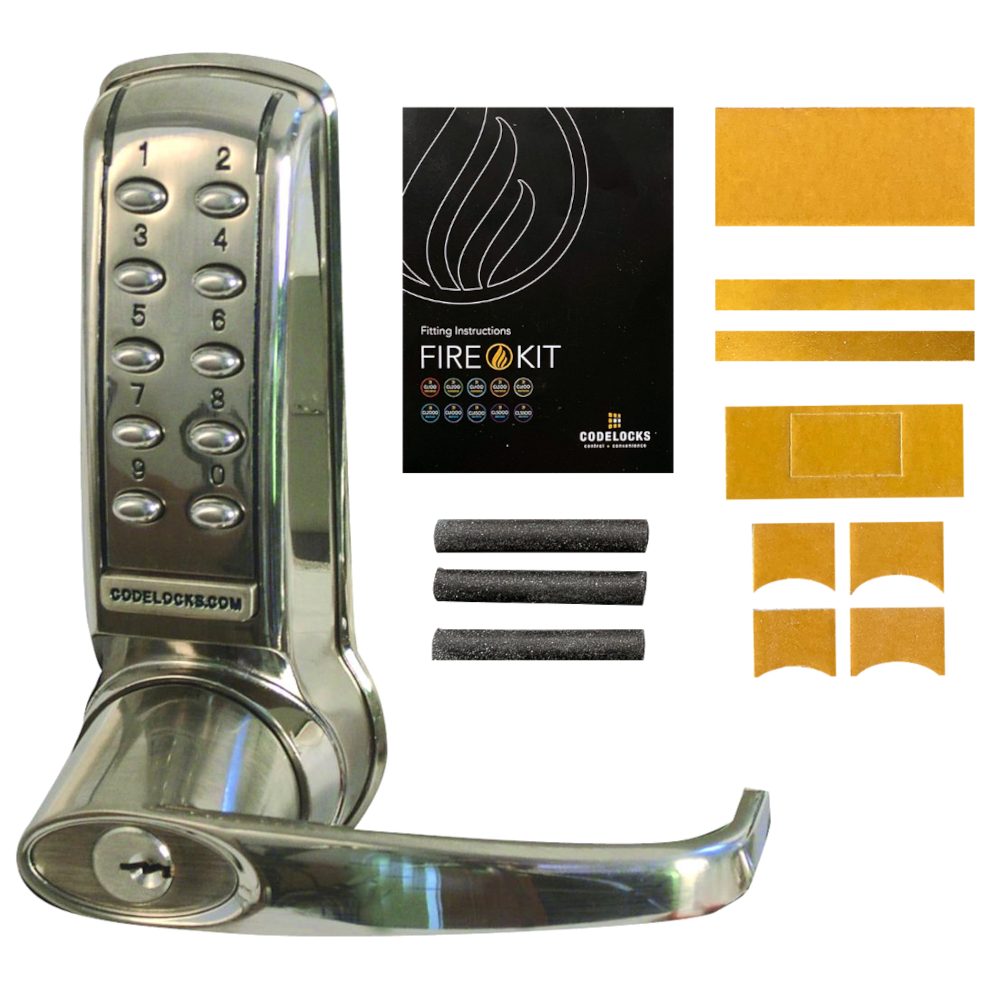

This lock is available in multiple configurations, including lever or knobset handles, standard or fire-tested models (with some options supplied complete with an optional fire holdback kit), and varying weights. Please select your preferred operation style, fire-tested status, and manufacturer reference from the options below.

Technical Specifications

• Backset: 60mm
• Door Thickness: 35mm to 65mm
• Power Supply: 4 x AA batteries (providing up to 200,000 operations)
• Code Capacity: Up to 80 user codes (4 to 6 digits) plus 10 one-time codes
• Combinations: Over 1,000,000 possible code combinations
• Handing: Reversible (non-handed)
• Finish: Brushed Steel PVD (weather-resistant)
• Spindle: 8mm spring-loaded
• Case Depth Required: 85mm
• Width: 63mm
• Fire Tested: Available in both fire-tested (BS EN 1634-1) and non-fire-tested versions (please choose from the options below)
• Operation Inside: Lever Handle Free Exit or Knobset Free Exit (please choose from the options below)
• Operation Outside: Lever or Knobset on entry of code or by key (please choose from the options below)
• Weight: Ranges from 2.2kg to 3.042kg depending on the chosen model (please choose from the options below)

Key Features

• Keyless Convenience: Supports up to 80 user codes and 10 one-time user codes, easily programmed directly via the keypad.
• Key Override: Mechanical key override provides a reliable failsafe and management access.
• Code Free Mode: Easily set the lock to passage mode via the key or keypad for unrestricted access.
• Weather Resistant: Durable Brushed Steel PVD finish makes it suitable for both indoor and outdoor applications.
• Flexible Configurations: Available with either lever handles or knobsets, and with optional fire-testing certification to suit your installation needs.
