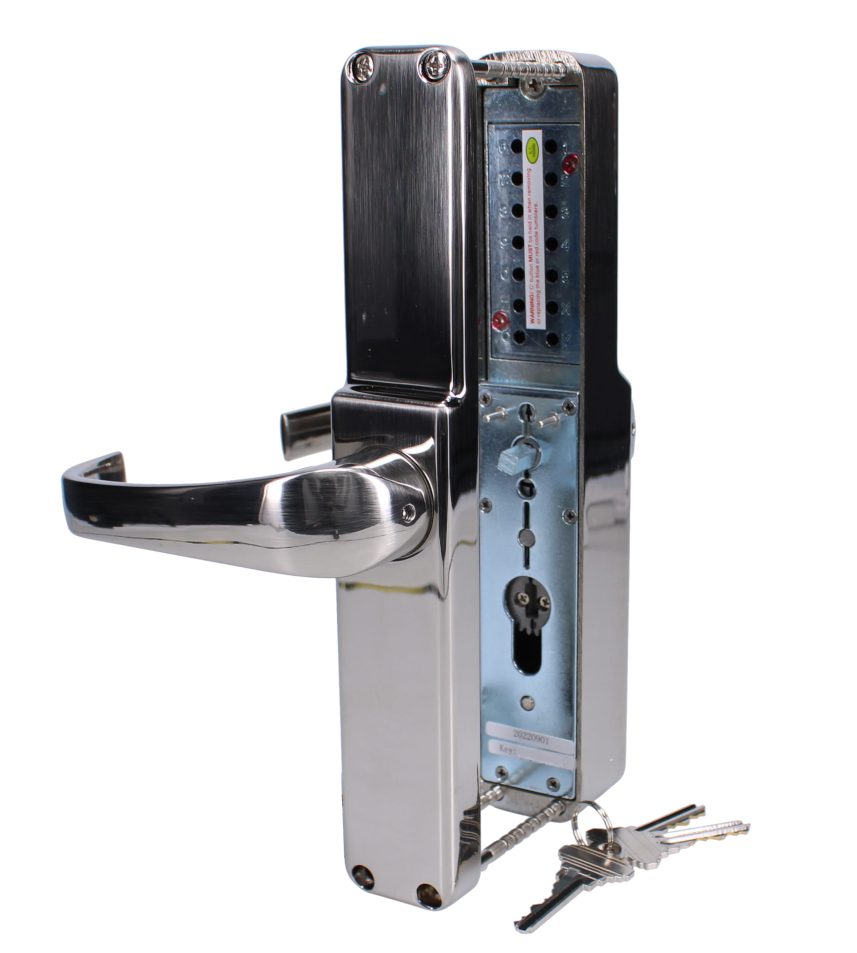

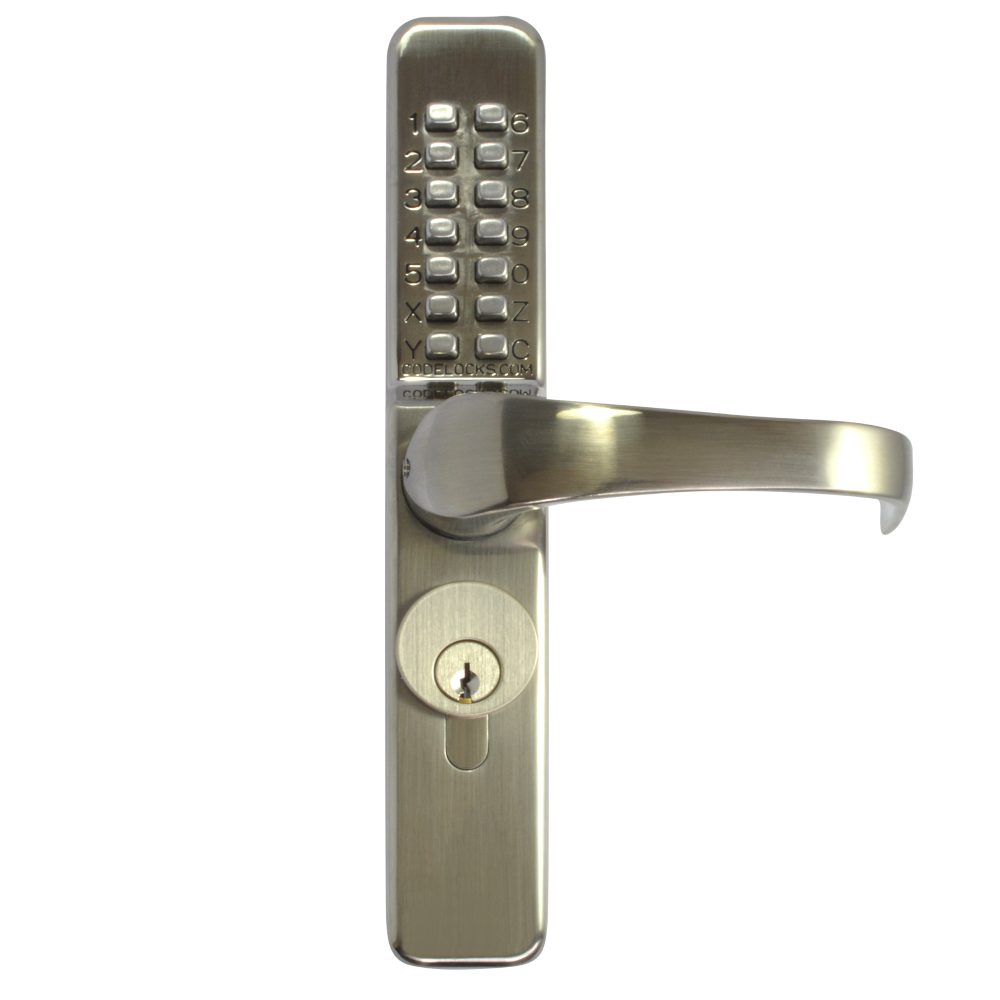

CODELOCKS CL0460 Series Narrow Style Digital Lock

The Codelocks CL0460 Series is a medium-duty, narrow stile mechanical digital lock designed specifically for aluminium doors. It offers an affordable, reliable alternative to electronic keypads, electric strikes, and magnetic locks on aluminium-framed doors. Ideal for both new installations and retrofitting, it is designed to fit seamlessly with Adams Rite or similar style ANSI round cylinder mortice deadlatches.

This versatile series is available in multiple configurations to suit your specific security and access requirements. Please choose from the options below to select your preferred mechanism (either a Threaded Screw-In Cylinder or a Euro Cylinder) and decide whether you require a passage set (code-free access) function. The CL460 model features a screw-in cylinder without a passage set, while the CL475 model features a Euro cylinder with a code-free passage function.

Equipped with full-size return-to-door lever handles and a protective clutch mechanism, the CL0460 series is built for durability and ease of use. It is fully reversible (non-handed) for straightforward installation on both left and right-hand hung doors. The PVD weather-resistant satin chrome finish ensures long-lasting performance in both internal and external environments.

Technical Specifications

• Brand: Codelocks
• Door Thickness: 45mm to 55mm
• Case Depth Required: 44mm
• Backset: Variable
• Key Override: Yes (supplied with 3 keys)
• Code Length: 1 to 7 digits (over 8,000 combinations)
• Buttons: 14
• Finish: Satin Chrome
• Handing: Reversible (non-handed)
• Latch: Not supplied (designed to retrofit to existing deadlatches)
• Mechanism: Euro Cylinder or Screw In Cylinder (please select from the options below)
• Passage Set: Available as Yes or No (please select from the options below)

Key Features

• Narrow Stile Design: Specifically engineered for aluminium-framed doors.
• Multiple Configurations: Available with Euro Cylinder or Screw-In Cylinder mechanisms, with or without passage set (code-free access) options - please choose from the options below.
• Weather Resistant: Durable PVD satin chrome finish suitable for internal and external applications.
• Protective Clutch: Prevents damage to the internal lock mechanism from forced entry attempts.
• Easy Retrofitting: Supplied complete with cams and cylinder to fit Adams Rite or similar ANSI mortice deadlatches.
• Key Override: Includes cylinder and 3 keys for manual key override capability.
