CAVEO TS007 3* Half Euro Dimple Cylinder

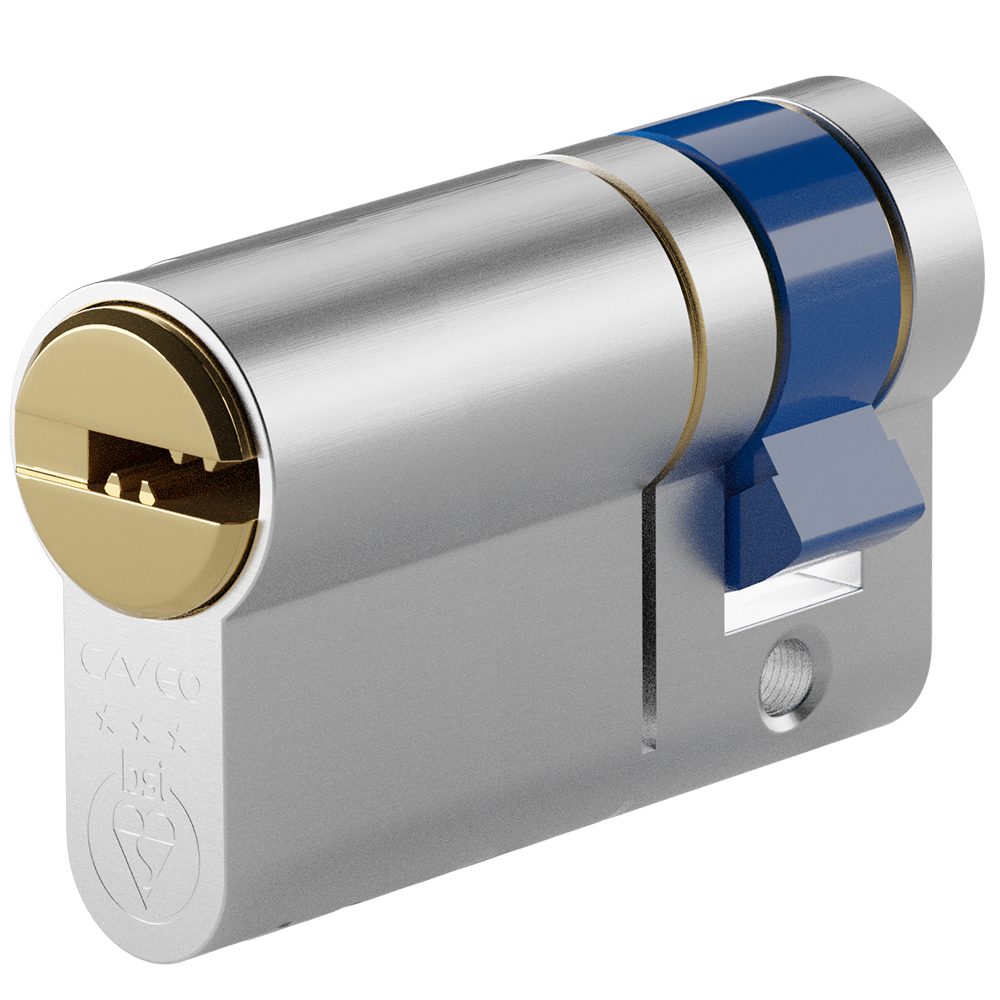

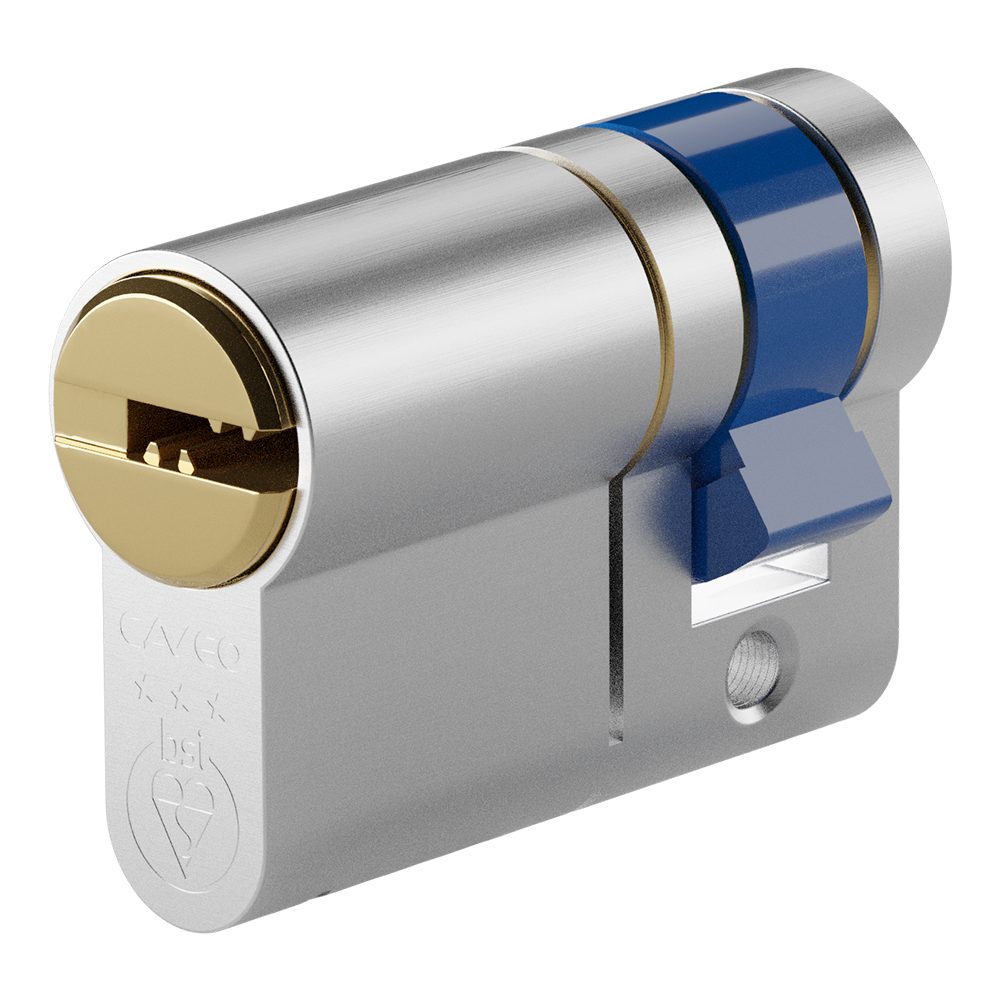

The CAVEO TS007 3* Half Euro Dimple Cylinder offers exceptional high-security protection in a versatile dual-finish design. Featuring a nickel-plated body combined with a polished brass plug, this stylish cylinder seamlessly complements both brass and nickel hardware applications, making it a cost-effective and aesthetically pleasing choice for any property.

Engineered to withstand the most common forced entry methods, this cylinder is TS007 3-star rated, BSI Kitemarked, Sold Secure Diamond certified, and Secured by Design accredited. It provides robust resistance against snapping, bumping, picking, and drilling. A sacrificial cut on the external side ensures that if the lock is attacked, it snaps safely at the designated point to keep the core secure.

Each cylinder is supplied with three keys featuring optional black identification inserts, a fixing bolt, installation instructions, and a registration card. Once registered with the manufacturer, the lock is backed by a £2,000 break-in guarantee for ultimate peace of mind.

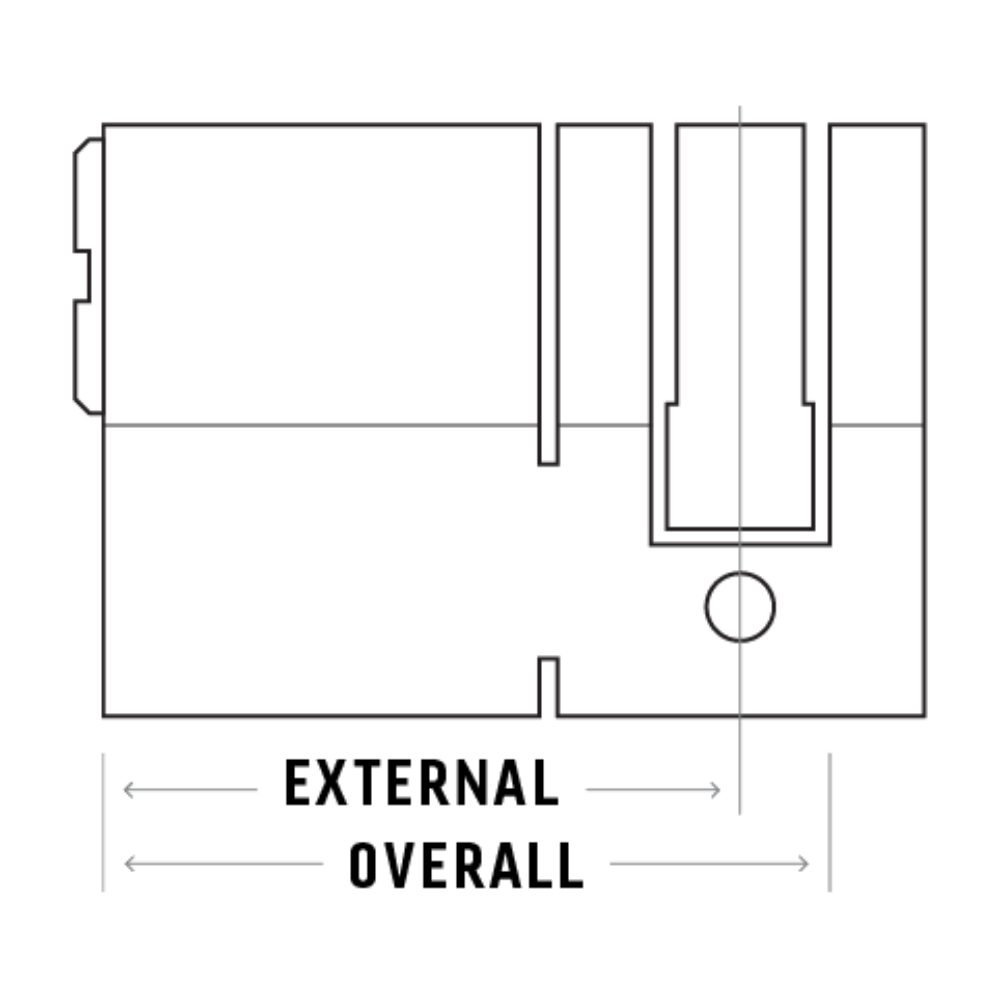

This high-security half euro cylinder is available in multiple sizes and configurations to suit your door. You can choose from overall body lengths of 40mm or 45mm, with corresponding 'A Side' dimensions of 30mm or 35mm (cylinder sizes with cam of 30/10 or 35/10). Depending on the size selected, the weight ranges between 217g and 245g. Please select your preferred size and manufacturer reference (CV50333 or CV50350) from the options below.

Technical Specifications

• Cylinder Type: Half Euro
• Security Standards: TS 007-1:2014 + A2:2018 (3 Star), BS EN 1303:2015, PAS 24:2018
• Accreditations: Sold Secure Diamond, Secured by Design
• Mechanism: 9 to 11 pin reversible dimple mechanism
• Fire Resistance: Grade B (Fire door rated to 30 minutes)
• Finish: NP/PB Dual Finish (Nickel Plated body / Polished Brass plug)

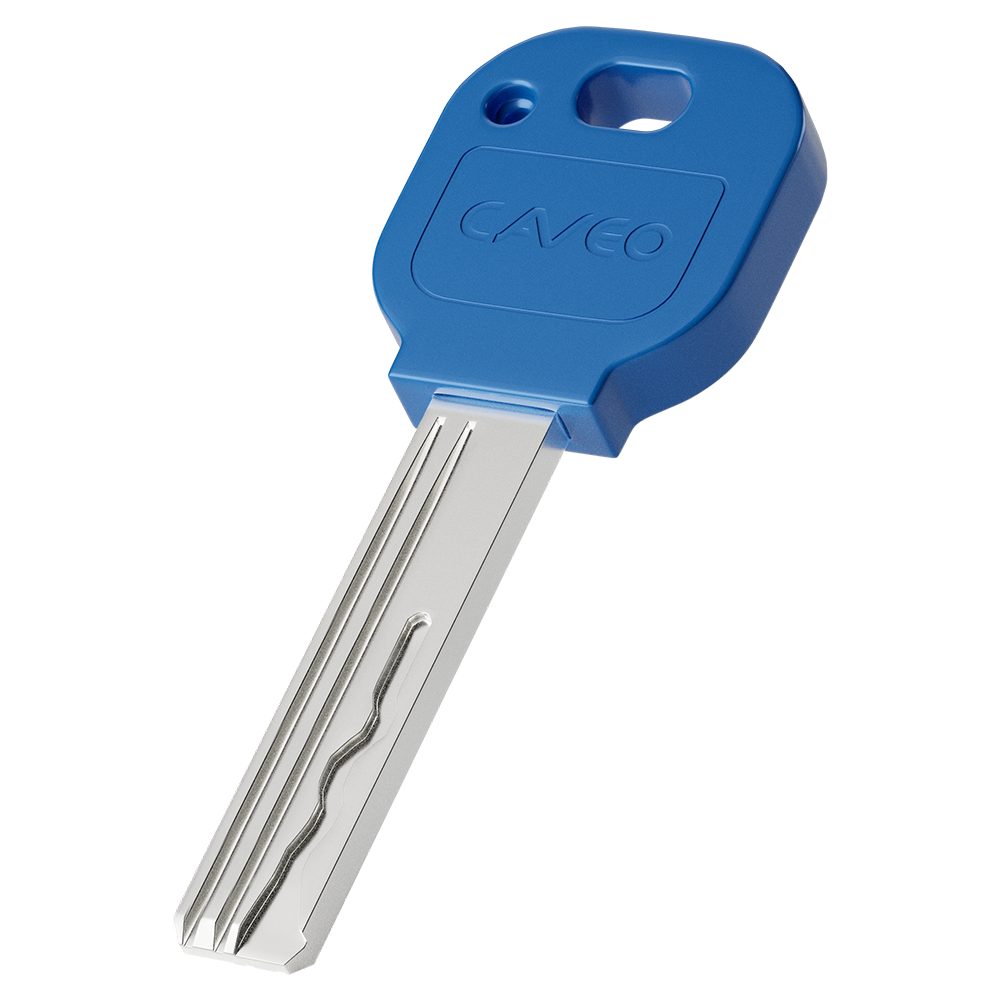

• Keys Supplied: 3 keys (with optional black identification inserts)
• Sizes Available: 30/10 (40mm length) and 35/10 (45mm length) - please select from the options below

Key Features

• Dual Finish Design: Blends a nickel-plated body with a polished brass plug to suit both brass and nickel hardware.
• Anti-Snap Protection: Features a sacrificial cut on the external side to protect against snapping attacks.
• High-Security Resistance: Engineered to resist bumping, picking, drilling, and snapping.
• £2,000 Break-In Guarantee: Backed by a manufacturer's cashback guarantee upon registration (terms apply).
• Distinctive Blue Cam: Features Caveo's signature blue cam for easy identification.
• Complete Package: Supplied with 3 keys, fixing bolt, installation instructions, and a registration activation card.
