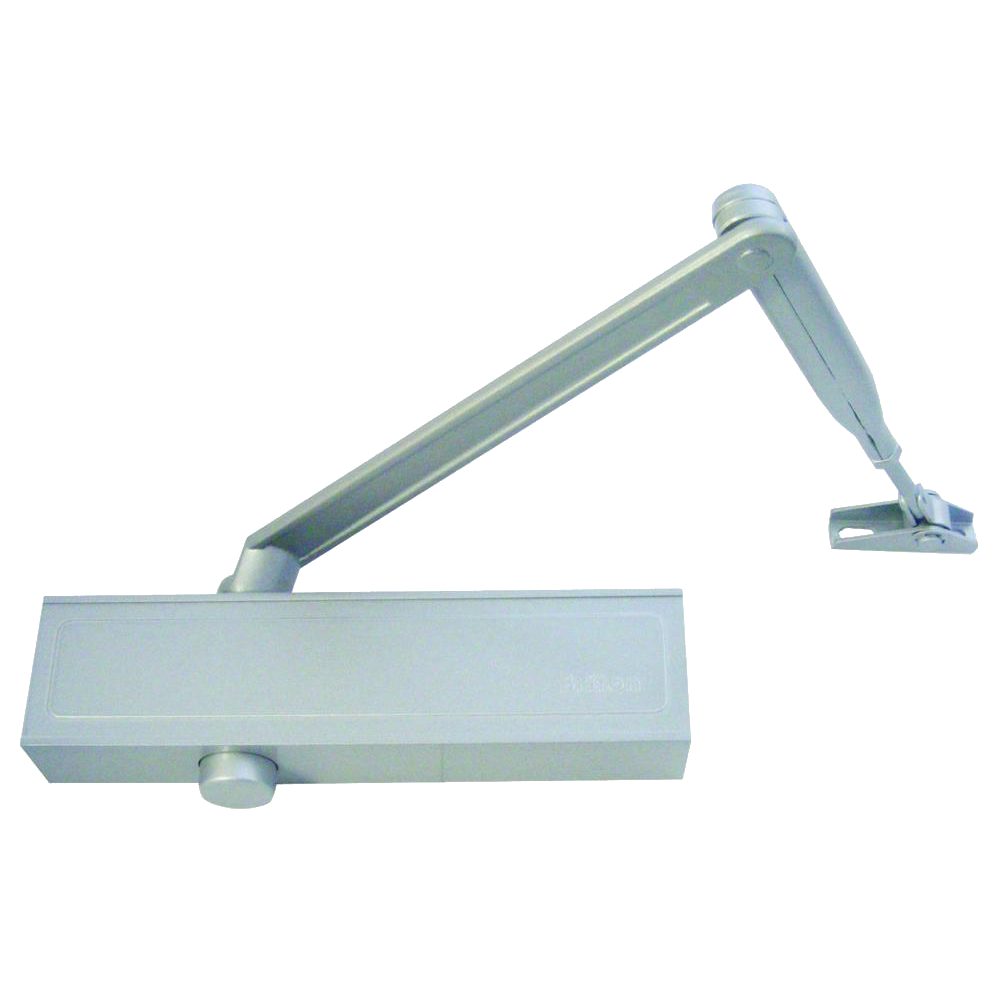

BRITON 1120B Size 2-4 Overhead Door Closer
Briton
The Briton 1120B is a high-quality, power-adjustable overhead door closer designed for medium to high-traffic applications, such as offices, commercial properties, and living accommodations. It offers a spring-adjustable power size of EN 2-4, making it highly versatile for various door sizes and weights.
This door closer features independent hydraulic controls for closing speed and latch action, along with a built-in adjustable backcheck. The backcheck provides a cushioning effect when the door is opened with excessive force, preventing damage to the door, frame, and adjacent walls - ideal for busy environments. For added security and to prevent tampering, the adjustment valves are concealed.
The Briton 1120B is fully certified for use on fire doors, offering up to 2 hours of fire resistance on timber doors. It is CE and UKCA marked, Certifire approved (CF388), and tested to EN 1154 and EN 1634 standards. It is non-handed and fully reversible, allowing for easy installation on both left and right-handed doors across multiple mounting configurations (Fig 1, Fig 61, and Fig 66).
Technical Specifications
- Brand: Briton
- Power Size: EN 2-4 (adjustable)
- Application: Fig 1 (pull side), Fig 61 (transom mount), and Fig 66 (parallel arm)
- Max Door Width: 1100mm
- Max Door Weight: 80kg
- Fire Tested: Up to 2 hours on timber doors (Certifire CF388)
- Standards: CE marked, UKCA marked, tested to EN 1154 & EN 1634
- Handing: Reversible (non-handed)
- Finish: Silver Enamelled

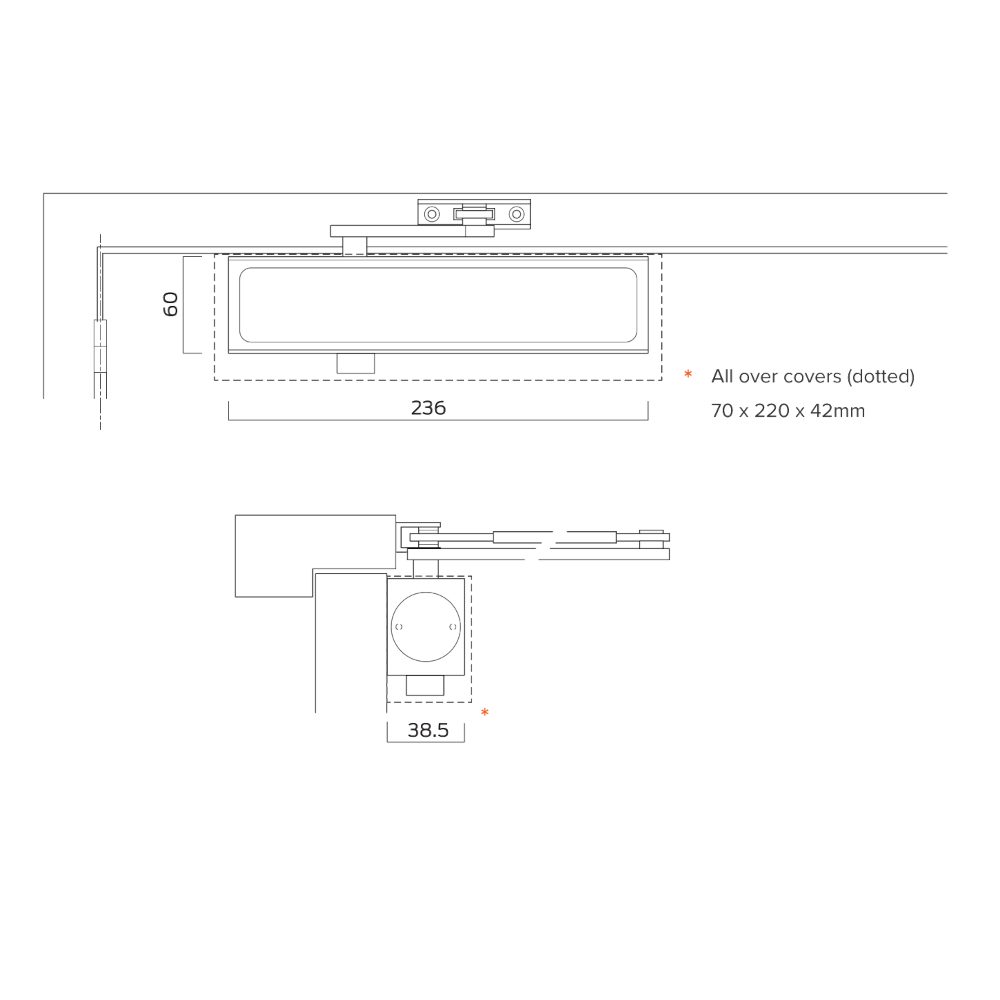

- Dimensions: 23.6cm (Length) x 38.5mm (Width) x 60mm (Height) x 60mm (Depth)
- Weight: 2.38kg
Key Features
- Adjustable Power Size: Easily adjustable between EN 2-4 to suit a wide range of door sizes.
- Adjustable Backcheck: Provides a cushioning effect when the door is opened with force, protecting the door and frame.
- Concealed Adjustments: Independent closing and latch speed regulators are concealed to prevent unauthorised tampering.
- Fire Door Approved: Certifire CF388 approved and fire-tested for up to 2 hours on timber doors.
- Universal Fitting: Reversible design suitable for both left and right-handed doors, supplied with a matching arm.
- 10-Year Guarantee: Backed by a manufacturer's 10-year mechanical guarantee for peace of mind.
