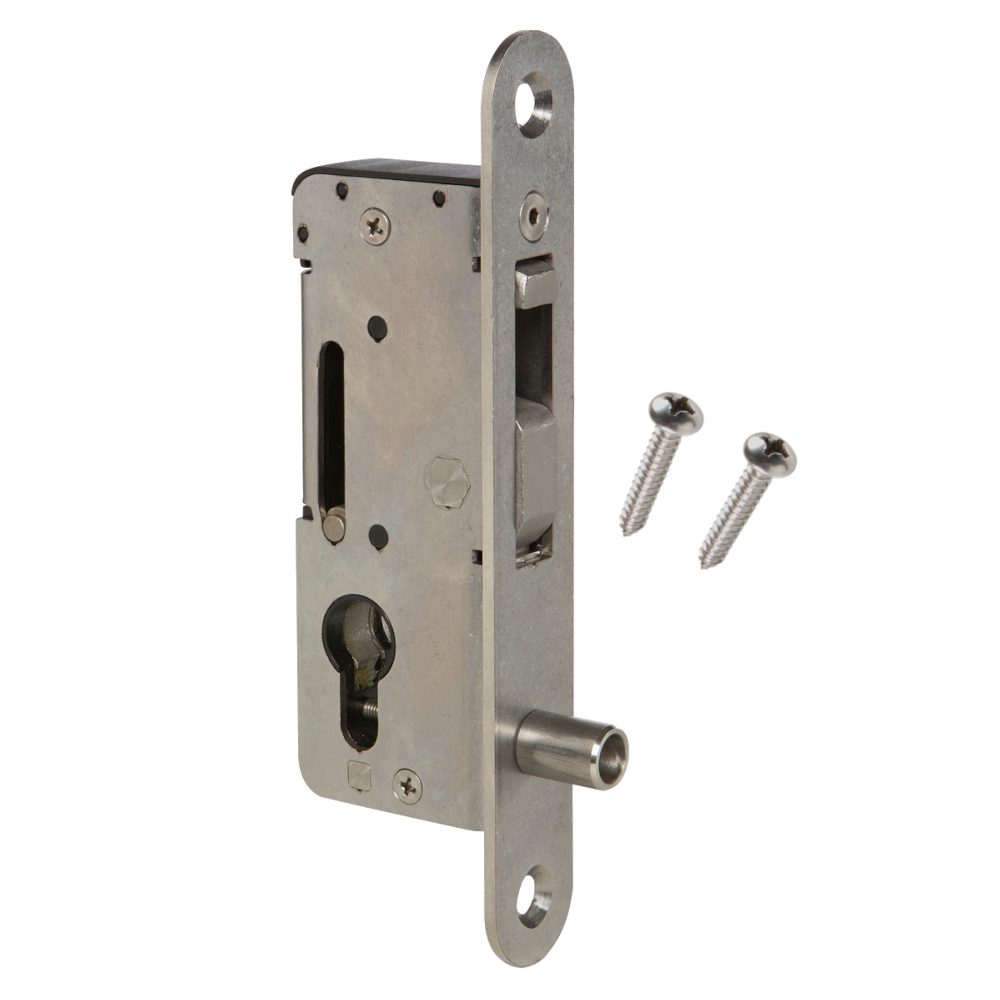

LOCINOX Gate Insert Lock H-COMPACT With Hook

The Locinox H-Compact insert lock is a premium, handleless locking solution designed for metal sliding and swing gates with a minimum box section of 60mm. Its handle-free design is ideal for both manual and automated gates, allowing them to open and close smoothly without latching. This design also enhances perimeter security by removing a potential foothold for intruders attempting to climb over the gate.

Constructed with a 100% stainless steel mechanism, hook, and front plate, this lock offers exceptional weather resistance and durability in harsh outdoor environments. It features a robust 33mm hook throw deadlock for secure anchoring when used in combination with the Locinox SHKC keep. For added versatility, the lock includes a removable anti-theft pin that prevents the gate from being lifted. Removing this pin allows the lock to be easily adapted for use on swing gates.

Please note that this lock is operated by a Euro cylinder, which is not included and must be purchased separately.

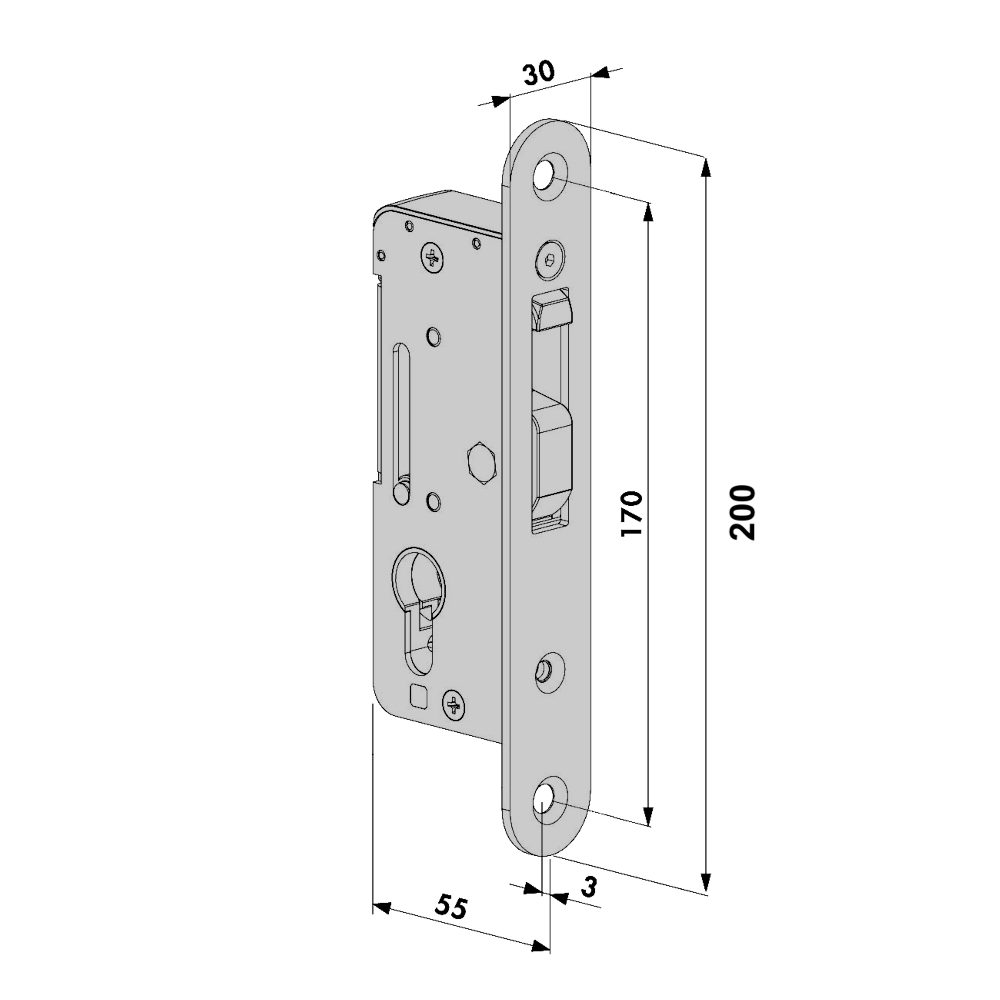

Technical Specifications

• Brand: Locinox
• Backset: 35mm
• Bolt Throw: 33mm
• Case Depth: 55mm
• Height: 200mm
• Width: 30mm
• Plate Depth: 3mm
• Screw Centres: 170mm
• Handing: Non-handed
• Locking Mechanism: Euro Cylinder (not included)
• Minimum Gate Profile: 60mm metal box section
• Material: 100% stainless steel mechanism, hook, and front plate

Key Features

• Handleless Design: Ideal for automated and manual sliding gates, allowing smooth opening and closing without latching.
• Anti-Climb Security: The absence of a handle prevents intruders from using the lock as a step to climb over the gate.
• Versatile Application: Suitable for both sliding and swing gates by removing the anti-theft pin.
• Anti-Lift Protection: Features a removable pin that prevents the gate from being lifted out of its keep.
• Corrosion Resistant: 100% stainless steel construction ensures long-lasting operation in outdoor environments.
• Secure Anchoring: 33mm hook throw deadlock provides robust security when paired with the SHKC keep.
