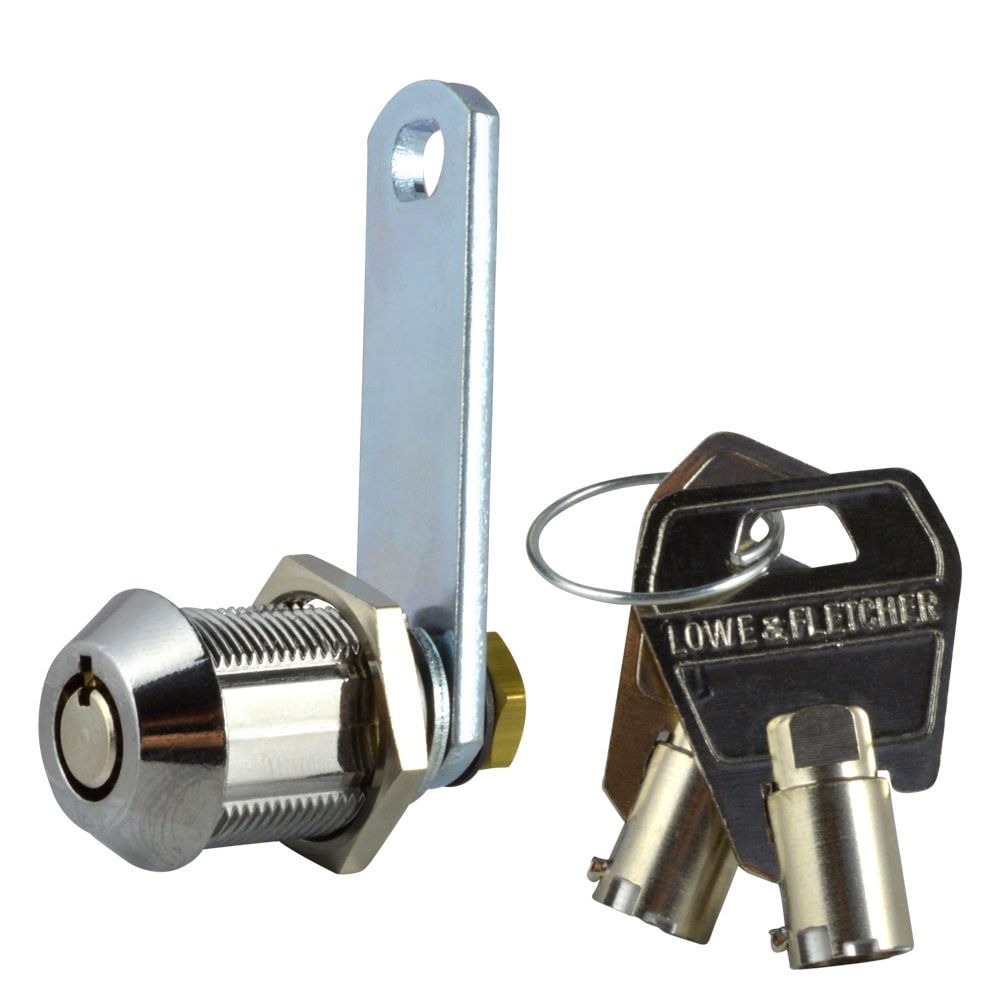

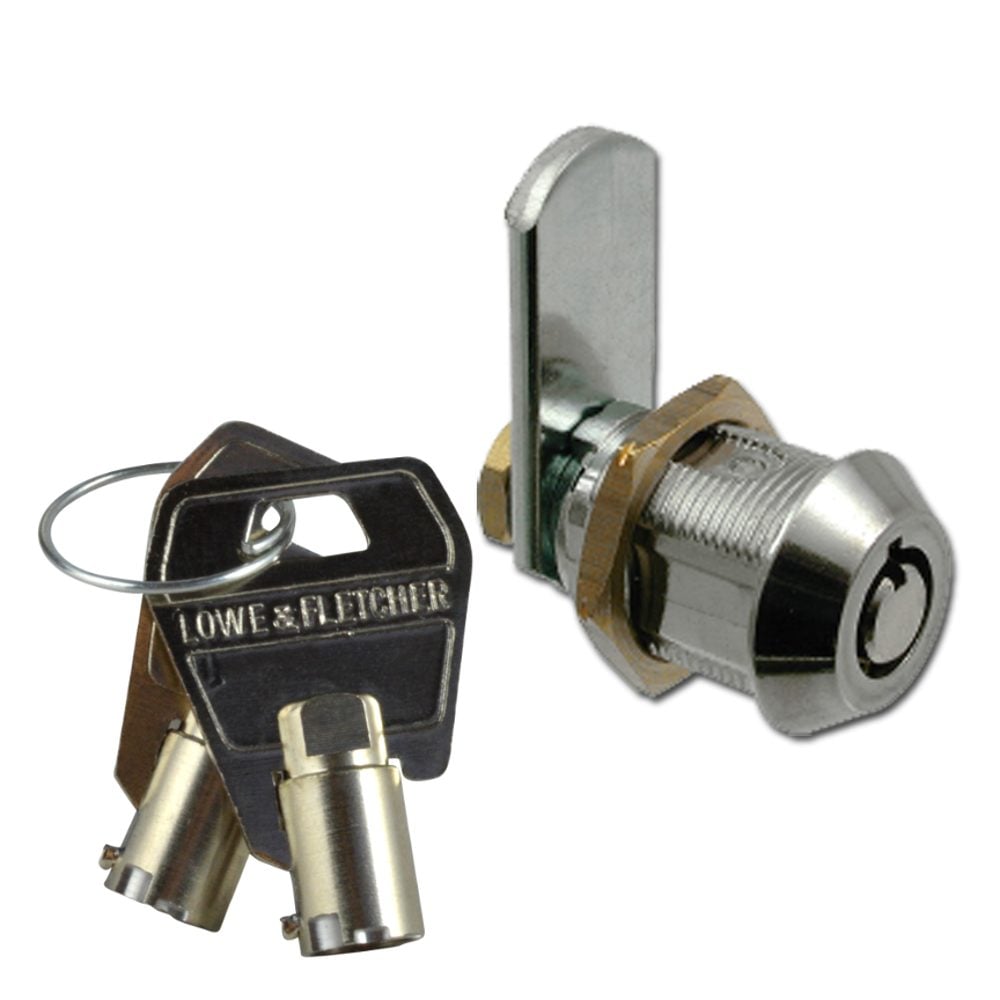

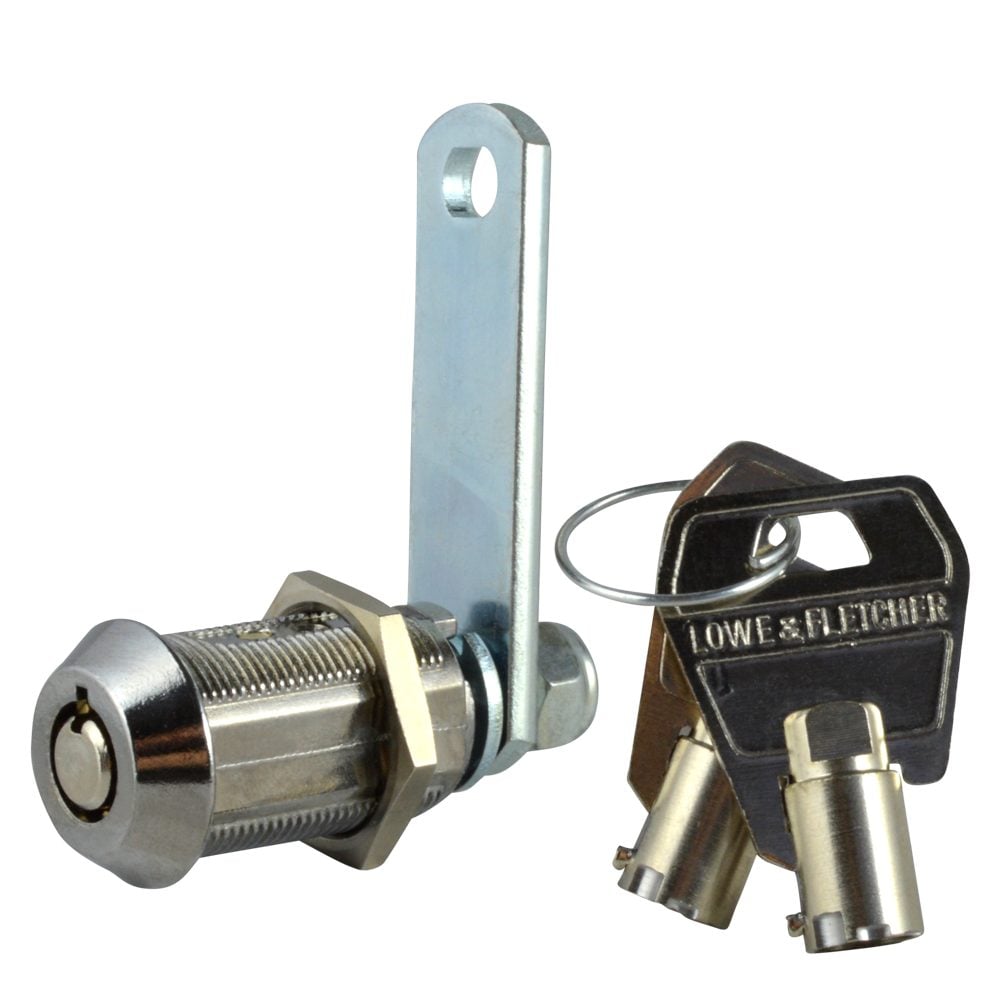

L&F 4303 & 4314 Radial Pin Nut Fix Camlock

Lowe & Fletcher More Lowe & Fletcher Nut Fix

From

£21.46

Select size, finish, and quantity from the variant table.

View options

The Lowe & Fletcher (L&F) Radial Pin Nut Fix Camlock is a high-security locking solution designed for a wide range of applications, including cabinets, lockers, and asset protection. Featuring a robust radial pin tumbler (RPT) mechanism, these camlocks offer enhanced resistance against picking.

This versatile camlock is available in a variety of configurations. Customers can choose from multiple body lengths (18mm, 22mm, or 30mm), manufacturer references (4303 0100, 4304 0100, or 4314 0100), and key differs (1,000 or 10,000 differs) to suit their specific security and installation needs. The locks are supplied in weights ranging from 80g to 850g. Please select your preferred body length, differ capacity, manufacturer reference, weight, and barcode option from the options below.

Each lock features a conical head shape, a bright chrome-plated finish, and is supplied with two keys and a 3mm thick cam bar. Operation is a smooth 90° anti-clockwise movement.

Technical Specifications

Brand: Lowe & Fletcher
Body Length: 18mm, 22mm, or 30mm (please choose from the options below)
Body Width: 16mm
Body Height: 19mm
Cam Height: 51mm
Head Shape: Conical
Finish: Chrome Plated
Fixing: Nut
Key Series: 28
Keyed: Keyed To Differ (Keyed Alike and Master Keyed available as special order)
Keys Supplied: 2
Movement: 90° Anti-Clockwise
Differs: 1,000 or 10,000 (please choose from the options below)
Manufacturer Reference: 4303 0100, 4304 0100, or 4314 0100 (please choose from the options below)
Weight: 80g to 850g (please choose from the options below)
Barcode: Multiple options available (please choose from the options below)

Key Features

Radial Pin Tumbler Mechanism: High-security RPT design offers superior resistance to picking
Supplied with Cam Bar: Includes a robust 3mm thick cam bar for secure locking
Durable Finish: Bright chrome-plated finish provides excellent durability and a clean aesthetic
Nut Fixing: Secure and reliable nut-fix installation
Versatile Options: Available in multiple lengths and differ configurations to suit various panel thicknesses and security requirements
