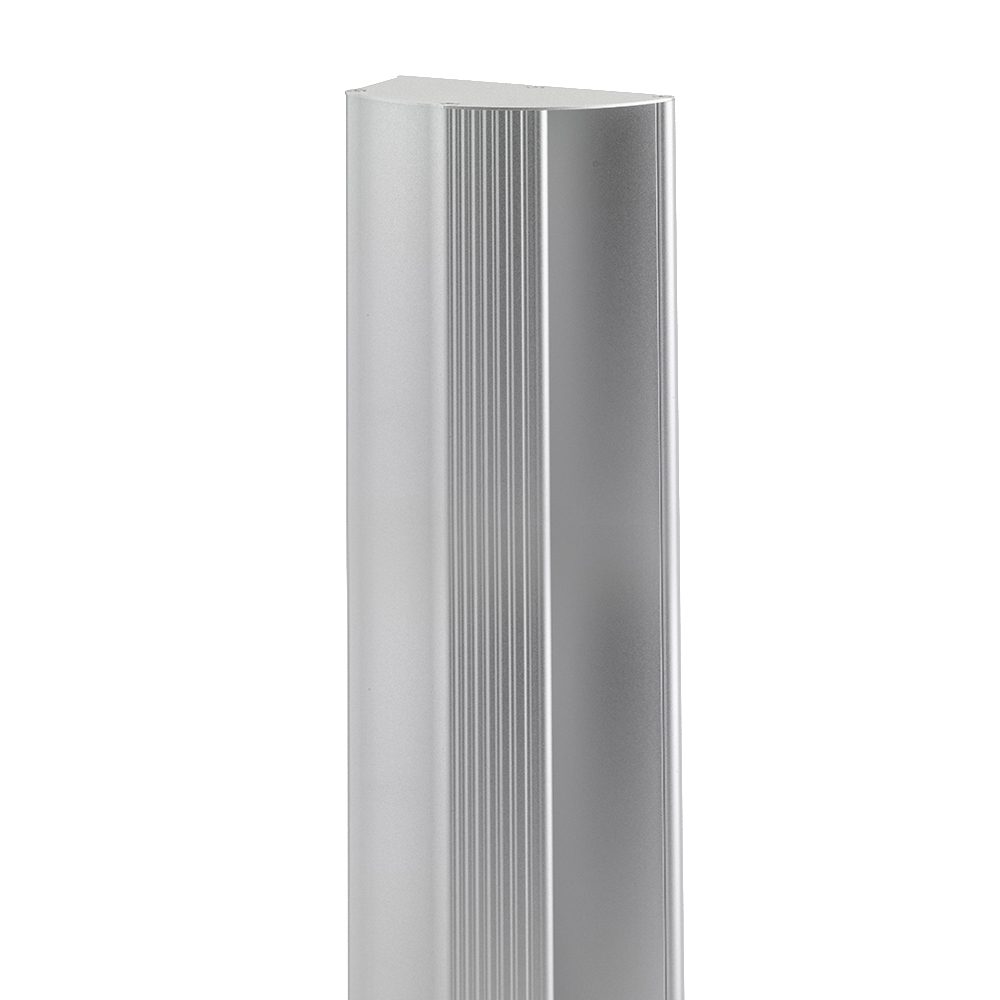

ICS PH900 Magnet Pull Handle Double 2503mm
ICS
The ICS PH900 is a premium, full-height magnetic pull handle designed to provide a secure and aesthetically pleasing locking solution for inward-opening doors. Standing at 2503mm tall, this vertical handle features a clever design that completely conceals the armature plates within the handle enclosure, maintaining a clean and modern appearance.
Constructed with a polished anodised aluminium casing, the PH900 is highly durable and particularly suited for installation on metal doors and door frames. It features two integrated electromagnetic locks, providing a powerful combined holding force of 545kg (2 x 600lbs) to ensure robust security.
Operating on a fail-unlocked (fail-safe) basis, the lock automatically releases in the event of a power cut, ensuring safe emergency egress. This unmonitored unit supports dual 12V or 24V DC input voltage, making it highly adaptable for a wide range of commercial access control installations.
Technical Specifications
- Brand: ICS
- Manufacturer Reference: PH900

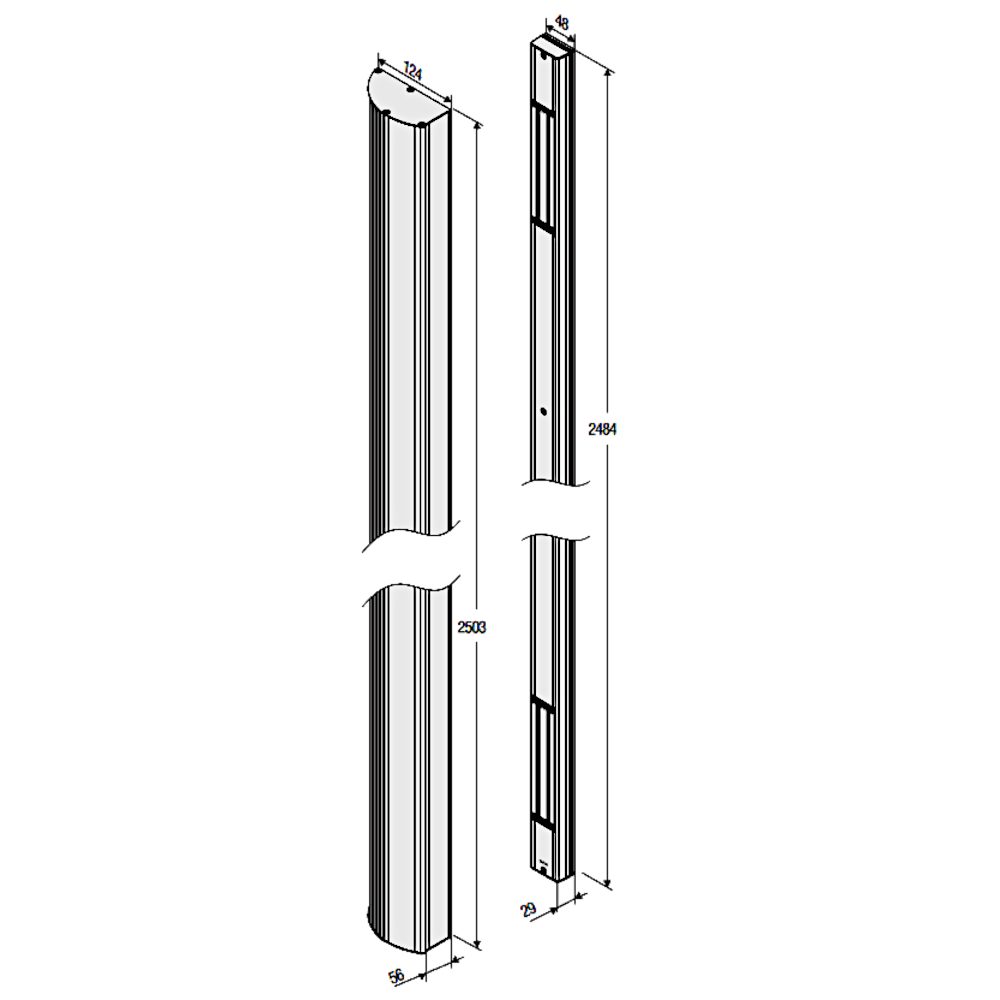

- Armature Height: 2503mm
- Armature Depth: 56mm
- Magnet Height: 2484mm
- Magnet Depth: 29mm
- Width: 12.4cm
- Weight: 1.7kg
- Finish: Polished Anodised Aluminium
- Fitting: Surface mounted
- Handing: Inward opening (vertical installation on door frame)
- Holding Force: 545kg / 1200lbs
- Input Voltage: 12/24V DC
- Current Consumption: 2 x 500mA at 12Vdc (at 20°C)
- Operation: Fail Unlocked (Fail-Safe)
- Monitoring: Non-monitored
- Weather Resistant: No
Key Features
- Concealed Magnet Design: Armature plates are cleverly hidden within the handle enclosure for a clean, seamless aesthetic.
- High Holding Force: Dual integrated magnets deliver a combined holding force of 545kg (2 x 600lbs) for robust security.
- Fail-Unlocked Operation: Operates on a fail-safe basis, releasing the lock automatically in the event of power loss to ensure safe egress.
- Durable Construction: Features a polished anodised aluminium casing designed to withstand heavy daily use.
- Ideal for Metal Doors: Specifically designed for vertical surface-mount installation on inward-opening metal doors and frames.
