EVVA ICS KDZ Euro Key & Turn Cylinder Keyed To Differ 3 Keys TS007 3*

EVVA ICS KDZ Euro Key & Turn Cylinder Keyed To Differ 3 Keys TS007 3*

Evva logo Evva More Evva Key & Turn Euro
From
£111.55
Select size, finish, and quantity from the variant table.
View options

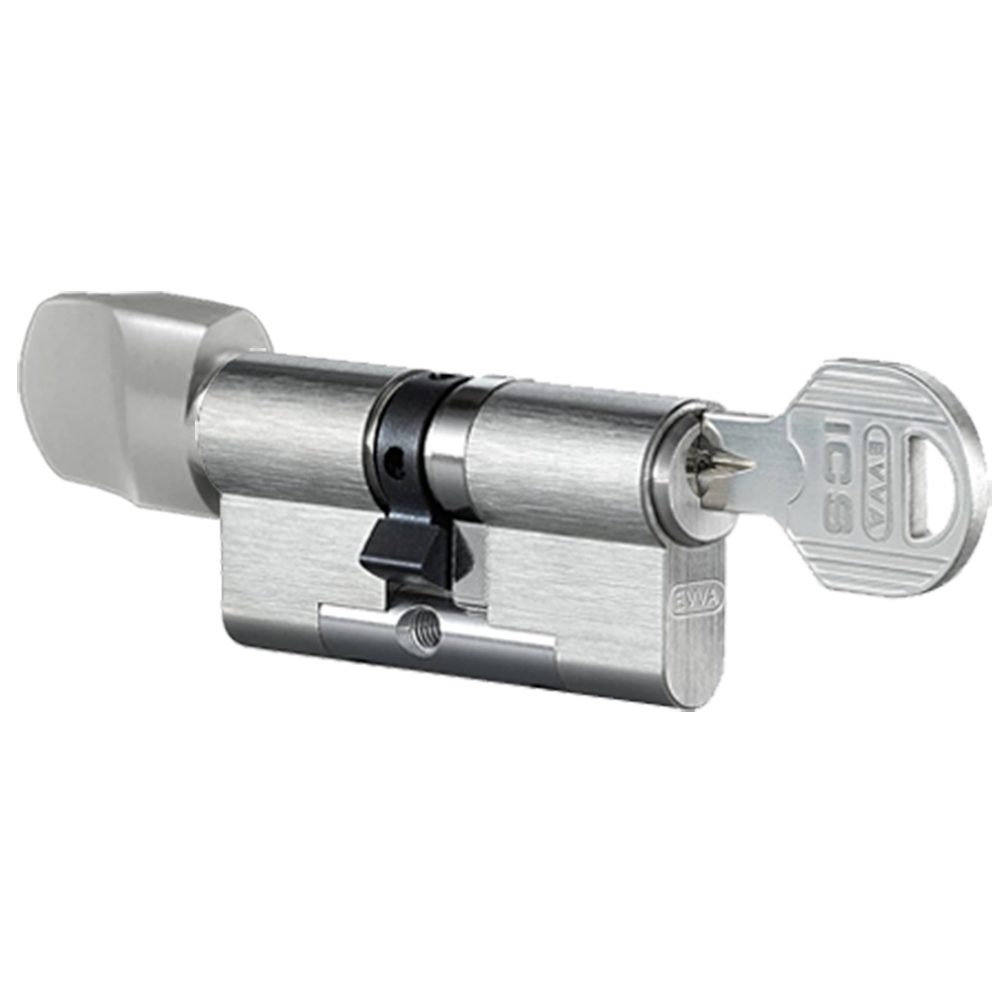

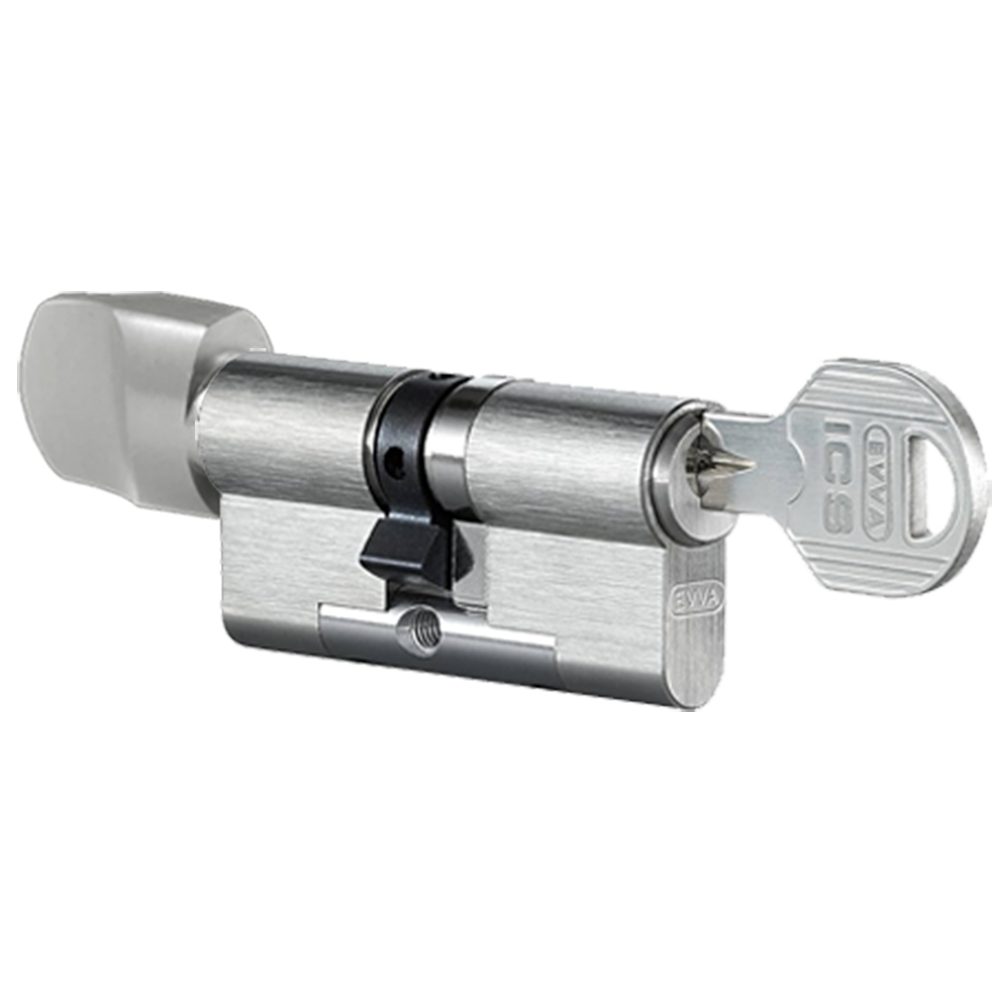

The EVVA ICS KDZ Euro Key & Turn Cylinder offers high-security protection for residential and commercial properties. This premium cylinder is TS007 3* rated and BSI Kitemarked, providing exceptional resistance against common forced entry methods. Supplied keyed to differ on our secure in-house section, it features a standard euro profile and comes complete with a connecting screw and three keys.

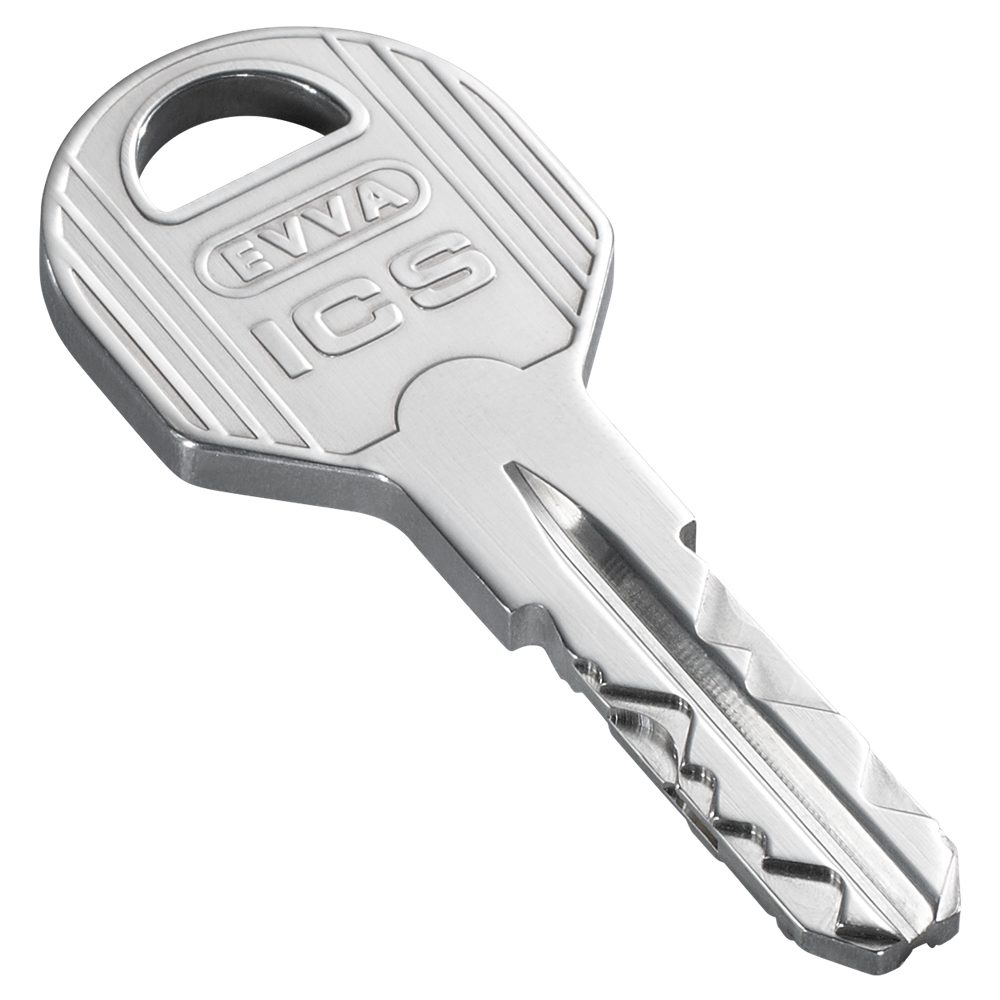

The patented ICS (Inner Code System) is a highly durable, reversible key system designed with maximum keying potential. This makes it ideal for planning complex master key systems with future expansion in mind. The system incorporates both legal and technical key protection mechanisms to prevent unauthorised key copying.

This cylinder is available in a variety of sizes to suit different door thicknesses. The A Side ranges from 36mm to 51mm, the B Side (Turn) ranges from 36mm to 51mm, and overall body lengths range from 72mm to 102mm. Please choose your required sizes and specifications from the options below.

Optional special features (such as clutch cam, cog wheel cams, and sea water protection) are also available. Please contact us for more information.

Technical Specifications

  • Brand: Evva
  • Cylinder Profile: Euro
  • Cylinder Type: Key & Turn Euro
  • Keying: Keyed To Differ
  • Keys Supplied: 3
  • Mechanism: 10 Pin
  • Finish: Nickel Plated
  • Standards: TS 007:2015 - 3 Star, BS EN 1303:2005, BS EN 1634 (Fire Tested Grade B)
  • Body Length: 72mm to 102mm (please choose from the options below)
  • A Side: 36mm to 51mm (please choose from the options below)
  • B Side (Turn): 36mm to 51mm (please choose from the options below)

Key Features

  • TS007 3-Star Rated: BSI Kitemarked to guarantee quality, safety, and high-security protection
  • Patented ICS System: Features a patented, registered reversible key system with high-precision security
  • Key Copy Protection: High degree of protection against unauthorised key duplication
  • Master Key Compatible: Designed with high keying potential, making it ideal for master key suites
  • Fire Tested: Grade B certified to BS EN 1634 standards
  • Complete Package: Supplied with 3 keys and a connecting screw as standard
Downloads
Datasheets and product documents
Datasheet.pdf
PDF Generated datasheet
Download
Trustpilot
Master Locksmiths Association BSI Kitemark

Master locksmiths with BSI accreditation

MLA approved locksmiths, BSI certified key systems, and independently audited security standards.

EVVA ICS KDZ Euro Key & Turn Cylinder Keyed To Differ 3 Keys TS007 3* - L35953M - 36/T36 - Nickel Plated - 3* 72MM ICS KDZ 36AS-K36 NP 003EI KD 3K
L35953M Ref: 3* 72MM ICS KDZ 36AS-K36 NP 003EI KD 3K
Cylinder Size Overall: 36/T36 (More)
£ 111.55
EVVA ICS KDZ Euro Key & Turn Cylinder Keyed To Differ 3 Keys TS007 3* - L35955M - 41/T41 - Nickel Plated - 3* 82MM ICS KDZ 41AS-K41 NP 003EI KD 3K
L35955M Ref: 3* 82MM ICS KDZ 41AS-K41 NP 003EI KD 3K
Cylinder Size Overall: 41/T41 (More)
£ 113.81
EVVA ICS KDZ Euro Key & Turn Cylinder Keyed To Differ 3 Keys TS007 3* - L35957M - 46/T46 - Nickel Plated - 3* 92MM ICS KDZ 46AS-K46 NP 003EI KD 3K
L35957M Ref: 3* 92MM ICS KDZ 46AS-K46 NP 003EI KD 3K
Cylinder Size Overall: 46/T46 (More)
£ 116.05
EVVA ICS KDZ Euro Key & Turn Cylinder Keyed To Differ 3 Keys TS007 3* - L35959M - 51/T51 - Nickel Plated - 3* 102MM ICS KDZ 51AS-K51 NP 003EI KD 3K
L35959M Ref: 3* 102MM ICS KDZ 51AS-K51 NP 003EI KD 3K
Cylinder Size Overall: 51/T51 (More)
£ 118.31
EVVA ICS KDZ Euro Key & Turn Cylinder Keyed To Differ 3 Keys TS007 3* - L35961M - 41/T51 - Nickel Plated - 3* 92MM ICS KDZ 41AS-K51 NP 003EI KD 3K
L35961M Ref: 3* 92MM ICS KDZ 41AS-K51 NP 003EI KD 3K
Cylinder Size Overall: 41/T51 (More)
£ 116.05
