EVVA EPSnp DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3*

EVVA EPSnp DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3*

Evva logo Evva More Evva Double Euro
Selected price
£97.15
Including VAT
Sale · was £97.15

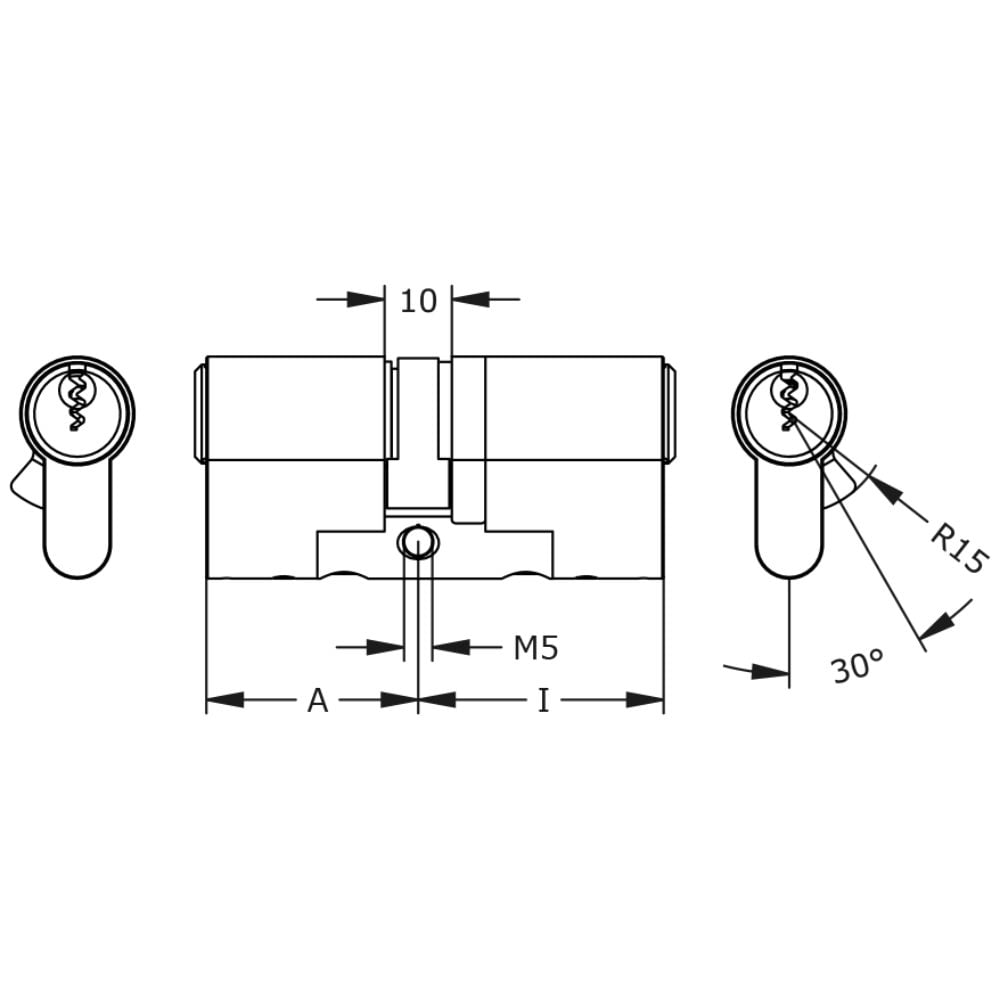

Overall length: 77 mm

Measure each side from the centre of the fixing screw.

Internal · 41 mm External · 36 mm

This size combination is unavailable. Adjust either side.

Part L35974M · 41/36 · Nickel Plated · Keys supplied:
Browse all sizes

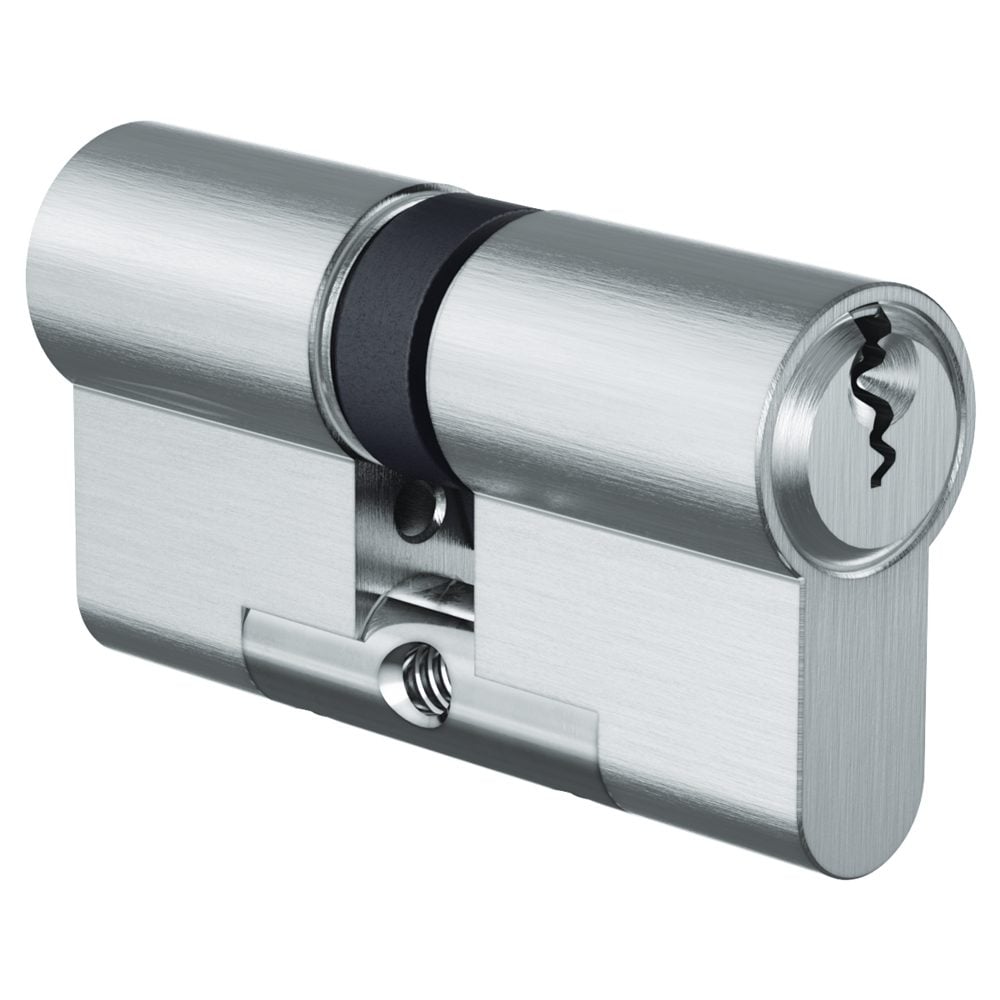

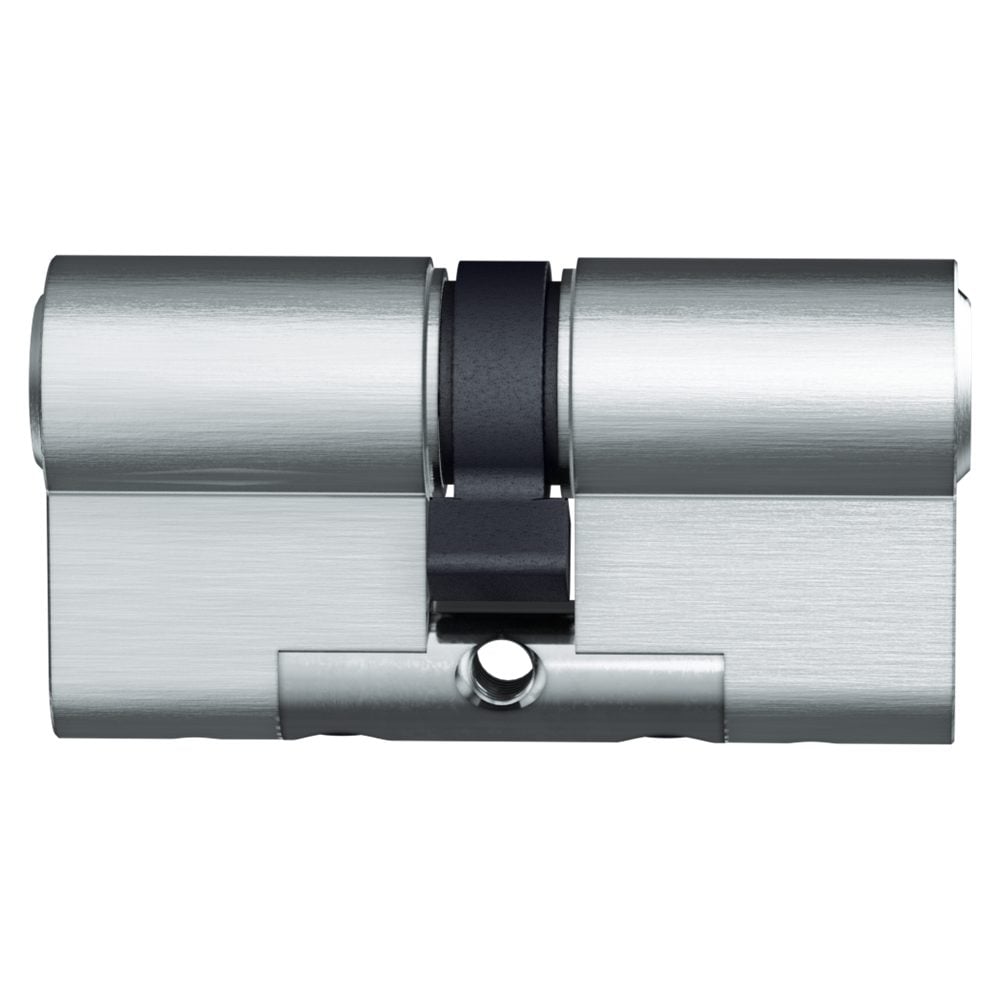

The EVVA EPSnp DZ Euro Double Cylinder is a high-security mechanical locking solution offering exceptional convenience, manageability, and protection. This TS007 3-star rated cylinder features a robust 6-pin mechanism and is patent-protected until 2041, providing long-term legal and technical protection against unauthorised key copying.

Supplied keyed to differ on our secure in-house section, each cylinder comes complete with 3 keys. It is highly resistant to common attack methods, including bumping, drilling, and picking, and is fire-tested to Grade B (BS EN 1634) for peace of mind.

This cylinder is available in a range of overall sizes (from 41/36 to 51/51) and body lengths (from 77mm to 102mm). Please select your required A-side and B-side measurements from the options below to find the perfect fit for your door.

Additionally, the EVVA EPS system can accommodate a variety of optional special features for bespoke requirements, including SOS clutch cams (anti-barricade), cog wheel cams, and sea water protection.

Technical Specifications

  • Cylinder Profile: Euro
  • Cylinder Type: Double Euro
  • Cylinder System: EVVA EPSnp
  • Mechanism: 6 Pin
  • Finish: Nickel Plated
  • Keying: Keyed to differ (supplied with 3 keys)
  • Security Standards: TS 007:2015 - 3 Star, BS EN 1303:2005, Secured by Design, BS EN 1634 (Grade B Fire Tested)
  • Sizes Available: Overall sizes from 41/36 to 51/51 (body lengths 77mm to 102mm) - please select from the options below

Key Features

  • TS007 3-Star Rated: Meets high security standards for ultimate protection against forced entry
  • Patent Protected Until 2041: Ensures legal and technical protection against unauthorised key duplication
  • High Attack Resistance: Built to resist picking, drilling, and bumping attempts

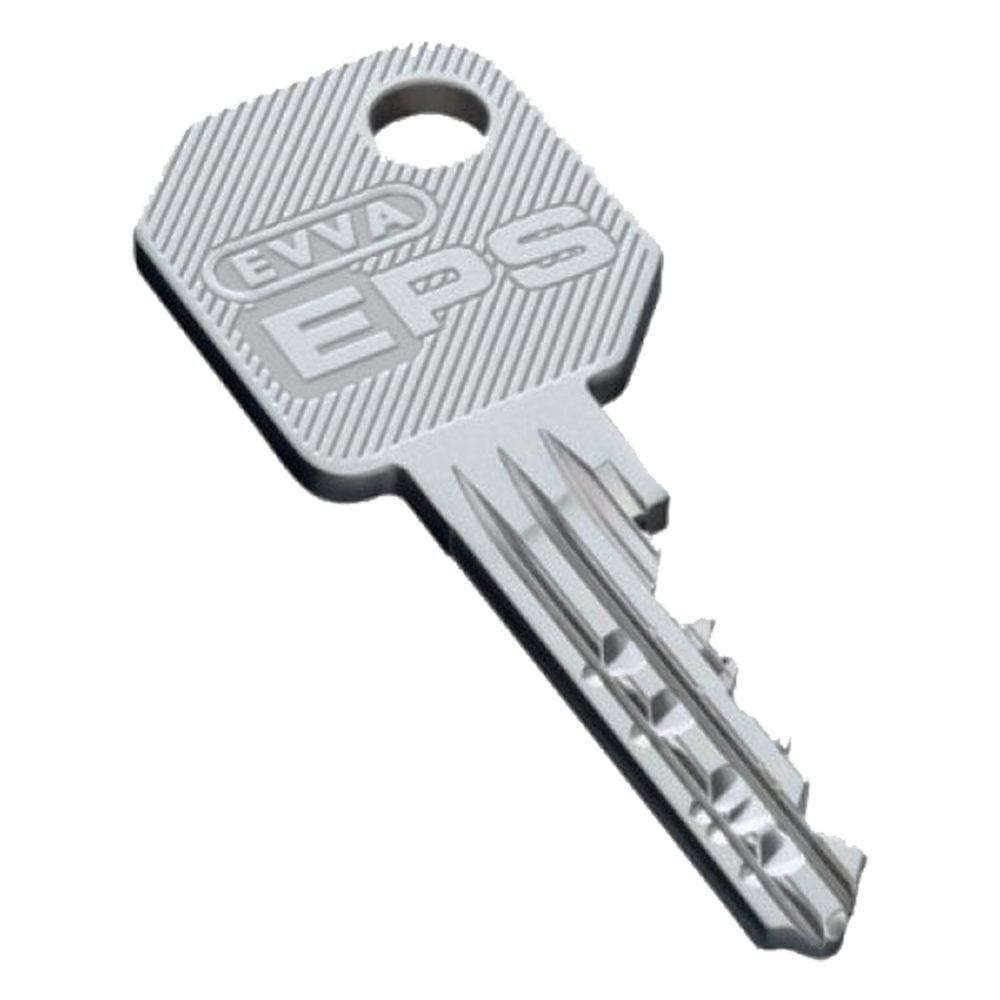

  • Supplied with 3 Keys: Keyed to differ on our secure in-house section
  • Fire Tested: Grade B (BS EN 1634) approval for fire door suitability
  • Multiple Size Options: Available in various lengths and offsets to suit your specific door requirements (please choose below)
Downloads
Datasheets and product documents
Datasheet.pdf
PDF Generated datasheet
Download
reviews
4.8 out of 5
19,000+ reviews on Trustpilot
Why we left Trustpilot
8 hours ago

Easy to navigate website and ordering if you have the information required. Packed well and fast delivery. 1st class service. Highly recommend this company.

Sandra Thorn
Read reviews on Google
Master Locksmiths Association BSI Kitemark

Master locksmiths with BSI accreditation

MLA approved locksmiths, BSI certified key systems, and independently audited security standards.

Image Part No. Cylinder size Manufacturer Ref Price Actions
EVVA EPSnp DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3* - L35974M - 41/36 - Nickel Plated - 3* 77MM EPS DZ 41AS-36 NP 44BE1 KD 3K
L35974M 41/36 (More) 3* 77MM EPS DZ 41AS-36 NP 44BE1 KD 3K
£ 97.15
EVVA EPSnp DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3* - L35976M - 41/41 - Nickel Plated - 3* 82MM EPS DZ 41AS-41 NP 44BE1 KD 3K
L35976M 41/41 (More) 3* 82MM EPS DZ 41AS-41 NP 44BE1 KD 3K
£ 98.28
EVVA EPSnp DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3* - L35978M - 46/46 - Nickel Plated - 3* 92MM EPS DZ 46AS-46 NP 44BE1 KD 3K
L35978M 46/46 (More) 3* 92MM EPS DZ 46AS-46 NP 44BE1 KD 3K
£ 100.54
EVVA EPSnp DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3* - L35980M - 51/51 - Nickel Plated - 3* 102MM EPS DZ 51AS-51 NP 44BE1 KD 3K
L35980M 51/51 (More) 3* 102MM EPS DZ 51AS-51 NP 44BE1 KD 3K
£ 102.78
EVVA EPSnp DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3* - L35982M - 41/51 - Nickel Plated - 3* 92MM EPS DZ 41AS-51 NP 44BE1 KD 3K
L35982M 41/51 (More) 3* 92MM EPS DZ 41AS-51 NP 44BE1 KD 3K
£ 100.54
Protip: ctrl+f auto-expands all the products
EVVA EPSnp DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3* - L35974M - 41/36 - Nickel Plated - 3* 77MM EPS DZ 41AS-36 NP 44BE1 KD 3K
L35974M Ref: 3* 77MM EPS DZ 41AS-36 NP 44BE1 KD 3K
Cylinder Size Overall: 41/36 (More)
£ 97.15
EVVA EPSnp DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3* - L35976M - 41/41 - Nickel Plated - 3* 82MM EPS DZ 41AS-41 NP 44BE1 KD 3K
L35976M Ref: 3* 82MM EPS DZ 41AS-41 NP 44BE1 KD 3K
Cylinder Size Overall: 41/41 (More)
£ 98.28
EVVA EPSnp DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3* - L35978M - 46/46 - Nickel Plated - 3* 92MM EPS DZ 46AS-46 NP 44BE1 KD 3K
L35978M Ref: 3* 92MM EPS DZ 46AS-46 NP 44BE1 KD 3K
Cylinder Size Overall: 46/46 (More)
£ 100.54
EVVA EPSnp DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3* - L35980M - 51/51 - Nickel Plated - 3* 102MM EPS DZ 51AS-51 NP 44BE1 KD 3K
L35980M Ref: 3* 102MM EPS DZ 51AS-51 NP 44BE1 KD 3K
Cylinder Size Overall: 51/51 (More)
£ 102.78
EVVA EPSnp DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3* - L35982M - 41/51 - Nickel Plated - 3* 92MM EPS DZ 41AS-51 NP 44BE1 KD 3K
L35982M Ref: 3* 92MM EPS DZ 41AS-51 NP 44BE1 KD 3K
Cylinder Size Overall: 41/51 (More)
£ 100.54
Review variants and add to basket when ready.
