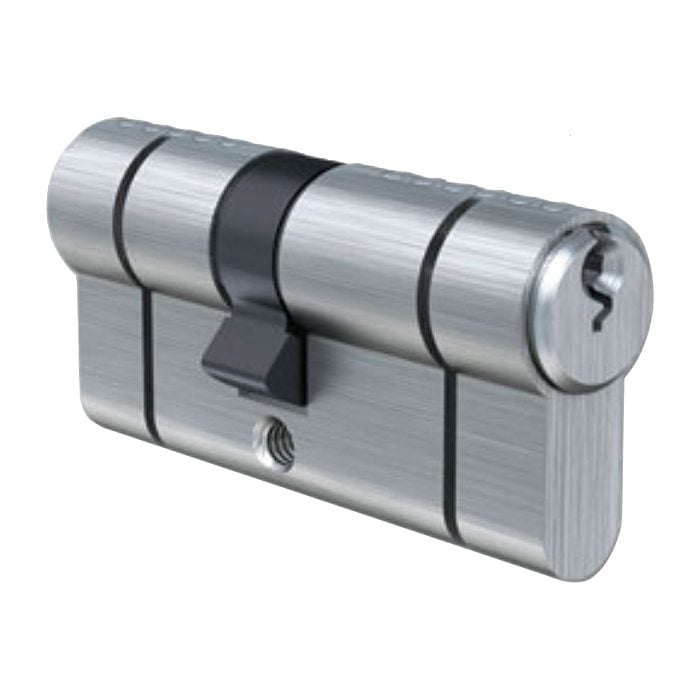

EVVA A5 Snap Resistant Euro Double Cylinder (PBP)

The EVVA A5 Snap Resistant Euro Double Cylinder (PBP) is a robust and reliable 5-pin locking system designed to provide dependable security for your doors. This cylinder features a Pre-Determined Break Point (PBP) on both sides, offering enhanced protection against lock-snapping attacks. In the event of an attempted forced entry, the cylinder is designed to snap cleanly at the third chamber. This leaves the rest of the cylinder securely inside the lock, preventing intruders from gaining access while still allowing the lock to be operated.

Supplied in a high-quality nickel-plated finish, this double euro cylinder is keyed to differ and comes complete with a connecting screw and three keys as standard. It is also fire-tested, offering up to 30 minutes of fire resistance at temperatures up to 821°C.

This cylinder is available in a wide range of sizes to suit different door thicknesses. Overall body lengths range from 68mm to 102mm, with overall cylinder sizes ranging from 27/41 to 46/56. Please choose your required cylinder size, overall length, and breakaway measurements from the options below.

Technical Specifications

• Brand: Evva
• System: Evva A5 (5-pin mechanism)
• Profile: Euro Double Cylinder
• Finish: Nickel Plated
• Keying: Keyed to Differ
• Overall Cylinder Sizes: Ranges from 27/41 to 46/56 (please select from the options below)
• Body Length: 68mm to 102mm (please select from the options below)
• A Side Breakaway: 27mm to 46mm (please select from the options below)
• B Side Breakaway: 36mm to 61mm (please select from the options below)
• Fire Resistance: 30 minutes to 821°C (Grade 0)
• Keys Supplied: 3 keys as standard
• Secured By Design: No
• Cylinder Kitemark: No (not TS007 rated)

Key Features

• Snap Resistant Protection: Features a Pre-Determined Break Point (PBP) that snaps at the third chamber under attack, keeping the lock mechanism secure.
• Robust 5-Pin Mechanism: Provides reliable, basic physical security for residential and commercial doors.
• Fire Rated: Tested to withstand temperatures up to 821°C for 30 minutes.
• Complete Package: Supplied with three keys and a connecting screw for straightforward installation.
• Multiple Size Options: Available in a variety of overall lengths and offset sizes to fit your specific door setup.
