Banham S464 Euro Double Cylinder

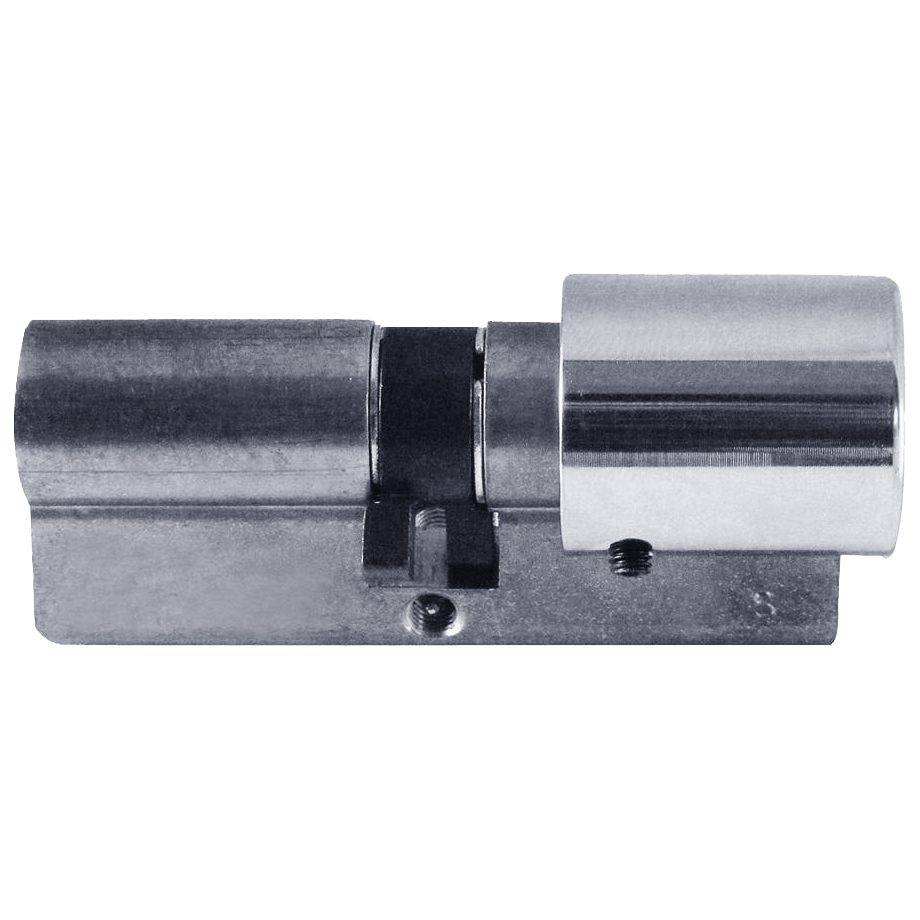

The Banham S464 Euro Double Cylinder (also known as the BPL1000) is a high-security double cylinder designed for use with Banham security locks, including older Banham S464 mortice locks. This double cylinder is operated with a key from both sides and features a robust security cowl on the external side to protect against tampering and physical attack.

It features a split cam design and utilizes a high-security Banham 12-pin mechanism. To ensure maximum key control and security, duplicate keys must be obtained directly from Banham patent locks.

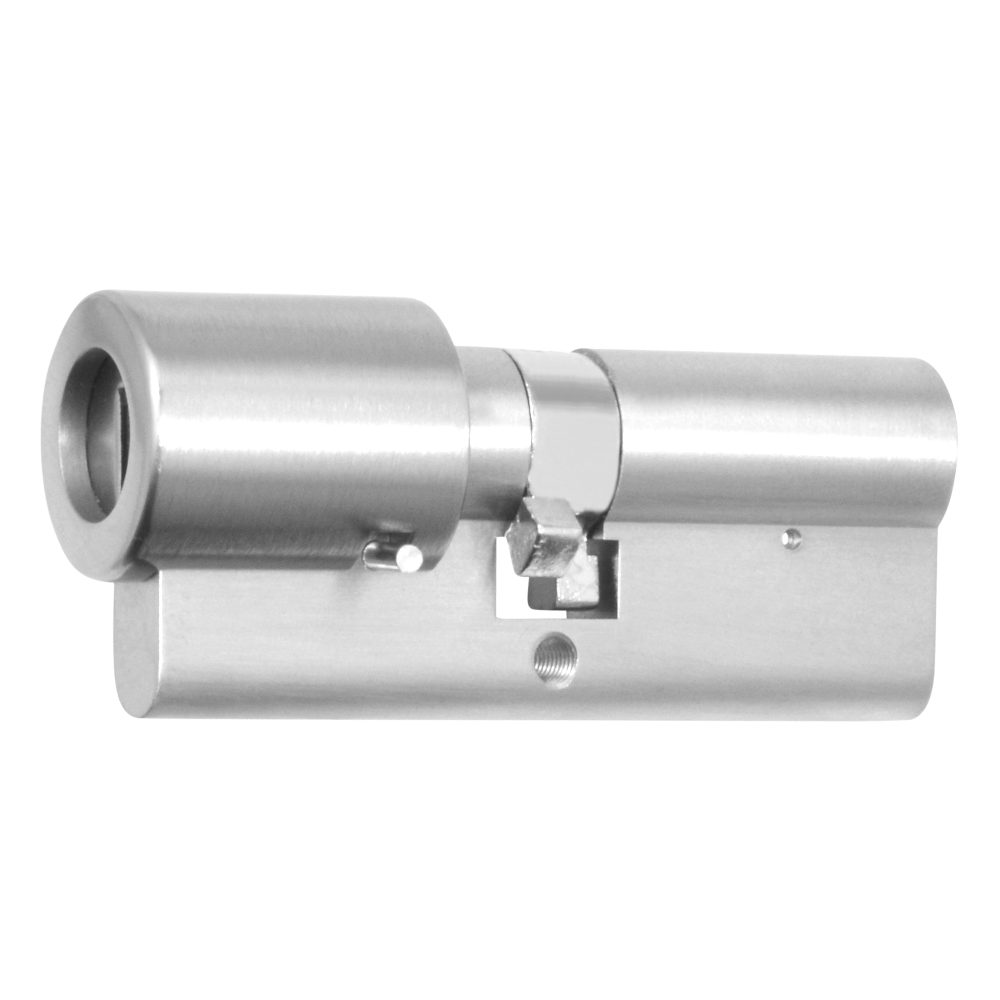

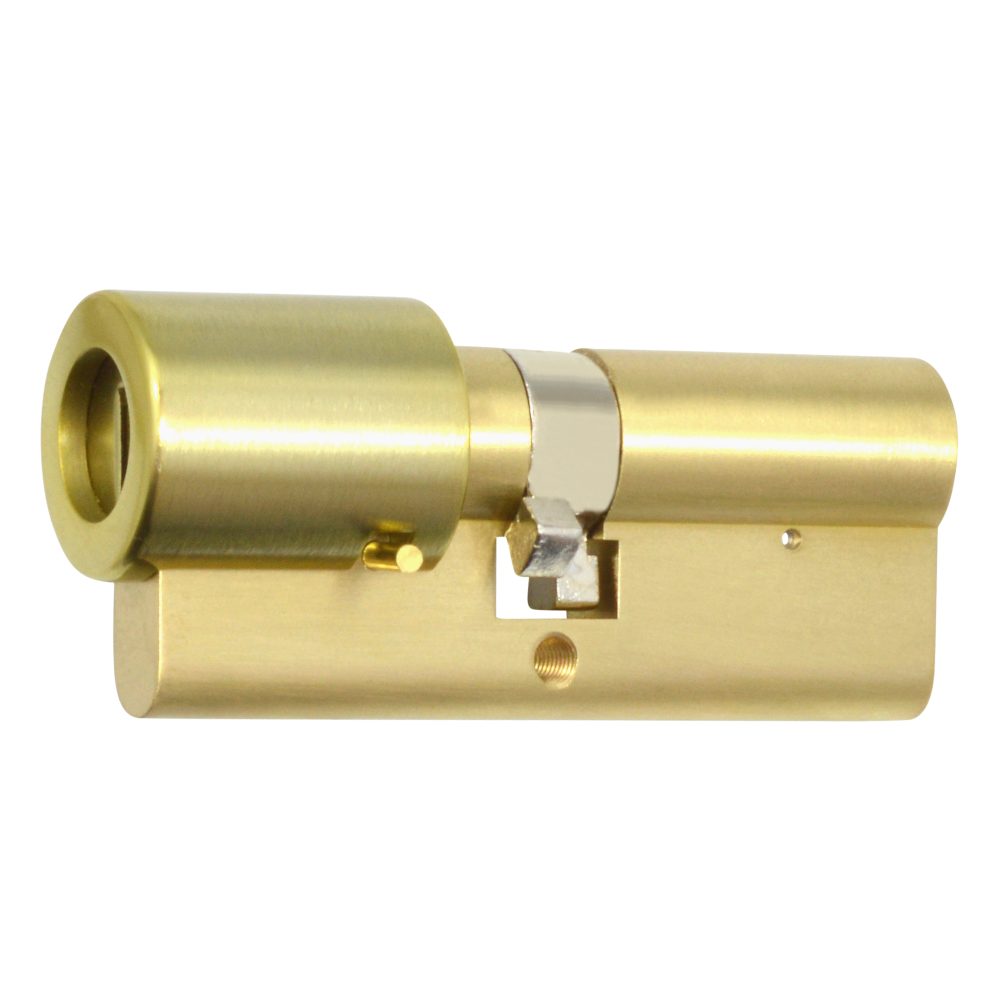

This cylinder is available in multiple finishes, including Polished Brass and Satin Chrome, with corresponding manufacturer references (BPL1000 SB and BPL1000 SC). Please choose your preferred options from the selection below.

Technical Specifications

• Brand: Banham
• Cylinder Profile: Euro
• Cylinder Type: Double Euro
• Overall Length: 72mm (36mm / 36mm)
• Cylinder Size with Cam: 31mm / 10mm / 31mm
• Mechanism: 12-pin
• Keying: Keyed to differ

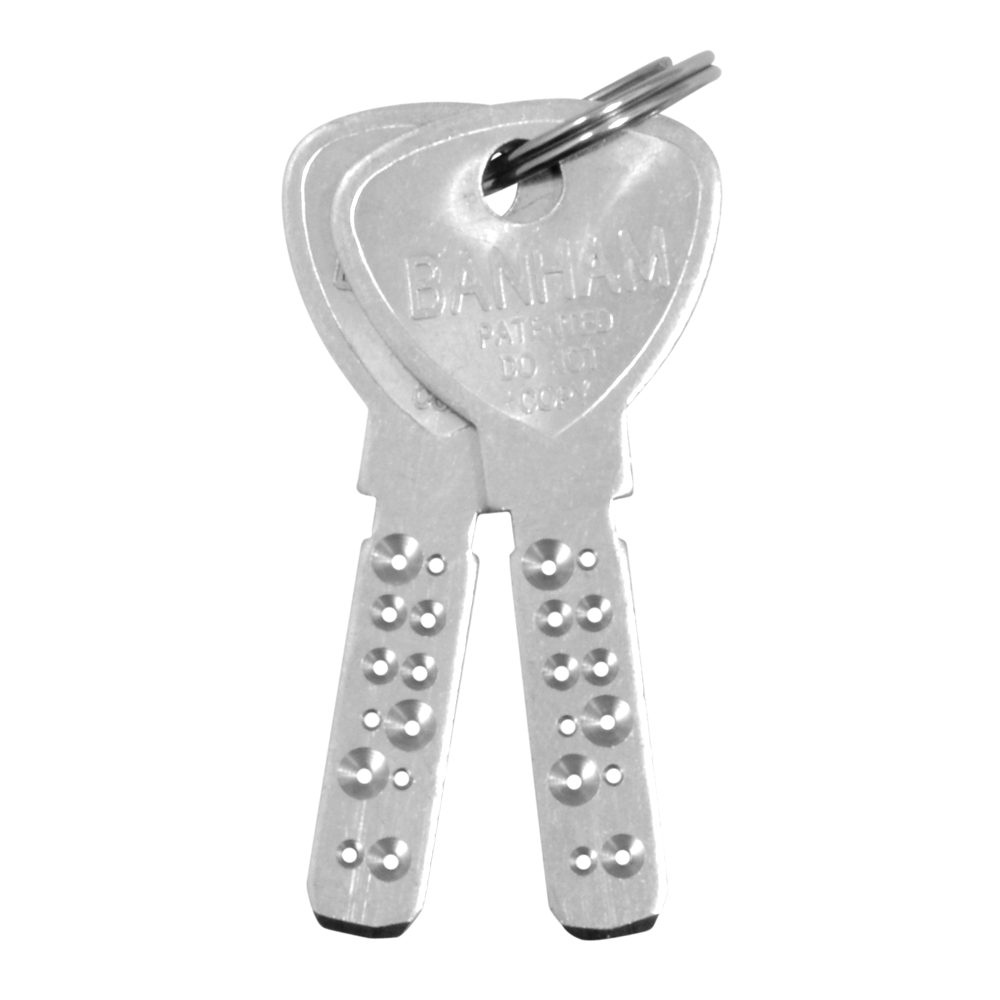

• Keys Supplied: 2
• Fire Tested: Grade 0
• Weight: 314g

Key Features

• Security Cowl: Features a protective security cowl on the external side of the cylinder to resist tampering.
• Split Cam: Equipped with a split cam mechanism.
• Enhanced Key Control: Duplicate keys must be obtained from Banham patent locks to prevent unauthorized duplication.
• Multiple Finishes: Available in Polished Brass or Satin Chrome to match your door hardware (please select from the options below).
• Compatibility: Designed for use with Banham security locks, including older Banham S464 mortice locks.
